Metal curtain wall fabrication usually needs accurate panel blank cutting, hole or slot processing, optional V-grooving, CNC press brake bending and careful surface protection. For aluminum facade panels and architectural cladding, the key issue is not only bend force. The finished panel must keep visible edges clean, flange dimensions repeatable, corners consistent and coating surfaces free from tooling marks.
Quick Machine Recommendation
For curtain wall panel bending, start with the maximum panel size, aluminum thickness, flange height, outside corner requirement and visible-surface standard. Rucheng usually recommends a CNC press brake machine with accurate back gauge, segmented tooling and surface protection. Add a fiber laser cutting machine or shearing machine for blanks, a CNC punching machine for repeated holes and slots, and grooving when the design requires sharper architectural corners.
| Panel Work | Recommended Machine | Selection Notes |
|---|---|---|
| Aluminum facade panel blanks | Fiber laser cutting machine or hydraulic shearing machine | Laser fits mixed shapes, corner cutouts and project drawings; shearing fits rectangular panel blanks. |
| Mounting holes, slots and repeated cutouts | CNC punching machine or laser cutting machine | Punching is efficient for repeated features; laser is more flexible for changing layouts. |
| Visible sharp corners or tight outside radius | Grooving process before bending | Useful for architectural panels that require a crisp edge and controlled outside appearance. |
| Panel flange bending and returns | CNC hydraulic press brake with segmented tooling | Back gauge accuracy, tooling clearance and surface protection matter more than tonnage alone. |
| Long panels or thick cladding parts | CNC crowning press brake or tandem press brake | Crowning helps keep bend angle consistent across long facade panels. |
Press Brake Selection for Curtain Wall Panels
Most aluminum curtain wall panels are not extremely thick, but the parts are often large, visible and easy to mark. A practical facade panel press brake should be selected by bending length, back gauge repeatability, tooling style, surface protection, operator handling and the need for crowning. The machine must also support repeat production across many panel sizes without long setup time.
| Facade Panel Type | Typical Requirement | Press Brake Direction |
|---|---|---|
| Standard aluminum cladding panels | Repeat flanges, clean visible surface, medium panel size | CNC hydraulic press brake, segmented tooling, protective film or mark-free tooling. |
| Large curtain wall panels | Long bend length, consistent angle and straight flange | Electro-hydraulic CNC press brake with crowning and front support. |
| Sharp architectural edge panels | Small outside radius and high visual consistency | Grooving plus press brake bending with matched punch and die radius. |
| Mixed facade panels and bracket work | Panels, fixing plates, brackets and support channels in one shop | CNC press brake with flexible tooling, plus punching or laser cutting upstream. |
Buyer note: For curtain wall panels, ask for tooling and surface-protection advice together with the press brake quote. A machine with enough tonnage can still create visible marks, poor corners or flange variation if the tooling setup is wrong.
Production Line Configuration
| Factory Type | Suggested Configuration | Best Fit |
|---|---|---|
| Project-based facade workshop | Fiber laser cutting machine + CNC press brake + basic deburring and surface protection | Changing panel sizes, custom cutouts and low to medium volume architectural projects. |
| Standard aluminum panel producer | Shearing machine + grooving process + CNC press brake + punching or drilling | Rectangular panel blanks, repeat flanges and consistent architectural edges. |
| Facade bracket and panel supplier | Laser cutting + CNC punching + CNC press brake + deburring/tumbling | Combined production of curtain wall panels, facade brackets and support accessories. |

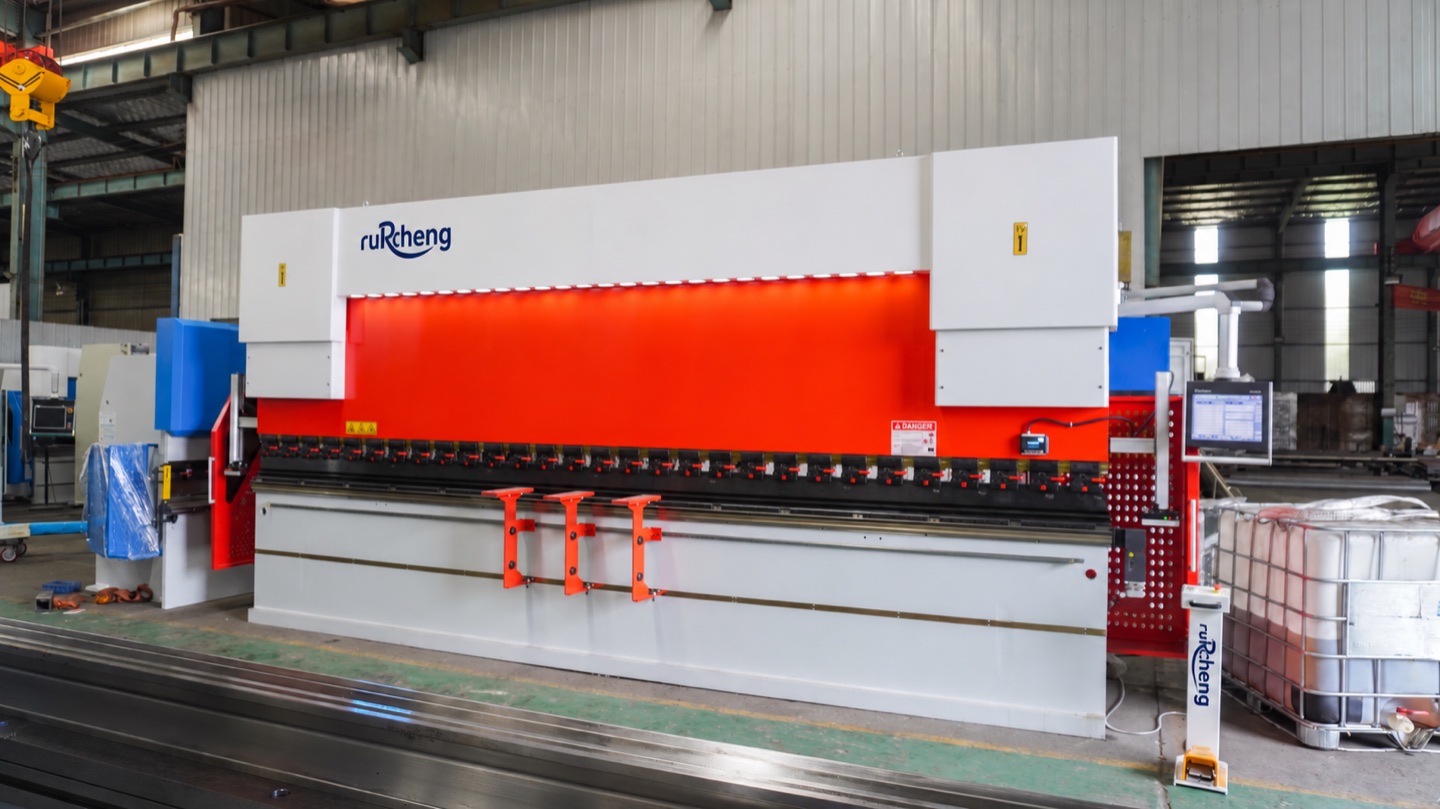

| Large panel and long profile factory | Long-bed CNC press brake or tandem press brake + crowning + front supports | Long facade panels, return flanges, channels and straightness-sensitive profiles. |
Grooving, Bending Radius and Surface Marks
Aluminum facade panels often need a cleaner outside corner than ordinary industrial parts. If the design requires a small outside radius, the blank may be grooved before bending. If the design allows a larger radius, normal press brake air bending may be enough. The correct choice depends on coating, thickness, corner appearance, wind-load design and installation tolerance.
- Use protective film, urethane pads or mark-free tooling when the visible surface is sensitive.
- Confirm the inside bend radius before choosing the punch radius and V-die opening.
- Check minimum flange height after grooving, because narrow flanges can be difficult to gauge accurately.
- Use CNC back gauge programs when each project has different panel sizes and return flanges.
- Use crowning for long panel bends where center under-bending would affect installation fit.
FOB China Quote Checklist
To quote a metal curtain wall fabrication machine package, send the production data below. This allows Rucheng to recommend the press brake, cutting machine, punching route, tooling and surface-protection plan together.
- Panel drawings in PDF, DXF, DWG or STEP format.
- Material grade: aluminum, aluminum composite panel, galvanized steel or stainless steel.
- Thickness range, maximum panel size, maximum bend length and minimum flange height.
- Required outside corner appearance, inside bend radius and whether grooving is specified.
- Hole, slot, notch and mounting feature details.
- Visible-surface requirement, coating process and whether mark-free tooling is needed.
- Daily output, batch size, project-change frequency and factory layout.
- Controller preference, voltage, destination country and FOB China shipping terms.
FAQ
What machines are needed for metal curtain wall fabrication?
A practical curtain wall panel line normally uses cutting, punching or slotting, optional grooving, press brake bending and surface protection. The exact machine package depends on panel size, thickness, appearance requirement and production volume.
What press brake is suitable for aluminum facade panel bending?
Use a CNC hydraulic press brake with enough bending length, accurate back gauge, segmented tooling and surface protection. Long panels may require crowning, front supports or tandem bending.
Do curtain wall panels need grooving before bending?
Not always. Grooving is useful when a sharp architectural corner or small outside radius is required. If the design allows a normal radius, direct press brake bending may be more economical.
What information is needed for a curtain wall panel machine quote?
Send panel drawings, material, thickness, maximum size, flange height, bend radius, cutout details, surface requirement, daily output, voltage, tooling requirement and FOB China shipping term.
