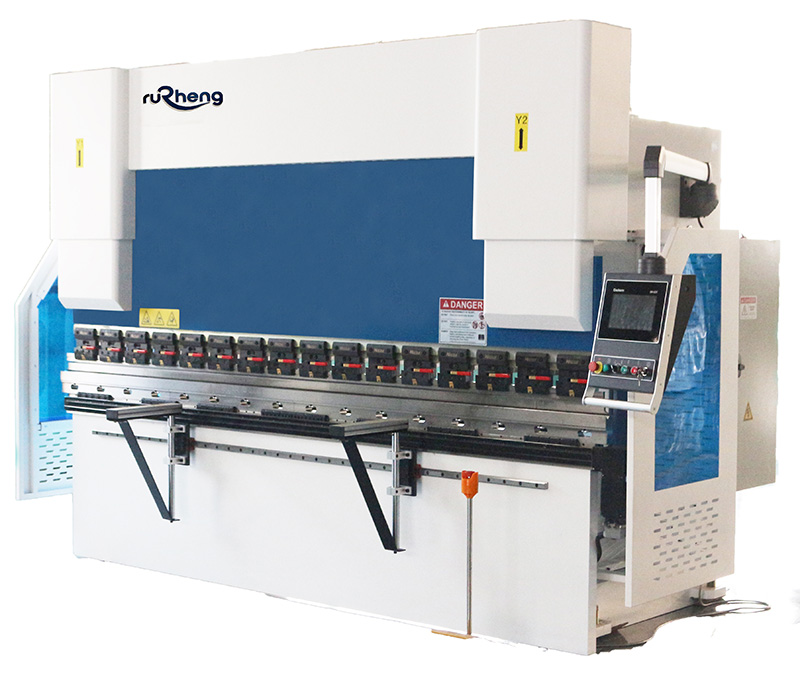

How to Operate a CNC Press Brake: Step-by-Step Guide (2026)

Operating a CNC press brake involves five core phases: machine inspection, tooling setup, CNC programming, running the bend, and post-bend quality checks. A trained operator can complete setup in 15–30 minutes and consistently achieve bend angles within ±0.5° of tolerance.

This guide covers the complete CNC press brake operation workflow for 2026, including modern CNC controller programming, bending method comparison (air bending vs. bottoming vs. coining), springback compensation, and essential safety practices for OSHA compliance.

Step 1: Pre-Operation Machine Inspection

Never skip the pre-operation inspection. A 5-minute check prevents equipment damage, defective parts, and serious injuries. This is also required under OSHA 29 CFR 1910.212 and ANSI B11.3 standards for press brake operation.

Daily Inspection Checklist

• Hydraulic oil level — check the sight glass on the hydraulic tank. Oil should be between MIN and MAX marks. Low oil causes inconsistent pressure and ram hesitation.
• Safety devices — test the emergency stop button, verify light curtains are active (check indicator LEDs), and confirm the foot pedal guard is in place.
• Tooling condition — inspect punch tip for cracks or deformation; check die shoulders for wear, scoring, or pitting. Replace tooling that shows visible damage.

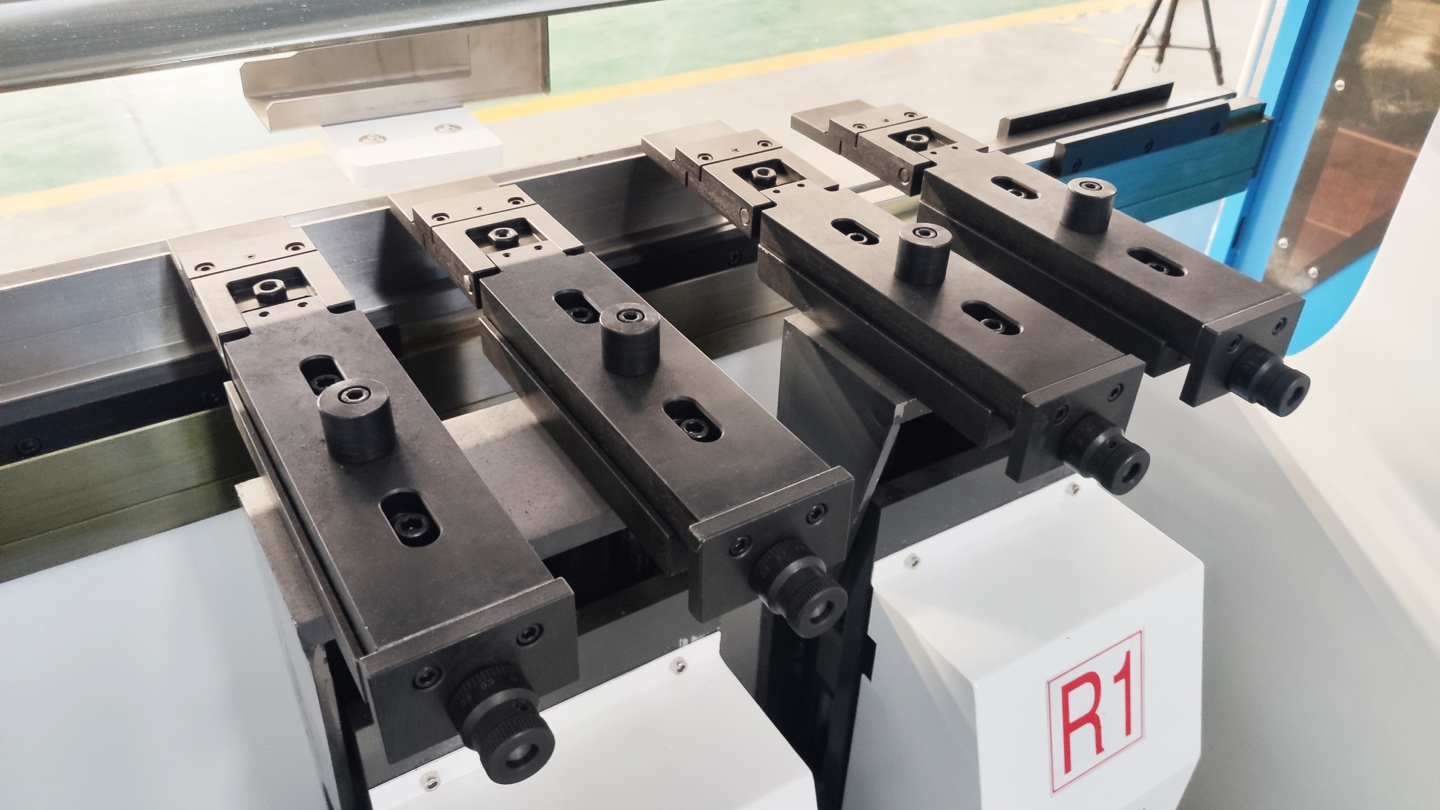

• Back gauge fingers — verify they move freely across the full X-axis travel without binding. Clean any scrap metal from the gauge rail.
• Hydraulic hoses and connections — look for leaks, chafing, or loose fittings. Oil on the floor near the machine is a red flag.
• Work area — clear the bending zone of tools, scrap metal, and obstructions. Ensure adequate lighting and a clean anti-fatigue mat for the operator.

Step 2: Tooling Selection and Installation

Choosing the right punch and die is the most important decision in press brake setup. Incorrect tooling is the #1 cause of bent angle errors, cracking, and die marks on finished parts.

Selecting the Right Punch

For most air bending operations, use an 85° or 88° standard punch. For acute bends under 45°, use a 30° or 45° acute-angle punch. The punch nose radius should be at least equal to the material thickness to prevent cracking — for 3 mm steel, use a minimum 3 mm nose radius punch.

V-Die Selection: The 8× Rule

The most important die selection rule: V-die opening = 8× material thickness for mild steel air bending.

Installing Punch and Die

1. Power off and apply lockout/tagout (LOTO) before touching tooling.
2. Clean the tool holder slots and punch/die seating surfaces with a clean rag.
3. Insert the punch into the upper tool holder — align the tang with the slot and engage the safety lock pin.
4. Set the lower die in the die holder, centering the V-groove under the punch tip.
5. Remove LOTO, power on, and manually jog the ram down slowly to verify punch-to-die alignment. The punch tip must enter the die V-groove centered within 0.5 mm.
6. Set the Y-axis reference height on the CNC controller for the new tooling setup.

Step 3: Programming the CNC Controller

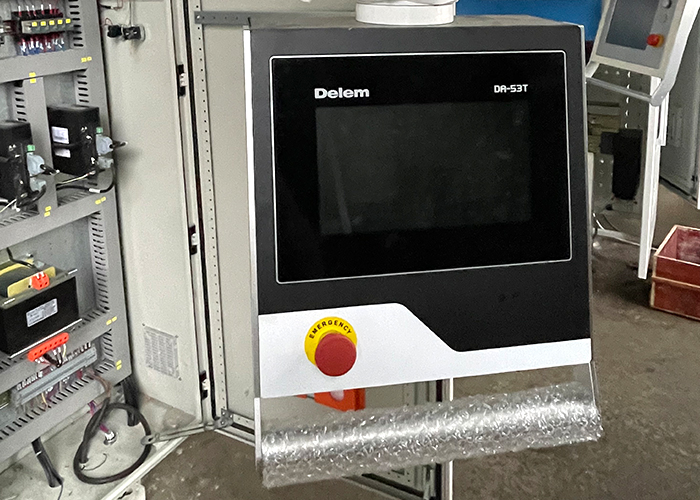

Modern CNC press brakes use controllers such as the Delem DA-66T, Cybelec ModEVA, or ESA S660 that calculate bend parameters automatically from the material and geometry inputs you provide. Here is the standard programming sequence:

Required Input Parameters

• Material type — select from the material library (mild steel, stainless steel, aluminum, etc.). This loads the correct tensile strength and springback factor.
• Material thickness — enter the actual measured thickness, not the nominal size. Even 0.1 mm difference shifts the bend angle by 1–2°.
• Bend angle — the target finished angle (e.g., 90°). The CNC will calculate the required punch depth (Y-axis) automatically, including springback compensation.
• Bend length — the full length of the bend in mm. Used for tonnage calculation.
• Flange length — the distance from the bend line to the sheet edge. The CNC uses this to calculate the back gauge X-axis position.
• V-die width — enter the V-die opening you installed. This is critical for the tonnage and angle calculations.
• Bend sequence — for multi-bend parts, define the order of bends to avoid part-to-machine collisions. Use the CNC's 3D simulation if available.

Springback Compensation

Springback is the elastic recovery of the metal after the punch is released. The CNC compensates by overbending — typically 2–5° for mild steel, 4–8° for stainless steel, and 3–6° for aluminum. Most modern controllers handle this automatically using built-in material databases. If your controller does not have automatic compensation, start with a 3° overbend and adjust after the test bend.

Tonnage Calculation

The CNC calculates required tonnage automatically. Always verify it is within the machine's rated capacity — working above 80% of rated capacity for extended periods accelerates hydraulic wear. The formula for reference: F = 1.42 × Rm × S² × L / V (kN), where Rm = tensile strength (MPa), S = thickness (mm), L = bend length (m), V = V-die width (mm).

Bending Methods: Air Bending vs. Bottoming vs. Coining

Before running your first bend, understand the three primary bending methods. Each has different force requirements, angle accuracy, and springback characteristics.

Recommendation for most shops: Use air bending as your default method. It requires the least tonnage, allows one die set to bend multiple angles, and modern CNC controllers handle springback compensation automatically. Switch to bottoming only when you need consistent angles across high-volume production without CNC fine-tuning.

Step 5: Running the Bending Operation

With the machine inspected, tooling installed, and program entered, follow this sequence for a successful bend:

1. Test bend on scrap material — always run the first bend on a scrap piece from the same material batch. Use the same dimensions as the production part.
2. Place the sheet against the back gauge — slide the material between the punch and die, making firm contact with both back gauge fingers. Misalignment by 1 mm shifts the flange length by the same amount.
3. Confirm the CNC is in single-step mode — for the first bend, use single-stroke mode so the ram stops at the programmed depth and waits for your confirmation.
4. Initiate the bend with the foot pedal — press and hold the foot pedal. The ram descends at fast approach speed, then slows to bending speed as it nears the material. Release the pedal to stop at any time.
5. Measure the test bend angle — use a digital protractor or angle gauge. If the angle is within ±0.5°, proceed to production. If not, adjust the Y-axis depth on the CNC controller in 0.1 mm increments.
6. Check the flange length — measure from the bend line to the sheet edge. Adjust the back gauge X-axis if needed.
7. Switch to automatic mode for production — once the test bend is confirmed, switch the CNC to automatic/continuous mode. The machine will now complete each bend cycle when you press and hold the foot pedal.

Step 6: Post-Bend Quality Checks

After bending, verify these quality parameters before releasing parts to the next operation:

• Bend angle — use a digital protractor. Tolerance is typically ±0.5° for structural parts, ±1° for general fabrication.
• Flange length — measure with a steel rule or digital caliper from the bend line. Typical tolerance: ±0.5 mm.
• Straightness — lay the bent part on a flat surface. Bow (curvature along the bend length) greater than 1 mm per meter indicates a crowning calibration issue.
• Surface condition — check for die marks, scratches, or cracking at the bend zone. Minor die marks can be addressed with die lubricant or protective die film.
• First-article inspection — for new programs, inspect the first 3 parts and record measurements. Adjust the CNC program and re-run if any dimension is out of tolerance.

CNC Press Brake Safety: Essential Rules

Press brakes generate thousands of kilonewtons of force. Finger and hand crush injuries are the most common — and most preventable — press brake accidents. Follow these non-negotiable safety rules:

Required PPE for Press Brake Operation

• Safety glasses — eye protection from metal chips and hydraulic fluid splashes.
• Steel-toed boots — protection from dropped sheet metal edges.
• Hearing protection — continuous high-tonnage bending exceeds 85 dB in many shops.
• Cut-resistant gloves (when handling sheet, not during bending) — wear gloves when loading and unloading parts, but remove or keep hands clear of the die area during the bend cycle.

Preventive Maintenance Schedule

Consistent maintenance keeps your CNC press brake accurate and extends machine life. Here is the recommended schedule for hydraulic CNC press brakes:

Frequently Asked Questions

Conclusion

Operating a CNC press brake efficiently comes down to mastering six steps: thorough pre-operation inspection, correct tooling selection using the 8× V-die rule, accurate CNC programming with real material thickness and springback compensation, disciplined test bending before production runs, consistent quality checks, and strict safety adherence.

Modern CNC press brakes handle much of the calculation automatically — but the operator's judgment in tooling selection, material handling, and safety observation remains the most important factor in achieving accurate, consistent bends. Invest in proper training, maintain your machine on schedule, and use the test bend every time you change material batches.

For operators new to CNC press brake operation, we recommend spending the first week running practice programs on scrap material at 50% of rated tonnage, building muscle memory for material placement and back gauge registration before moving to production parts.
