If you're shopping for a press brake, you've probably encountered the terms "CNC press brake" and "hydraulic press brake" used as if they are two completely different machines. But here's what most articles won't tell you: these two categories are not mutually exclusive. A CNC press brake can be — and usually is — hydraulic. The real difference lies in the control system, not the drive mechanism. In this comprehensive guide, we'll clear up the confusion, compare every aspect that matters, and help you decide which press brake type is right for your operation.
1. First, Let's Clear Up the Terminology
The comparison between a "CNC press brake" and a "hydraulic press brake" is a bit like comparing "automatic cars" with "gasoline cars" — one describes the transmission (control), and the other describes the engine (power source). They can coexist in the same machine.
In the industry, when people say "hydraulic press brake", they usually mean a basic hydraulic press brake with simple NC (Numerical Control) or manual controls. When they say "CNC press brake", they typically mean a press brake with an advanced Computer Numerical Control system — which can be powered by hydraulics, servo-hydraulics, or even pure electric servo motors.

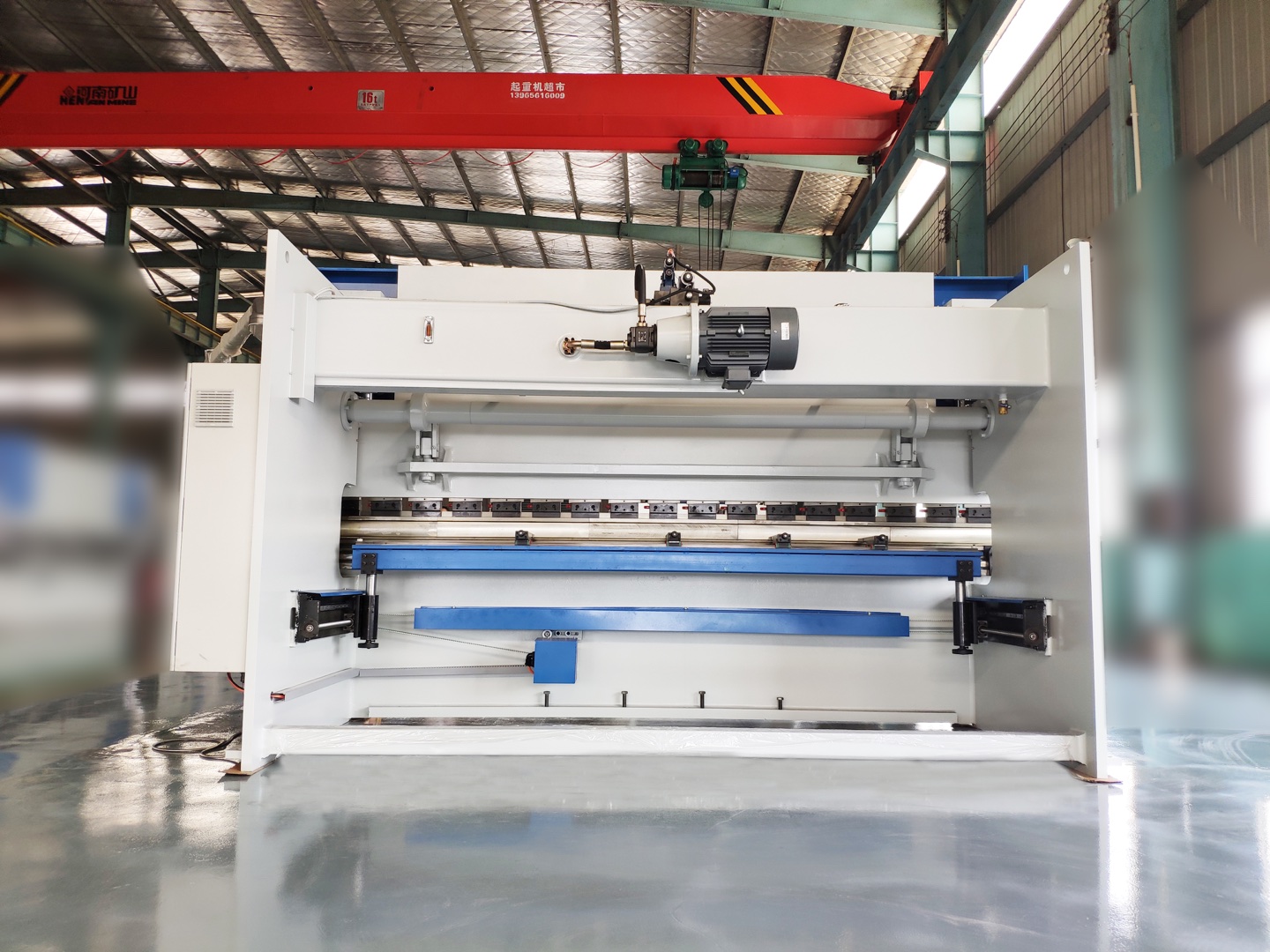

2. What Is a Hydraulic Press Brake?
A hydraulic press brake uses hydraulic cylinders to generate the force needed to bend sheet metal. Oil is pumped into cylinders mounted on the C-frames of the machine, which push the ram (upper beam) downward against the workpiece resting on the lower die.
Basic hydraulic press brakes have been the workhorses of sheet metal fabrication shops since the 1960s. They replaced older mechanical (flywheel-driven) brakes and offered significant advantages in safety, control, and versatility.
Key Characteristics of a Basic Hydraulic Press Brake
- Drive system: Hydraulic cylinders powered by a fixed-speed pump
- Control system: Simple NC controller or manual depth stops
- Backgauge: Motorized but with limited axes (typically X-axis only)
- Programming: Operator manually enters each bend step
- Bend sequencing: Determined by the operator, not the machine
- Tonnage range: 40 tons to 2,000+ tons
- Typical accuracy: ±0.05 mm to ±0.1 mm positioning
Hydraulic press brakes are reliable and capable of producing high tonnage for thick plate bending. However, the operator needs more skill and experience to achieve consistent results, especially on complex parts with multiple bends.
3. What Is a CNC Press Brake?
A CNC press brake is a press brake equipped with a Computer Numerical Control system that automates virtually every aspect of the bending process. The operator inputs the desired part dimensions (or imports a CAD file), and the CNC controller automatically calculates the bend sequence, ram depth, backgauge positions, and even suggests the right tooling.
Modern CNC press brakes typically use servo-hydraulic drive systems — combining hydraulic power with servo-controlled valves and variable-speed pumps for maximum precision and energy efficiency. Some high-end models use fully electric servo motors instead of hydraulics entirely.
Key Characteristics of a CNC Press Brake
- Drive system: Servo-hydraulic or all-electric servo motors
- Control system: Advanced CNC controller (e.g., Delem DA-66T, ESA S660, Cybelec ModEva)
- Backgauge: Multi-axis (X, R, Z1, Z2 — up to 6+ axes)
- Programming: Automatic bend calculation from part geometry
- Bend sequencing: Auto-calculated with collision detection
- Tonnage range: 40 tons to 2,000+ tons
- Typical accuracy: ±0.01 mm positioning with real-time angle correction
4. CNC Press Brake vs Hydraulic Press Brake: Head-to-Head Comparison
Now that we understand what each machine type offers, let's compare them across the factors that matter most when choosing a press brake for your shop.
4.1 Control System and Automation
The biggest difference between a CNC and a basic hydraulic press brake is the level of automation. A CNC press brake acts as a "smart" machine — it calculates, adjusts, and optimizes the bending process automatically. A basic hydraulic brake relies on the operator's knowledge for programming each step, selecting tools, and determining the bend order.
4.2 Precision and Repeatability
CNC press brakes achieve significantly higher precision. With servo-controlled hydraulic valves (or electric servo drives), real-time angle measurement systems, and automatic crowning, a CNC machine can maintain bending accuracy within ±0.5° across thousands of parts. Basic hydraulic machines depend more on operator skill, and angle drift is more common over long production runs.
4.3 Speed and Productivity
CNC press brakes are faster in two ways: setup speed and cycle speed. Automatic programming reduces setup time from hours to minutes. The servo-hydraulic system allows variable-speed approach — fast on the downstroke, slow and precise during the bend, and fast on the return. A basic hydraulic machine typically runs at a fixed speed regardless of the bending phase.
4.4 Energy Efficiency
Modern CNC press brakes with servo pumps consume energy only when the ram is actually moving. The pump runs at variable speed, matching energy output to demand. Basic hydraulic machines run the pump continuously at full speed, wasting energy during idle periods. CNC servo-hydraulic systems can reduce energy consumption by 30–50% compared to conventional hydraulic systems, according to research published by the U.S. Department of Energy's Advanced Manufacturing Office.
4.5 Operator Skill Requirements
A basic hydraulic press brake requires a highly skilled operator who understands material behavior, bend allowances, springback compensation, and tooling selection. A CNC press brake handles most of these calculations automatically, allowing less experienced operators to produce accurate parts. However, CNC operators still need training on the controller interface and basic sheet metal concepts.
4.6 Maintenance and Reliability
Both machine types use hydraulic systems (in most cases), so maintenance requirements are similar — regular oil changes, filter replacements, and seal inspections. However, CNC machines have additional electronic components (controllers, encoders, servo valves) that require periodic calibration. On the plus side, CNC systems often include diagnostic features that alert operators to maintenance needs before failures occur.
5. Complete Comparison Table: CNC vs Hydraulic Press Brake
The following table summarizes all key differences between CNC press brakes and basic hydraulic press brakes:
| Feature | Basic Hydraulic Press Brake | CNC Press Brake |
|---|---|---|
| Control System | Simple NC or manual controller | Advanced CNC (Delem, ESA, Cybelec) |
| Programming | Manual step-by-step entry | Automatic from part dimensions or CAD import |
| Bend Sequencing | Operator-determined | Auto-calculated with collision avoidance |
| Positioning Accuracy | ±0.05 – ±0.1 mm | ±0.01 mm |
| Angle Accuracy | ±1° (operator dependent) | ±0.3° with real-time measurement |
| Backgauge Axes | 1–2 axes (X, R) | 3–6+ axes (X, R, Z1, Z2, X1, X2) |
| Setup Time | 30–60 minutes per new job | 5–15 minutes (or instant from stored programs) |
| 3D Simulation | Not available | Full 3D with collision detection |
| Crowning System | Manual wedge or none | Automatic CNC-controlled crowning |
| Energy Consumption | Higher (constant pump operation) | 30–50% lower (servo variable-speed pump) |
| Operator Skill Required | High (experienced press brake operator) | Moderate (CNC programming knowledge) |
| Offline Programming | Not possible | Yes — CAD/CAM integration available |
| Data Connectivity | None | Industry 4.0 / IoT ready |
| Price Range (100T/3200mm) | $15,000 – $30,000 | $30,000 – $80,000+ |
| Best For | Simple bends, high-volume single parts | Complex parts, varied production, tight tolerances |
6. Understanding the Drive Systems: Hydraulic, Servo-Hydraulic, and Electric
To fully understand the CNC press brake vs hydraulic press brake comparison, it helps to know the three main drive technologies available today. Each has distinct advantages depending on your application.
Conventional Hydraulic
Uses a fixed-displacement pump running at constant speed. Oil flow is controlled by proportional valves. Simple and proven technology with high tonnage capability, but less energy-efficient and slower response times. Found in basic hydraulic and entry-level CNC press brakes.
Servo-Hydraulic (Most Popular for CNC)
Combines hydraulic power with servo-controlled variable-speed pumps. The pump only runs when needed and at exactly the required speed. This delivers excellent precision, lower energy consumption, reduced noise, and less heat generation. The most common drive system in modern CNC press brakes.
All-Electric Servo
Uses electric servo motors with ball screws or belt drives to move the ram — no hydraulic oil at all. Offers the highest precision, fastest cycle times, zero oil maintenance, and the lowest energy consumption. However, tonnage is limited (typically up to 300 tons) and the upfront cost is higher. Best suited for precision work on thinner materials.
For most fabrication shops, a servo-hydraulic CNC press brake offers the best balance of power, precision, and value. It combines the high tonnage capability of hydraulics with the smart control of CNC technology.
7. Real-World Applications: Which Type Suits Your Industry?
Different industries have different requirements. Here's a practical guide to which press brake type works best for common applications:
Press Brake Selection by Industry
- HVAC & Ductwork CNC press brake — requires precise, repeatable bends on thin gauge material with frequent job changes
- Structural Steel Basic hydraulic press brake — simple bends on thick plate, high tonnage is the priority over precision
- Automotive Parts CNC press brake (or robotic press brake) — tight tolerances, complex multi-bend parts, high repeatability
- Enclosures & Cabinets CNC press brake — multiple bends per part, accurate box forming, CAD import simplifies programming
- Job Shop (Mixed Work) CNC press brake — diverse parts, frequent changeovers, stored programs for repeat orders
- Heavy Plate (>12mm) High-tonnage hydraulic or CNC press brake — both work well, CNC adds crowning control for long bends
For automated production lines requiring minimal human intervention, consider a robotic press brake — a CNC press brake integrated with a robotic arm for fully automatic loading, bending, and unloading.
8. Total Cost of Ownership: Looking Beyond the Purchase Price
One of the most common mistakes buyers make is focusing only on the initial purchase price. A basic hydraulic press brake costs less upfront, but the total cost of ownership (TCO) over 10 years often tells a different story.
| Cost Factor (10-Year Estimate) | Basic Hydraulic | CNC Servo-Hydraulic |
|---|---|---|
| Purchase Price | $20,000 | $50,000 |
| Energy Costs (10 yr) | $18,000 | $10,000 |
| Scrap & Rework | $15,000 | $3,000 |
| Setup Time Cost | $25,000 | $8,000 |
| Operator Labor Premium | $30,000 | $10,000 |
| Maintenance | $8,000 | $10,000 |
| Estimated TCO | $116,000 | $91,000 |
9. Industry 4.0 and Smart Manufacturing
One area where CNC press brakes have an enormous advantage is connectivity. Modern CNC controllers support Industry 4.0 features that basic hydraulic machines simply cannot offer:
- Remote monitoring: Track machine status, utilization, and production data from anywhere
- Predictive maintenance: Sensors monitor hydraulic pressure, oil temperature, and component wear to predict failures before they happen
- ERP integration: Connect the press brake to your enterprise resource planning system for automatic scheduling and job tracking
- Cloud-based programming: Create and store bending programs in the cloud, accessible from any machine on the network
- Production analytics: Analyze cycle times, OEE (Overall Equipment Effectiveness), and identify bottlenecks
For shops looking to modernize and integrate their bending operations into a digital manufacturing workflow, a CNC press brake is not just an option — it's a necessity.
10. Frequently Asked Questions
Q: Can a hydraulic press brake be upgraded to CNC?
Yes. Many older hydraulic press brakes with NC systems can be retrofitted with modern CNC controllers. This typically involves replacing the controller unit, adding servo valves for precise hydraulic control, and upgrading the backgauge system. Retrofitting costs roughly 30–50% of a new CNC machine and can extend the machine's useful life by another 10+ years.
Q: Are all CNC press brakes hydraulic?
No. While the majority of CNC press brakes use servo-hydraulic drive systems, there are also all-electric CNC press brakes that use servo motors with ball screws. Electric models are typically available in tonnages up to about 300 tons and offer advantages in speed, cleanliness (no oil), and energy efficiency.
Q: How much does a CNC press brake cost compared to a hydraulic press brake?
A basic 100-ton hydraulic press brake typically costs between $15,000 and $30,000, while an equivalent CNC servo-hydraulic model ranges from $30,000 to $80,000+ depending on the controller, number of axes, and additional features like angle measurement systems. The price gap has been narrowing as CNC technology becomes more accessible.
Q: Which press brake is better for beginners?
A CNC press brake is actually easier for beginners to operate. The controller guides the operator through setup, automatically calculates bend parameters, and provides visual feedback. With a basic hydraulic press brake, the operator needs more hands-on experience to determine correct settings and troubleshoot issues.
Q: What is a servo-hydraulic press brake?
A servo-hydraulic press brake combines a hydraulic drive system with servo-controlled variable-speed pumps and proportional valves. The servo system precisely controls oil flow and pressure, enabling high accuracy while consuming less energy than conventional constant-speed hydraulic systems. It's the most common drive technology in modern CNC press brakes.
11. How to Choose: A Practical Buyer's Checklist
Use this checklist to determine whether a CNC press brake or a basic hydraulic press brake is the right investment for your operation:
Choose a Basic Hydraulic Press Brake If:
- Budget Your budget is under $25,000 and you need a functional machine now
- Parts You primarily bend simple parts with 1–2 bends
- Volume You run long production batches of the same part (minimal changeover)
- Operators You have experienced press brake operators on staff
- Tolerance Your angle tolerance is ±1° or wider
Choose a CNC Press Brake If:
- Complexity Your parts have 3+ bends, box shapes, or tight-tolerance requirements
- Variety You handle diverse jobs with frequent changeovers (job shop work)
- Quality You need consistent ±0.5° angle accuracy across production runs
- Labor Skilled press brake operators are hard to find or expensive in your area
- Growth You plan to grow, integrate automation, or adopt Industry 4.0 practices
- TCO You're looking at total cost of ownership, not just purchase price
Conclusion
The comparison between CNC press brakes and hydraulic press brakes isn't about which technology is "better" — it's about which one matches your production needs, budget, and growth plans.
A basic hydraulic press brake remains a solid choice for straightforward bending operations where simplicity and low upfront cost are priorities. These machines have proven themselves reliable over decades and continue to serve many fabrication shops well.
A CNC press brake is the clear winner for shops that need precision, efficiency, versatility, and future-ready capabilities. The higher initial investment pays for itself through reduced scrap, faster setup times, lower energy costs, and the ability to produce complex parts consistently — even with less-experienced operators.
For most modern fabrication shops that are growing and diversifying their capabilities, investing in a CNC press brake is not just an upgrade — it's a strategic decision that affects productivity, quality, and competitiveness for years to come.
