A press brake is a sheet metal bending machine that forms accurate bends by pressing material between an upper punch and a lower die. A CNC (Computer Numerical Control) press brake adds a controller, programmable back gauge and correction data for repeatable production. It is selected for cabinets, brackets, panels, enclosures, HVAC parts and other fabricated components where repeatable angle accuracy matters.
1. How It Works: The Three Core Components
Understanding a CNC press brake requires knowing its three essential parts that work together to create precise bends.
The Brain (CNC Controller)
This is the computer that stores part programs, calculates bend sequences, and sends commands to all the motors. Modern controllers have touchscreen interfaces where operators can input part dimensions, material type, and desired angles. The controller then automatically determines the correct punch depth and backgauge positions.
The Muscle (Hydraulic or Electric Drive System)
This is what actually moves the ram (the top beam with the punch) up and down. Hydraulic systems use oil pressure, while newer electric systems use servo motors. The drive system receives commands from the controller and moves with extreme precision, often accurate to within 0.01mm.
The Positioning System (Backgauge)
This is a motorized finger system behind the machine that positions the sheet metal for each bend. When you program a bend at 100mm from the edge, the back gauge automatically moves to exactly 100mm, ensuring every part is identical.
2. True CNC vs. NC: What's the Difference?
Many machines are marketed as "CNC" but are actually simpler NC systems. Here's how to tell the difference:
| Feature | NC (Numerical Control) | True CNC |
|---|---|---|
| Programming | Manual entry of each step | Automatic calculation from part drawing |
| Bend Sequence | Operator must determine | Auto-calculated to avoid collisions |
| Tool Setup | Manual selection | Automatic tool library with suggestions |
| Angle Correction | Manual adjustment | Real-time with angle sensors |
| 3D Simulation | Not available | Full collision detection |
| Offline Programming | Not possible | Can import CAD files directly |
3. Decoding the Axes: What Do Y, X, R, Z, and V Mean?
CNC press brakes are described by their number of axes. Here's what each axis controls:
Y1 and Y2 Axis (Ram Movement)
These control the vertical movement of the ram (the top beam). Y1 is the left cylinder, Y2 is the right. Having independent control of both allows for "crowning" - tilting the ram to compensate for deflection when bending long parts.
X Axis (Backgauge Depth)
This is the most important backgauge axis. It moves the backgauge fingers toward or away from the operator, controlling the bend location on the sheet (the "bend line" position).
R Axis (Backgauge Height)
This raises or lowers the backgauge fingers. Essential when bending boxes or channels, where you need to lift the gauge over previous bends.

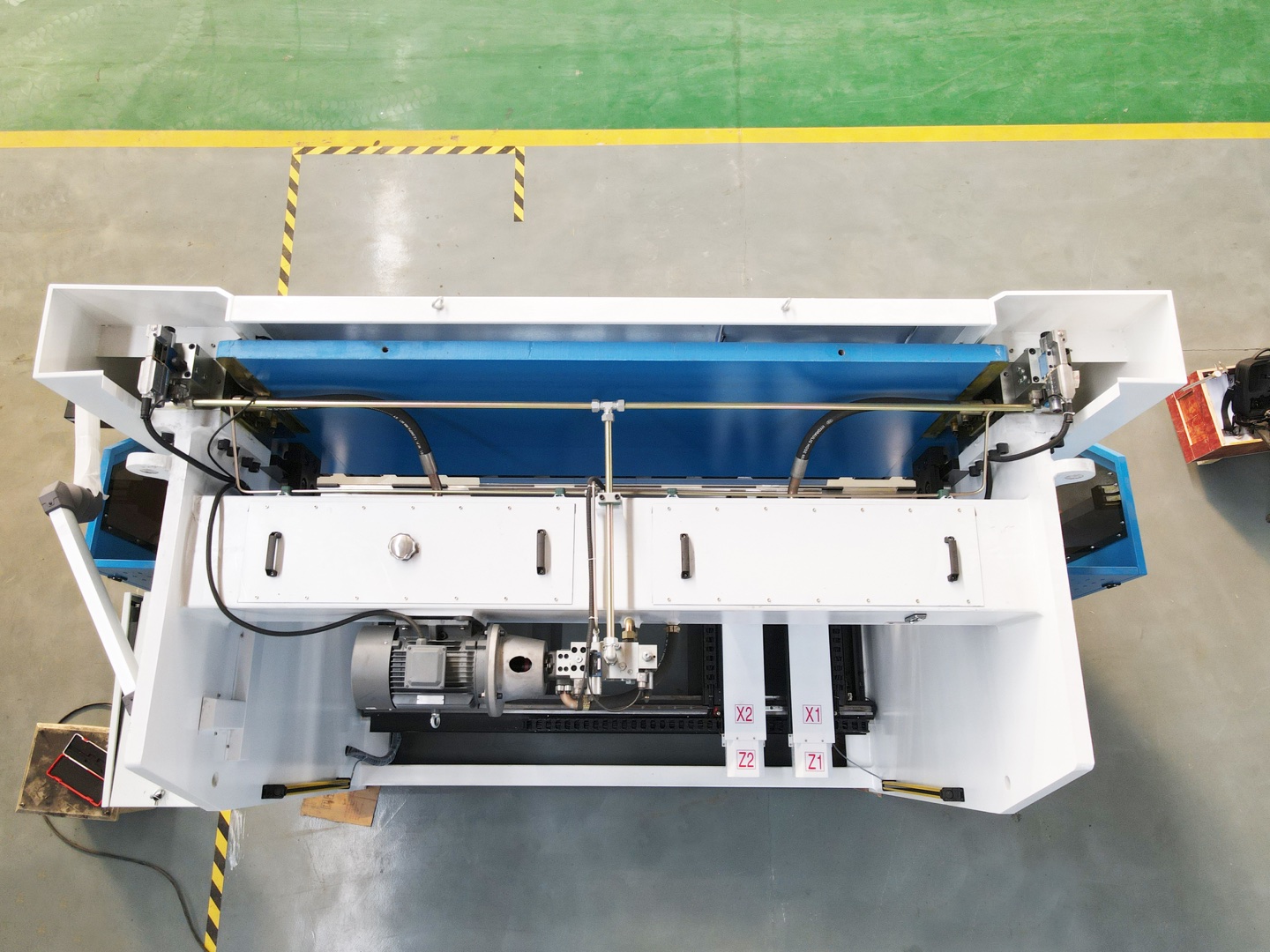

Z1 and Z2 Axis (Backgauge Finger Spread)
These move the individual backgauge fingers left and right along the machine. This allows positioning the fingers to support narrow parts or avoid slots/holes in the sheet.
V Axis (Crowning)
This controls the bed deflection compensation (crowning system). It adjusts the shape of the lower beam to counteract the natural deflection that occurs during bending, ensuring a consistent angle along the entire length of the bend.
Common Axis Configurations
- 3+1 Axis Y1, Y2, X, R - Basic CNC with backgauge depth and height control
- 4+1 Axis Y1, Y2, X, R, V - Adds crowning control for better accuracy on long bends
- 6+1 Axis Y1, Y2, X, R, Z1, Z2, V - Full featured with independent finger positioning
Summary
A CNC press brake is much more than just a bending machine with a digital display. It's an integrated system where:
- The controller calculates optimal bending sequences automatically
- Multiple axes work together for precise positioning
- Real-time corrections ensure consistent angles
- Offline programming reduces setup time on the shop floor
When evaluating a CNC press brake, look beyond the "CNC" label and ask about specific features like automatic bend sequencing, 3D simulation, and angle measurement systems. These are the hallmarks of a true CNC system that will deliver productivity gains in your operation. If your team needs the basic forming sequence first, review how a bending machine works before comparing CNC features. Also consider the tooling system β the right punches and dies are just as important as the machine itself. For safety, review our press brake OSHA compliance guide before putting the machine into production.
CNC Press Brake Buying Checklist
Before comparing CNC press brake suppliers, define the production requirement first. The right machine depends on material, part size, bend accuracy, daily output and future automation needs, not only on tonnage.
| Buying item | What to confirm | Why it matters |
|---|---|---|
| Material and thickness | Mild steel, stainless steel, aluminum, maximum thickness and tensile strength. | Controls required tonnage, tooling opening and frame selection. |
| Working length | Maximum bend length, part width and whether long parts need tandem operation. | Prevents undersized machines and avoids unnecessary overspending. |
| Controller and axes | Delem, ESA, Cybelec or Estun controller; 3+1, 4+1 or 6+1 axis back gauge. | Affects setup speed, repeatability, part complexity and operator training. |
| Tooling and crowning | Punches, dies, quick clamps, manual or CNC crowning and special tooling needs. | Determines real bending accuracy and total project cost. |
| Quote package | Machine spec, tooling list, safety guards, installation, training, spare parts and freight. | Makes China press brake quotes easier to compare on landed cost. |
To compare models, start with the press brake machine hub. If you already have drawings or target specs, send them through the press brake quote form for tonnage, controller, tooling and price recommendations.
