Selecting the right tooling for your CNC press brake is just as important as choosing the machine itself. Even the most advanced press brake will produce subpar results if paired with incorrect or low-quality punches and dies. Proper tooling selection directly impacts bend accuracy, surface finish quality, production efficiency, and overall operating costs.
This comprehensive guide will walk you through everything you need to know about press brake tooling—from understanding different punch and die types to selecting the right tools for your specific applications. Whether you're setting up a new fabrication shop or optimizing an existing production line, mastering tooling selection is essential for achieving consistent, high-quality bends.
💡 Why Tooling Selection Matters
- Bend Accuracy: Correct tooling ensures precise angles and consistent results
- Surface Quality: Proper die selection prevents scratches and material damage
- Tool Life: Matching tools to materials extends tooling lifespan significantly
- Safety: Appropriate tooling reduces the risk of tool breakage and accidents
- Productivity: Optimized tooling reduces setup time and increases throughput
Understanding Press Brake Tooling Basics

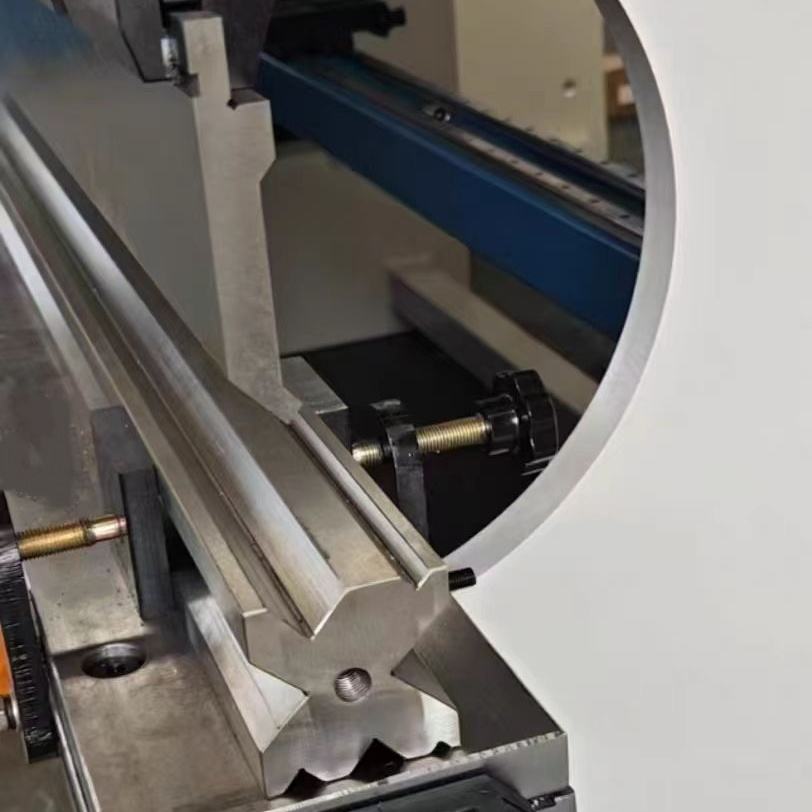

Press brake tooling consists of two main components: the punch (upper tool) and the die (lower tool). The punch presses the sheet metal into the die opening, creating the bend. The geometry of both tools determines the final bend angle, radius, and quality. For production tooling, compare standard CNC bending machine molds, special radius tooling and gooseneck punch profiles before ordering.
The Punch (Upper Tool)
The punch is mounted on the ram (upper beam) of the press brake. Its tip profile and angle determine how force is applied to the workpiece. Common punch types include:
- Standard Punch (88°): The most versatile option, suitable for general-purpose bending. The 88° angle allows for slight overbending to compensate for springback.
- Acute Angle Punch (30°-60°): Designed for creating sharp bends less than 90°. Essential for box-making and enclosure fabrication.

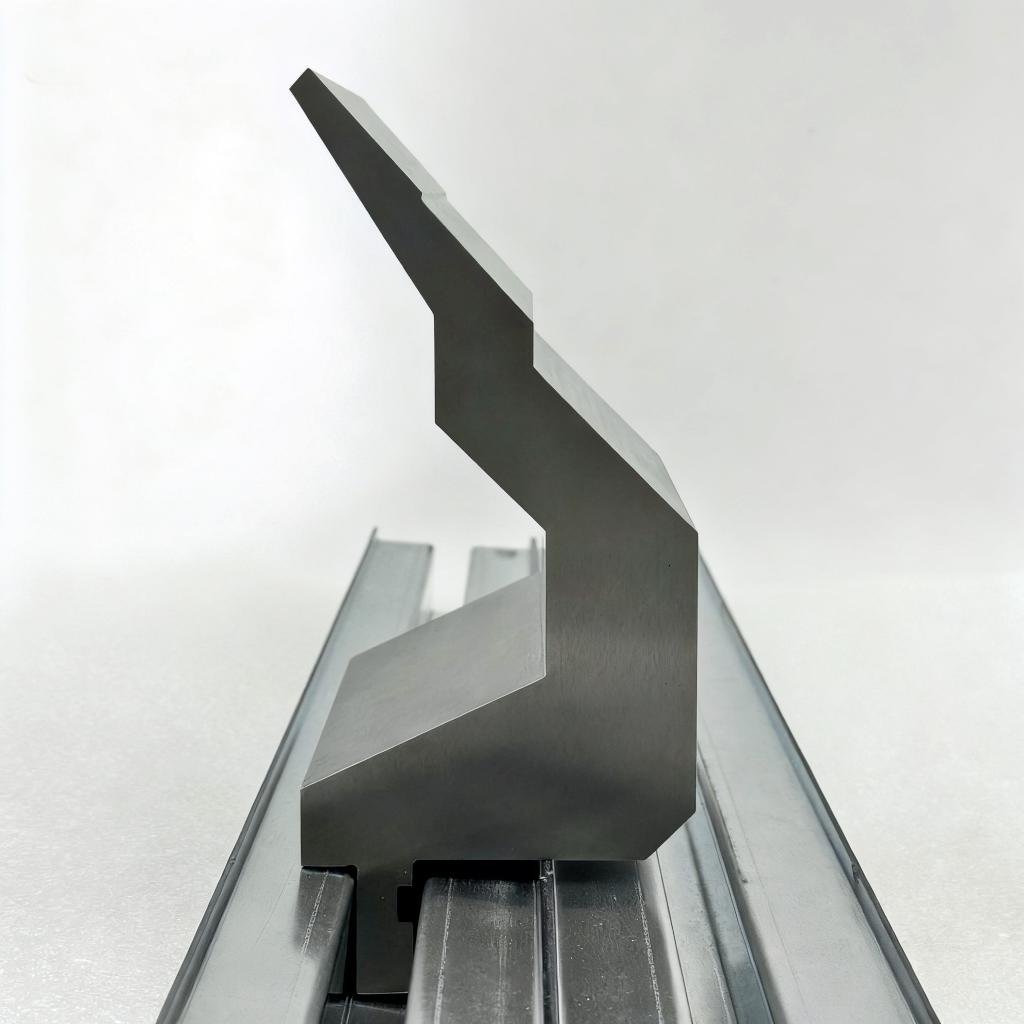

- gooseneck punch: Features a curved profile to avoid interference with previously formed flanges. Ideal for U-channel and deep box bending.
- Hemming Punch: Flat-bottomed punch used for flattening edges and creating hems. Common in automotive and appliance manufacturing.
- Radius Punch: Has a rounded tip for creating large-radius bends without sharp creases.
The Die (Lower Tool)
The die is mounted on the bed (lower beam) and provides the opening into which the material is pressed. Die selection significantly affects bend quality and required tonnage. Key die types include:
- V-Die (Single-V): The most common die type, featuring a single V-shaped opening. Available in various opening widths and angles.

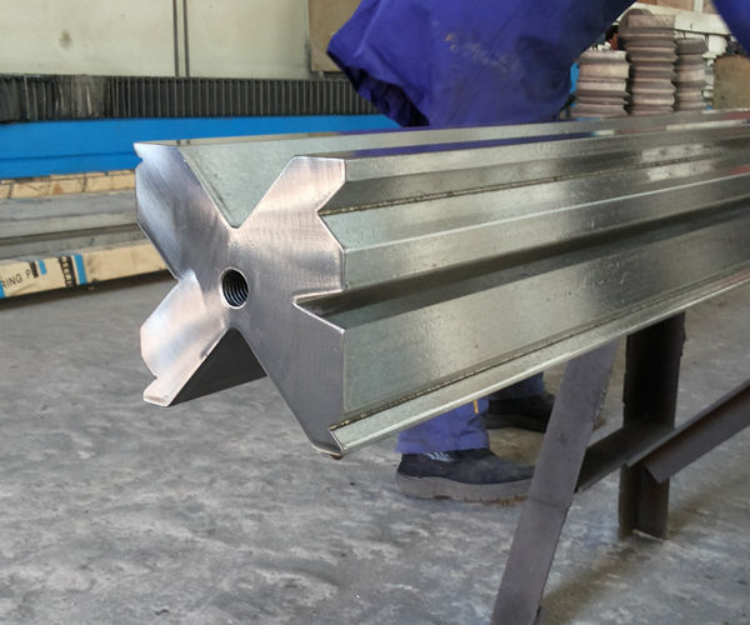

- Multi-V Die: Contains multiple V-openings of different widths on one die block. Reduces tool changeover time for varied production.
- Acute Angle Die: Designed for bends less than 90°, typically matched with acute angle punches.
- Hemming Die: Features a flat surface or shallow channel for completing hem operations.
- Radius Die: Has a rounded opening for creating smooth, large-radius bends.
- Adjustable Die: Allows width adjustment to accommodate different material thicknesses without changing the die.
How to Select the Right V-Die Opening
The V-die opening width is one of the most critical factors in press brake bending. It directly affects the required tonnage, minimum flange length, and inside bend radius. Here's the industry-standard formula:
📐 V-Die Opening Rule of Thumb
V-Opening = 8 × Material Thickness
For example: 3mm sheet → V-opening of 24mm
This ratio provides a good balance between bend quality and tonnage requirements.
However, this is just a starting point. You may need to adjust based on specific requirements:
| V-Opening Ratio | Characteristics | Best For |
|---|---|---|
| 6× thickness (Smaller opening) |
• Higher tonnage required • Smaller inside radius • Shorter minimum flange |
Tight bends, short flanges, thinner materials |
| 8× thickness (Standard) |
• Balanced tonnage • Standard inside radius • Good surface finish |
General-purpose bending, most applications |
| 10-12× thickness (Larger opening) |
• Lower tonnage required • Larger inside radius • Less marking on surface |
Thick materials, polished surfaces, reduced tool wear |
Minimum Flange Length
The V-die opening also determines the minimum flange length you can bend. The general rule is:
Minimum Flange = 0.7 × V-Opening + Material Thickness
For a 24mm V-opening with 3mm material: Minimum flange = 0.7 × 24 + 3 = 19.8mm
Press Brake Tooling Materials
The material of your tooling significantly impacts durability, performance, and cost. Here's a comparison of common tooling materials:
| Material | Hardness (HRC) | Pros | Cons | Best Applications |
|---|---|---|---|---|
| Low-Carbon Steel | 40-45 | Low cost, easy to machine | Wears quickly, limited life | Low-volume production, soft materials |
| 42CrMo (Chrome-Moly) | 47-52 | Good balance of hardness and toughness | Moderate cost | Standard production, mild steel bending |
| T10 Tool Steel | 58-62 | High hardness, long life | More brittle, higher cost | High-volume production, stainless steel |
| Cr12MoV (D2 equivalent) | 58-62 | Excellent wear resistance | Premium pricing | Abrasive materials, continuous production |
💡 Pro Tip: Surface Treatments
Consider surface-treated tooling for improved performance:
- Nitriding: Increases surface hardness to 65+ HRC, excellent for high-volume production
- Chrome Plating: Reduces friction and prevents material pickup, ideal for aluminum and stainless
- TiN Coating: Provides extreme wear resistance for the most demanding applications
Press Brake Tooling Standards
Tooling standards ensure compatibility and interchangeability. The most common standards include:

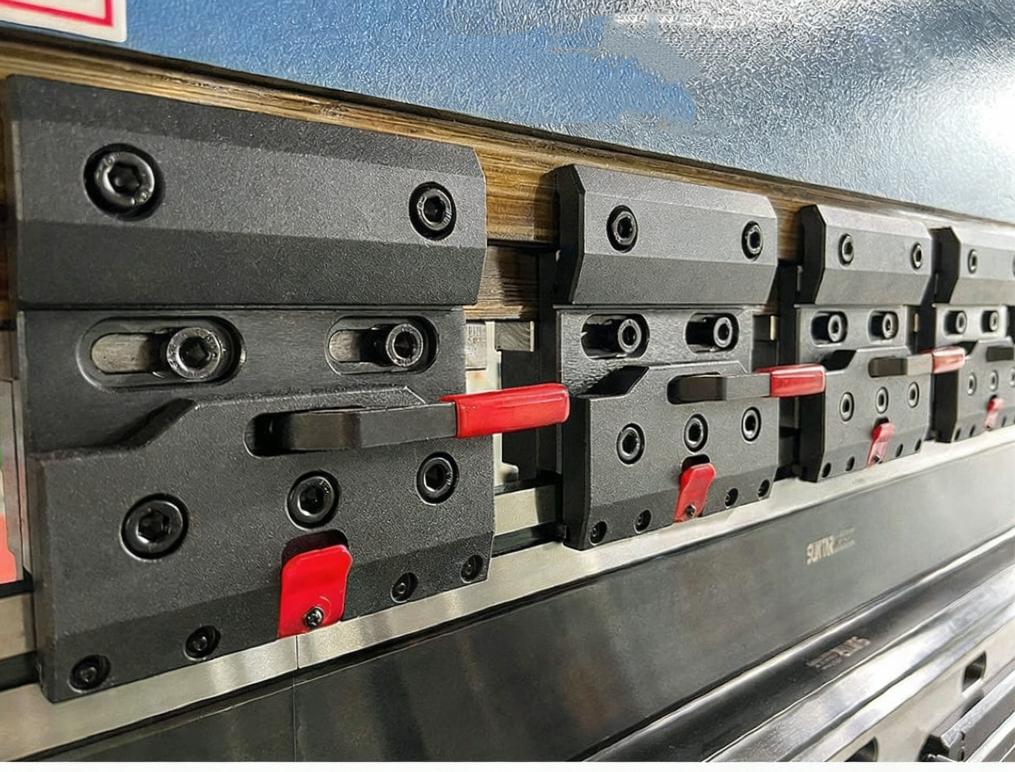

European Precision Style
Also known as "Euro" or "Wila" style, this is the most popular standard worldwide. Features precision-ground mounting surfaces with tight tolerances (±0.01mm). Benefits include:
- Quick tool changes with self-seating design
- Consistent positioning without shimming
- Compatible with automatic tool changers
American (Amada) Style
Features a button-style safety retention system. Common in North America and Asia. Slightly less precise than European style but very reliable.
Trumpf Style
Proprietary system with unique clamping mechanism. Offers excellent precision but limited to Trumpf-compatible machines.
⚠️ Important Consideration
When purchasing a new press brake, consider the tooling standard carefully. European Precision style offers the best long-term flexibility and tooling availability. At Rucheng, our CNC press brakes support European Precision style tooling as standard, with adapters available for other systems.
Tooling Selection by Application
Box and Enclosure Fabrication
For making boxes, cabinets, and enclosures, you'll need:
- Gooseneck punches of various heights to clear previously formed flanges
- Narrow V-dies for tight internal corners
- Acute angle tooling for bends less than 90°
Heavy Plate Bending
For thick materials (12mm+), consider:
- Heavy-duty punches with reinforced shoulders
- Wide V-openings (10-12× thickness) to reduce tonnage
- Radius dies and arc molds for large-radius bends
- Premium tool steel (Cr12MoV) for durability
Precision Thin Sheet Work
For thin materials (<2mm) requiring high precision:
- Sharp-nosed punches for clean, defined bends
- Narrow V-dies (6× thickness) for tight radii
- Polished surfaces to prevent marking

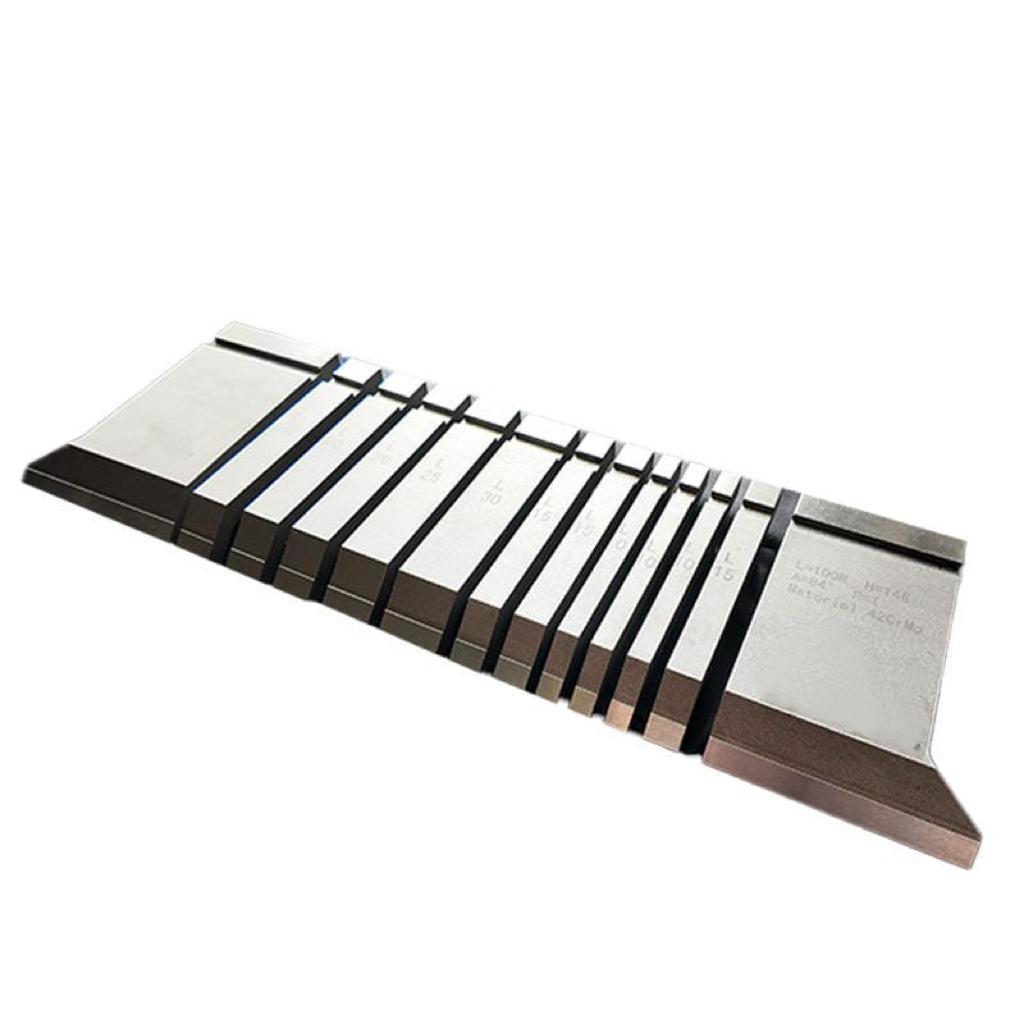

- Segmented tooling for flexibility in setup
Press Brake Tooling maintenance
Proper maintenance extends tooling life and ensures consistent quality. Follow these best practices:
Daily Cleaning
- Wipe tooling surfaces with a clean, lint-free cloth after each shift
- Remove any material buildup, especially when working with aluminum or galvanized steel
- Apply a light coating of rust-preventive oil if storing overnight
Regular Inspection
- Check punch tips for wear, chipping, or rounding
- Inspect die shoulders for indentations or damage
- Verify mounting surfaces are clean and undamaged
- Replace or refurbish tooling showing wear beyond tolerance
Proper Storage
- Store tooling in dedicated racks or cabinets
- Keep tools organized by size and type for quick access
- Protect cutting edges from contact with other metal objects
- Maintain a climate-controlled environment to prevent rust
Press Brake Tooling Quote Checklist
For a practical tooling recommendation, send the machine and part data together. Rucheng can then check punch clearance, V-die opening, tool steel grade, segmented length and whether custom profiles are required.
| Quote input | How it affects tooling selection |
|---|---|
| Material grade, thickness and surface finish | Controls V-opening, radius, tonnage, marking risk and tool material. |
| Drawings with bend angles, flanges and inside radius | Confirms standard, gooseneck, acute, radius, hemming or offset tooling. |
| Press brake model, clamp type and tooling standard | Ensures the punch and die fit the holder, shut height and safety retention system. |
| Maximum bend length and production batch size | Determines segmented tooling length, heavy-duty rating and changeover needs. |
| Current bend defects or quality problems | Helps diagnose whether scratches, cracking, springback or angle error come from tooling choice. |
When the press brake is also being selected, send the same data through the dedicated quote page so Rucheng can recommend the machine, controller, crowning and tooling package together.
troubleshooting Common Tooling Problems
| Problem | Possible Causes | Solutions |
|---|---|---|
| Inconsistent bend angle | Worn punch tip, die wear, improper alignment | Inspect and replace worn tooling, verify alignment |
| Surface scratches on parts | Material buildup, rough die surfaces, insufficient lubrication | Clean tooling, polish surfaces, use appropriate lubricant |
| Cracking at bend line | V-opening too narrow, material too hard, wrong grain direction | Use wider V-opening, anneal material, orient grain perpendicular to bend |
| Excessive springback | Material properties, insufficient bottoming | Overbend, use coining, or apply bottoming technique |
Conclusion
Selecting the right press brake tooling is a critical decision that affects every bend you make. By understanding the different punch and die types, following the V-opening guidelines, choosing appropriate materials, and maintaining your tooling properly, you can achieve consistent, high-quality results while maximizing tool life.
At Rucheng, we offer a comprehensive range of CNC press brakes and precision tooling to meet your sheet metal fabrication needs. Our technical team can help you select the optimal tooling configuration for your specific applications. Whether you're bending thin gauge aluminum or heavy steel plate, we have the expertise and equipment to support your production goals.
Ready to optimize your bending operations? Use the press brake quote form to send material, thickness, drawings, machine model and tooling standard for a practical tooling recommendation. For standard V-die work, compare the CNC bending machine mold page before finalizing the tooling list.
