A press brake maintenance schedule is a structured plan of daily, weekly, monthly, and annual tasks designed to keep your press brake operating at peak accuracy and reliability. Following a consistent maintenance schedule reduces unplanned downtime by up to 70%, extends machine lifespan by 5-10 years, and ensures operator safety across every shift.

Whether you run a CNC press brake or a conventional hydraulic machine, preventive maintenance is the most cost-effective investment you can make. This guide provides a complete press brake maintenance checklist organized by frequency — from the 5-minute daily walkthrough to the comprehensive annual overhaul — covering hydraulic systems, CNC controllers, back gauges, and tooling.

Why Press Brake Maintenance Matters

Press brakes are high-force machines operating under extreme pressures — up to 200+ tons on a standard hydraulic press brake. Without regular maintenance, small issues compound into costly breakdowns. Industry data shows that reactive (breakdown-only) maintenance costs 3-5 times more than a preventive maintenance program.

Daily Maintenance Checklist (5-10 Minutes)

Daily maintenance should be performed by the machine operator at the start of each shift. These quick checks catch problems before they cause damage or affect part quality.

1. Check hydraulic oil level — verify the oil is between the minimum and maximum marks on the sight glass. Low oil causes pump cavitation and erratic ram movement.
2. Inspect for oil leaks — check around hydraulic cylinders, hose fittings, valve manifolds, and the pump area. Even small drips indicate seal wear.
3. Verify safety devices — test the emergency stop button, light curtains, two-hand controls, and any other safety interlocks. Do not operate if any safety device fails.
4. Clean the work area — remove metal chips, scrap pieces, and debris from the die area, bolster plate, and back gauge fingers. Debris causes die marks and inaccurate bends.
5. Inspect tooling condition — visually check punch tips and die shoulders for chips, cracks, or wear marks. Damaged tooling produces defective parts.
6. Lubricate sliding surfaces — apply light machine oil to the ram guides (gibs), back gauge ball screws, and any exposed linear rails per manufacturer specifications.
7. Check back gauge positioning — run the back gauge to several programmed positions and verify with a tape measure. Drift indicates belt or ball screw wear.
8. Listen for unusual sounds — during the first few strokes, listen for grinding, knocking, or whining from the hydraulic pump, motor, or ram movement. Unusual noise = stop and investigate.
9. Verify CNC display — confirm no error codes or warnings appear on the controller screen. Clear any non-critical alarms and log recurring ones.
10. Check oil temperature — after warm-up, hydraulic oil should be 35-55°C. Oil above 60°C degrades rapidly and damages seals; oil below 15°C flows poorly and starves the pump.

Weekly Maintenance Tasks (30-60 Minutes)

Weekly tasks go deeper than daily checks and are typically performed by a trained operator or maintenance technician during a scheduled maintenance window.

1. Check hydraulic filter indicator — most press brakes have a visual or electronic filter clog indicator. Replace the filter if the indicator is in the red zone or at the manufacturer-specified interval.
2. Inspect hydraulic hoses and fittings — look for bulging, cracking, abrasion, or weeping at connection points. Replace hoses showing any deterioration — a burst hose under 3,000 PSI is extremely dangerous.
3. Clean and inspect the CNC controller — wipe dust from the controller screen and ventilation openings. Ensure the cooling fan runs properly. Dust buildup causes overheating and intermittent faults.
4. Check belt tension on back gauge — if your back gauge uses timing belts, check for proper tension and signs of wear (cracking, fraying, tooth damage). Loose belts cause positioning errors.
5. Grease all zerk fittings — apply grease to all lubrication points including ram bearings, pivot pins, and back gauge guide rails. Use the grease type specified by the manufacturer (typically NLGI #2 lithium-based).

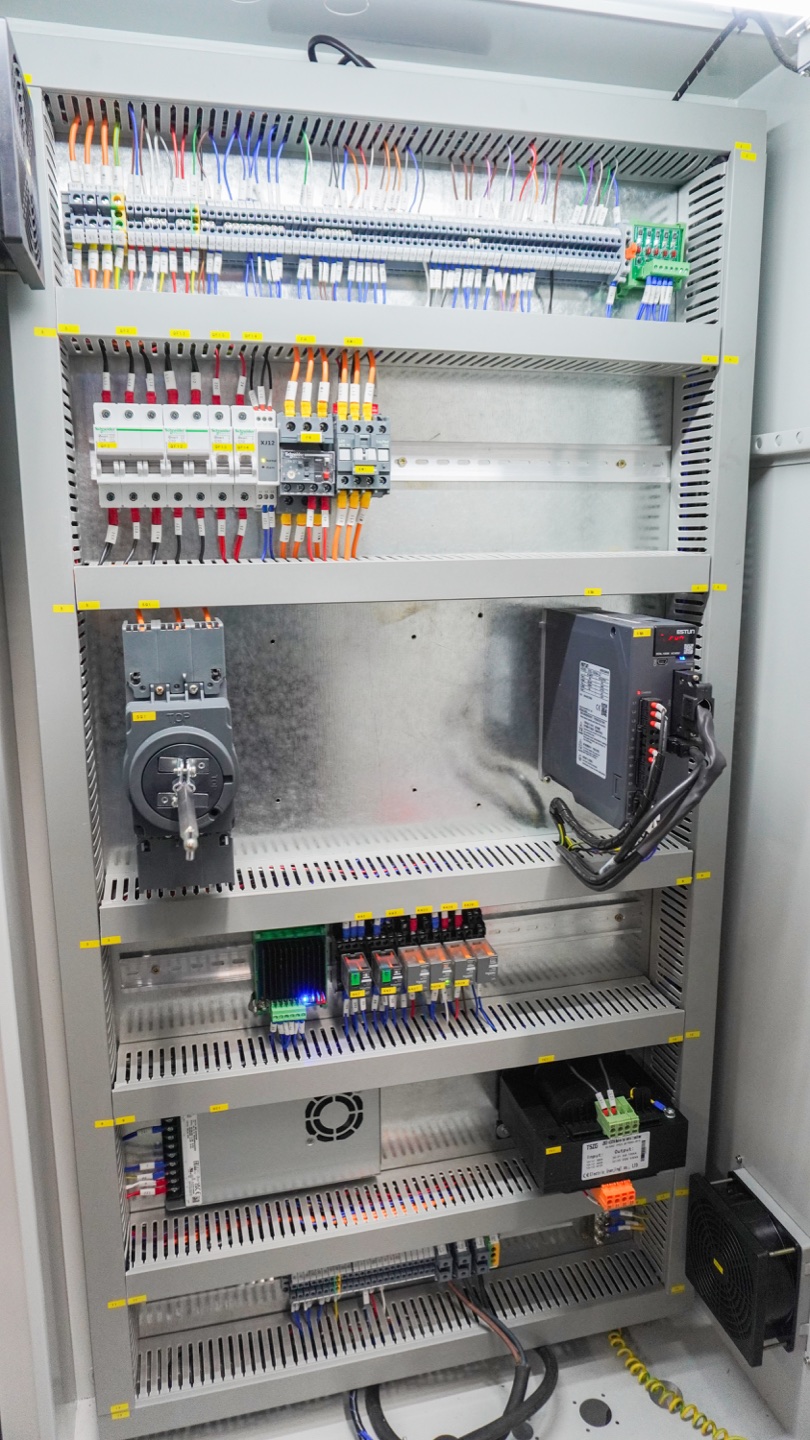

6. Inspect electrical cabinet — open the electrical panel and check for loose wires, signs of overheating (discolored insulation), and pest intrusion. Tighten any loose terminal connections.
7. Test the crowning system — if equipped, run the hydraulic or mechanical crowning system through its range and verify smooth operation. Crowning issues directly affect bend angle consistency on long parts.
8. Verify tooling clamping — check that all punch and die clamps hold securely. Torque-check bolted clamp systems. Loose tooling is a serious safety hazard and causes quality issues.

Monthly Maintenance Procedures (2-4 Hours)

Monthly maintenance requires more time and may involve partial machine disassembly. Schedule these tasks during planned downtime.

1. Test hydraulic system pressure — connect a calibrated pressure gauge to the test port and verify that system pressure matches the specification (typically 210-250 bar for standard press brakes). Adjust the relief valve if pressure has drifted.
2. Inspect cylinder seals for leakage — carefully examine both ram cylinders for external oil weeping. Internal seal leakage shows as slow ram drift under load. Record any drift measurements for trend analysis.
3. Check ram parallelism — place a precision level on the ram at both ends and compare readings. Parallelism out of spec causes uneven bending force and premature tooling wear. Adjust gibs as needed.
4. Calibrate the back gauge — program multiple positions across the full travel range and measure each with a calibrated gauge block or CMM arm. Adjust the controller offset if positions are consistently off.
5. Inspect electrical connections — retorque all power terminal connections in the main panel. Thermal-scan motor connections and contactors if an infrared thermometer is available. Loose connections cause arcing and fire risk.
6. Clean or replace the air filter — the hydraulic tank breather/air filter prevents contamination from entering the reservoir. A clogged breather creates vacuum in the tank, causing pump cavitation.

Annual / Scheduled Maintenance (Full Day)

Annual maintenance is the most comprehensive service event. It often requires the machine manufacturer's service team or a qualified hydraulic technician. Plan for a full day of downtime.

1. Full hydraulic oil change — drain the reservoir completely, flush the system, and refill with fresh oil matching the manufacturer specification (typically ISO VG 46 anti-wear hydraulic oil). Change the return-line filter and suction strainer at the same time. Standard interval: every 4,000-6,000 operating hours or 12 months.
2. Cylinder seal replacement (if needed) — inspect all cylinder rod seals, wiper seals, and piston seals. Replace any seals showing wear, hardening, or extrusion. Proactive seal replacement during the annual service prevents unplanned downtime later.
3. Full machine alignment and calibration — check and adjust ram-to-bed parallelism, ram stroke repeatability (should be ±0.01 mm), and back gauge positioning accuracy across all axes. Recalibrate the CNC controller angle correction tables.
4. Electrical system inspection — inspect all wiring, contactors, relays, and circuit breakers. Meg-ohm test the main motor insulation. Replace any components showing wear or thermal damage. Verify proper grounding.
5. Safety system certification — have all safety devices (light curtains, laser guards, two-hand controls, emergency stops) professionally tested and certified per OSHA and ANSI B11.3 requirements. Document results for compliance records.
6. CNC software and firmware update — check with the controller manufacturer (Delem, ESA, Cybelec, etc.) for available firmware updates. Back up all programs and parameters before updating. New firmware often includes bug fixes and performance improvements.

Press Brake Maintenance Schedule Summary

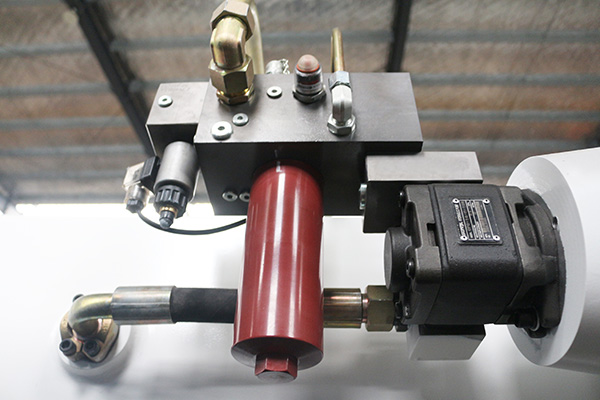

Hydraulic System Maintenance

The hydraulic system is the heart of your press brake. Over 70% of press brake failures originate in the hydraulic system — contaminated oil, worn pumps, failed seals, and clogged filters are the primary culprits. A disciplined hydraulic press brake maintenance program is essential.

Hydraulic Oil Management

• Oil type — use only the grade specified by the manufacturer. Most press brakes require ISO VG 46 anti-wear (AW) hydraulic oil conforming to DIN 51524 Part 2 (HLP). Never mix oil brands or viscosity grades.
• Oil temperature — maintain operating temperature between 35-55°C. Install a temperature gauge if your machine does not have one. Consider adding an oil cooler in hot climates or high-duty-cycle applications.
• Oil analysis — take an oil sample every 6 months and send it to a lab for particle count, water content, viscosity, and acid number testing. Oil analysis can extend change intervals and catch problems early.
• Contamination control — always filter new oil through a 10-micron filter when filling. Keep the reservoir breather clean. Never open the tank unnecessarily. Target ISO cleanliness code 18/16/13 or better.

Pump, Valves & Cylinders

• Pump noise — increasing noise levels indicate cavitation (check suction strainer and oil level) or internal wear (measure pump flow with a flow meter). A pump producing less than 85% of rated flow should be rebuilt or replaced.
• Proportional valves — these precision valves control ram speed and position. Clean the valve spool and housing annually. Replace the valve if position repeatability degrades beyond specification.
• Cylinder rod condition — inspect the chrome rod surface for scratches, pitting, or corrosion. Damaged rods destroy seals rapidly. Light scratches can sometimes be polished; deep damage requires rod replacement.

CNC Controller & Back Gauge Maintenance

Modern CNC press brakes depend on precise electronics and servo-driven back gauges for consistent bending accuracy. CNC press brake maintenance ensures that your controller, encoders, and positioning systems remain reliable.

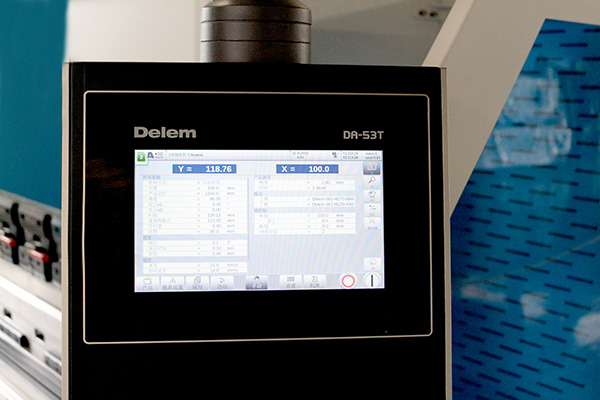

Controller Care

• Environment — keep the electrical cabinet temperature below 40°C. Ensure cabinet cooling fans and filters are clean. Excessive heat is the #1 cause of CNC component failure.
• Battery backup — replace the controller's battery (typically a 3V lithium CR2032 or similar) every 2-3 years, or immediately if a low-battery alarm appears. A dead battery erases tool and program memory on many older controllers.
• Program backup — back up all CNC programs, tool libraries, and machine parameters to USB or network storage monthly. Store backups off-site or in cloud storage.
• Screen and inputs — clean touchscreens with a soft, slightly damp cloth (no solvents). Test all physical buttons and the handwheel for proper function. Worn membrane switches should be replaced promptly.

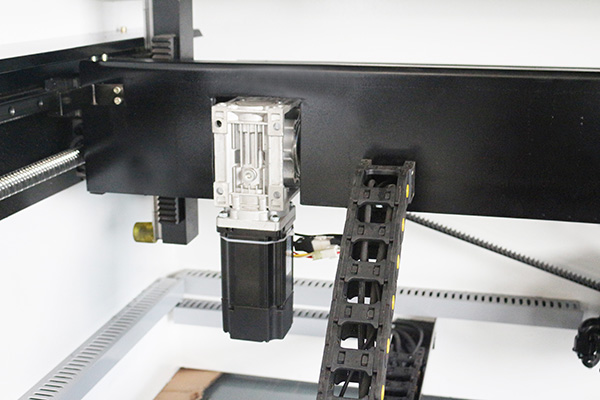

Back Gauge System

• Ball screw lubrication — apply the manufacturer-specified grease to ball screw lubrication points monthly. Dry ball screws wear rapidly and develop backlash that degrades positioning accuracy.
• Finger inspection — check back gauge fingers for bending, looseness, or wear. Damaged fingers give false reference positions. Replace worn fingers and retighten mounting bolts.
• Encoder and limit switches — verify that home position (reference) is consistent. If the back gauge occasionally fails to find home or overshoots, clean or replace the limit switch and check the encoder cable connections.
• Motor and drive — listen for unusual servo motor noise. Check motor mounting bolts for tightness. Inspect coupling between motor and ball screw for wear. A worn coupling introduces positioning errors that are hard to diagnose.

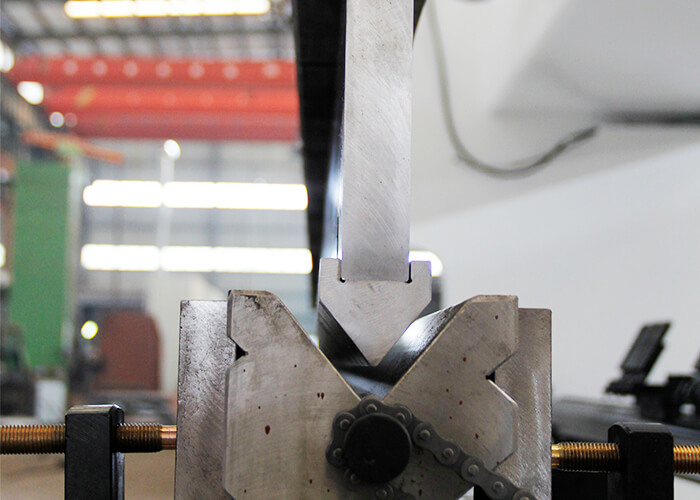

Tooling & Die Maintenance

Tooling is the direct interface between your press brake and the workpiece. Worn or damaged tooling is one of the most common causes of bending defects, including angle inconsistency, surface marks, and cracking.

• Daily visual inspection — check punch tips for chipping and die V-openings for wear or galling. A chipped punch tip leaves marks on every part and can crack thin material.
• Cleaning after each job — wipe tooling with a clean cloth and apply a thin coat of anti-rust oil before storage. Never store tooling loose in a drawer where edges can contact each other.
• Wear measurement — use a radius gauge to measure punch tip radius and die V-opening width monthly. Replace tooling when wear exceeds the manufacturer's tolerance (typically when the radius increases by more than 0.1 mm).
• Storage — store tooling vertically in dedicated racks with protective sleeves. Horizontal stacking causes edge damage. Keep the storage area dry to prevent corrosion.
• Alignment — verify punch-to-die alignment whenever tooling is changed. Misalignment as small as 0.1 mm causes uneven wear, angle variation, and can damage both the tooling and the machine. Use the manufacturer's alignment procedure or a dial indicator.

Common Press Brake Maintenance Mistakes to Avoid

Press Brake Maintenance Log Template

Use this template as a starting point for your maintenance tracking system. Record every maintenance event, no matter how small, to build a maintenance history that enables trend analysis and proactive repairs.
