10 Common Sheet Metal Bending Defects and How to Fix Them

Sheet metal bending defects cost fabrication shops thousands of dollars each year in scrap, rework, and lost production time. Whether you are running a CNC press brake or a manual machine, understanding why defects occur — and how to prevent them — is the fastest path to higher quality and lower costs.

In this guide we cover the 10 most common bending defects, explain their root causes, and provide actionable solutions you can apply on the shop floor today. We also include a quick-reference troubleshooting table and an FAQ section at the end.

1. Springback

Springback is the single most common bending defect. After the punch retracts, the metal partially returns toward its original flat shape because the elastic portion of the deformation recovers. The result is a bend angle that is wider than the programmed angle.

Root Causes

• High yield strength — materials like stainless steel (6–8° springback) and high-strength low-alloy steel spring back more than mild steel (2–4°).
• Large bend radius-to-thickness ratio — a larger ratio means more elastic strain relative to plastic strain.
• Air bending method — air bending relies on partial contact, so the material is not fully coined into its final shape.

How to Fix It

• Overbend — program the press brake to bend 2–8° past the target angle. Most CNC controllers include automatic springback compensation tables.
• Switch to bottoming or coining — bottoming uses 3–5× the tonnage of air bending but virtually eliminates springback; coining uses even more force to set the material.
• Reduce the bend radius — a tighter inner radius increases the ratio of plastic to elastic deformation.
• Use real-time angle measurement — laser or tactile angle sensors measure the part during the stroke and automatically adjust depth in real time.

2. Cracking and Fractures

Cracks appear on the outer surface of the bend (tension side) when the material's ductility limit is exceeded. In severe cases the part splits entirely along the bend line.

Root Causes

• Bend radius too small — bending tighter than the minimum bend radius (MBR) concentrates too much tensile stress on the outside fibers.
• Bending parallel to the grain — rolling introduces a grain direction; bending parallel to it is far more likely to crack than bending perpendicular.
• Low-ductility material — cold-rolled steel, hard-temper aluminum (e.g., 7075-T6), and work-hardened edges are all high-risk.
• Burrs on the tension side — shearing burrs act as stress concentrators and initiate cracks.

How to Fix It

• Increase the bend radius — as a rule of thumb, use an inner radius of at least 1–2× the material thickness for mild steel, and 2–3× for aluminum and stainless steel.
• Orient the bend perpendicular to the grain — if the part geometry allows, rotate the blank layout 90°.
• Anneal or pre-heat — annealing restores ductility in work-hardened material; pre-heating to 150 °C helps brittle alloys in cold workshops.
• Deburr before bending — always place the burr side toward the inside (compression side) of the bend.

3. Wrinkling

Wrinkling appears as small wave-like undulations on the inner surface of the bend. It degrades part fit-up, paint adhesion, and appearance.

Root Causes

• Excessive compressive stress — the inner fibers are compressed during bending, and thin sheets buckle more easily than thick ones.
• V-die opening too narrow — a narrow opening forces the material into a tighter radius, increasing local compression.
• Long, unsupported flanges — when the flange exceeds 4× the blank width with no support, gravity and lateral forces combine to wrinkle the metal.

How to Fix It

• Use the correct V-die opening — the standard rule is V = 8 × material thickness. For example, 2 mm sheet requires a 16 mm V-opening. Refer to our press brake tooling guide for a detailed selection chart.
• Add front support arms — support arms prevent the flange from sagging and redistribute compressive stress.
• Increase material thickness — if the design allows, using thicker sheet stock dramatically reduces wrinkling tendency.
• Add stiffening features — beading, ribbing, or embossing near the bend line increases local stiffness and resists buckling.

4. Surface Scratches and Die Marks

Indentations, gouges, and scuff marks on the workpiece surface are especially problematic for visible or painted parts. They are often caused by friction between the sheet and the tooling during forming.

Root Causes

• Worn or damaged die shoulders — burrs and rough spots on the die act like sandpaper against the sheet.
• No lubrication — dry contact between hard tooling and soft aluminum or stainless steel accelerates galling.
• Metal chips in the workspace — debris from punching, drilling, or grinding contaminates the die and scratches subsequent parts.

How to Fix It

• Clean and polish dies regularly — use a fine stone or polishing compound to maintain a smooth die surface (Ra ≤ 0.4 μm).
• Apply lubrication — a thin film of bending lubricant or dry-film PTFE spray reduces friction and prevents galling.
• Use protective film — PVC or polyethylene protective film on the sheet surface prevents direct metal-to-metal contact.
• Upgrade to coated tooling — TiN-coated or nitrided die surfaces are harder and far more resistant to adhesive wear.

5. Dimensional Inaccuracy (Incorrect Bend Angle)

The finished part does not match the target angle or flange length. This is often the costliest defect because it may not be caught until assembly.

Root Causes

• Worn tooling — punch tips round off and die shoulders erode, shifting the effective bend geometry.
• Material thickness variation — even ±0.1 mm in thickness can shift the bend angle by 1–2° in air bending.
• Incorrect bend allowance or K-factor — programming errors cascade through every flange dimension.
• Insufficient tonnage — if the press brake cannot deliver enough force, the metal will not reach the programmed angle.

How to Fix It

• Inspect tooling regularly — replace punch tips when erosion exceeds 0.1 mm and dies when shoulder wear exceeds 0.2 mm.
• Verify incoming material — measure actual thickness at the start of each batch and adjust CNC parameters accordingly.
• Use correct bend calculations — modern CAD/CAM systems provide accurate bend allowance tables; validate with a test bend on scrap material.
• Install angle measurement — laser angle sensors on the press brake give real-time feedback and auto-correct each stroke.

6. Hole Distortion Near the Bend Line

When pre-punched holes are located too close to a bend, the material flow during forming distorts them into ovals or teardrops. This can make fasteners impossible to insert and compromise joint integrity.

Root Causes

• Insufficient hole-to-bend distance — the general rule is that holes should be at least 2× material thickness + bend radius away from the bend line.
• Large hole diameter relative to material thickness — larger openings are more susceptible to distortion.

How to Fix It

• Redesign the flat pattern — move holes farther from the bend line at the CAD stage. This is the cheapest and most reliable fix.
• Add relief slots — a narrow relief cut between the hole and the bend line isolates the hole from bending stress.
• Drill or punch after bending — if hole location cannot be moved, perform the hole operation as a secondary process after the bend is formed.

7. Twisting and Bowing

Twisting is a rotational distortion along the length of the part, while bowing is a lengthwise curvature (the "banana effect"). Both defects are especially troublesome on long, narrow parts.

Root Causes

• Residual stress in the sheet — hot-rolled and leveled sheets retain internal stress fields that release unevenly during bending.
• Asymmetric cross-section — parts with flanges of different lengths or an off-center bend tend to twist.
• Uneven ram pressure — hydraulic cylinder imbalance or worn guide gibs cause one side to apply more force.

How to Fix It

• Level the material before bending — a roller leveler or tension leveler removes internal stress and produces a flat, stress-free blank.
• Use front support arms — supporting long blanks reduces gravity-induced twisting during forming.

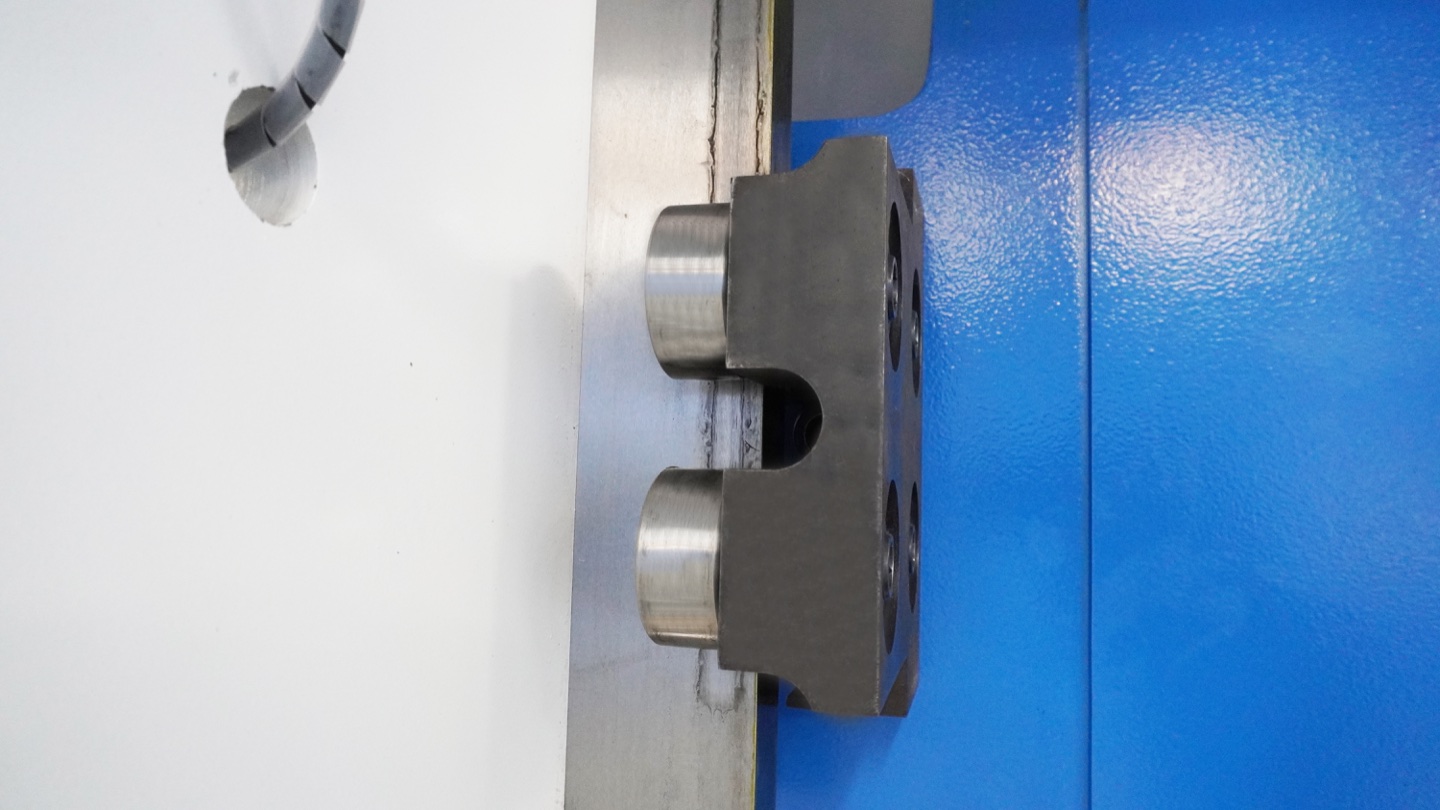

• Check ram parallelism — inspect guide gibs and adjust shims so the ram travels perfectly vertical. Most modern CNC press brakes have hydraulic synchronization to correct this automatically.
• Re-sequence the bending order — bending the center first and working outward balances stress release on both sides of the part.

8. Material Thinning at the Bend

During bending, the outer fibers stretch while the inner fibers compress. This redistribution of material causes a reduction in thickness at the apex of the bend, sometimes by 10–15 % on tight radii.

Root Causes

• Very tight bend radius — the tighter the radius, the greater the outer-fiber elongation and the more thinning occurs.
• High-strength, low-ductility material — materials that resist elongation concentrate thinning in a narrower zone.
• Coining with excessive tonnage — over-coining squeezes the apex thinner than the parent sheet.

How to Fix It

• Increase the inner bend radius — even a small increase (from 1× T to 1.5× T) significantly reduces outer-fiber strain.
• Account for thinning in design — if the bend area will carry structural load, specify a thicker starting gauge to maintain the required minimum wall after bending.
• Avoid excessive coining pressure — use only enough tonnage to set the angle; unnecessary force accelerates thinning with no benefit.

9. Back Gauge Errors

The back gauge positions the blank so that the bend occurs at the correct location along the part. When it is inaccurate, the flange length shifts — and every downstream bend inherits the error.

Root Causes

• Mechanical wear — ball screws, linear guides, and finger surfaces wear over time, introducing positional drift.
• Worn or damaged fingers — dented or bent gauge fingers don't provide a consistent reference surface.
• Material slippage — oily or dusty sheet surfaces slide against the gauge fingers during the downstroke.

How to Fix It

• Calibrate the back gauge regularly — use a calibrated gauge block or CMM to verify finger position at least monthly.
• Replace worn fingers — hardened fingers maintain dimensional accuracy far longer than soft ones.
• Clean sheet surfaces — remove oil, dust, and residue from the blank before bending to prevent slippage.
• Use pneumatic clamping — for critical parts, pneumatic clamps hold the blank firmly against the gauge fingers throughout the stroke.

10. Bed Deflection (The "Canoe Effect")

On long bends, the press brake bed and ram flex under load, creating a slight bow. The result is a tighter angle at the ends of the workpiece and a shallower angle in the middle — a defect known as the "canoe effect."

Root Causes

• Bending force exceeds machine stiffness — all press brakes deflect to some degree; the amount increases with tonnage and bending length.
• No crowning system — older machines without crowning cannot compensate for natural deflection.
• Worn guide gibs — excessive clearance (> 0.2 mm) allows the ram to tilt during the stroke.

How to Fix It

• Use a crowning system — hydraulic crowning (CNC-adjustable) is the gold standard; mechanical wedge crowning is a cost-effective alternative. The crowning table pre-bows the bed upward to counteract the downward deflection under load.
• Check and shim guide gibs — maintain gib clearance within 0.05–0.10 mm for consistent ram travel.
• Choose the right machine size — a press brake rated for your maximum tonnage and length will deflect less than one that is at its limits. Consult our press brake selection guide for sizing recommendations.

Quick-Reference Troubleshooting Table

Use this table for fast diagnosis on the shop floor. Identify the symptom, check the most likely cause, and apply the recommended fix.

Frequently Asked Questions

Conclusion

Sheet metal bending defects are rarely random — they almost always trace back to a specific material, tooling, or machine condition. By understanding the 10 defects outlined in this guide, you can diagnose problems faster, reduce scrap rates, and keep your production line running smoothly.

The key takeaways are: match your tooling to the material and bend geometry, maintain your equipment on a regular schedule, verify incoming material properties, and invest in CNC features like automatic bending compensation and crowning systems that catch errors before they become scrap.
