To calculate press brake tonnage, start with material tensile strength, sheet thickness, bend length and V-die opening. The result tells you the minimum bending force for one bend; the machine should then include reserve capacity for full-length bending, stainless steel, high-strength steel, tooling limits and future jobs. Use the chart below as a practical press brake V die opening guide, then compare machine options in the press brake machine guide or ask Rucheng to verify the result from drawings.
| Search intent | Best Rucheng page | Use it for |
|---|---|---|
| Need the formula, chart and machine sizing rules | This tonnage calculation guide | Understanding why force changes by material, V-die, bend length and reserve. |
| Need a fast result for one drawing | Free press brake bending calculator | Calculating kN, tons, inside radius, minimum flange and recommended V-die. |
| Need machine pricing after calculation | Press brake quote form | Sending material, thickness, bend length, drawings and production volume. |
| Calculated need | Recommended machine path | Quote data to send |
|---|---|---|
| Normal sheet metal tonnage with tight repeatability | Electro-hydraulic CNC press brake | Material, thickness range, bend length, tolerance, controller and back gauge requirements. |
| High force for thick plate or structural components | Heavy-duty press brake | Plate grade, maximum thickness, inside radius, part weight, tooling and handling limits. |
| Long bend length beyond one standard machine bed | Tandem press brake system | Total bend length, part weight, synchronization needs, crane access and floor layout. |
1. What Is Press Brake Tonnage?
Press brake tonnage refers to the bending force — measured in metric tons or US tons — that the machine's ram exerts on the workpiece. This force pushes the sheet metal into the V-die, creating a bend.
The required tonnage depends on several factors:
- Material type and tensile strength
- Material thickness
- V-die opening (die width)
- Bend length
- Bend angle and method (air bending vs. bottoming)
Modern CNC press brakes range from 40 tons for light-gauge work to over 2,000 tons for heavy plate bending. Most fabrication shops use machines in the 100-400 ton range, which handles the majority of common applications.
2. Why Accurate Tonnage Calculation Matters
Getting tonnage wrong has serious consequences:
Under-Tonnage Problems:
- Incomplete or inconsistent bends
- Springback exceeds machine compensation
- Operator forces multiple strokes (dangerous)
- Production slowdowns and quality issues
Over-Tonnage Problems:
- Higher purchase and operating costs
- Larger footprint and foundation requirements
- Reduced energy efficiency
- Wasted capital investment

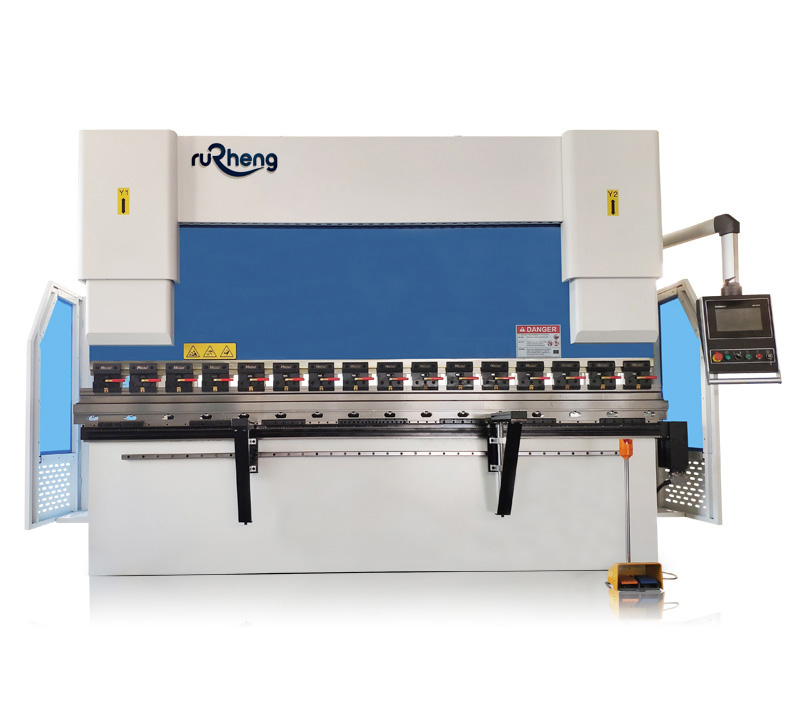

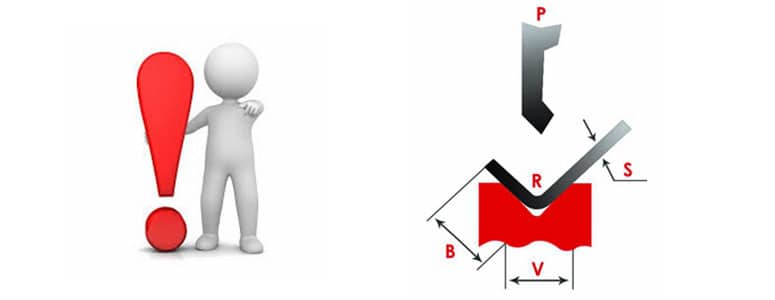

3. The Standard Press Brake Tonnage Formula
The most widely used formula for calculating press brake tonnage is:
F = Required bending force (kN)
Rm = Material tensile strength (MPa)
S = Material thickness (mm)
L = Bend length (mm)
V = V-die opening width (mm)
To convert kN to metric tons: Tonnage (t) = F / 9.81
Metric Ton Conversion:
If you want the result directly in metric tons, divide the kN result by 9.81:
For machine selection, add a 20-30% reserve above the calculated tonnage.
Example Calculation:
Material: S275/Q345 mild steel, Rm = 430 MPa | Thickness: 3 mm | Bend length: 2000 mm | V-die opening: 24 mm (8× rule)

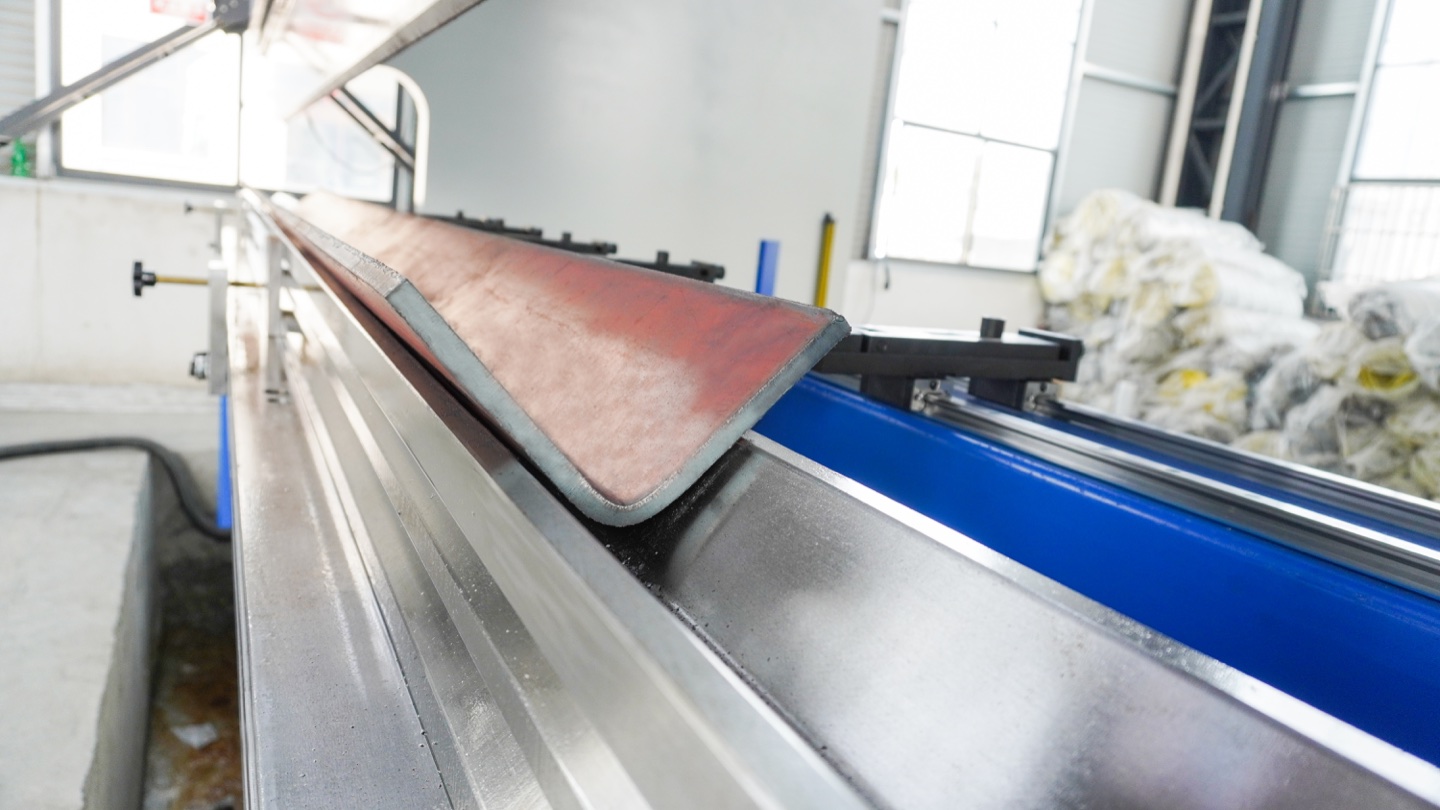

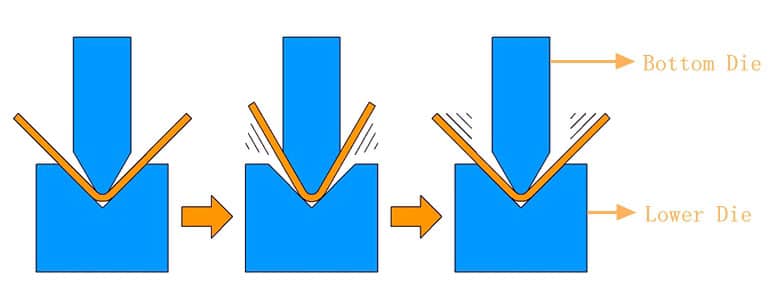

4. The V-Die Opening Rule: Your Most Important Variable
The V-die opening (V) is the single most influential variable in tonnage calculation. A smaller V-die requires dramatically more force than a larger one.
The Industry Standard "8× Rule":
For optimal results, select a V-die opening of approximately 8 times the material thickness:
| Material Thickness | Recommended V-Die Opening | Typical inside radius | Buyer note |
|---|---|---|---|
| 1.0 mm | 8 mm | about 1.3 mm | Cabinets, covers and thin aluminum parts |
| 1.5 mm | 12 mm | about 2.0 mm | Electrical boxes and light brackets |
| 2.0 mm | 16 mm | about 2.6 mm | General sheet metal components |
| 3.0 mm | 24 mm | about 3.9 mm | Stainless brackets and facade parts |
| 4.0 mm | 32 mm | about 5.1 mm | Structural brackets and thicker covers |
| 5.0 mm | 40 mm | about 6.4 mm | Confirm punch radius and tooling strength |
| 6.0 mm | 50 mm | about 8.0 mm | Often needs 125T-200T depending on bend length |
| 8.0 mm | 63 mm | about 10.1 mm | Check heavy-duty frame and die load rating |
| 10.0 mm | 80 mm | about 12.8 mm | Heavy-duty or custom configuration |
| 12.0 mm | 100 mm | about 16.0 mm | Verify drawings, material grade and handling |
Press Brake V Die Opening Chart: When to Use 6x, 8x, 10x or 12x
The 8x rule is a starting point, not a fixed law. In real production, the correct V die opening also depends on inside radius, minimum flange, part appearance, available tonnage and material springback.
| V die rule | Use when | Tonnage effect | Quality trade-off |
|---|---|---|---|
| 6 x thickness | Short flange or tighter inside radius is required | Higher force | More marking risk; tooling load must be checked |
| 8 x thickness | Most general air-bending work | Balanced force | Best starting point for quotation and setup |
| 10 x thickness | Thicker plate, stainless steel or lower tonnage reserve | Lower force | Larger radius and longer minimum flange |
| 12 x thickness | High-strength material or cosmetic surface protection | Lowest force | Radius may exceed drawing requirement |
Trade-offs:
- Smaller V-die: Higher tonnage, tighter inside radius, more precise bends, but more die marks
- Larger V-die: Lower tonnage, larger inside radius, less surface marking, but less precision
5. Material Factors: Tensile Strength Multipliers
Different materials require different amounts of force to bend. If you know the tensile strength, use the exact Rm value in the formula. If you are working from a mild-steel chart, apply a multiplication factor for other materials:
| Material | Tensile Strength (MPa) | Multiplier vs. Mild Steel |
|---|---|---|
| Aluminum 5052 | 230 | 0.5× |
| Copper (soft) | 220 | 0.5× |
| Brass | 350 | 0.8× |
| Mild Steel (A36) | 450 | 1.0× (baseline) |
| High-Strength Steel (HSLA) | 550 | 1.2× |
| Stainless Steel 304 | 620 | 1.4× |
| Stainless Steel 316 | 580 | 1.3× |
| Hardox 400 | 1250 | 2.8× |
| Hardox 500 | 1550 | 3.4× |
Example:
If your mild steel calculation shows 50 tons required, and you're bending 304 stainless steel of the same thickness and length, you need:
6. Bend Method: Air Bending vs. Bottoming vs. Coining
The bending method dramatically affects tonnage requirements:
Air Bending (Most Common)
Punch does not fully contact the die. Material springback determines final angle. Requires lowest tonnage — typically the calculated value. Most flexible: one die can produce multiple angles. Standard formula applies.
Bottoming (Bottom Bending)
Punch presses material firmly into the die. Reduces springback significantly. Requires 3-5× more tonnage than air bending. More consistent angles. Multiply calculated tonnage by 3-5.
Coining
Material is fully compressed between punch and die. Virtually eliminates springback. Requires 8-10× more tonnage than air bending. Rarely used in modern CNC press brakes. Multiply calculated tonnage by 8-10.
7. Bend Angle Effects
The bend angle also influences tonnage requirements, though less dramatically than V-die opening or material type:
| Bend Angle | Tonnage Multiplier |
|---|---|
| 90° | 1.0× (standard) |
| 60° | 0.7× |
| 45° | 0.5× |
| 120° | 1.3× |
| 135° | 1.5× |
Note: Acute angles (less than 90°) require specialized tooling and careful consideration of springback. Obtuse angles require more tonnage because the material must be bent further past its initial position.
8. Complete Tonnage Calculation Example
Let's work through a real-world example step by step.
Job Specifications:
- Material: Stainless Steel 304, 4mm thick
- Bend length: 3 meters
- Bend angle: 90°
- Bending method: Air bending
Step 1: Select V-die opening
Step 2: Calculate using full formula
Step 3: Convert to metric tons
Step 4: Add safety margin (20%)
Recommendation: Choose at least a 200-ton press brake for this job, then confirm working length, bed deflection, crowning, tooling and load distribution before production.
9. Press Brake Tonnage Examples by Application
Searchers often want to know not only the formula, but also the machine class that normally fits their work. These examples are starting points for quotation; final tonnage still depends on material grade, bend length, V die opening, radius and daily production hours.
| Application | Common material range | Common machine class | Related guide |
|---|---|---|---|
| Electrical cabinets and enclosures | 0.8-2.0 mm mild steel or stainless steel | 40T-100T CNC press brake | cabinet and frame bending reference |
| HVAC duct bending | 0.6-2.0 mm galvanized sheet | 63T-125T press brake or duct line support | HVAC duct fabrication workflow |
| Ventilated facade brackets | 2.0-4.0 mm stainless steel or aluminum | 80T-160T CNC press brake with crowning | facade bracket production solution |
| Long facade panels and light poles | 2.0-6.0 mm steel or aluminum | 160T-400T or tandem press brake | tandem press brake option |
| Heavy structural brackets | 6.0-12.0 mm mild steel or high-strength steel | 250T+ heavy-duty press brake | heavy-duty press brake |
10. Quick Reference Tonnage Charts
For rapid estimation, use this pre-calculated tonnage chart (per meter of bend length, air bending, 8× V-die rule):

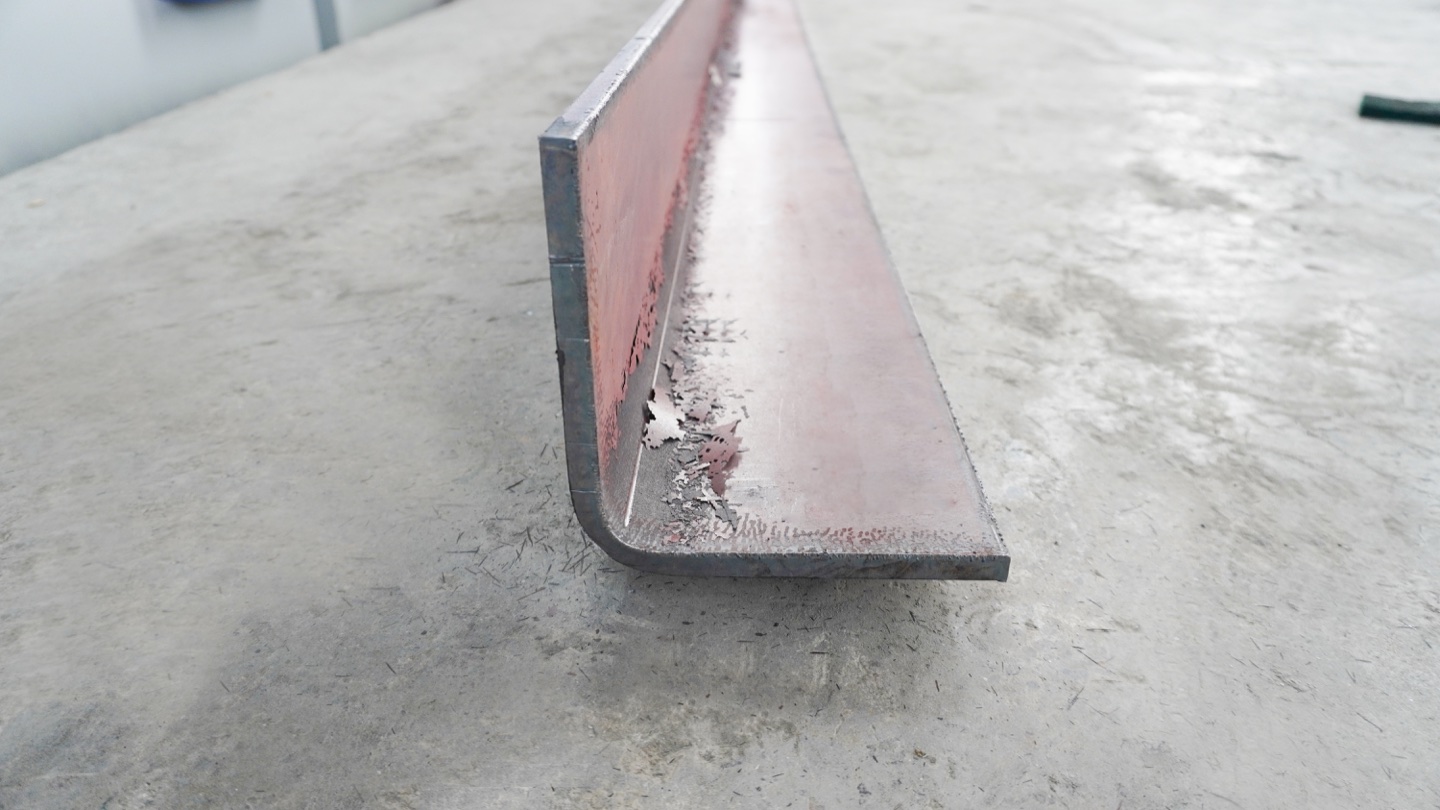

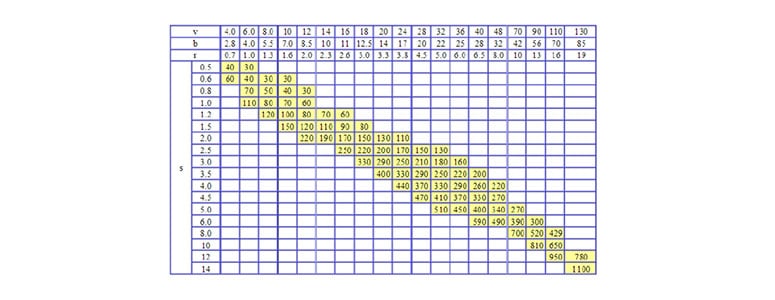

Mild Steel Tonnage Chart (tons per meter)
| Thickness | V=8mm | V=16mm | V=24mm | V=32mm | V=40mm | V=50mm |
|---|---|---|---|---|---|---|
| 1.0 mm | 8 | 4 | - | - | - | - |
| 1.5 mm | 18 | 9 | 6 | - | - | - |
| 2.0 mm | 32 | 16 | 11 | 8 | - | - |
| 3.0 mm | - | 36 | 24 | 18 | 14 | - |
| 4.0 mm | - | - | 43 | 32 | 26 | 20 |
| 5.0 mm | - | - | - | 50 | 40 | 32 |
| 6.0 mm | - | - | - | - | 58 | 46 |
| 8.0 mm | - | - | - | - | - | 82 |
Stainless Steel 304: multiply mild steel values by 1.4
Aluminum: multiply mild steel values by 0.5
11. Tonnage Distribution and Machine Selection
When selecting a press brake, consider how tonnage is distributed across the working length:
Centered Load vs. Off-Center Load:
Most press brake tonnage ratings assume a centered load across 60-70% of the total working length. Off-center bending or full-length bending may require derating.
Rule of Thumb:
- Center 60% of bed length: Full rated tonnage available
- Full bed length: Derate to 60-70% of rated tonnage
- Extreme off-center: Consult manufacturer specifications
Machine Selection from Calculated Tonnage
Use the calculated tonnage as the minimum force for one bend. The final machine should also match working length, bend distribution, daylight, stroke, throat depth, controller, crowning and tooling.
| Calculated force after reserve | Starting machine class | Typical use case | Selection note |
|---|---|---|---|
| Up to 60 tons | 63T press brake | Light sheet metal, cabinets, covers, small brackets | Check precision at low tonnage if most work is under 10 tons. |
| 60-100 tons | 100T press brake | Common 2-4 mm mild steel parts up to medium length | Good general-purpose range for many workshops. |
| 100-160 tons | 160T press brake | Longer bends, 4-6 mm mild steel, some stainless work | Confirm crowning and full-length derating. |
| 160-250 tons | 250T press brake | Thicker plate, stainless, structural brackets | Tooling strength and V-die size become critical. |
| Above 250 tons | Custom heavy-duty press brake | Heavy plate, long parts, high-strength steel | Ask Rucheng to verify frame, hydraulic system and tooling together. |
12. Common Tonnage Calculation Mistakes
Mistake #1: Ignoring Material Grade
Using "steel" without specifying grade. The difference between mild steel and high-strength steel can be 2-3× in tonnage requirement.
Mistake #2: Wrong V-Die Selection
Using whatever die is available instead of calculating the optimal opening. This leads to either excessive tonnage requirements or poor bend quality.
Mistake #3: Forgetting the Safety Margin
Calculating exact requirements and buying a machine with exactly that capacity. Always add 20-30% margin.
Mistake #4: Confusing Metric and US Tons
1 metric ton = 1,000 kg = 2,204.6 lbs. 1 US (short) ton = 2,000 lbs = 907 kg. Difference: ~10%. Always clarify which unit the machine uses.
Mistake #5: Not Considering Multiple Bends
A part with multiple bends may require repositioning that affects tonnage distribution. Consider the most demanding bend, not the average.
13. Frequently Asked Questions
Q: How do I calculate press brake tonnage for irregular shapes?
Calculate each bend segment separately based on its length and material thickness. The maximum tonnage from any single bend determines your machine requirement.
Q: Can I use a higher-tonnage machine for thin materials?
Yes, but with caution. Operating a 200-ton machine at 10% capacity may cause control precision issues. Many manufacturers offer adjustable tonnage or precision mode for light-gauge work.
Q: What happens if I exceed the press brake's tonnage rating?
Safety systems should prevent operation, but if bypassed: potential frame damage, ram deflection, hydraulic system failure, and dangerous conditions. Never exceed rated capacity.
Q: Does bending speed affect tonnage requirements?
Minimally. Faster bending can slightly increase dynamic forces, but modern servo-hydraulic systems compensate automatically. Speed affects cycle time and precision more than tonnage.
Q: How does temperature affect tonnage calculation?
Cold materials are slightly harder to bend. If bending in unheated shops during winter, add 5-10% to tonnage calculations. Preheating thick plates can reduce tonnage requirements.
Q: Should I calculate tonnage per bend or total for the part?
Calculate per bend. The press brake applies force to one bend at a time. Your machine capacity needs to handle the single most demanding bend, not the sum of all bends.
Q: How much tonnage reserve should a press brake have?
For normal production, add at least 20-30% above the calculated bending force. For full-length bends, stainless steel, high-strength steel, narrow V-dies, or future thicker materials, use 30-50% reserve and confirm the load distribution with the manufacturer.
Q: How many tons does a press brake need for 3 mm steel?
For 3 mm mild steel with a 2000 mm bend length and a 24 mm V-die opening, the calculated air-bending force is about 51 metric tons. Add 20-30% reserve, so a 63 ton press brake is often the starting point. Longer bends, stainless steel or high-strength steel may need a larger machine.
Q: What V die opening should I use for press brake tonnage calculation?
For normal air bending, start with a V die opening about 8 times the material thickness. Use 6x when a short flange or tighter inside radius is required, and use 10x or 12x when you need lower tonnage, less surface marking or more reserve for stainless steel and high-strength material.
Q: What press brake tonnage is common for facade brackets, cabinets and HVAC ducts?
Electrical cabinets and light covers often start around 40-80 tons, HVAC duct work often uses 63-125 tons, and facade brackets or stainless brackets often use 80-160 tons depending on thickness, bend length, material grade and tooling. Final selection should be checked from drawings.
Q: Can Rucheng calculate press brake tonnage from drawings?
Yes. Send material grade, thickness, bend length, part drawings, production volume and voltage requirements. Rucheng can calculate the required tonnage and recommend the press brake model, controller, back gauge, crowning and tooling configuration.
Q: Which press brake machine type should I choose after calculating tonnage?
Choose an electro-hydraulic CNC press brake for normal precision sheet metal work, a heavy-duty press brake when the calculated tonnage is high for thick plate or structural parts, and a tandem press brake when the bend length exceeds a practical single machine bed.
Conclusion
Accurate tonnage calculation is the foundation of successful press brake selection and operation. By understanding the key formula — F = 1.54 × Rm × S² × L / (V × 1000) — and the factors that influence it, you can confidently specify the right machine for your needs.
Remember these key principles:
- V-die selection is critical: Follow the 8× rule for optimal results
- Material matters: Stainless steel needs 40% more tonnage than mild steel; high-strength steel may need 2-3× more
- Add safety margin: 20-30% extra capacity protects your investment
- Consider distribution: Full-length bends may require derating
- Verify units: Metric tons vs. US tons can cause 10% errors
With these guidelines, you'll avoid the costly mistakes of under- or over-specifying your press brake tonnage.
For the next checks in the same workflow, compare this article with our press brake force calculation guide, confirm flat pattern length with the bend allowance and K-factor guide, and estimate budget with the CNC press brake cost by tonnage guide.
Press Brake Quote Checklist After Tonnage Calculation
Tonnage is only one part of press brake selection. To let Rucheng verify the right machine size, controller, back gauge, crowning and tooling, send the following information with your quotation request.
| Information to send | Why it matters |
|---|---|
| Material grade and tensile strength | Stainless steel, aluminum and high-strength steel need different force and tooling choices. |
| Thickness range and maximum bend length | These two values drive the calculated tonnage and working length. |
| Part drawings or bend drawings | Drawings confirm flange length, bend sequence, tooling clearance and back gauge requirements. |
| Expected daily production volume | Production volume affects controller level, back gauge axes, automation and tooling setup. |
| Preferred voltage and workshop layout | Power, foundation, loading route and handling space affect the final configuration. |
If you already know the calculated force, include it in the message. If not, send material, thickness, bend length and drawings; Rucheng can calculate the tonnage and recommend the correct press brake model.
Need Rucheng to verify press brake tonnage from your drawings? Send material, thickness, bend length, part drawings and production volume for a practical machine recommendation.
Request a Press Brake RecommendationPress brake selection and production resources
Compare Rucheng press brake machines before choosing tonnage, working length, controller, tooling and automation options.
- Electro-hydraulic CNC press brake for high-mix precision bending.
- Heavy-duty press brake for thick plate, high tonnage and large structural bending.
- Tandem press brake for long parts, poles, panels and structural work.
- Press brake tonnage calculation, tooling selection and controller selection help confirm the final specification.
- When your drawings are ready, use the press brake quote form to send material, thickness, bend length and production requirements.
- For blank preparation before bending, compare fiber laser cutting machines and plan the cutting-to-bending workflow together.
