Choosing the right tonnage for your press brake machine or CNC press brake is one of the most critical decisions in sheet metal fabrication. Select too little tonnage, and you risk machine damage, inconsistent bends, and production bottlenecks. Choose too much, and you're paying for capacity you'll never use — wasting capital and floor space. The good news? Press brake tonnage calculation isn't guesswork. There's a proven formula that tells you exactly how much force you need.
1. What Is Press Brake Tonnage?
Press brake tonnage refers to the bending force — measured in metric tons or US tons — that the machine's ram exerts on the workpiece. This force pushes the sheet metal into the V-die, creating a bend.
After confirming tonnage, verify the flat pattern with our press brake bend allowance and K-factor guide, then prepare the bend sequence using CNC press brake programming basics. For production tolerances, compare the setup against the press brake accuracy and tolerance guide. For shop-floor risk control, pair the setup with the press brake safety checklist.
The required tonnage depends on several factors:
- Material type and tensile strength
- Material thickness
- V-die opening (die width)
- Bend length
- Bend angle and method (air bending vs. bottoming)
Modern CNC press brakes range from 40 tons for light-gauge work to over 2,000 tons for heavy plate bending. Most fabrication shops use machines in the 100-400 ton range, which handles the majority of common applications.
2. Why Accurate Tonnage Calculation Matters
Getting tonnage wrong has serious consequences:
Under-Tonnage Problems:
- Incomplete or inconsistent bends
- Springback exceeds machine compensation
- Operator forces multiple strokes (dangerous)
- Production slowdowns and quality issues
Over-Tonnage Problems:
- Higher purchase and operating costs
- Larger footprint and foundation requirements
- Reduced energy efficiency
- Wasted capital investment
3. The Standard Press Brake Tonnage Formula

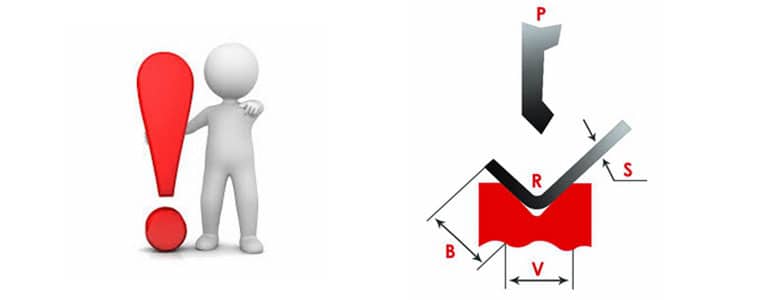

The most widely used formula for calculating press brake tonnage is:
P = Required bending force (kN)
S = Material thickness (mm)
L = Bend length (m)
σb = Material tensile strength (MPa)
V = V-die opening width (mm)
To convert kN to metric tons: Tonnage (t) = P / 9.81
Simplified Formula for Mild Steel:
For standard mild steel (σb ≈ 450 MPa), the formula simplifies to:
Where S is in mm, L is in meters, and V is in mm.
Example Calculation:
Material: Mild steel, 3mm thick | Bend length: 2 meters | V-die opening: 24mm (following the 8× rule)
4. The V-Die Opening Rule: Your Most Important Variable
The V-die opening (V) is the single most influential variable in tonnage calculation. A smaller V-die requires dramatically more force than a larger one.
The Industry Standard "8× Rule":
For optimal results, select a V-die opening of approximately 8 times the material thickness:
| Material Thickness | Recommended V-Die Opening |
|---|---|
| 1.0 mm | 8 mm |
| 1.5 mm | 12 mm |
| 2.0 mm | 16 mm |
| 3.0 mm | 24 mm |
| 4.0 mm | 32 mm |
| 5.0 mm | 40 mm |
| 6.0 mm | 50 mm |
| 8.0 mm | 63 mm |
| 10.0 mm | 80 mm |
| 12.0 mm | 100 mm |
Trade-offs:
- Smaller V-die: Higher tonnage, tighter inside radius, more precise bends, but more die marks
- Larger V-die: Lower tonnage, larger inside radius, less surface marking, but less precision
5. Material Factors: Tensile Strength Multipliers
Different materials require different amounts of force to bend. The standard formula assumes mild steel (σb ≈ 450 MPa). For other materials, apply a multiplication factor:
| Material | Tensile Strength (MPa) | Multiplier vs. Mild Steel |
|---|---|---|
| Aluminum 5052 | 230 | 0.5× |
| Copper (soft) | 220 | 0.5× |
| Brass | 350 | 0.8× |
| Mild Steel (A36) | 450 | 1.0× (baseline) |
| High-Strength Steel (HSLA) | 550 | 1.2× |
| Stainless Steel 304 | 620 | 1.4× |
| Stainless Steel 316 | 580 | 1.3× |
| Hardox 400 | 1250 | 2.8× |
| Hardox 500 | 1550 | 3.4× |
Example:
If your mild steel calculation shows 50 tons required, and you're bending 304 stainless steel of the same thickness and length, you need:

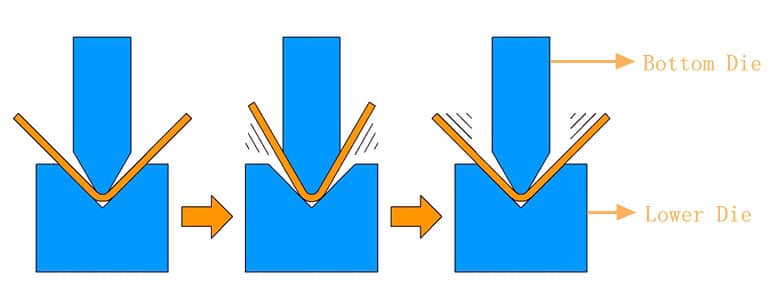

6. Bend Method: Air Bending vs. Bottoming vs. Coining
The bending method dramatically affects tonnage requirements:
Air Bending (Most Common)
Punch does not fully contact the die. Material springback determines final angle. Requires lowest tonnage — typically the calculated value. Most flexible: one die can produce multiple angles. Standard formula applies.
Bottoming (Bottom Bending)
Punch presses material firmly into the die. Reduces springback significantly. Requires 3-5× more tonnage than air bending. More consistent angles. Multiply calculated tonnage by 3-5.
Coining
Material is fully compressed between punch and die. Virtually eliminates springback. Requires 8-10× more tonnage than air bending. Rarely used in modern CNC press brakes. Multiply calculated tonnage by 8-10.
7. Bend Angle Effects
The bend angle also influences tonnage requirements, though less dramatically than V-die opening or material type:
| Bend Angle | Tonnage Multiplier |
|---|---|
| 90° | 1.0× (standard) |
| 60° | 0.7× |
| 45° | 0.5× |
| 120° | 1.3× |
| 135° | 1.5× |
Note: Acute angles (less than 90°) require specialized tooling and careful consideration of springback. Obtuse angles require more tonnage because the material must be bent further past its initial position.
8. Complete Tonnage Calculation Example
Let's work through a real-world example step by step.
Job Specifications:
- Material: Stainless Steel 304, 4mm thick
- Bend length: 3 meters
- Bend angle: 90°
- Bending method: Air bending
Step 1: Select V-die opening
Step 2: Calculate using full formula
Step 3: Convert to metric tons
Step 4: Add safety margin (20%)
Recommendation: A 100-ton press brake would handle this job with comfortable margin, allowing for material variation and future capacity.

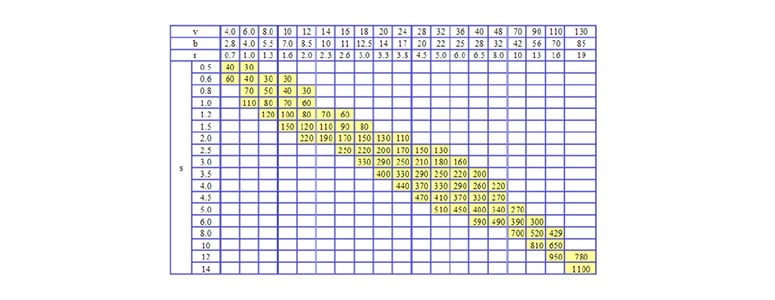

9. Quick Reference Tonnage Charts
For rapid estimation, use this pre-calculated tonnage chart (per meter of bend length, air bending, 8× V-die rule):
Mild Steel Tonnage Chart (tons per meter)
| Thickness | V=8mm | V=16mm | V=24mm | V=32mm | V=40mm | V=50mm |
|---|---|---|---|---|---|---|
| 1.0 mm | 8 | 4 | - | - | - | - |
| 1.5 mm | 18 | 9 | 6 | - | - | - |
| 2.0 mm | 32 | 16 | 11 | 8 | - | - |
| 3.0 mm | - | 36 | 24 | 18 | 14 | - |
| 4.0 mm | - | - | 43 | 32 | 26 | 20 |
| 5.0 mm | - | - | - | 50 | 40 | 32 |
| 6.0 mm | - | - | - | - | 58 | 46 |
| 8.0 mm | - | - | - | - | - | 82 |
Stainless Steel 304: multiply mild steel values by 1.4
Aluminum: multiply mild steel values by 0.5
10. Tonnage Distribution and Machine Selection
When selecting a press brake, consider how tonnage is distributed across the working length:
Centered Load vs. Off-Center Load:
Press brake capacity must be checked against the specific machine's rated loading conditions. A centered load, a full-length load and an off-center load are different cases; a universal 60–70% working-length or capacity rule cannot determine their permitted force.
Machine-specific load checks:
- Centered loading: Confirm the permitted force for the actual loaded length. Centering a short part does not establish that the bed, ram or tooling can accept the full machine rating over that short contact.
- Full bed length: Use the manufacturer's stated full-length loading conditions and capacity. Do not apply a generic 60–70% derating; the relevant machine documentation must establish the limit.
- Off-center loading: Check the actual position against the machine's applicable chart or written assessment. Record lateral displacement and any front-to-back eccentricity separately; neither is resolved by total tonnage alone.
Keep the force estimate and the permitted setup together
Capacity guidance updated November 18, 2026
A useful review record pairs the calculated demand with the evidence that permits it: machine identity, manual revision, loaded length, position datum, active station, tool and holder identifiers, and applicable limits. Record units explicitly. A demand in kN and a tool rating in kN/m are different quantities and cannot be compared directly without an applicable loaded-length and distribution model.
For example, moving an otherwise unchanged 300 mm bend from the machine center to a side station leaves the bend length unchanged but changes the capacity question. Recheck the actual station position before reusing the program. This is an illustrative review scenario, not an approved operating position. The CINCINNATI BASEFORM manual separates lateral and front-to-back restrictions; WILA also identifies tool holders and the machine as possible capacity limits.
CINCINNATI BASEFORM manual, section 4-3 · WILA load-capacity guidance
11. Common Tonnage Calculation Mistakes
Mistake #1: Ignoring Material Grade
Using "steel" without specifying grade. The difference between mild steel and high-strength steel can be 2-3× in tonnage requirement.
Mistake #2: Wrong V-Die Selection
Using whatever die is available instead of calculating the optimal opening. This leads to either excessive tonnage requirements or poor bend quality.
Mistake #3: Forgetting the Safety Margin
Calculating exact requirements and buying a machine with exactly that capacity. Always add 20-30% margin.
Mistake #4: Confusing Metric and US Tons
1 metric ton = 1,000 kg = 2,204.6 lbs. 1 US (short) ton = 2,000 lbs = 907 kg. Difference: ~10%. Always clarify which unit the machine uses.
Mistake #5: Not Considering Multiple Bends
A part with multiple bends may require repositioning that affects tonnage distribution. Consider the most demanding bend, not the average.
12. Frequently Asked Questions
Q: How do I calculate press brake tonnage for irregular shapes?
Calculate each bend segment separately based on its length and material thickness. The maximum tonnage from any single bend determines your machine requirement.
Q: Can I use a higher-tonnage machine for thin materials?
Yes, but with caution. Operating a 200-ton machine at 10% capacity may cause control precision issues. Many manufacturers offer adjustable tonnage or precision mode for light-gauge work.
Q: What happens if I exceed the press brake's tonnage rating?
Safety systems should prevent operation, but if bypassed: potential frame damage, ram deflection, hydraulic system failure, and dangerous conditions. Never exceed rated capacity.
Q: Does bending speed affect tonnage requirements?
Minimally. Faster bending can slightly increase dynamic forces, but modern servo-hydraulic systems compensate automatically. Speed affects cycle time and precision more than tonnage.
Q: How does temperature affect tonnage calculation?
Cold materials are slightly harder to bend. If bending in unheated shops during winter, add 5-10% to tonnage calculations. Preheating thick plates can reduce tonnage requirements.
Q: Should I calculate tonnage per bend or total for the part?
Calculate per bend. The press brake applies force to one bend at a time. Your machine capacity needs to handle the single most demanding bend, not the sum of all bends.
Conclusion
Accurate tonnage calculation is the foundation of successful press brake selection and operation. By understanding the key formula — P = (650 × S² × L × σb) / V — and the factors that influence it, you can confidently specify the right machine for your needs.
Remember these key principles:
- V-die selection is critical: Follow the 8× rule for optimal results
- Material matters: Stainless steel needs 40% more tonnage than mild steel; high-strength steel may need 2-3× more
- Add safety margin: 20-30% extra capacity protects your investment
- Consider distribution: Full-length bends may require derating
- Verify units: Metric tons vs. US tons can cause 10% errors
With these guidelines, you'll avoid the costly mistakes of under- or over-specifying your press brake tonnage.
