Rucheng manufactures tandem press brake systems for extra-long workpiece bending. Two synchronized CNC press brakes can work together for long panels, poles and structural profiles, or operate separately when the production schedule requires flexible capacity.
Quick Selection Answer
Choose a tandem press brake system when long workpieces exceed a single machine bed and need synchronized bending across two CNC press brakes.
Poles, panels, truck frames, ship parts, aerospace structures and long profiles that need matched ram movement across two machines.
Send total bending length, material grade, thickness, part weight, bend sequence, support method, crane access and whether each machine must also run alone.
Compare one heavy-duty long-bed machine if the part fits one frame, or separate CNC press brakes if extra-long bending is only occasional.
Compare heavy-duty bendingPress Brake Buyer Path
This page is for buyers who need two synchronized CNC press brakes for extra-long bending. For the full selection logic across standard CNC, heavy-duty and tandem systems, compare models on the press brake machine hub before requesting a layout-specific quote.
Tandem press brake, dual press brake system, long press brake and synchronized CNC bending searches.
Confirm total bend length, single-machine capacity, synchronization mode, back gauge coordination, part support, operator access and separate-machine use.
Send part length, weight and workshop layout so engineering can plan synchronized operation and handling.
Request a tandem press brake quoteTandem Layout Matrix
Tandem press brake selection is a line-layout decision, not only a machine purchase. Rucheng checks the longest part, support method, synchronization mode and separate-machine workflow before confirming the two press brakes, controls and tooling.
| Planning question | Why it matters | Configuration impact | Related guide |
|---|---|---|---|
| What is the longest part and bend length? | Determines whether one long-bed press brake is practical or a synchronized two-machine line is required. | Combined working length, machine spacing, frame size and crowning configuration. | Tandem guide |
| How heavy is the workpiece? | Long parts often fail in handling before they fail in bending force. | Front supports, cranes, loading direction, operator access and safety guarding. | Safety checklist |
| Does the shop need both tandem and separate operation? | Many buyers want one long machine for large parts and two independent CNC press brakes for daily work. | Master-slave control, independent mode, duplicated tooling and back gauge setup. | CNC programming |
| Is the limit length, tonnage or plate thickness? | Some projects need tandem length, while others need one stronger heavy-duty frame. | Compare tandem system, heavy-duty press brake or standard electro-hydraulic CNC press brake. | Heavy-duty press brake |
| What drawings and factory data are ready? | Accurate quotation needs part drawings and workshop layout, not only a requested tonnage. | Total line length, foundation review, voltage, controller level and tooling package. | Quote form |

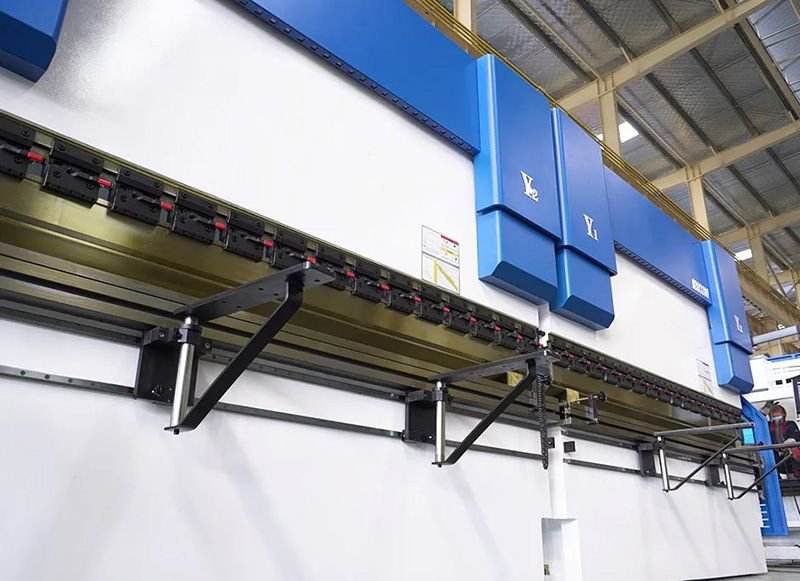

Dual synchronized press brake system for extra-long workpiece bending applications
Discover the unique advantages of our tandem press brake system for handling oversized workpieces
Handle extra-long workpieces with synchronized dual-machine operation for applications beyond standard capacity
Advanced CNC coordination ensures both machines work in perfect harmony
Maintains exceptional accuracy across the entire bending length for consistent quality
Can operate independently or synchronized based on workpiece requirements
Double the bending force for heavy-duty applications and thick materials
Integrated safety systems with emergency stop coordination for operator protection
Understanding the advanced technology behind our tandem press brake synchronization system

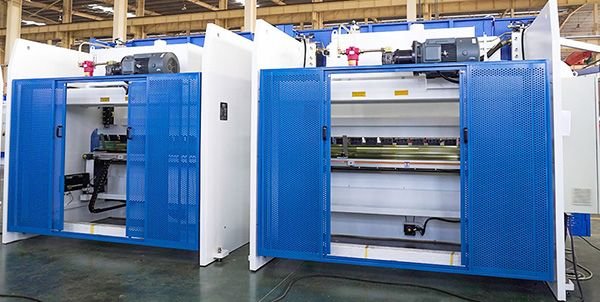

Two high-precision CNC press brakes positioned in-line and connected through advanced communication systems. Each machine maintains its own structural integrity while working in perfect coordination with its partner, enabling the bending of workpieces up to 6 meters or longer.
Advanced CNC coordination where one machine acts as the master controller, coordinating all movements with the slave machine. Real-time communication ensures microsecond-level synchronization, preventing any misalignment during the bending process. Both controllers can display the same program and status.

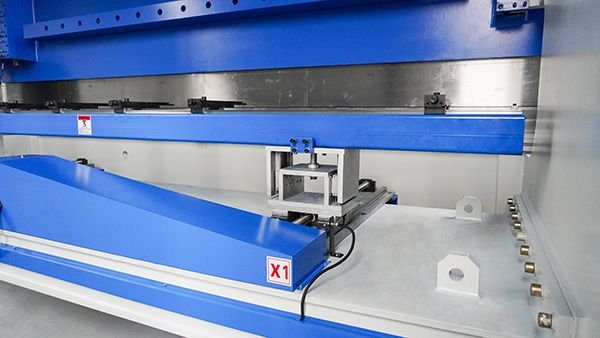

Multi-axis back gauge systems on both machines communicate and coordinate their positioning. Networked control ensures that both back gauges move to identical positions simultaneously, maintaining perfect workpiece alignment across the entire length. Features automatic error detection and correction.

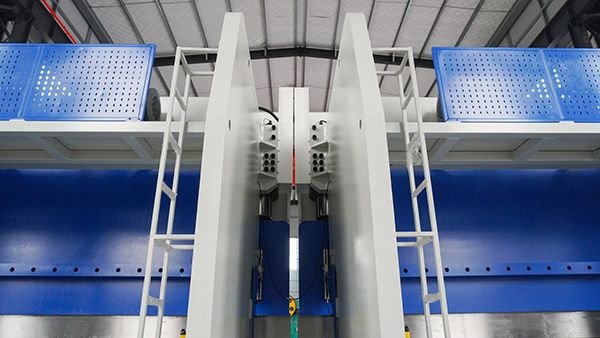

Dedicated high-speed network connection between the two machines enables real-time data exchange. Continuously monitors position, speed, force, and angle, making instant adjustments to maintain synchronization. Includes redundant communication paths for fail-safe operation.

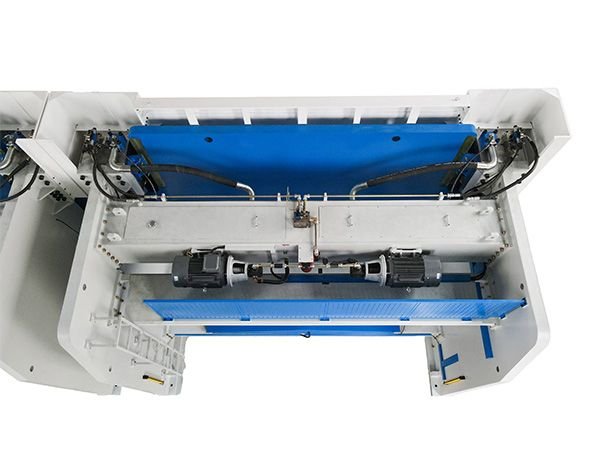

Each machine has its own independent hydraulic system, but both are coordinated through the master control. Pressure and speed are synchronized to ensure uniform bending force distribution across the entire workpiece length. Advanced servo valves provide precise control and instant response.
Advanced CNC crowning compensation system automatically adjusts for beam deflection across the extended working length. The system calculates optimal crowning values based on material thickness, length, and bending force, ensuring consistent bend angles from end to end. With four cylinders working in coordination, the crowning system maintains perfect straightness even when processing extra-long workpieces, eliminating the common problem of center deflection.
Tandem press brake systems excel in industries requiring extra-long workpiece bending
Wing components, fuselage panels, and large structural parts requiring precise bending
Hull plates, deck sections, and marine structural components
Long steel beams, girders, and structural bridge elements
Wind tower sections and large-scale renewable energy components
Train car bodies, chassis frames, and railway infrastructure
Large machinery frames, excavator arms, and industrial equipment
Large facade panels, canopies, and architectural steel elements
Large storage tanks, pressure vessels, and container manufacturing
Comprehensive standard features and customization options for your tandem press brake system
Need a custom tandem configuration?
Contact Our EngineersUse these resources to confirm machine type, bending force, tooling and upstream cutting workflow before final specification.
Use tandem bending when one long part needs synchronized force across two machines or flexible separate press brake operation.
Review synchronized hydraulic control, crowning and controller requirements for linked press brakes.
Review synchronization, layout, support tooling and operation modes before selecting a tandem line.
Split bending force across tandem machines and confirm reserve capacity for long panels and poles.
Plan handling, support, collision risk and bend order for long workpieces across two machines.
Check guarding, light curtains, two-machine stops and long-part handling before production.
Send total bending length, part weight, support method, synchronization needs and separate-machine workflow.
Confirm when long-part bending needs tandem press brakes instead of a single bending machine or another forming line.
Match blank cutting capacity with downstream bending production.
Common questions about tandem press brake systems
