Rucheng manufactures heavy duty press brake machines for thick plate bending, large press brake projects and high-tonnage CNC hydraulic applications. Common quote ranges include 200 ton, 300 ton, 400 ton and custom heavy-duty configurations matched to drawings, material grade, bend length, radius, tooling and part handling requirements.
Quick Selection Answer
Choose a heavy-duty press brake when thick plate, high tonnage, wide dies, large bend radius and structural part handling are the main limits in your bending process.
Thick steel plate, construction machinery parts, shipbuilding components, mining equipment and large welded structures that require high bending force.
Send plate grade, thickness, bend length, inside radius, part weight, tooling preference, crane access, floor limits and annual workload.
Compare tandem systems when part length exceeds a single bed, or standard CNC press brakes when the work is normal sheet metal production.
Compare tandem bendingPress Brake Buyer Path
This page targets buyers who need a high-tonnage press brake machine for thick steel, long bends or structural parts. For broader model comparison, use the press brake machine hub before choosing between a single heavy-duty frame, a tandem press brake system or a standard CNC press brake.
For thick plate bending, confirm material strength, bend length and die opening before selecting press force and tooling.
Confirm bending force reserve, frame deflection, die opening, inside radius, support arms, handling method, crane access and foundation load.
Send drawings and material grade so engineering can check whether one heavy-duty machine is enough.
Request a heavy-duty press brake quoteHeavy-Duty Tonnage Guide
Buyers searching for a heavy duty press brake usually compare tonnage before sending drawings. The ranges below are starting points only; final sizing depends on material grade, tensile strength, bend length, V-die opening, inside radius and safety margin.
| Common search/spec | Typical buyer use | Configuration focus | Quote check |
|---|---|---|---|
| 200 ton press brake | Medium plate, stronger cabinets, brackets, frames and general fabrication parts | CNC hydraulic control, crowning, segmented tooling and adequate throat depth | Send drawings |
| 300 ton press brake | Thicker plate, longer bends, structural brackets and higher-force production | Reinforced frame, CNC crowning, larger V dies and material handling plan | Check tonnage |
| 400 ton press brake | Thick plate bending machine projects for construction machinery, mining parts and welded structures | Heavy frame, high-load tooling, front support, crane loading and foundation review | Cost by tonnage |
| 600T-1000T+ large press brake | Shipyard parts, bridge components, large profiles and heavy industrial bending | Custom engineering, heavy tooling, slow controlled bending, installation and foundation drawings | Compare tandem |

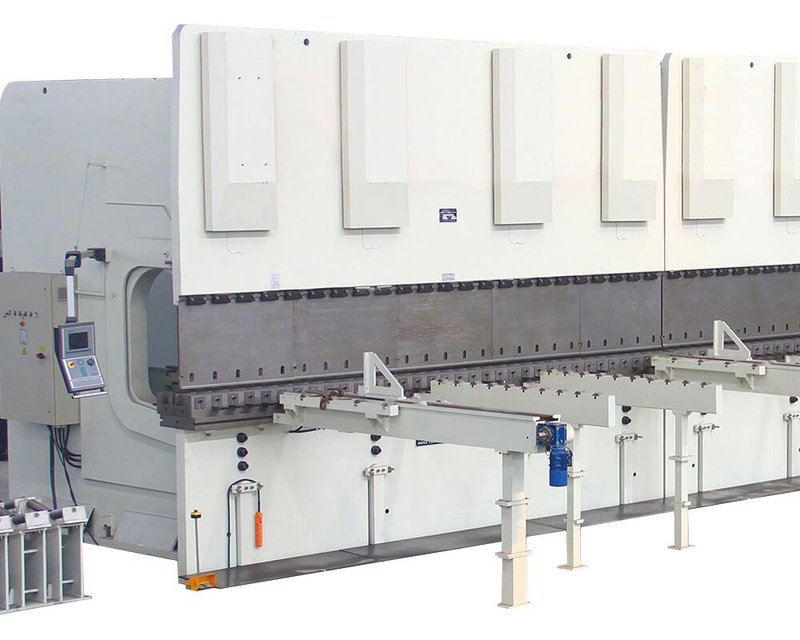

Industrial heavy-duty press brake designed for extreme bending applications
Heavy-Duty Sizing Matrix
High-tonnage press brake selection should start from the actual part, not only the nominal machine tonnage. The table below connects the buyer's drawing data to the machine functions Rucheng needs to confirm before quoting.
| Buyer requirement | What Rucheng checks | Recommended configuration direction | Next page |
|---|---|---|---|
| Thick mild steel or high-tensile plate | Material grade, tensile strength, thickness, V-die opening and inside radius | Higher tonnage reserve, reinforced frame, heavy tooling and controlled bending speed | Tonnage calculation |
| Long bends with angle consistency requirements | Bending length, tolerance target, frame deflection and crowning method | CNC crowning, accurate Y1/Y2 synchronization and enough table rigidity | Crowning guide |
| Very long profiles, poles or panels | Whether one bed length is enough, handling method and required synchronization | Tandem press brake system when the part length is beyond one heavy-duty frame | Tandem press brake |
| Heavy parts and difficult loading | Part weight, crane access, front support, operator position and floor layout | Extended support arms, material handling plan and workshop foundation review | Send quote data |
| Mixed thick plate and normal sheet metal work | Regular workload versus occasional extreme parts | Confirm whether a standard CNC press brake plus occasional outsourcing is more economical | CNC press brake |
Discover the powerful advantages of our heavy-duty press brake for industrial applications
Up to 1000 tons of bending force for thick steel plates and heavy-duty applications
Ultra-strong welded steel frame with stress-relieved construction for maximum rigidity
Advanced CNC control maintains Β±0.01mm accuracy even at maximum tonnage
Premium European hydraulic components and industrial-grade electrical systems
Built for 24/7 industrial production with advanced cooling and monitoring systems
Comprehensive industrial safety systems including light curtains and overload protection
You can better understand the performance of the machine through the following machine detail display and text description

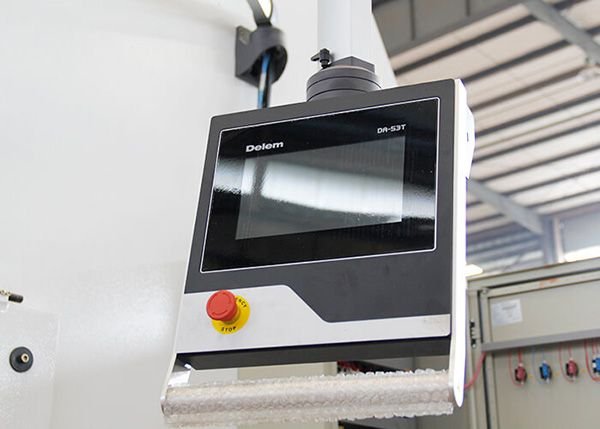

The controller can control the Y1 and Y2 axes (Y1 controls the left cylinder and Y2 controls the right cylinder) to ensure the synchronous movement of the ram. The standard controller of our WAD series press brake is Delem DA53T. CYBELEC and Esa brand controller can be selected based on your practical use and budget.

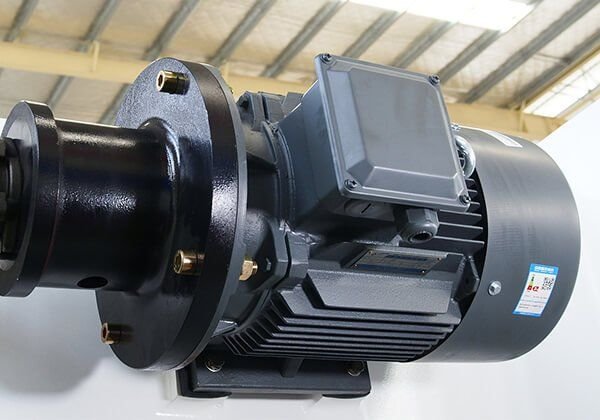

The motor of our press brake is adopt world famous brand "Siemens", which will not only has low noise during working of the machine but also has longer service life.

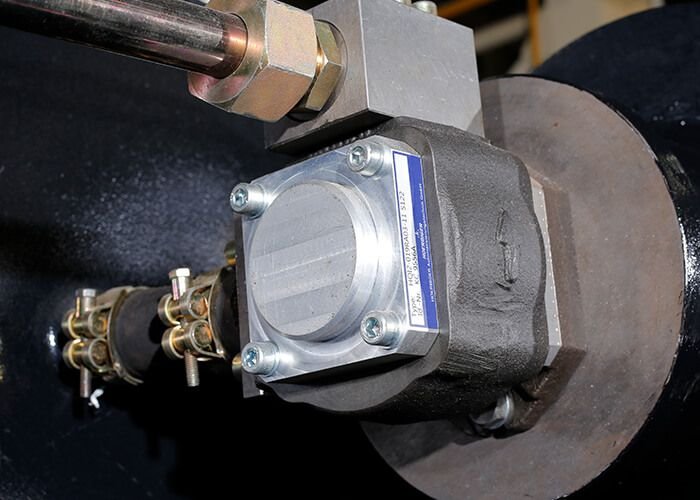

International imported brand oil pump is adopted, with lower noise and stronger output power. Amazing low noise, made of high strength cast iron and unique design for inner noise reduction. Low sensitivity to oil pollution and assure of long service life.

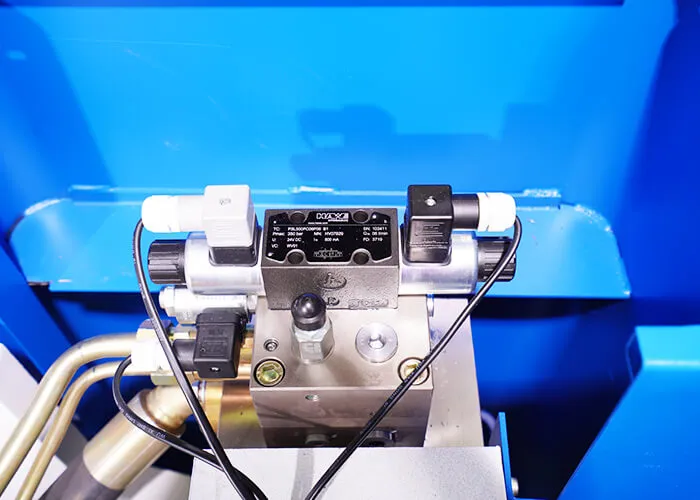

Our press brake machine uses Hoerbiger integrated hydraulic control system that make it more reliable and easy for maintenance.

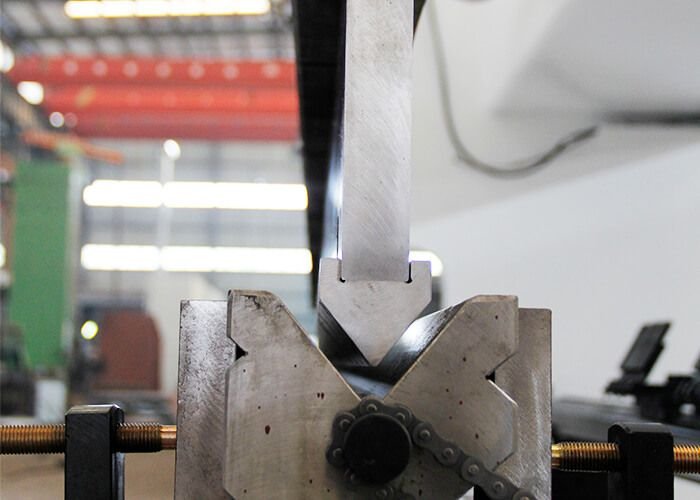

The standard top punch and dual-V bottom die are specially designed for bending sheet metals. More press brake toolings can be selected as per your practical use. Material and HRC47 degree values ββare marked on it.

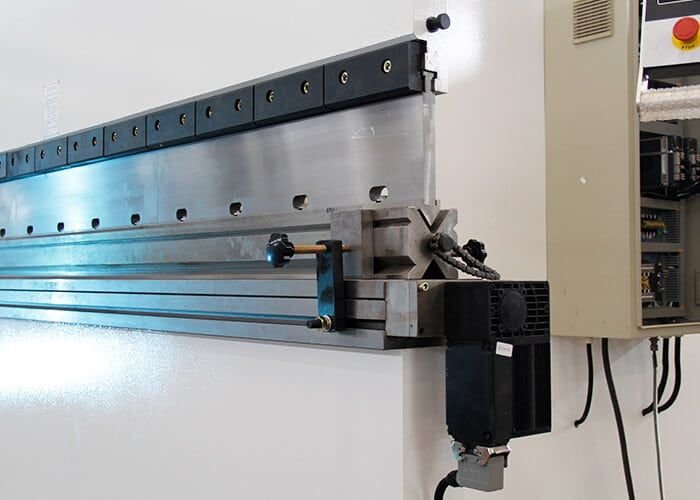

The motorized crowning system will adjust the parallelism and straightness automatically.
Heavy-duty press brakes excel in industries requiring extreme bending force and thick material processing
Thick steel plates, structural beams, and heavy-duty components
Heavy machinery frames, excavator components, and mining structures
Thick hull plates, marine structures, and shipyard fabrication
Heavy structural steel, bridge girders, and infrastructure components
Pressure vessels, storage tanks, and pipeline components
Power plant structures, boiler components, and turbine housings
Bulldozer blades, crane components, and heavy equipment parts
High-volume processing of thick steel plates and profiles
Premium standard features and advanced options for heavy-duty industrial applications
Need a custom heavy-duty solution?
Contact Engineering TeamUse these resources to confirm machine type, bending force, tooling and upstream cutting workflow before final specification.
Compare heavy-duty bending with standard CNC machines and tandem press brake lines for thick plate and structural parts.
Check frame rigidity, hydraulic capacity, crowning and tooling load for high-tonnage bending.
Calculate bending force for thick plate, long bends and high-tensile materials before sizing the frame.
Plan heavy V-dies, large-radius tooling, die holders and material handling for thick workpieces.
Compare how tonnage, working length, frame size and options affect heavy-duty press brake cost.
Plan hydraulic oil, guides, crowning, tooling and safety inspections for high-load bending.
Send plate grade, maximum thickness, bend length, radius, crane access and handling requirements.
Confirm whether thick-plate bending should use a heavy-duty press brake, plate rolling machine or another forming process.
Match blank cutting capacity with downstream bending production.
