What Is Press Brake Crowning and Why Does It Matter?
Press brake crowning is a compensation technique that counteracts the natural deflection (bowing) of a press brake's ram and bed during bending. When a press brake applies force to bend sheet metal, the machine frame is not infinitely rigid — the center of the beam deflects downward under load. This means the punch penetrates deeper at the ends than at the center, producing inconsistent bend angles across the part length.
This deflection effect is often called the "canoeing effect" or "banana effect" because the finished part curves slightly when viewed from the end. On a 3-meter, 100-ton press brake, center deflection can reach 0.10–0.15 mm under full load — enough to cause a 1–3° angle variation between the center and the ends of the bend.
A crowning system solves this by applying a controlled upward arch (the "crown") to the lower beam or worktable. During the bending stroke, the applied bending force flattens this crown, so the effective punch-to-die gap remains uniform across the full bend length. The result: consistent bend angles from the first millimeter to the last.
Key Point: When Is Crowning Necessary?
Crowning is critical for press brakes rated 80 tons or above and beds longer than 2.5 meters (8 feet). It becomes even more important when bending high-strength materials (stainless steel, Hardox), thick plates (>6 mm), or when angle tolerances are tight (±0.5° or less). For short parts bent in the center of a small machine, deflection may be negligible — but for production work on any full-size press brake, crowning is not optional.
How Press Brake Beam Deflection Works

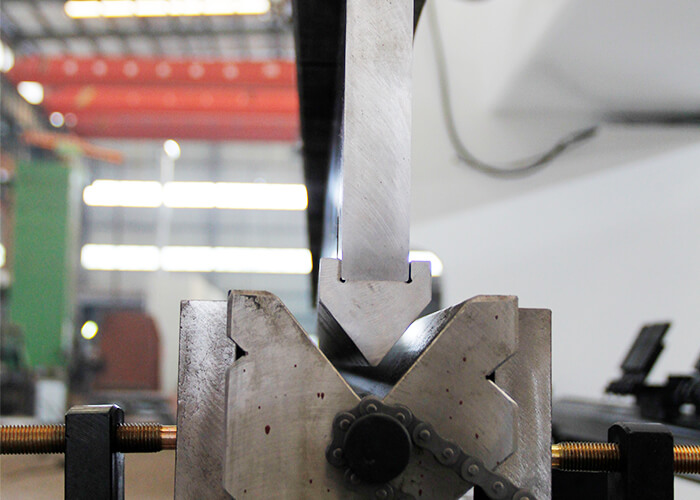

To understand crowning, you need to understand deflection. A press brake frame is essentially a large C-shaped or O-shaped structure. During bending, the ram pushes down on the punch while the bed supports the die from below. The bending force creates a reaction that causes both the ram and the bed to bow — the ram deflects upward at the center (away from the workpiece), and the bed deflects downward.
The combined deflection means the punch-to-die distance is greater at the center than at the edges. The workpiece bends less at the center, resulting in a larger included angle (under-bent) compared to the ends. The magnitude of deflection follows beam mechanics:
Where δ = maximum center deflection (mm), F = total bending force (N), L = distance between side frames (mm), E = elastic modulus of steel (210,000 MPa), and I = moment of inertia of the beam cross-section (mm⁴). This formula shows that deflection increases with the cube of the bed length — doubling the length increases deflection 8×.
| Machine Size | Bed Length | Typical Center Deflection | Approximate Angle Error |
|---|---|---|---|
| 63 ton | 2,500 mm | 0.05–0.08 mm | 0.5–1.0° |
| 100 ton | 3,200 mm | 0.10–0.15 mm | 1.0–2.0° |
| 160 ton | 3,200 mm | 0.15–0.20 mm | 1.5–2.5° |
| 250 ton | 4,000 mm | 0.20–0.30 mm | 2.0–3.0° |
| 500 ton | 6,000 mm | 0.30–0.50 mm | 3.0–5.0° |
These deflection values assume full-length bending at rated tonnage. Partial-length bends produce less deflection because the force is concentrated over a shorter span. This is why crowning systems must be adjustable — fixed compensation would over-correct for short bends and under-correct for full-length bends at maximum tonnage.
Mechanical Crowning: Wedge-Based Deflection Compensation

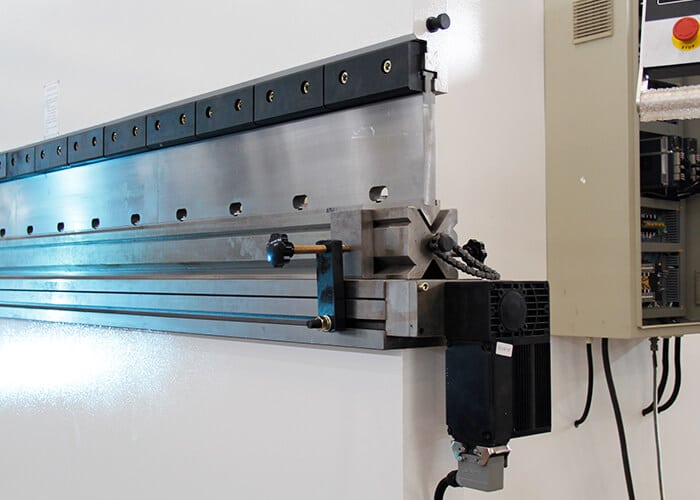

Mechanical crowning is the traditional and most widely used approach. It uses a series of precision-ground wedge blocks installed beneath the worktable (lower beam). The wedge assembly typically consists of two rows of interlocking triangular wedges — one fixed row and one movable row. By shifting the movable row laterally, the wedges push the table surface upward, creating a controlled convex curve.
Types of Mechanical Crowning
Single-wedge systems use one long wedge pair that creates a single parabolic crown curve. This is the simplest and most affordable option, suitable for machines up to 3 meters where the deflection curve is predictable. The compensation is adjusted by a single handwheel or motor drive.
Multi-wedge (segmented) systems use multiple independent wedge pairs across the bed length — typically 4 to 12 segments depending on machine length. Each segment can be adjusted independently, allowing the operator to create a more accurate compensation curve that matches the actual deflection profile. Multi-wedge systems are standard on machines 4 meters and longer.
CNC-motorized mechanical crowning adds servo motors or stepper motors to each wedge segment, controlled by the machine's CNC system. The controller calculates the required crown for each bend based on programmed material, thickness, and tonnage, then automatically positions all wedge segments before the stroke. This combines the simplicity of mechanical wedges with the automation of CNC control.
Advantages of Mechanical Crowning
- Simple, robust construction — fewer components than hydraulic systems, lower failure rate
- No hydraulic fluid — no risk of oil leaks, more environmentally friendly
- Full-length coverage — wedges span the entire bed, eliminating compensation blind spots
- Lower cost — typically 30–50% less than equivalent hydraulic crowning
- Excellent for mass production — once set for a specific part, compensation is perfectly repeatable
Limitations of Mechanical Crowning
- Fixed compensation curve — the preset crown is optimized for one tonnage and span; changing jobs requires recalculation and readjustment
- Wedge wear — over thousands of cycles, the wedge contact surfaces wear, gradually reducing compensation accuracy; requires periodic inspection and replacement
- Manual adjustment time — on non-CNC systems, readjusting wedges for a new job takes 10–30 minutes
- Operator skill dependency — manual mechanical crowning requires experienced operators who understand deflection curves and compensation values
Hydraulic Crowning: CNC-Controlled Dynamic Compensation

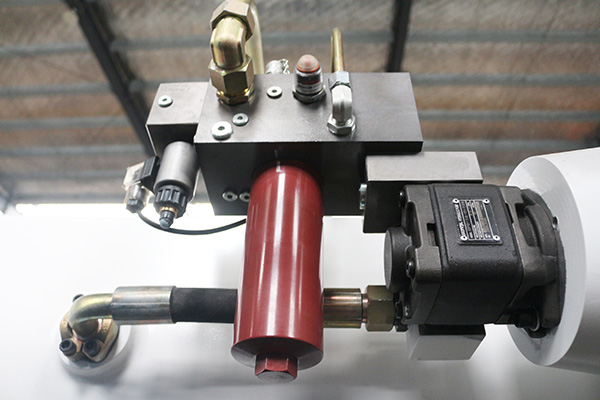

Hydraulic crowning represents the modern, automated approach to deflection compensation. It uses a series of independently controlled hydraulic cylinders positioned beneath the worktable. The press brake's CNC controller calculates the exact compensation required for each bend — factoring in material type, thickness, bend length, V-die opening, and tonnage — then commands each cylinder to apply the correct upward pressure.
Unlike mechanical systems where the crown is preset, hydraulic crowning adjusts dynamically during each stroke. The system can apply different compensation values for each bend in a multi-step sequence without any operator intervention. This makes it ideal for job shops running small batches of different parts throughout the day.
How Hydraulic Crowning Works
- Parameter input: The operator programs material type, thickness, bend angle, V-die opening, and bend length into the CNC controller
- Deflection calculation: The controller's built-in algorithm calculates the expected beam deflection and required compensation curve
- Cylinder command: Individual hydraulic cylinders (typically 3–7 zones across the bed) receive pressure commands proportional to the expected deflection at each point
- Real-time adjustment: During the bending stroke, the cylinders maintain constant pressure to keep the compensation active throughout the forming process
- Automatic reset: After each stroke, the system resets and recalculates for the next bend step if parameters change
Advantages of Hydraulic Crowning
- Fully automatic — no manual adjustment between jobs; the CNC handles everything
- Dynamic real-time compensation — adjusts for each bend step in multi-step sequences
- High precision — achieves ±0.25° angle consistency across the full bend length
- Reduced operator skill requirements — operators don't need to understand deflection curves
- No mechanical wear — hydraulic cylinders don't have the surface wear issues of wedge systems
- Faster job changeover — switching from one part to another requires only programming changes, no physical adjustments
Limitations of Hydraulic Crowning
- Higher cost — hydraulic crowning systems add 15–30% to machine price compared to mechanical
- More complex maintenance — hydraulic lines, seals, and cylinders require regular inspection for leaks
- Finite cylinder zones — on very long beds (>6 m), there may be "blind spots" between cylinder positions where compensation is interpolated rather than directly controlled
- Oil contamination sensitivity — dirty hydraulic oil can affect cylinder response and compensation accuracy
Mechanical vs Hydraulic Crowning: Complete Comparison
The choice between mechanical and hydraulic crowning depends on your production mix, budget, and precision requirements. Here is a detailed comparison:
| Feature | Mechanical Crowning | Hydraulic Crowning |
|---|---|---|
| Mechanism | Adjustable wedge blocks under worktable | CNC-controlled hydraulic cylinders |
| Adjustment | Manual or CNC-motorized, preset before bending | Fully automatic, real-time dynamic |
| Precision | ±0.5° across full length (well-set) | ±0.25° across full length |
| Job Changeover | 10–30 min (manual); 1–2 min (CNC-motorized) | 0 min — automatic with program change |
| Relative Cost | Lower (base level) | 15–30% premium over mechanical |
| Maintenance | Wedge inspection and replacement (yearly) | Hydraulic seal and oil checks (quarterly) |
| Wear Over Time | Wedge surfaces wear; accuracy degrades gradually | Minimal mechanical wear; seals age |
| Best For | Mass production, single-part runs, budget-conscious shops | Job shops, mixed production, multi-step bending, automation |
| Operator Skill | Higher (manual); moderate (CNC-motorized) | Lower — system handles compensation automatically |
| Retrofit Feasibility | Easy — bolt-on crowning tables available | Difficult — requires CNC and hydraulic integration |
💡 How to Choose: A Simple Decision Framework
If you bend the same parts repeatedly in large batches (e.g., electrical enclosures, brackets), mechanical crowning delivers excellent results at lower cost. If you change jobs multiple times per day with different materials and thicknesses (typical job shop), hydraulic crowning saves significant setup time and reduces scrap. For machines above 200 tons with 4+ meter beds, hydraulic crowning is strongly recommended regardless of production type.
CNC Crowning: How Modern Controllers Automate Compensation

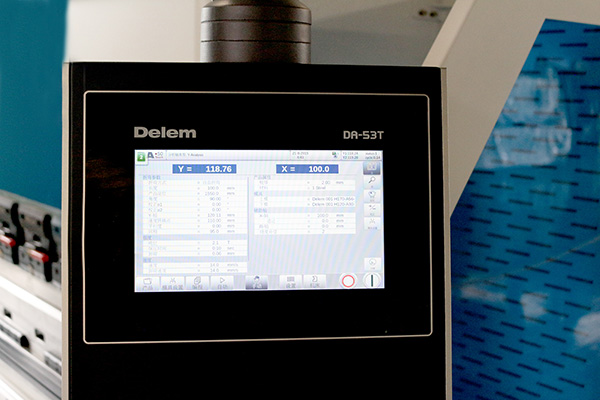

Modern CNC press brakes from manufacturers like Delem, ESA, and Cybelec have built-in crowning algorithms in their controllers. When the operator programs a bend, the controller automatically calculates the required crowning compensation based on the machine's known deflection characteristics (stored in the controller during factory calibration) and the programmed bend parameters.
The Delem DA-66T and DA-69T controllers — used in Rucheng Technology's CNC press brake range — include a crowning wizard that shows a visual representation of the compensation curve. The operator can fine-tune the crown if needed, but in most cases the automatic calculation produces first-part-correct results.
Key CNC Crowning Features
- Automatic deflection calculation — based on machine-specific calibration data stored in the controller
- Material database — built-in tensile strength and springback data for common materials (mild steel, stainless, aluminum, copper)
- Multi-step sequence support — recalculates crowning for each bend step when tonnage, position, or material changes
- Partial-length compensation — adjusts the crown curve when the bend is shorter than the full bed length
- Temperature compensation — advanced controllers account for thermal expansion of the machine frame during long production runs
- Crowning override — operators can apply a percentage offset (e.g., +10%, −5%) for fine-tuning based on actual results
⚠️ Common Mistake: Ignoring Crowning During Setup
Many operators troubleshoot inconsistent angles by adjusting ram depth, back gauge, or even shimming the die — when the real cause is missing or incorrect crowning. If you see consistent under-bending at the center of long parts while the ends are correct, the first thing to check is whether crowning is enabled and properly calibrated. On Delem controllers, check the "Crowning" tab in the bend parameter screen.
Crowning System Maintenance and Troubleshooting
Mechanical Crowning Maintenance
- Weekly: Clean wedge surfaces of chips, dust, and debris; apply light machine oil to sliding surfaces
- Monthly: Check wedge movement — each segment should slide freely without binding; inspect for galling on contact surfaces
- Quarterly: Measure the crown profile with a precision straightedge and feeler gauges; compare to the theoretical curve
- Annually: Check wedge thickness and contact area for wear; replace wedges if wear exceeds 0.05 mm or if the system can no longer achieve the required compensation range
Hydraulic Crowning Maintenance
- Weekly: Visual inspection of cylinder areas for oil leaks; check hydraulic oil level in the reservoir
- Monthly: Check crowning accuracy by bending a test piece across the full bed length; compare center-to-end angles
- Quarterly: Inspect hydraulic hoses and fittings; replace any seals showing wear or seepage; filter or replace hydraulic oil if contaminated
- Annually: Full system calibration — verify each cylinder's response against the controller's command; recalibrate if deviation exceeds ±0.02 mm
Common Crowning Problems and Solutions
| Symptom | Likely Cause | Solution |
|---|---|---|
| Center under-bent, ends correct | Insufficient crowning compensation | Increase crown value; check if crowning is enabled in CNC |
| Center over-bent, ends under-bent | Excessive crowning compensation | Reduce crown value; recalibrate for actual tonnage used |
| Uneven angles (not symmetrical) | Wedge wear on one side; cylinder malfunction | Inspect and replace worn wedges; test individual cylinders |
| Crowning works for one job but not another | Fixed compensation not matching new tonnage/span | Recalculate compensation for new parameters; consider hydraulic upgrade |
| Hydraulic crowning slow to respond | Contaminated oil; worn seals; air in lines | Replace hydraulic oil and filters; bleed system; replace seals |
How to Select the Right Crowning System for Your Press Brake
Choosing between mechanical and hydraulic crowning comes down to four factors: your production type, machine size, budget, and precision requirements.
Choose mechanical crowning if: You run large batches of the same parts, your machine is under 200 tons, your budget is limited, or you are retrofitting an existing machine. CNC-motorized mechanical crowning is a good middle ground — it gives you automation benefits at a lower cost than full hydraulic.
Choose hydraulic crowning if: You run a job shop with frequent changeovers, your machine is 200+ tons with a 4+ meter bed, you need ±0.5° or better angle consistency, or you are integrating with robotic bending cells where automatic compensation is mandatory.
Rucheng Technology offers both mechanical and hydraulic crowning options across the full CNC press brake range — from 40-ton compact machines to 6000-ton heavy-duty tandem systems. Our engineering team helps you choose the right crowning configuration based on your specific production requirements.
Frequently Asked Questions
Conclusion: Get Uniform Bends with the Right Crowning System
Press brake crowning is not an optional accessory — it is a fundamental requirement for consistent, high-quality bending on any production press brake. Understanding the difference between mechanical and hydraulic crowning helps you make the right investment for your shop's needs.
For high-volume, repetitive work, mechanical crowning (especially CNC-motorized) delivers excellent precision at a lower cost. For job shops with frequent changeovers and tight tolerances, hydraulic crowning pays for itself through reduced setup time and scrap. Either way, proper maintenance of the crowning system is essential to maintain accuracy over the machine's lifetime.
