Rucheng manufactures CNC hydraulic press brake machines with electro-hydraulic Y1/Y2 synchronization, Delem DA53T, DA66T or DA69S controller options, 4-axis to 6-axis back gauges, CNC crowning and tooling packages quoted from real bending drawings.
Quick Selection Answer
Choose this CNC hydraulic press brake when your shop needs repeatable sheet metal bending, tighter angle control, Delem controller programming, CNC crowning and reliable multi-axis back gauge positioning for production parts.
Production bending for mild steel, stainless steel and aluminum parts where angle accuracy, repeatability and CNC programs reduce rework.
Send material grade, thickness, bend length, flange size, angle tolerance, production volume, controller preference, back gauge axis needs, tooling list and voltage.
Compare torsion synchro models for simpler low-cost work, DA53T/DA66T CNC hydraulic models for production bending, robotic cells for automation, and heavy-duty or tandem systems for thicker or longer parts.
Compare on the press brake machine hubPress Brake Buyer Path
This product page is for buyers comparing a CNC hydraulic press brake machine for repeatable sheet metal production. For a wider comparison across NC, CNC, heavy-duty, tandem and robotic bending options, start from the press brake machine hub, then request a sized quotation when the bending drawings are ready.
CNC hydraulic press brake machine, electro-hydraulic CNC press brake, Delem press brake, 6 axis press brake, CNC crowning press brake and China CNC press brake manufacturer queries with active purchase intent.
Confirm tonnage, working length, controller level, back gauge axes, crowning method, tooling package, safety configuration and voltage.
If the work is normal sheet metal production, this is the main Rucheng configuration to quote.
Request a CNC press brake quoteCNC Configuration Guide
CNC press brake price and performance depend on more than tonnage. Buyers should compare the working length, controller, Y1/Y2 synchronization, back gauge axes, crowning system and tooling package together. The table below gives a practical starting point before sending drawings for a final quote.
| Typical model range | Best-fit work | Configuration to compare | Quote check |
|---|---|---|---|
| 63T/2500mm to 80T/2500mm | Small brackets, electrical boxes, light stainless steel and workshop production. | DA53T or similar controller, basic CNC back gauge, manual or CNC crowning. | Confirm minimum flange, tooling height and actual bend length. |
| 100T/3200mm to 125T/3200mm | General sheet metal fabrication, cabinets, panels, brackets and mixed production. | DA53T, DA58T or DA66T, X/R back gauge, CNC crowning and segmented tooling. | Compare controller cost, axis count, tooling list and voltage. |
| 160T/3200mm to 200T/4000mm | Thicker mild steel, longer parts, structural covers and higher workload factories. | Stronger frame, CNC crowning, multi-axis back gauge, support arms and higher tooling strength. | Check tonnage reserve, V-die opening, throat depth and handling method. |
| 250T+ or special length | Heavy plate, long profiles or parts close to the limit of a standard CNC press brake. | Compare with heavy-duty or tandem press brake options before final selection. | Send drawings so Rucheng can judge if a standard CNC frame is enough. |
Use DA53T for practical 2D bending, DA66T for stronger graphical programming, and DA69S when 3D simulation and advanced offline workflow justify the cost.
X/R axes cover many standard parts. Add Z1/Z2 or more axes when part width changes often, bend lines are offset or setup time is critical.
CNC crowning and segmented tooling are important for long bends, stainless steel work, cabinet parts and buyers who need repeatable angles across the full length.
Controller & Axis Quote Guide
Two CNC hydraulic press brake quotes can look similar but include very different control systems. Check the controller, back gauge axis count, crowning method, sheet support, tooling and offline software before comparing FOB China prices.
| Configuration item | Common choices | When to choose it | Price impact |
|---|---|---|---|
| Delem controller | DA53T, DA58T, DA66T, DA69S or equivalent CNC control | DA53T for practical 2D bending, DA66T for graphical production work, DA69S for 3D simulation and advanced offline workflow. | Higher controller level can become a large part of the full machine quote, especially with offline software. |
| Back gauge axes | X, R, Z1, Z2, X1, X2 and 6-axis configurations | Use more axes for offset bend lines, variable part widths, tapered work and faster repeat setup. | Adds servo axes, guide systems and setup value; compare against actual part variety. |
| Crowning system | Manual crowning, CNC crowning or hydraulic crowning | CNC crowning is recommended for long bends, stainless steel, cabinets, doors, panels and profiles requiring consistent angle across length. | Raises quote price but reduces correction time and angle variation on production parts. |
| Sheet support | Front support arms, roller supports, servo sheet follower or robotic handling | Use sheet followers for long, thin, polished or heavy panels where manual holding affects angle accuracy or safety. | Optional cost depends on sheet size, part weight, surface requirements and automation level. |

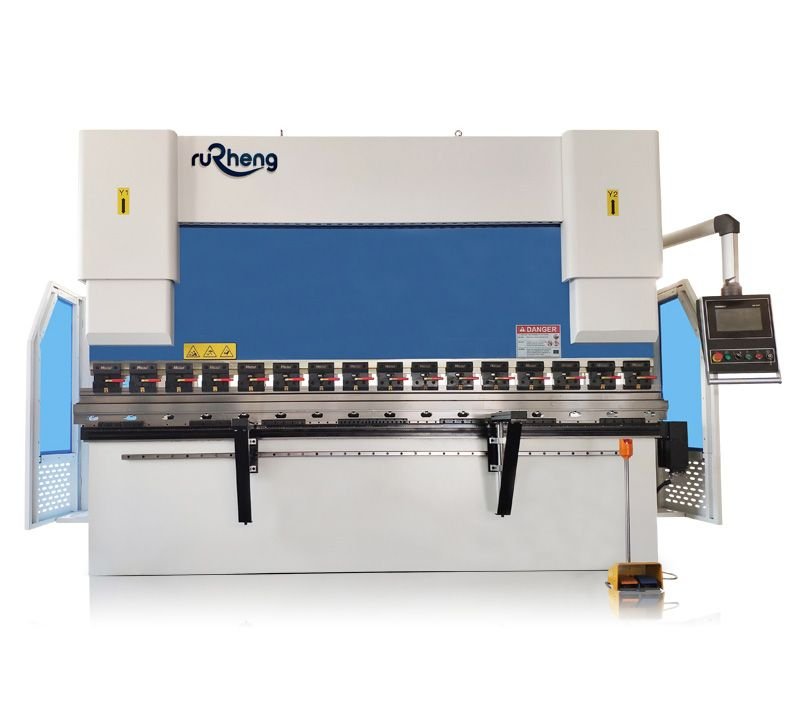

Advanced electro-hydraulic CNC bending machine with precision control and high efficiency
Discover the key advantages that make our electro-hydraulic CNC bending machine the preferred choice for manufacturers worldwide
High positioning accuracy ensures consistent bending quality for demanding applications
Intuitive CNC controller with touch screen interface reduces training time and increases productivity
Heavy-duty welded steel frame ensures long-term stability and durability under continuous operation
Advanced hydraulic system optimizes energy consumption while maintaining high performance
CE certified with comprehensive safety features including light curtains and emergency stops
Compatible with various punch and die configurations for diverse bending applications
You can better understand the performance of the machine through the following machine detail display and text description

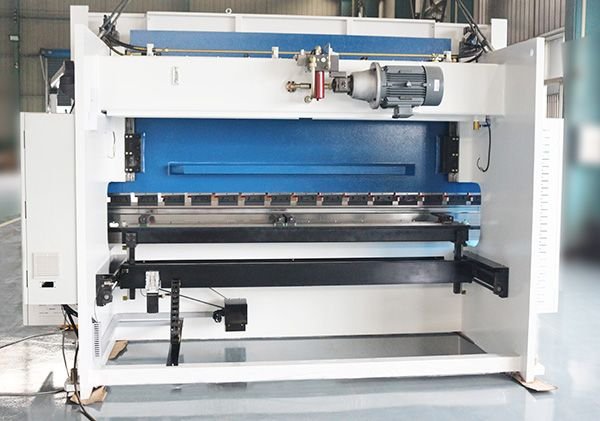

The main mechanical structure of the press brake consists of the frame, column, ram, worktable, the main cylinder and backgauge. The main components are through finite element analysis and optimized design by 3D software to fully guarantee the structural strength and rigidity of each component.

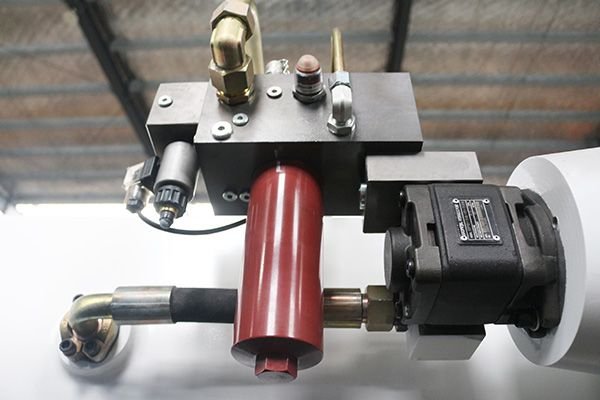

The electro-hydraulic synchronous system ensures precise synchronization of the left and right cylinders. Equipped with high-quality imported hydraulic components, the system provides stable pressure, low noise operation, and excellent energy efficiency for consistent bending performance.

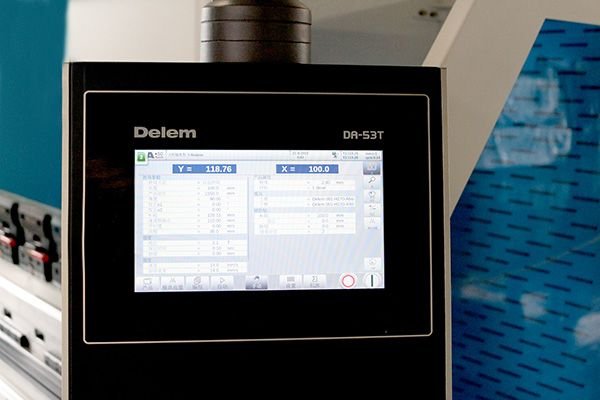

Advanced CNC controller with intuitive touch screen interface. Features include automatic bending sequence programming, real-time angle monitoring, multiple bending modes, and data storage capabilities. The system allows for precise control of bending angle, depth, and speed.

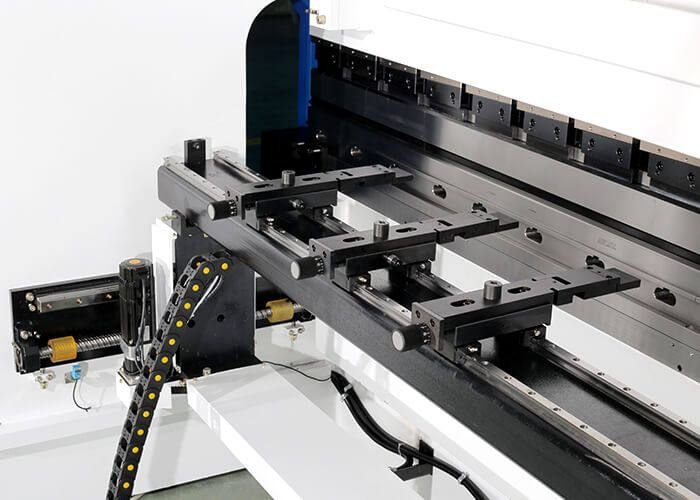

Multi-axis CNC back gauge system with ball screw transmission for high positioning accuracy. The system features automatic positioning, programmable movements, and can be equipped with additional support arms for handling large workpieces efficiently and accurately.

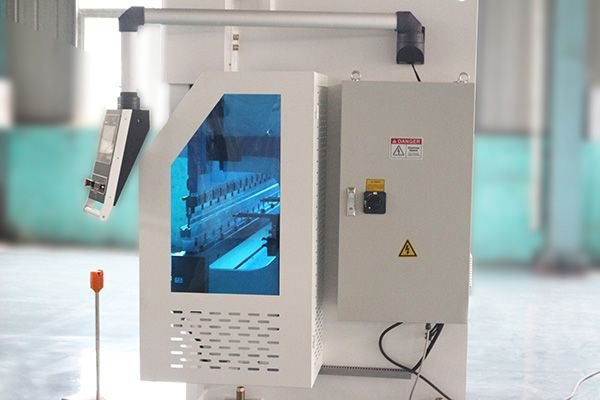

Comprehensive safety features including light curtains, emergency stop buttons, and safety guards. The machine meets CE safety standards and incorporates multiple protection mechanisms to ensure operator safety during all phases of operation while maintaining maximum productivity.
Our CNC bending machines are widely used across various industries for precision metal forming
Precision bending for enclosures, chassis, and structural components
Manufacturing of brackets, frames, and body parts
High-precision bending for aircraft components and assemblies
Ductwork, ventilation components, and air conditioning parts
Server racks, control cabinets, and electronic enclosures
Architectural metalwork, railings, and structural steel
Metal furniture frames, cabinets, and decorative elements
Machine guards, hoppers, and custom metal parts
Customize your machine with standard features and optional upgrades to meet your specific requirements
Need help choosing the right configuration?
Contact Our ExpertsUse these resources to confirm controller level, back gauge axes, crowning, tooling, sheet support and final machine specification before requesting a quote.
Use the CNC hydraulic model as the precision baseline, then compare NC, tandem, heavy-duty and robotic press brake options.
Match synchronized cylinders, crowning, back gauge axes and controller level to precision sheet metal work.
Estimate tonnage, inside radius, V-die opening and safety reserve from actual drawings.
Choose segmented punches, V-dies, gooseneck tools and hemming tools for cabinet and bracket work.
Compare controller, axis, crowning, tooling and service factors before budgeting a CNC press brake.
Compare DA53T, DA66T, DA69S, offline programming and controller cost before confirming the CNC press brake quote.
Check X, R, Z1, Z2, X1, X2 and 6-axis back gauge options for repeatable positioning.
Understand manual, CNC and hydraulic crowning before choosing long-bend accuracy options.
Decide whether front supports, roller supports or servo sheet followers are needed for long panels.
Send material, thickness, bend length, controller preference, back gauge axes and tooling requirements.
Common questions about our electro-hydraulic CNC bending machines
Still have questions?
Contact our support team βSend your drawings, material, bending length, controller preference and back gauge axis requirements. Rucheng will prepare a CNC hydraulic press brake configuration with technical specifications and FOB China quotation.
