A press brake sheet follower is a front support device that carries the sheet as it rotates during bending. It is used when a normal operator or fixed support arm cannot keep a long, heavy, thin or cosmetic panel stable. For facade panels, stainless covers, elevator panels, long doors and aluminum curtain wall parts, the right CNC sheet follower or servo front support can reduce sagging, twisting, surface scratches, angle error and operator fatigue.
Quick answer: choose fixed front support arms for occasional light panels, roller supports for cosmetic sheets, and CNC or servo sheet followers when the sheet is long, heavy, difficult to hold by hand or must stay synchronized with the press brake ram. For quotation, send sheet size, weight, bend length, bend angle, surface finish, controller model and daily output through the press brake quote form.
Sheet Support Selection by Buyer Situation
The correct sheet support depends on part geometry, operator count, surface requirement and production volume. Use this table before comparing the option price on a CNC hydraulic press brake quote.
| Buyer situation | Recommended support | Press brake configuration to match | Best next step |
|---|---|---|---|
| Light brackets and small covers | Standard front support arms. | NC or CNC hydraulic press brake with basic tooling. | Compare the torsion-synchro press brake and standard CNC options. |
| Cabinet doors, enclosures and stainless covers | Roller supports or clean surface-protection support arms. | Electro-hydraulic CNC press brake, quick clamps, segmented tooling and angle consistency control. | Review the electro-hydraulic CNC press brake. |
| Facade panels and curtain wall profiles | CNC sheet followers or synchronized servo support arms. | CNC crowning, long-bed accuracy, 4-axis or 6-axis backgauge and careful bend sequence. | Use the curtain wall panel bending guide. |
| Long poles, panels and structural profiles | Custom front support, side support, tandem layout or handling system. | Heavy-duty or tandem press brake with enough open height, throat depth and floor clearance. | Compare tandem press brake and heavy-duty press brake options. |
| High-output automated bending | Servo sheet follower, sheet follower plus robot interface or automated loading support. | Controller integration, safety PLC, program management, tooling library and automation interface. | Plan controller and support together with the press brake controller guide. |
Quick Answer: Sheet Follower vs Front Support Arm

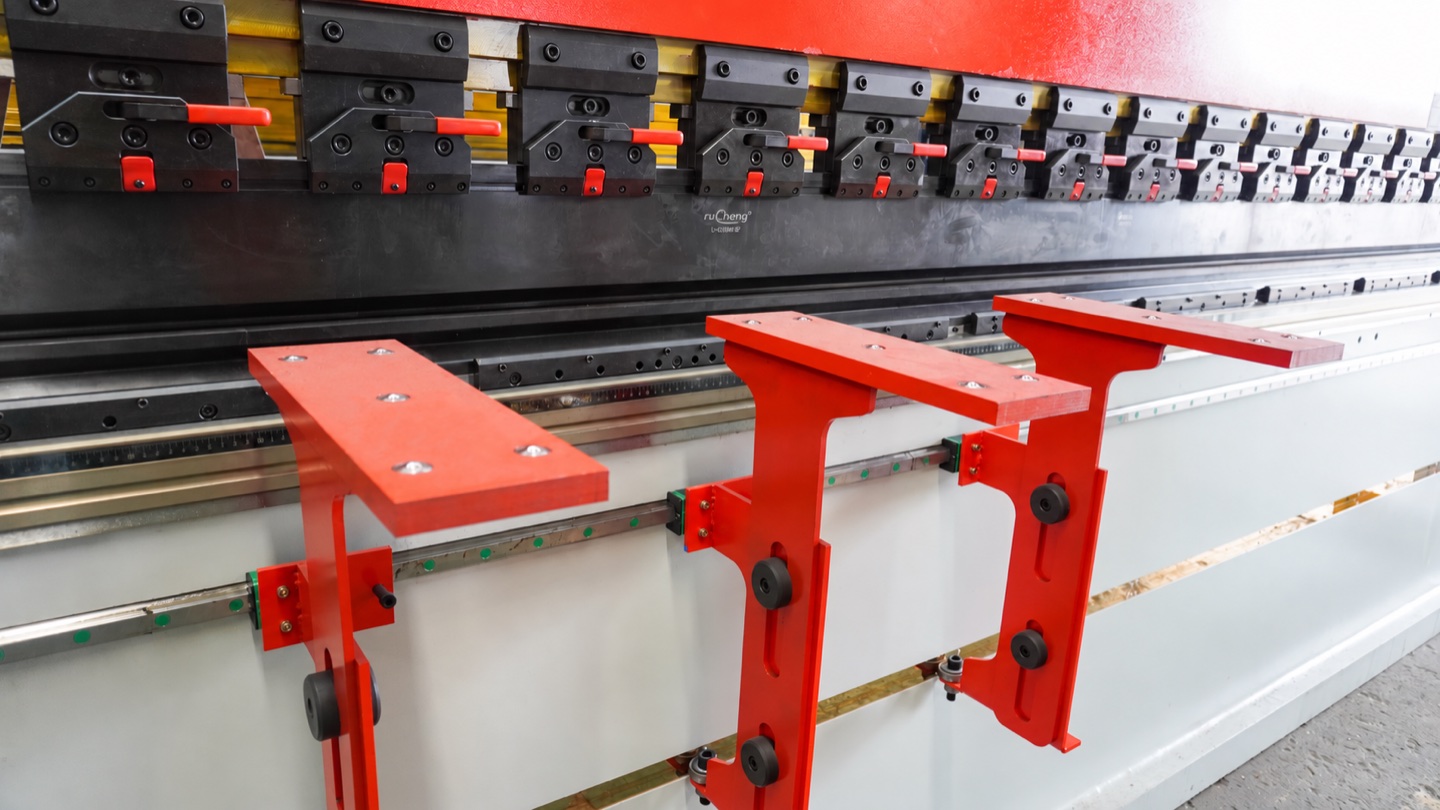

A fixed front support arm holds the blank before bending. A sheet follower moves with the material during the stroke, following the rising sheet angle. Choose ordinary support arms for light and moderate blanks. Choose CNC or servo sheet followers when the part is long, heavy, polished, difficult to hold by hand or likely to swing upward during bending.
| Support type | How it works | Best for | Quote note |
|---|---|---|---|
| Manual front support arms | Fixed or manually adjusted supports in front of the press brake | General sheet metal, smaller panels, occasional large parts | Low cost, but still needs careful operator handling. |
| Roller front supports | Support arms with rollers or sliding surfaces to reduce drag | Painted sheet, aluminum, stainless and medium-size panels | Check roller material and surface protection. |
| CNC sheet followers | Follower arms move with the sheet angle during bending | Long panels, heavy blanks, cosmetic surfaces and repeat production | Confirm controller integration, load capacity and follower stroke. |
| Custom support table or handling system | Dedicated table, side support, crane, robot or loading system | Very long, thick or high-output production lines | Plan floor layout together with the press brake quotation. |
When a Press Brake Needs a Sheet Follower
The need for a sheet follower is driven by part size, weight, surface finish and bend sequence. A small bracket does not need one. A long stainless cabinet panel, aluminum facade panel or wide door skin may need one even when the material is thin, because gravity and operator handling can distort the bend before the punch reaches final depth.
- Long sheets sag before bending and can create flange length variation.
- Thin large panels can twist when the unsupported side rises during the bend.
- Brushed stainless steel and aluminum panels can scratch on dirty support arms.
- Heavy blanks may require two operators without a follower, increasing labor and safety risk.
- Repeat production benefits from programmed support movement and consistent handling.
For long panel work, also check press brake crowning, back gauge axes, tooling selection and bend sequence planning. Sheet support alone cannot fix a machine that lacks enough tonnage, bending length or deflection compensation.
Application Examples
| Application | Why support matters | Recommended configuration |
|---|---|---|
| Aluminum facade panels | Long cosmetic panels can scratch, sag or twist during forming. | Electro-hydraulic CNC press brake, crowning, roller supports or sheet followers. |
| Stainless steel covers and elevator panels | Visible surfaces must not drag across dirty tools or hard supports. | Mark-free tooling, protective film, clean support surfaces and controlled follower motion. |
| Long doors, enclosures and cabinets | Large panels need stable support to keep flange dimensions repeatable. | Front support arms, X/R/Z back gauge, segmented tooling and setup checklist. |
| Light poles and long profiles | Long blanks need handling support and space around the bending line. | Tandem press brake, front support, side support or custom handling layout. |
Sheet Follower Quote Checklist
To quote a press brake sheet follower correctly, send the support requirement together with the machine specification. The follower load capacity and motion range must match the actual sheet size, bend angle and operator workflow.
- Maximum sheet size, bend length and part weight.
- Material grade, thickness range and surface finish.
- Minimum flange length, bend angle and whether the sheet rises sharply.
- Daily output, batch size and operator count.
- Press brake tonnage, working length, controller and back gauge axes.
- Whether the follower needs CNC synchronization or manual adjustment is acceptable.
- Factory layout, crane or forklift access, and FOB China shipping requirements.
How Sheet Followers Affect CNC Press Brake Automation and Price
A sheet follower should be quoted as part of the full press brake system, not as an isolated accessory. The cost changes when the support arms need servo drive, CNC synchronization, angle-following motion, higher load capacity, surface protection, safety integration or custom length.
| Option | Price impact | When it is worth adding |
|---|---|---|
| Manual front support | Lowest cost | Simple parts, low output, operators can safely hold the material. |
| Roller or surface-protection support | Low to medium | Aluminum, stainless steel, pre-painted sheets and visible surfaces. |
| CNC synchronized sheet follower | Medium to high | Long panels, repeat production, one-operator handling and angle consistency requirements. |
| Servo sheet follower with automation interface | High | Robotic bending cells, high-mix production, offline programs and integrated safety systems. |
For a complete cost comparison, combine this guide with the press brake price guide, controller guide and accuracy and tolerance guide. A sheet follower is valuable only when it supports the actual production target.
FAQ
What is a press brake sheet follower?
A press brake sheet follower is a front support device that follows the sheet as it rotates upward during bending. It helps control long, heavy or cosmetic sheets and reduces sagging, twisting and surface damage.
What is the difference between front support arms and sheet followers?
Front support arms mainly support the blank before bending. Sheet followers move with the sheet during the bending stroke, so they are better for large panels, long sheets and high-repeatability production.
Does every CNC press brake need sheet followers?
No. Most small brackets, covers and ordinary cabinet parts can be made with standard front supports. Sheet followers become useful when the part is large, heavy, polished, thin, unstable or difficult for one operator to hold safely.
What is a CNC press brake sheet follower?
A CNC press brake sheet follower is a controlled front support system synchronized with the bending cycle. It supports the sheet during upward rotation, helping long panels, facade parts, stainless sheets and heavy blanks maintain angle accuracy and safer handling.
Is a servo sheet follower better than manual sheet support arms?
A servo sheet follower is better for repeat production, large cosmetic panels and heavy parts because it follows the programmed bending motion. Manual sheet support arms are lower cost and suitable for simpler or occasional support jobs.
How does sheet support affect press brake quote price?
Sheet support affects press brake quotation price through support type, load capacity, servo or CNC synchronization, arm length, surface protection, controller integration, floor layout, safety package and export packing requirements.
Can sheet followers be added to a China press brake quote?
Yes. Rucheng can include manual supports, roller supports or CNC sheet followers in a FOB China press brake quote when the buyer provides part size, weight, material, bend angle, output and controller requirements.
Need Sheet Followers for Long Panel Bending?
Send your drawings, sheet size, material, weight, surface requirement and output target. Rucheng will recommend the press brake, follower type, tooling and support layout together.
Request Press Brake Support Quote
