A press brake bend sequence is the planned order of bends used to form a sheet metal part without collisions, dimension drift or unsafe handling. For most brackets, channels, boxes and enclosure panels, start by identifying the final part shape, choose stable back gauge datums, bend features that will become hard to access first, keep closing bends for last, then dry-run the sequence before approving production.
What Is a Press Brake Bend Sequence?
A press brake bend sequence is the step-by-step order in which each bend is made on a part. It defines which flange is bent first, how the blank is rotated between bends, which edge touches the back gauge, and when the part must clear the punch, die, clamps, gauge fingers and machine frame.
The best sequence is not always the shortest path. A sequence that looks fast on screen can fail when a tall flange hits the punch, a closed box cannot reach the back gauge, or the operator must hold a heavy part in an unstable position. Good sequencing balances accuracy, clearance, safety and repeatability.
Why Bend Order Matters
Bend order directly affects finished part accuracy. Each bend changes the shape of the blank, moves available datums and creates new collision points. If the early bends block the back gauge or make the part hard to support, later flange lengths and angles become less repeatable.
- Collision avoidance: prevent previously bent flanges from hitting the punch, die shoulders, clamps, ram or frame.
- Flange accuracy: keep reliable gauge surfaces available for the bends that control final dimensions.
- Angle correction: leave enough access to measure and adjust important bends during first-piece approval.
- Operator safety: reduce awkward rotations, heavy unsupported parts and hand placement near the tooling.
- Cycle consistency: make the same part orientation and handling method repeatable for every operator.
Practical Bend Sequence Rules by Part Type
There is no universal bend order for every drawing, but these rules work as a practical starting point for common air-bent sheet metal parts. The final sequence should still be checked against tooling height, die width, back gauge finger position and part weight.
| Part Type | Common Bend Sequence | Main Risk | Setup Tip |
|---|---|---|---|
| L-bracket | Single bend after confirming datum edge and flange length | Wrong gauge edge or inconsistent blank squareness | Gauge from the most critical flange and verify the first piece |
| U-channel | Bend one side flange, rotate, then bend the opposite side while keeping the base stable | First flange collides with punch or blocks gauge access | Use gooseneck punch or raise R-axis fingers when needed |
| Box or pan | Form internal or short return features first, then side walls, then closing bends | Closed shape traps the part or hits tooling | Use segmented tooling and simulate the final closing bends |
| Hat channel | Make center offsets first, then edge returns if gauge access remains stable | Offset legs change the datum for later bends | Record which face contacts the back gauge at each step |
| Door or enclosure panel | Bend features that protect cosmetic faces first, keep large closing flanges for last | Tool marks, twist and poor support on large panels | Use film, support arms and a written handling sequence |
Collision Points to Check Before Pressing Cycle Start
Collision checking is the core of bend sequence planning. On a CNC press brake, check both the virtual simulation and the real machine because actual tooling, clamps, gauge fingers and support arms may differ from the drawing library.
| Collision Point | What Can Go Wrong | Prevention |
|---|---|---|
| Punch nose and punch body | Tall return flange hits the punch during the next bend | Use gooseneck tooling, change bend order or split the operation |
| Die shoulders | Previously bent flange contacts the V-die before the ram reaches depth | Use a different die opening, spacer strategy or bend from the opposite side |
| Back gauge fingers | Bent flange cannot sit flat against the gauge or crashes into the finger | Adjust X/R/Z positions, use different fingers or change datum edge |
| Tool clamps and ram | Box shape or tall flange hits clamps above the tooling | Use segmented clamps, taller tooling or change the closing bend |
| Machine frame and side housings | Large panel cannot rotate freely through the required angle | Verify part swing area before production and use helpers or supports |
Back Gauge and Datum Strategy
A bend sequence is only accurate if every bend has a reliable datum. Before programming, mark which blank edge or formed flange controls each dimension. Critical assembly dimensions should use the most stable datum, not whichever edge happens to be easiest to reach.
When a later bend cannot reach the original datum, use a secondary datum with a known tolerance chain. For precision brackets and enclosure panels, record the datum face in the setup sheet so repeat orders are not dependent on operator memory.
- Use the cut edge for early bends: the flat blank is easier to gauge than a formed flange.
- Avoid short unstable gauge surfaces: a very short flange can slip or rock against the finger.
- Keep critical dimensions early: bend dimensions that control assembly fit before the part becomes hard to gauge.
- Adjust R-axis clearance: raise or lower gauge fingers so formed flanges can pass safely.
- Document rotations: note front/back face, clockwise rotation and flip direction for each step.

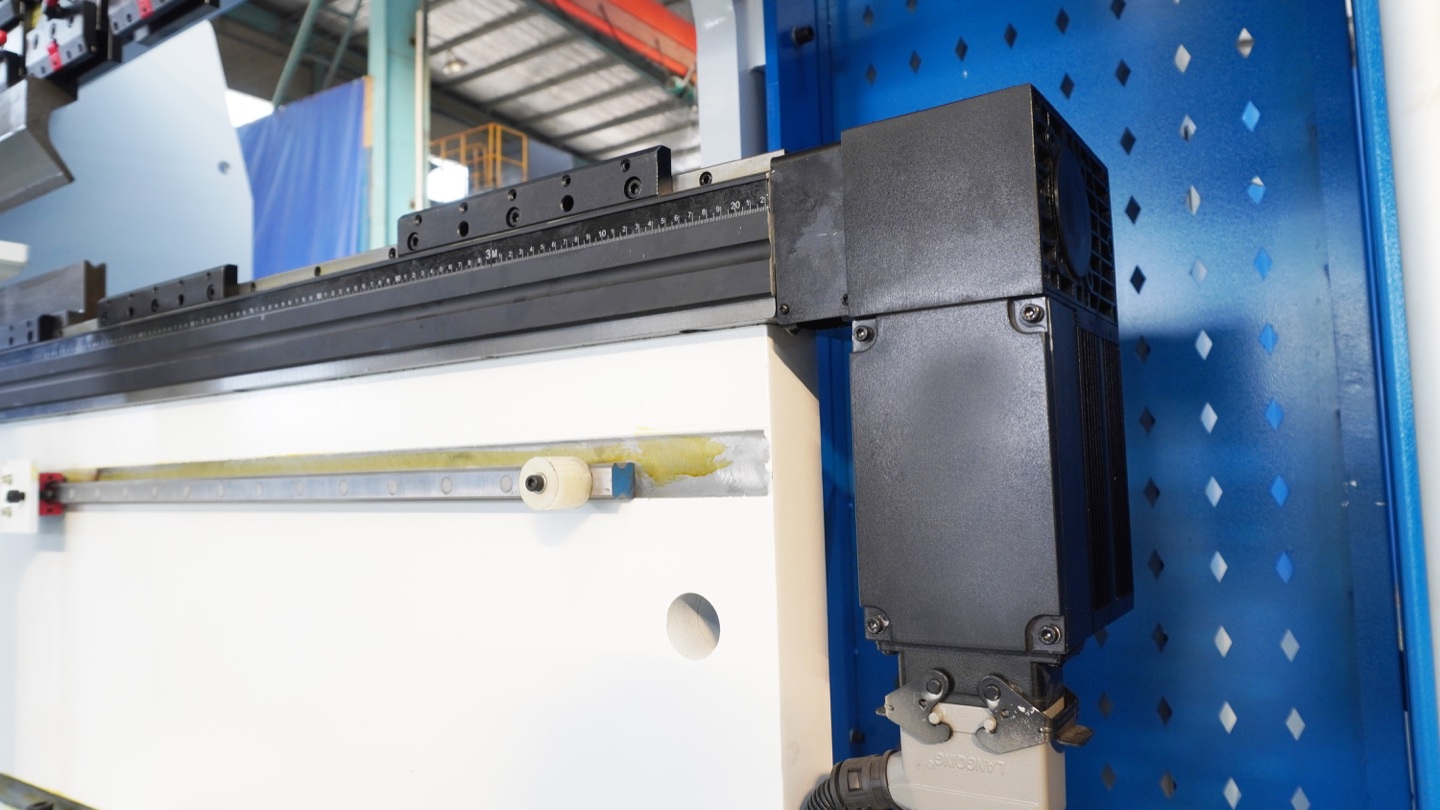

Tooling Choices That Make Sequences Possible
Many bend sequence problems are tooling problems. A standard straight punch may be fine for open brackets but fail on boxes, deep channels and return flanges. Choosing tooling only by material thickness can create collisions that a better punch shape would avoid.
For complex parts, combine sequence planning with a tooling plan. Segment the tooling so the part can enter and leave the tool set, select a punch profile with enough throat clearance and choose a V-die opening that balances tonnage, radius, flange length and clearance.
- Gooseneck punch: gives clearance for return flanges and U-channel walls.
- Acute punch: helps with sharp angles, springback control and some pre-bend operations.
- Segmented punch and die: allows box and pan parts to clear the tooling during removal.
- Narrow V-die: helps short flanges but raises tonnage and marking risk.
- Support arms: keep large panels stable while the operator rotates between bends.
Using CNC Simulation and Offline Programming
Modern press brake controllers can calculate bend order, display part rotation, check many tool collisions and store the verified program for repeat production. Treat automatic sequence suggestions as a starting point, then confirm the result against real tooling, actual gauge fingers and the operator handling path.
Offline programming is valuable when the shop runs many part numbers or when a new part has box shapes, high flanges or cosmetic surfaces. It lets engineers test bend order before the blank is cut, reducing scrap and setup time on the machine.
First-Piece Dry-Run Checklist
Before a production batch, use a dry-run and first-piece process to prove the sequence. The goal is to catch collisions, unstable datums and measurement problems before the operator bends a full stack of blanks.
- Confirm material thickness, grain direction, protective film side and blank size.
- Load the exact punch, die, clamp and back gauge finger setup planned for production.
- Run the program slowly with the ram stopped above the material to check part rotation and clearance.
- Verify that each bend can touch the intended gauge surface without rocking or slipping.
- Bend the first piece, then measure angle, flange length, squareness and cosmetic surface condition.
- Record CNC corrections, datum notes and any handling instructions before releasing the batch.
Buyer Checklist: Machine Features for Complex Bend Sequences
If your factory makes boxes, electrical enclosures, brackets, trays or repeated multi-bend parts, do not buy a press brake only by tonnage and length. The controller, back gauge, tooling clearance and support options decide how easily the machine handles complex bend sequences.
- Choose a CNC controller with graphical part drawing, bend sequence display and program storage.
- Specify X/R/Z back gauge axes when parts need changing gauge heights or off-center positioning.
- Ask for gooseneck and segmented tooling options for boxes, channels and return flanges.
- Use CNC crowning when long panels need consistent angles from end to center.
- Add front support arms or sheet followers for large, heavy or cosmetic panels.
- Request training on bend order, collision checks, first-piece approval and setup documentation.
Common Bend Sequence Mistakes
- Bending the tallest flange too early, then blocking access to later bends.
- Using the same gauge edge for every bend even after the part shape makes that edge unstable.
- Trusting controller simulation without checking the real punch, die, clamps and gauge fingers.
- Forgetting that a wider V-die changes flange position, radius and collision clearance.
- Closing a box before internal tabs, returns or small features are formed.
- Skipping a written setup sheet, so repeat jobs depend on the memory of one operator.
Useful Related Guides
For safe operating practices around the point of operation, review OSHA powered press brake guidance. For general forming terminology, the sheet metal brake overview is a useful background reference.
For related Rucheng setup topics, read our press brake tooling guide, back gauge guide, press brake setup checklist, accuracy and tolerance guide and CNC programming basics.
Press Brake Bend Sequence FAQ
What is the best bend sequence for a press brake?
The best bend sequence is the order that forms the part while keeping reliable gauge datums, avoiding collisions and allowing safe handling. For many parts, bend features that will become hard to access first and keep closing bends for last.
Should you bend outside flanges or inside features first?
It depends on the part shape. Internal tabs, short returns and features that will be trapped by later walls often need to be bent first. Large outside or closing flanges are often left until later so the part can still clear the tooling.
How do you avoid press brake collisions during multi-bend parts?
Check the punch, die shoulders, clamps, back gauge fingers, machine frame and previously bent flanges before every bend. Use simulation, slow dry-runs, gooseneck tooling, segmented tooling and adjusted gauge positions where needed.
Can a CNC press brake calculate bend sequence automatically?
Many CNC press brake controllers can suggest bend sequences and show collisions, especially with 2D or 3D graphical programming. The operator still needs to confirm the result against real tooling, material handling and the actual machine setup.
Why does bend sequence affect flange length accuracy?
Each bend changes the available datum surfaces. If a later bend gauges from a warped, short or unstable flange, the finished flange length can drift even when the back gauge position is correct.
What machine features help with complex bend sequences?
Helpful features include graphical CNC control, X/R/Z back gauge axes, CNC crowning, gooseneck punches, segmented tooling, quick clamps, support arms and offline programming software.
Conclusion: Plan Bend Order Before the First Blank
Press brake bend sequence planning is the link between a drawing and a repeatable production part. A good sequence preserves datum accuracy, prevents collisions, supports safe handling and makes first-piece correction easier.
