Press Brake for Metal Door Frame Fabrication: Bending Sequence, Tooling and Machine Setup (2026)

What Is Metal Door Frame Fabrication?

Metal door frame fabrication is the process of cutting, punching, bending, welding, and finishing sheet steel into frame members for commercial, industrial, security, hospital, school, hotel, and residential openings. A typical hollow metal frame includes two vertical jambs, one head member, stops, returns, mitred or welded corners, hinge and strike preparations, reinforcement plates, and anchors for the wall type.

The press brake stage is critical because it turns a flat blank into a profile with controlled depth, face width, stop height, return flange, and squareness. If the bends are inconsistent by even 0.5-1.0 mm, the frame may twist during welding, the door clearance may change, and the installer may struggle to keep the opening plumb.

Door Frame Production Flow: Where the Press Brake Fits

A door frame line may use a laser cutter, punching machine, notching machine, press brake, welding station, grinding station, and powder coating line. The press brake is usually placed after holes and notches are prepared, because hardware cutouts and anchor slots are easier to locate while the sheet is still flat.

• Blanking: cut flat strips from cold rolled, galvanized, galvannealed, or stainless sheet according to frame height, head length, and wall profile.
• Punching and notching: prepare hinge pockets, strike boxes, anchor slots, miter corners, tabs, and assembly holes before bending.
• Press brake bending: form the face, stop, return, throat, and reinforcement flanges in a controlled sequence.
• Fit-up and welding: join jambs and head members, install reinforcements, and control diagonal dimensions.
• Grinding and finishing: clean welds, inspect clearances, apply primer or powder coating, and package the frame for shipping.

Common Door Frame Materials, Gauges and Machine Ranges

Door frame material varies by market and project requirement. Many standard frames use 1.0-1.5 mm steel, while heavy-duty commercial or security frames may use 1.6-2.5 mm steel. Stainless steel frames need more bending force and more attention to surface protection. Galvanized and galvannealed sheets need tooling that avoids coating damage.

According to Steel Door Institute guidance, steel doors and frames are specified through standards such as ANSI/SDI A250.8, and SDI 117 covers manufacturing tolerances for standard steel doors and frames. These references are useful because they remind manufacturers that frame performance depends on both material choice and dimensional control.

Recommended Press Brake Bending Sequence for Door Frames

The exact sequence depends on the frame profile, but the goal is always the same: keep the part stable on the die, avoid collision with the punch or ram, and leave enough room for the next flange. For a typical single-rabbet or double-rabbet hollow metal frame, bend the deepest internal features first and the outer returns last.

1. Confirm the flat pattern: include bend allowance, inside radius, material thickness, and springback compensation before cutting production blanks.
2. Use reference edges consistently: keep the same finished face or stop side against the back gauge to reduce operator mistakes.
3. Form the stop or throat features first: these smaller bends are harder after large returns are formed.
4. Bend the main face and jamb depth: use stable die support and check that the formed profile clears the punch shoulder.
5. Form return flanges last: returns close the profile and may require gooseneck punches or offset tools for clearance.
6. Check one-piece fit before batch production: measure face width, stop height, throat depth, overall width, and twist before running the next stack.

Tooling Choices: V-Die, Gooseneck Punch and Mark-Free Bending

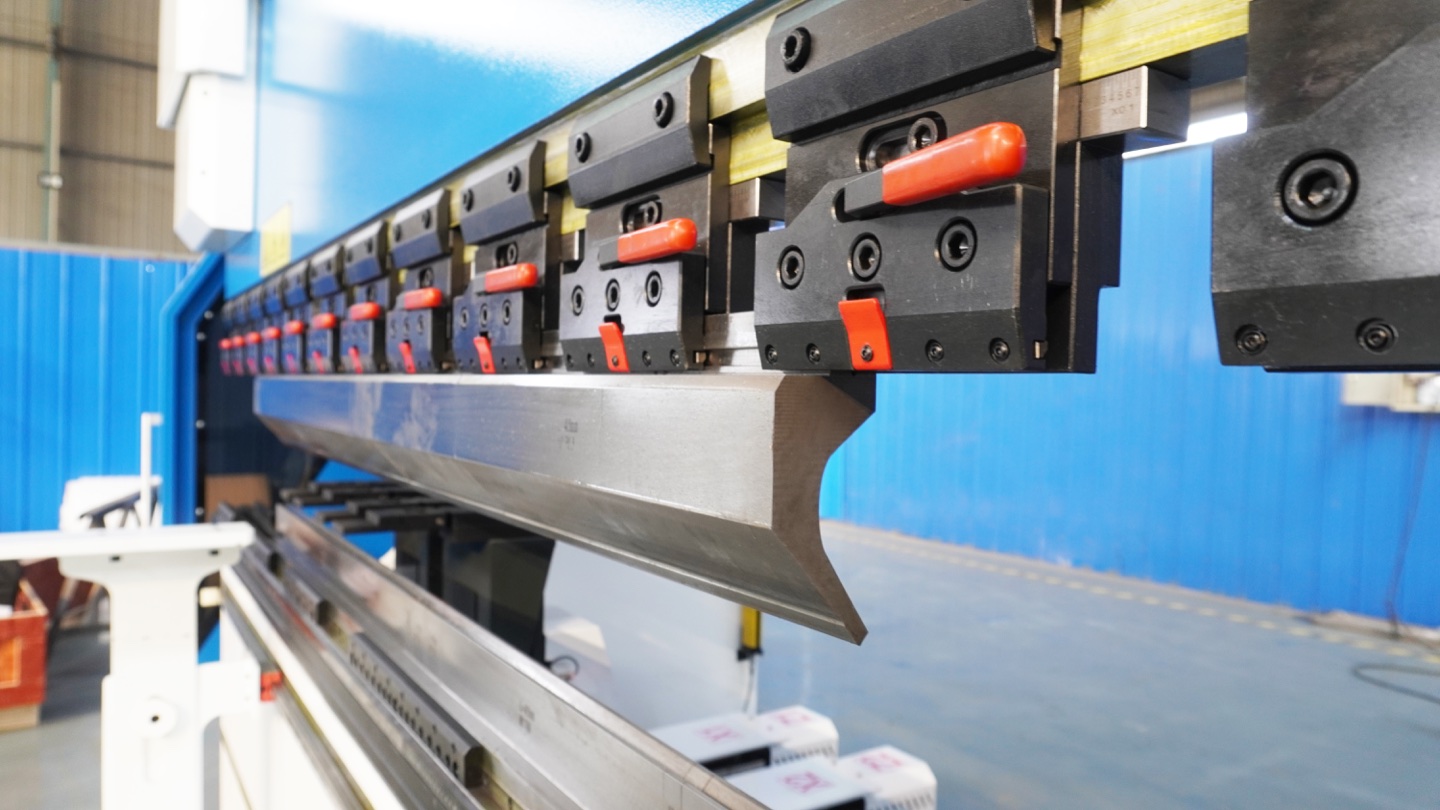

Door frame profiles often include narrow flanges and reverse bends, so tooling clearance matters more than raw tonnage. A standard straight punch may collide with a formed return. A gooseneck punch gives clearance for U-shaped or channel-like profiles and is often the safest first choice for frame work.

For air bending mild steel, many shops start with a V-die opening about 6-8 times material thickness for thin-gauge parts. Short flanges may need a smaller V opening, but a smaller opening increases tonnage and the risk of tooling marks. If the visible face will be powder coated, use clean polished tools, protective film, or mark-free dies where surface quality matters.

Tonnage and Back Gauge Setup

Door frame bending is usually thin-gauge work, so tonnage is not as high as heavy plate fabrication. The real challenge is repeatability: the back gauge must return to the same position across many jamb and head blanks, and the operator must be able to change programs quickly between frame sizes.

Use a tonnage calculation based on material thickness, tensile strength, bend length, and V-die opening. Then add a practical margin of 15-25%. For example, bending 1.5 mm mild steel over a short frame length requires far less force than bending a full 3200 mm blank, but long head members still need a rigid machine and correct crowning.

Which Press Brake Configuration Fits Door Frame Factories?

The right press brake depends on frame variety, daily volume, operator skill, and whether your shop already has punching or laser cutting upstream. Do not choose only by tonnage; choose by setup speed, tooling clearance, back gauge accuracy, and controller usability.

Quality Checks After Bending

A good frame is not judged only at the press brake. Bending accuracy must survive welding, grinding, coating, packing, and installation. Build a simple inspection routine around the dimensions that affect door clearance and wall fit.

• Profile dimensions: face width, stop height, throat depth, return flange, and rabbet depth.
• Angle control: 90-degree bends should be checked after springback, especially on galvanized or stainless sheet.
• Straightness: long jambs should not bow after bending or welding.
• Twist: place the profile on a flat table and check whether corners lift.
• Assembly fit: confirm hinge and strike preparation alignment before finishing.

Buyer Checklist for a Door Frame Press Brake

• Send the supplier 3-5 real frame drawings, not only a thickness and length requirement.
• Confirm the minimum flange length and whether gooseneck tooling is required.
• Ask for tonnage calculations using your material grade, V-die opening, and longest bend.
• Specify back gauge axes, finger shape, Z-axis needs, and support arms for long blanks.
• Confirm controller program storage, drawing import, tool library, and operator language.
• Include surface protection requirements for galvanized, painted, or stainless visible faces.
• Review safety devices for foot-pedal operation, hand proximity, and long part handling.
• Ask for training on bend sequence, first-piece inspection, tooling maintenance, and program naming.

Safety and Handling Notes

OSHA describes powered press brakes as machines that form parts with dies attached to a ram and bed, and notes hazards at the point of operation, foot controls, and large workpieces that move during the stroke. Door frame blanks are long and can swing up during bending, so operators need clear space, support arms, and guarding that matches the job.

For frame production, the main safety issues are sharp sheet edges, long part handling, pinch points at the back gauge, and unexpected cycling. Use light curtains or laser guards where appropriate, keep the floor clean, never bypass the foot pedal, and define a two-person handling rule for oversized blanks.

Common Mistakes in Door Frame Bending

1. Cutting blanks before the bend allowance is validated on the actual press brake and tooling.
2. Using a straight punch when a gooseneck punch is needed for return-flange clearance.
3. Changing the V-die opening without updating bend deduction, flange dimensions, and tonnage.
4. Ignoring coating marks until after the first powder-coated batch is rejected.
5. Letting every operator create different programs for the same frame profile.

Conclusion: Build the Press Brake Setup Around the Frame Profile

Metal door frame fabrication is a practical press brake application where real production details matter more than catalog tonnage. The winning setup combines correct flat patterns, stable tooling, gooseneck clearance, accurate back gauge positions, controlled springback, and simple inspection points that operators can repeat every shift.

If your factory makes hollow metal frames, fire-rated frames, stainless architectural frames, or mixed sheet metal parts, send Rucheng your profile drawings, material thickness, batch size, and required opening sizes. Our engineers can recommend a CNC press brake, tooling package, and bending workflow for your actual production scenario.
