Press brake accuracy is the ability to produce the required bend angle, flange length, straightness and repeatability across every part in a batch. For most precision sheet metal work, target +/-0.5 degree angle accuracy, +/-0.2-0.5 mm flange accuracy and stable repeatability by controlling tooling, material variation, back gauge setup, crowning, bend sequence and first-piece inspection.
What Is Press Brake Accuracy?
Press brake accuracy is not one single number. It includes bend angle accuracy, flange dimension accuracy, straightness along the bend line, repeatability from part to part and the ability to hold the same result after tool changes, material lot changes or long production runs.
A press brake can have a precise ram position and still make inaccurate parts if the tooling is worn, the V-die opening is wrong, the back gauge is not calibrated, or the material springs back more than expected. Good bending accuracy is therefore a process result, not only a machine specification.
Typical Press Brake Tolerance Targets
The right tolerance depends on part size, material thickness, bend length, tooling and whether the part is cosmetic, structural or assembled with other components. Use the following values as practical starting points for air bending on a well-maintained CNC hydraulic press brake.
| Tolerance Item | Common Target | Precision Target | Main Control Point |
|---|---|---|---|
| Bend angle | +/-1.0 degree | +/-0.3-0.5 degree | Material springback, tool angle, crowning and angle correction |
| Flange length | +/-0.5-1.0 mm | +/-0.2-0.5 mm | Back gauge calibration, blank size, bend deduction and operator positioning |
| Straightness across bend | 0.5-1.5 mm over 3 m | 0.3-0.8 mm over 3 m | Crowning, tool alignment, bed deflection and material stress |
| Part-to-part repeatability | +/-0.5 mm or +/-0.5 degree | +/-0.2 mm or +/-0.3 degree | CNC program control, clamping, gauging and first-piece approval |
Main Factors That Affect Bending Accuracy
Most accuracy problems come from a small number of repeat causes. If the same job produces different angles across the bend length, check crowning and tool alignment first. If the angle is consistent but wrong, check springback, material thickness, tooling choice and the CNC correction value. If the flange length changes, check the back gauge, blank size and bend sequence.
- Material thickness variation: a 0.1 mm thickness change can shift bend radius, springback and final flange length.
- Material grade and rolling direction: stainless steel, aluminum and high-strength steel spring back more than mild steel.
- V-die opening: narrow dies increase tonnage and make smaller radii; wider dies reduce tonnage but increase radius and flange shift.
- Punch and die condition: worn shoulders, damaged punch tips and mismatched segmented tooling create angle variation.
- Back gauge calibration: incorrect X, R or Z-axis positions directly affect flange length and part squareness.
- Machine deflection: long bends need correct crowning so the middle of the part does not under-bend.
How to Improve Bend Angle Accuracy
Bend angle accuracy starts with a correct tooling and material setup. Use the right V-die opening, enter actual material thickness into the controller and run a first bend before approving production. For air bending, expect springback and compensate in the CNC program instead of forcing the material with excessive tonnage.
On long parts, angle error often appears as a center angle that differs from the two ends. This usually means the machine needs crowning correction, tool seating inspection or hydraulic synchronization adjustment. A CNC crowning system helps the ram, bed and tooling compensate for deflection during the bend.
- Measure actual material: use calipers or a micrometer instead of relying only on nominal thickness.
- Select the V-die opening: start around 8x material thickness for common mild steel air bending, then adjust for radius, tonnage and flange length.
- Run a first-piece bend: measure the angle after springback, then enter the correction into the CNC controller.
- Check both ends and center: if the center differs, adjust crowning rather than changing the whole program.
- Lock the setup: record tooling, die opening, material lot, correction value and inspection result for repeat orders.
How to Control Flange Length and Back Gauge Accuracy
Flange length accuracy depends on blank size, bend deduction, back gauge position, part contact and bend sequence. Even a precise CNC back gauge cannot fix a part that is cut wrong or pushed against the finger at an angle.
For short flanges, make sure the flange can safely reach the back gauge fingers. For tall flanges, check that the part does not collide with tooling, clamps or the machine frame during the bend sequence. For box and enclosure parts, simulate the sequence before cutting a full batch.
| Problem | Likely Cause | Correction |
|---|---|---|
| Flange too short or too long on all parts | Wrong X-axis value, wrong bend deduction or blank size error | Check flat pattern, calibrate back gauge and correct CNC program |
| Flange changes from part to part | Inconsistent operator contact or unstable material stop | Use proper gauge fingers, support arms and repeatable positioning |
| Left and right flange lengths differ | Part not square to the gauge or Z fingers misaligned | Square the blank, align gauge fingers and inspect shearing or laser cutting accuracy |
| Later bends shift earlier dimensions | Wrong bend sequence or collision during forming | Reorder the bend sequence and verify with a sample part |
Crowning, Deflection and Long Bend Accuracy
When a press brake bends a long part, the ram and bed deflect under load. Without crowning, the ends may bend more than the center, leaving inconsistent angles along the bend line. This is one of the most common reasons long electrical cabinets, doors, panels and structural parts fail inspection.
Mechanical crowning uses adjustable wedges to compensate for bed deflection. Hydraulic or CNC crowning adjusts compensation through the controller. For frequent long bends, CNC crowning is easier to repeat because the operator can store the correction with the program.
Inspection Method: What to Measure Before Production
A good inspection routine is faster than reworking a full batch. Measure the first piece, record the correction and inspect again after tool changes, material lot changes or long runs. For precision work, inspection should include angle, flange length, bend line straightness, part squareness and surface marks.

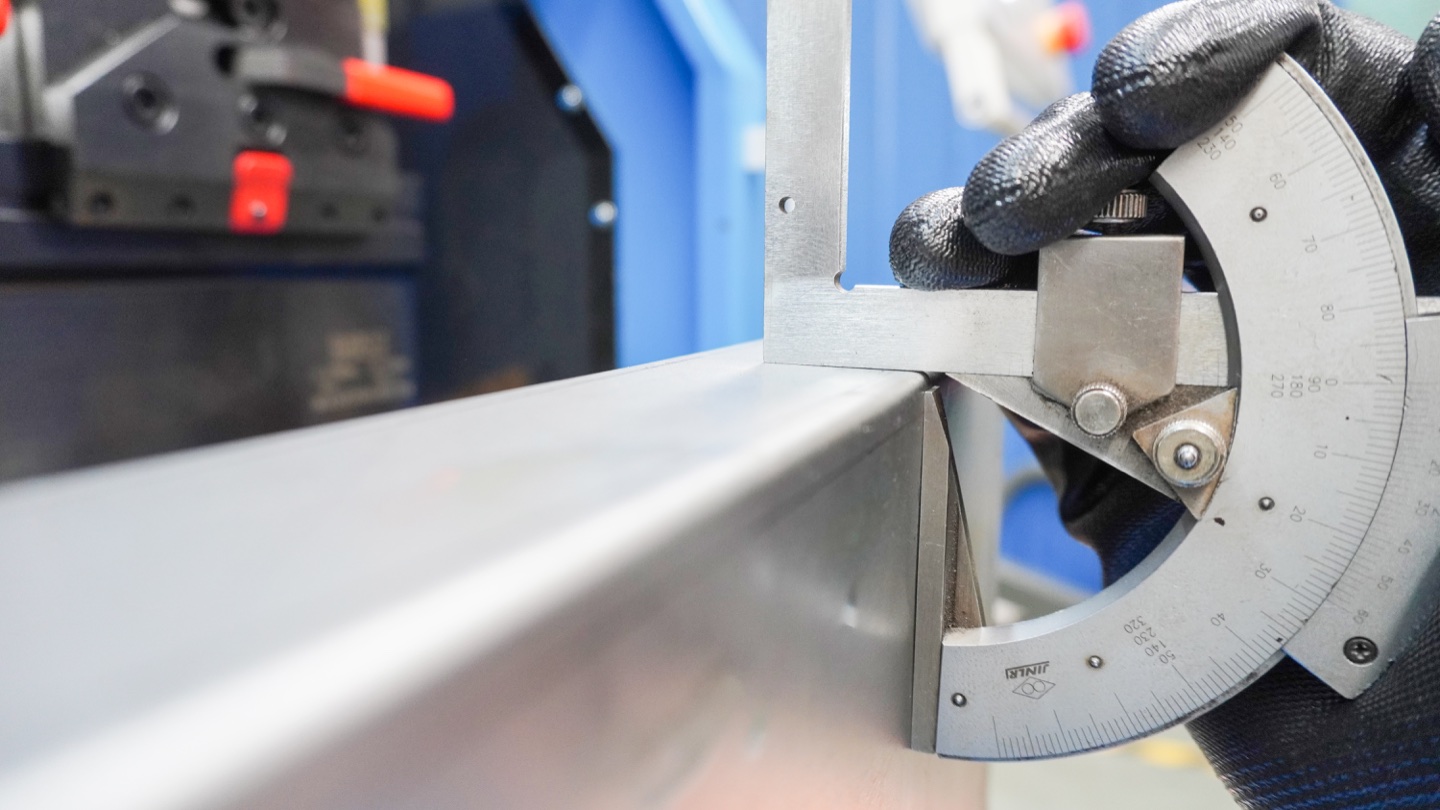

- Angle: use a digital angle gauge or protractor on both ends and the center of long bends.
- Flange length: measure from the correct datum, not from a burr or inconsistent edge.
- Straightness: use a straightedge or CMM for long panels, guards and enclosure doors.
- Squareness: check diagonal dimensions on box, tray and frame parts.
- Surface quality: inspect stainless, aluminum and painted parts for tool marks before releasing production.
Machine Features That Help Hold Tight Tolerances
A basic press brake can make accurate parts with skilled setup, but precision production is easier when the machine has CNC synchronization, a reliable back gauge, crowning, stable tooling clamping and clear program storage. The goal is to remove operator variation from repeated jobs.
| Feature | Why It Matters | Best Fit |
|---|---|---|
| Y1/Y2 CNC hydraulic synchronization | Keeps ram parallel and improves angle consistency | General precision sheet metal and mixed production |
| X/R/Z back gauge axes | Improves flange positioning, staged bends and off-center parts | Cabinets, enclosures, brackets and complex parts |
| CNC crowning | Compensates long-bend deflection and stores correction values | Long panels, doors, machine guards and structural parts |
| Quick clamping and segmented tooling | Reduces setup error and improves tool seating repeatability | High-mix shops and frequent tool changes |
| Offline programming and tool library | Controls bend sequence, tooling choice and repeat order setup | Factories with many part numbers and repeat batches |
Buyer Checklist for Accuracy-Sensitive Press Brake Work
When buying a press brake for accurate bending, do not compare only tonnage and bending length. Ask how the supplier controls ram synchronization, crowning, back gauge accuracy, tool clamping, controller correction and after-sales calibration. The real question is whether the machine can hold your part tolerance repeatedly with your materials and bend lengths.
- Share sample drawings with target tolerances, not only material thickness and length.
- Confirm the machine tonnage with a safety margin for your smallest V-die opening.
- Specify the number of back gauge axes needed for your part shapes.
- Choose CNC crowning for long bends, heavy plates or high-repeatability work.
- Ask for a bending test using your material or a similar thickness and grade.
- Request calibration guidance, spare parts support and controller training.
Common Accuracy Mistakes to Avoid
- Using nominal material thickness in the CNC program when the actual sheet is different.
- Changing the V-die opening without recalculating bend allowance, radius and tonnage.
- Measuring only one end of a long bend and missing center angle error.
- Using worn or mismatched segmented tooling for cosmetic or tight-tolerance parts.
- Skipping first-piece approval after a material lot change.
- Trying to fix every angle problem with ram depth instead of checking crowning and tooling.
Useful Technical References
OSHA powered press brake guidance is useful when setting safe inspection and operating procedures around the point of operation. Sheet metal brake references explain the basic forming principle and machine types.
For related shop-floor setup topics, review Rucheng guides on press brake crowning, press brake back gauges, press brake tooling and bend allowance and K-factor.
Press Brake Accuracy FAQ
What is good press brake angle accuracy?
For many CNC press brake jobs, good angle accuracy is about +/-0.5 degree after first-piece correction. Precision jobs may target +/-0.3 degree, but the result depends on material variation, tooling, crowning, bend length and inspection method.
What tolerance can a press brake hold on flange length?
A well-set CNC press brake commonly holds +/-0.2-0.5 mm flange accuracy on suitable parts when the blank size, back gauge and bend deduction are controlled. Larger parts, short flanges and unstable gauging surfaces may need wider tolerances.
Why are my bend angles different at the center and ends?
Different center and end angles usually point to machine deflection, incorrect crowning, tool alignment problems or uneven material behavior. Check the angle at both ends and the center, then adjust crowning instead of changing only ram depth.
Does a CNC controller guarantee accurate bends?
No. A CNC controller improves repeatability and stores correction values, but accurate bending still requires correct tooling, real material thickness, back gauge calibration, crowning, a good bend sequence and first-piece inspection.
How often should a press brake back gauge be calibrated?
Back gauge calibration should be checked during scheduled maintenance, after collisions, after axis service and whenever flange dimensions drift without a clear program change. High-precision shops often verify key positions weekly or before critical jobs.
Which press brake configuration is best for tight tolerance work?
For tight tolerance sheet metal work, choose a CNC hydraulic press brake with Y1/Y2 synchronization, CNC crowning, X/R/Z back gauge options, quality tooling and controller support for angle correction and tool libraries.
Conclusion: Accuracy Comes From the Whole Bending Process
Press brake accuracy is controlled by the combined effect of machine condition, tooling, material, back gauge setup, crowning, bend sequence and inspection. The best factories do not rely on one machine number; they build a repeatable setup method and record it for future batches.
If your parts require tight angle, flange or long-bend tolerances, send Rucheng your drawings, material thickness, bend length and target tolerance. Our engineers can recommend the right CNC press brake configuration, tooling package and setup workflow for your production.
Request a Press Brake Accuracy Recommendation
