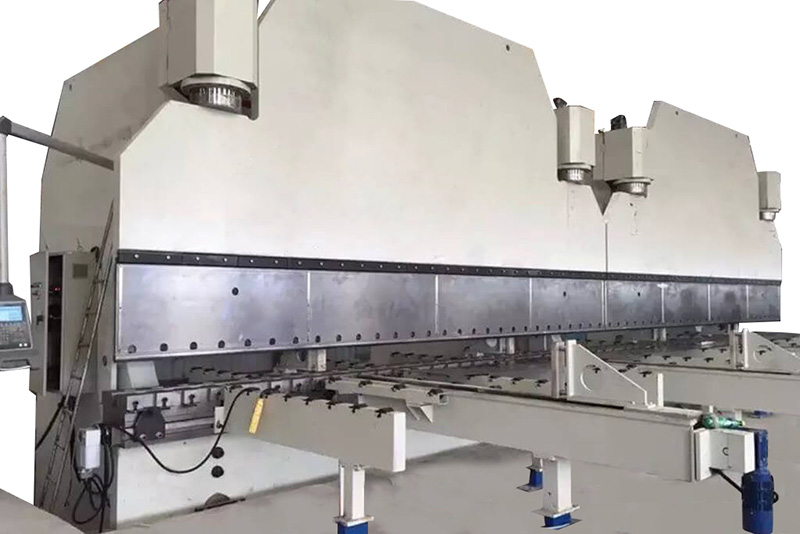

Why Proper Press Brake Setup Matters

A correctly set-up press brake produces repeatable, accurate bends from the first part. Poor setup wastes material on scrap, damages tooling, and in worst cases, can overload the machine. Whether you are running a manual hydraulic press brake or a fully automated CNC press brake, the setup sequence is the same — only the programming interface differs.

This guide covers every step: pre-setup calculation, tooling selection and installation, back gauge programming, and a printable first-bend checklist. Parameters are given for common materials including mild steel (Q235/A36), stainless steel (304), and aluminum (5052/6061).

Step 1: Review the Drawing and Gather Data

Before touching the machine, collect all the information you need from the engineering drawing or job ticket:

Material type and grade — mild steel, stainless, aluminum, copper, etc.
Material thickness (t) — this drives V-die selection and tonnage calculation
Bend angles — typically 90°, but could be 30°–175°
Flange lengths — each leg of the bend, which determines back gauge X-axis position
Inside bend radius — specified on the drawing or defaulted to V/6 in air bending
Bend sequence — for multi-bend parts, plan which bend is made first to avoid tool collisions
Blank size and grain direction — bending perpendicular to the grain allows tighter radii

💡 Pro Tip: Calculate K-factor First

For precision parts, note the K-factor specified on the drawing. K-factor determines how much the bend allowance compresses the neutral axis. Standard K-factor for air bending mild steel is 0.33 (near the inside surface), while for bottom bending it is 0.42. Your CNC controller uses this internally for accurate flat blank development.

Step 2: Calculate Required Tonnage

Calculating tonnage before setup confirms your press brake has sufficient capacity and helps you select the correct V-die opening. The standard air bending tonnage formula is:

T (kN/m) = 575 × t² / V

Where t = material thickness in mm, V = V-die opening in mm, and the constant 575 applies to mild steel with 400 MPa tensile strength. For other materials, multiply by the material factor below.

Material	Tensile Strength	Tonnage Factor	Example (3mm, 24mm V)
Mild Steel (Q235/A36)	400 MPa	1.0×	215 kN/m (≈22 t/m)
Stainless Steel 304	600–700 MPa	1.5–1.7×	323–366 kN/m (≈33–37 t/m)
Stainless Steel 316	580–620 MPa	1.45–1.55×	312–333 kN/m (≈32–34 t/m)
Aluminum 5052-H32	230 MPa	0.57×	123 kN/m (≈12.5 t/m)
Aluminum 6061-T6	310 MPa	0.77×	166 kN/m (≈17 t/m)
Copper (C11000)	220 MPa	0.55×	118 kN/m (≈12 t/m)

Always add a 20% safety margin to your calculated tonnage. If your calculation gives 200 kN/m, select a machine with at least 240 kN/m capacity at that bend length. Never bottom-bend or coin without verifying the machine's maximum rated tonnage — exceeding it damages both tooling and machine frame.

Step 3: Select the Correct Punch and Die

Tooling selection is determined by three factors: the required bend angle, the material thickness, and the desired inside bend radius. The most critical choice is the V-die opening.

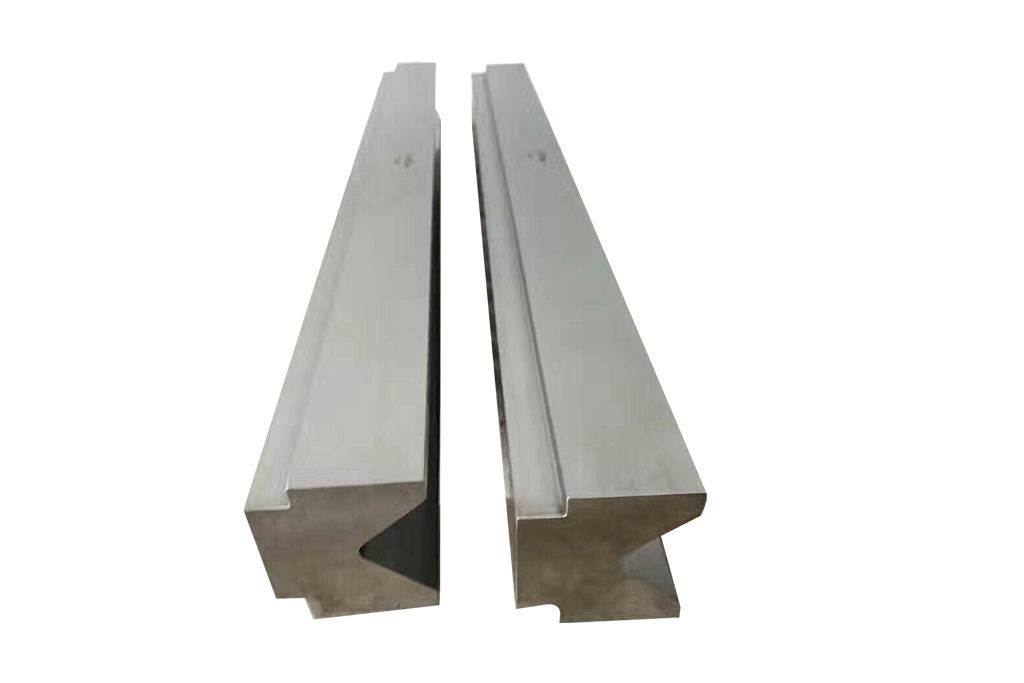

Press brake V-die selection for different material thicknesses — V-die selection chart: wider openings for thicker material, producing larger inside bend radii

V-Die Opening Selection (The 8× Rule)

Material Thickness	Recommended V-Die Opening	Minimum Flange Length	Typical Inside Radius
0.5–1.0 mm	6–8 mm	4 mm	0.5–1.0 mm
1.0–2.0 mm	8–16 mm	6–8 mm	1.0–2.0 mm
2.0–3.0 mm	16–25 mm	10–12 mm	2.0–3.5 mm
3.0–4.0 mm	25–32 mm	14–16 mm	3.5–5.0 mm
4.0–6.0 mm	32–50 mm	18–24 mm	5.0–8.0 mm
6.0–10.0 mm	50–80 mm	24–40 mm	8.0–12.0 mm
10.0–16.0 mm	80–120 mm	40–60 mm	12.0–20.0 mm

Punch Type Selection

Choose the punch tip radius and profile based on the application:

Standard straight punch (85°–88° tip): Most common. Use for 90° bends and angles down to about 30° depending on die clearance.
Acute punch (30°–45° tip): For bends requiring acute angles. Produces a sharper final angle.
Gooseneck / swan-neck punch: Essential for deep box bending where the punch must clear the already-formed sides. Available in various heights (50–200 mm).
Hemming punch: Flat-face punch for the second stage of a hem. Used with a hemming die to fold flanges flat.
Radius punch: For large-radius forming when a smooth curved profile is required instead of an air-bent approximation.

⚠️ Tooling Safety Warning

Never use cracked, chipped, or worn tooling. Inspect punch tips and die edges before every setup. Damaged tooling can fracture under load and cause serious injury. Check that the tooling's rated tonnage capacity exceeds your calculated requirement — tooling rated for 800 kN/m should not be used for jobs requiring 900 kN/m.

Step 4: Install the Tooling

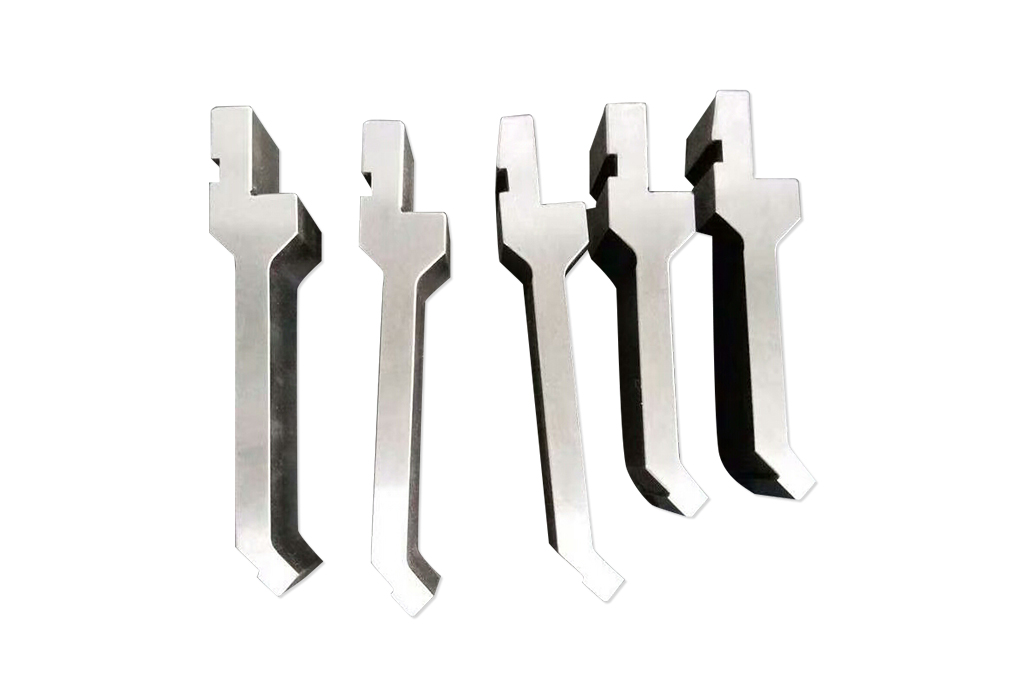

Press brake upper punch installation and clamping — Installing upper punch tooling with European-style clamping system

Tooling installation is the most time-consuming part of press brake setup, but doing it correctly ensures repeatable results. Follow this sequence:

Clean the tool seats — Wipe down the punch holder slots and die bed with a clean cloth. Remove any metal chips, oil residue, or debris. Contamination between the tool seat and tooling causes height variation and inaccurate bends.

Install the lower V-die first — Place the die in the bed slot, centered on the bend line. Finger-tighten the set screws but do not fully lock yet. Center the die lengthwise if bending a short part — always work at the machine center for even load distribution.

Lower the ram to approximately 5–10 mm above die height — Use jog mode to bring the upper beam down slowly until the gap between the punch face and die top is about one material thickness plus 5 mm. This position supports the punch during installation.

Insert the upper punch — Slide the punch into the clamping slot with the tang (retention groove) aligned with the clamping bar. The die below supports the punch weight. For long punches or heavy multi-section tooling, use the tool loading slot on the side and slide sections into position.

Seat and clamp the tooling — Lower the ram until the punch tip is just touching the die edges. Tighten the upper clamp bars securely. Then lock the lower die set screws. For hydraulic clamping systems, activate the clamp pressure. Verify both ends of long tooling are seated at the same height.

Check punch-to-die alignment — The punch tip should center over the V-die opening with equal clearance on both sides. Off-center punches cause uneven bend angles and may damage tooling. Use a feeler gauge or visual inspection on both ends of the tooling.

Step 5: Program the Back Gauge

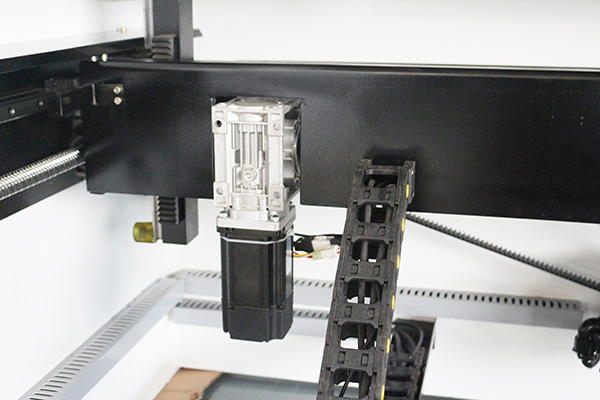

CNC press brake back gauge X-axis R-axis programming — CNC back gauge with X-axis depth control and R-axis height adjustment

The back gauge positions the sheet metal accurately for each bend, controlling flange length. Modern CNC press brakes — including the Rucheng DA66T/DA69T series — feature multi-axis back gauges with the following axes:

X-axis: Horizontal depth from the punch centerline to the gauge fingers. Controls flange length. Range typically 10–800 mm.
R-axis: Vertical height of the back gauge fingers. Adjusts to avoid collisions with previously bent flanges during multi-bend sequences. Range typically 0–200 mm above die surface.
Z1/Z2 axes: Lateral position of individual gauge fingers. Used for angled bends, asymmetric parts, or to position fingers away from slots and cutouts in the sheet.

CNC Back Gauge Programming (Delem DA Controller)

Enter the part program — On the Delem DA66T, press the [PROG] key and enter material thickness (t), material type, and die parameters (V-die opening, height, shoulder radius). The controller calculates the neutral axis offset automatically.

Input bend parameters for each step — For each bend, enter: angle (e.g., 90°), flange length (e.g., 50 mm), and the punch/die set being used. The controller calculates X-axis back gauge position including bend allowance correction.

Set R-axis height for each bend — For the first bend, R = 0 (fingers at die surface level). For subsequent bends where a previously formed flange might hit the fingers, raise R to clear that flange. Rule of thumb: R = previous flange height + 5 mm clearance.

Verify back gauge approach speed — Set approach speed at 100–200 mm/s for rapid travel and 30–50 mm/s for the final 10 mm of positioning. Slow final positioning prevents the sheet from bouncing off the gauge fingers.

Back Gauge Correction Factor

For air bending, the back gauge X position is not simply equal to the desired flange length. The formula is: X = L − (t + R_punch) × tan(90° − θ/2), where L is the target flange length, t is material thickness, R_punch is punch tip radius, and θ is the bend angle. Most CNC controllers calculate this automatically. For manual press brakes, use the bend allowance table on the machine.

Step 6: Set Ram Depth and Springback Compensation

Ram depth (also called stroke depth or Y-axis position) controls how far the punch penetrates into the V-die, which determines the final bend angle after springback. For 90° bends, you need to overbend to compensate for the material springing back when the punch retracts.

Material	Typical Springback (90° target)	Required Overbend Angle	Recommended Method
Mild Steel (Q235)	1–3°	87–89°	Air bending
Stainless Steel 304	3–6°	84–87°	Air bending
Aluminum 5052-H32	2–4°	86–88°	Air bending
Aluminum 6061-T6	4–8°	82–86°	Bottom bending preferred
Copper (C11000)	1–2°	88–89°	Air bending

On CNC machines, enter the desired angle (90°) and the controller adjusts ram depth automatically using the material springback table. For manual machines, use trial-and-error: start with an overbend of 2–3° and adjust based on the test bend measurement.

💡 Crowning Compensation

For bends longer than 1 meter, the machine frame deflects under load, causing the center of the part to bend less than the ends — resulting in a slightly open angle at mid-length. Use the crowning adjustment (either mechanical wedge or hydraulic crowning) to compensate. A typical crowning value for 3 mm steel on a 2500 mm bed is 0.3–0.5 mm at center.

Bending Methods: Air Bending vs Bottom Bending vs Coining

Understanding the three primary bending methods affects your setup decisions for ram depth, tonnage, and tooling selection:

Method	Tonnage	Springback Control	Angle Accuracy	Best For
Air Bending	1× (baseline)	Requires compensation	±0.5–1°	Most applications; flexible angle range with one die set
Bottom Bending	3–5× air bending	Minimal (punch touches die)	±0.25°	Higher-volume production; tight tolerance parts
Coining	8–10× air bending	Near zero	±0.1°	Precision parts; thin material requiring very sharp radii

For most setup situations, air bending is the recommended starting method. It uses less tonnage, is forgiving of minor tooling height variations, and one die set can produce multiple bend angles. Bottom bending and coining are reserved for high-production runs or parts with very tight angular tolerances (±0.1°).

Step 7–9: First Bend Checklist

Before running the first production part, go through this pre-bend checklist. Print it out and keep it at the machine:

Check Item	Verify	Status
Safety guards and light curtains	Test E-stop; verify light curtain interrupts ram motion	☐
Hydraulic oil level	Oil between MIN/MAX on sight glass; no leaks visible	☐
Tooling condition	No cracks, chips, or excessive wear on punch tip or die edges	☐
Tooling clamped	Upper clamp bars tightened; die set screws locked; no movement when pulled	☐
Punch-die alignment	Punch tip centered over V-die opening; equal gap both sides	☐
Back gauge position	X-axis at programmed position; move fingers by hand to verify they return to correct position	☐
Tonnage limit set	Machine tonnage set to calculated value + 20% margin; not exceeding machine maximum	☐
Material verified	Correct material grade, thickness confirmed with micrometer; grain direction checked	☐
Scrap material ready	Have 2–3 pieces of same material/thickness for test bends	☐
CNC program verified	Bend sequence checked in simulation mode; no tool collision warnings	☐

Running the Test Bend

Use a scrap piece of the same material and thickness as the production part. Run the first bend at slow speed (jog mode if available). Measure the result with a precision angle gauge or digital protractor:

If the angle is open (e.g., 93° instead of 90°) → increase ram depth by 0.1–0.2 mm increments
If the angle is closed (e.g., 87° instead of 90°) → decrease ram depth by 0.1–0.2 mm increments
If the flange length is wrong → adjust back gauge X-axis in 0.1 mm increments
If the angle is correct at the ends but open at center → increase crowning compensation
If the part has twist or bow → check material flatness; check punch/die parallelism

Run 2–3 test bends before measuring, as the first bend on cold tooling may behave slightly differently from subsequent bends. Record the final offset values in the program so the setup can be recalled for repeat jobs.

CNC vs Manual Press Brake Setup: Key Differences

Feature	CNC Press Brake	Manual Press Brake
Back Gauge Programming	Automatic — enter flange length, controller calculates X position	Manual — operator measures and adjusts stop manually
Springback Compensation	Built-in material tables; automatic overbend calculation	Trial-and-error; operator experience required
Crowning Control	Motorized hydraulic crowning; calculated per material/thickness	Mechanical wedge; set manually from chart
Setup Time	3–8 min for repeat programs; 15–30 min for new programs	20–45 min typical
Repeatability	±0.01 mm back gauge; ±0.1° angle	±0.5 mm back gauge; ±0.5–1° angle
Best For	Complex multi-bend parts; production runs; mixed jobs	Simple single-bend parts; light production; lower volume

For production environments handling varied parts, a CNC press brake dramatically reduces setup time and operator skill requirements. Rucheng Technology's CNC press brake range includes Delem DA66T and DA69T controllers with automatic back gauge, crowning, and springback compensation built in.

Frequently Asked Questions

How do you set up a press brake for the first time?

For a first-time setup: (1) Review the drawing for material, thickness, and angles. (2) Calculate tonnage using T = 575 × t² / V. (3) Select V-die opening = 8× material thickness. (4) Install die, then punch; clean all surfaces before installing. (5) Program back gauge X-axis to the flange length. (6) Set ram depth for the required angle plus springback compensation. (7) Run a test bend on scrap material, measure, and adjust. (8) Run first production parts, checking the first 3–5 pieces against tolerances.

What is the back gauge on a press brake?

The back gauge is a motorized stop system behind the press brake that positions the sheet metal to control flange length. It has an X-axis (depth = flange length), R-axis (height = avoids collision with formed flanges), and Z-axes (lateral position). CNC back gauges achieve ±0.01 mm positioning accuracy and move automatically between bends following the programmed sequence.

How do you calculate tonnage for press brake setup?

Use the formula: T (kN/m) = 575 × t² / V, where t = material thickness in mm and V = V-die opening in mm. For 3 mm mild steel with a 24 mm V-die: T = 575 × 9 / 24 = 215 kN/m per meter of bend. Multiply by bend length for total force. Apply material factors: ×1.5–1.7 for 304 stainless, ×0.57 for aluminum 5052. Always add 20% safety margin.

What V-die opening should I use?

The rule is: V-die opening = 8× material thickness for material up to 3 mm, 10× for 3–8 mm, and 12× for over 8 mm. A 2 mm sheet uses a 16 mm die; a 5 mm sheet uses a 50 mm die. A narrower V-die gives a tighter bend radius but requires more tonnage. A wider V-die needs more flange length to reach the gauge but reduces tonnage requirements.

Why is my press brake bending different angles at each end?

Inconsistent angles along the bend length are typically caused by: (1) Ram deflection under load — the center opens more than the ends because the frame bows. Fix: enable crowning compensation. (2) Tooling height variation — punch segments or die sections of different heights. Fix: check tooling heights with a height gauge; all sections must be within ±0.02 mm. (3) Material thickness variation — measure the sheet at multiple points. (4) Die not fully seated — check that die is properly clamped with no gap.

What safety checks are required before press brake operation?

Required pre-operation checks: (1) Test light curtains and safety guards — machine must stop when beam is broken. (2) Verify E-stop function. (3) Check hydraulic oil level. (4) Inspect tooling for damage — never use cracked or chipped tooling. (5) Confirm tooling is properly clamped. (6) Clear the work area of obstacles and bystanders. (7) Confirm tonnage setting does not exceed machine rated capacity. (8) Wear PPE: safety glasses, steel-toed boots, cut-resistant gloves.

Summary: Press Brake Setup Checklist

Proper press brake setup follows a consistent sequence regardless of machine type: gather data from the drawing, calculate tonnage, select and install tooling, program the back gauge, set ram depth with springback compensation, and validate with a test bend. Following this process consistently produces first-part-correct results and extends tooling life.

The key numbers to remember: V-die = 8× material thickness (for steel up to 3 mm); tonnage formula T = 575 × t² / V; springback of 1–3° for mild steel, 3–6° for stainless steel. With a well-set-up CNC press brake, setup time for repeat programs drops to under 5 minutes, with back gauge repeatability of ±0.01 mm.
