Press brake throat depth, daylight and stroke decide whether a part physically fits in the machine after the tonnage calculation is already satisfied. Throat depth limits how far a panel or return flange can pass behind the tooling centerline, daylight limits the vertical room for tooling and part removal, and stroke limits how far the ram can travel to complete the bend. For deep boxes, electrical enclosures, trays and cabinet panels, these clearance dimensions can matter more than buying extra tons.
Quick Answer: What Clearance Specs Should You Check First?
Check throat depth, daylight and stroke before approving a press brake order if your parts include return flanges, high side walls, deep channels, boxes, trays, door frames or enclosure panels. A standard 80-160 ton C-frame press brake may have about 320-410 mm throat depth, about 120-200 mm stroke on basic models and a higher open height on advanced CNC models, but exact values depend on frame design and tooling system.
Use this practical rule: tonnage answers whether the machine has enough force; bending length answers whether the blank fits along the bed; throat depth, daylight and stroke answer whether the formed part can move through the tool and frame without collision. If any one of the three clearance dimensions is too small, a stronger machine still cannot make the part reliably.
What Are Throat Depth, Daylight and Stroke?
A press brake is not an open empty space. The side frames, ram, bed, punch, die, clamps, back gauge fingers and formed flanges all compete for room during each bend. Clearance specifications describe that room from different directions.
- Throat depth: the horizontal distance from the tooling centerline to the back of the C-frame side opening. It limits how far a sheet or formed return can pass behind the punch and die.
- Daylight or open height: the maximum vertical opening between the ram/tool holder area and the bed when the ram is fully open, normally measured before tooling is installed.
- Stroke: the vertical travel distance of the ram from its open position toward the closed position. Stroke is needed to reach the bend depth after subtracting tooling height and material geometry.
- Working clearance: the remaining usable space after punch height, die height, clamps, adapters, material thickness and formed flange height are considered.
Clearance Specification Table
| Specification | Direction | Typical Buyer Question | Main Failure If Too Small |
|---|---|---|---|
| Throat depth | Horizontal, from tool centerline to rear frame | Can my panel or return flange pass behind the tooling? | The workpiece hits the side frame before the bend is complete |
| Daylight / open height | Vertical, maximum open space above the bed | Can the punch, die, clamps and formed part fit together? | The part cannot be inserted, rotated or removed after bending |
| Stroke | Vertical ram travel | Can the ram travel far enough with this tooling stack? | The punch cannot reach the required bend depth or closing position |
| Distance between side frames | Horizontal, along the machine length | Can the usable blank width fit between frames? | Large panels can only bend in limited positions or not at all |

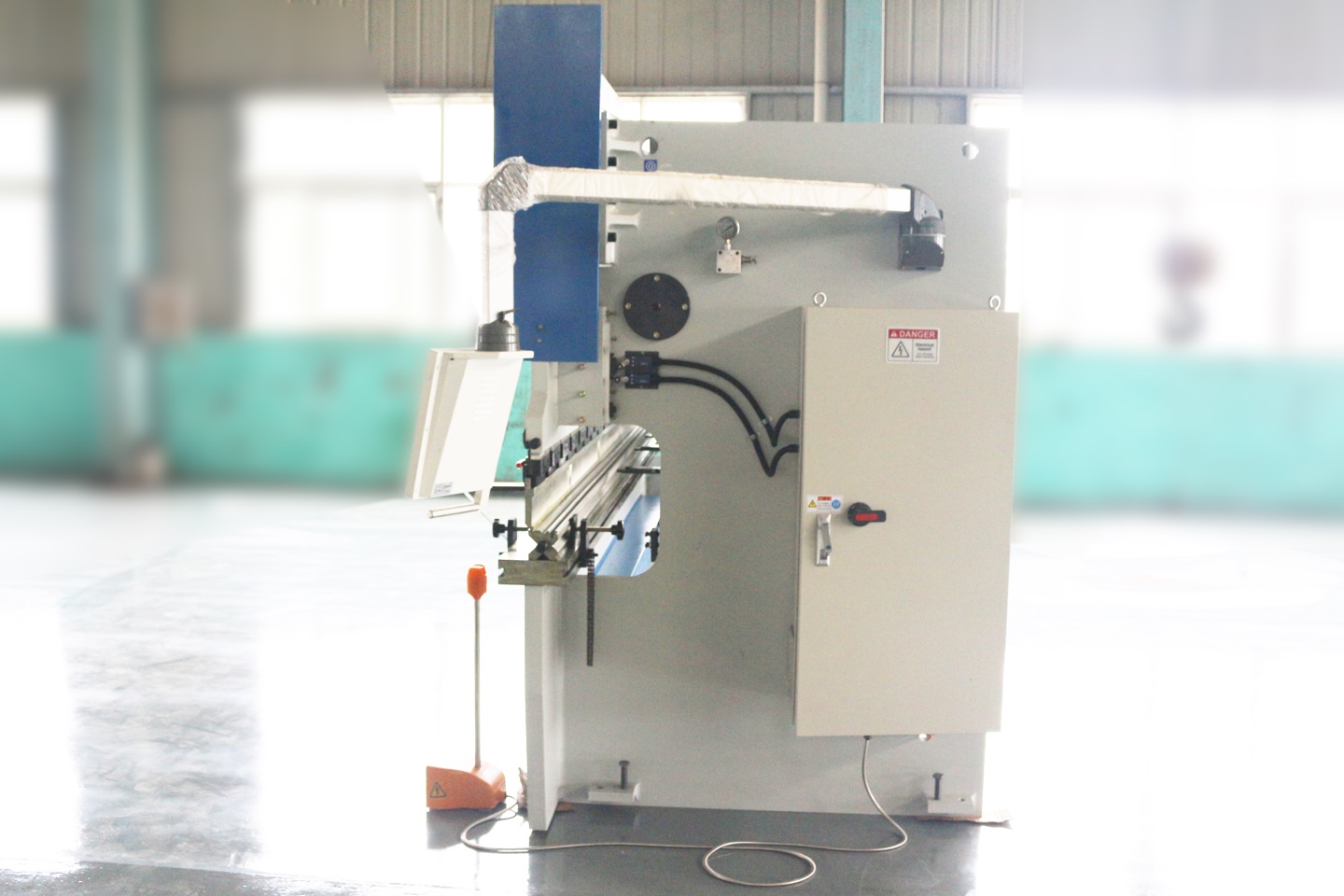

How Throat Depth Affects Panels, Boxes and Return Flanges
Throat depth is often ignored because it is less visible than tonnage or bending length. It becomes critical when the flat area of a panel must extend behind the tooling centerline or when a previously bent flange points toward the rear frame. Once the part touches the frame, the operator cannot simply add more tonnage to solve the problem.
For open brackets and short flanges, a standard throat may be enough. For metal door frames, elevator panels, cabinet sides and wide trays, the return depth can quickly exceed the throat opening. If your part needs a 450 mm return but the machine throat is 320 mm, the bend may be impossible in that orientation without changing sequence, tooling, part design or machine configuration.
- Standard compact C-frame machines are suitable for simple brackets, covers and shallow channels.
- Extended-throat or larger-frame machines help with deeper returns, large panels and parts that need room behind the bend line.
- Center-bed bending between side frames can sometimes avoid side-frame interference, but it changes support, gauge access and load distribution.
- Robotic or automated bending cells need extra throat and swing clearance because the gripper and part rotate through a wider path.
Why Daylight Matters for Tooling and Part Removal
Daylight, also called open height, is the maximum vertical space available when the ram is fully open. Wilson Tool emphasizes that knowing open height and stroke is important when selecting tooling and bidding work because these dimensions can create real application problems. In practice, open height is consumed by the upper tool, lower die, tool holders, adapters, clamps, material thickness and the formed part itself.
A high punch and tall die may fit on paper, but the remaining space between punch tip and die top can be too small for a formed box wall to enter or leave. This is why enclosure factories and deep box manufacturers often need a high-open-height CNC press brake even when the material thickness is modest.
- Tooling stack: add punch height, die height, holders, adapters and clamp thickness.
- Part insertion: confirm the flat blank and any pre-formed flange can enter the tool opening.
- Part extraction: verify the finished part can be tilted and removed without sliding dangerously along the tooling.
- Future tooling: leave room for gooseneck punches, hemming tools, flattening dies or special high tools.
How Stroke Limits Bend Depth and Closing Operations
Stroke is the travel range of the ram. A machine with high daylight but short stroke can still struggle if the punch cannot travel far enough after the tooling stack is installed. This matters for deep V-dies, hemming, offset tools, thick material, special holders and operations where the punch must close far below the starting position.
Stroke is also important when changing between tool sets. A low-profile punch and die may work, while a taller gooseneck punch plus a special die may require more ram travel. Before buying, ask the supplier to simulate the actual tool heights and target bend angles, not only quote a generic stroke number.
- Air bending usually needs less closing travel than bottoming or flattening operations.
- Hemming and flattening tools can require more stroke and daylight than ordinary 90-degree bends.
- Tall tooling can reduce remaining travel if the machine setup cannot compensate enough.
- CNC stroke settings should be matched with safety speed change points, pinch points and back gauge retraction.
Simple Working Clearance Checks Before You Buy
A supplier should do the detailed machine simulation, but buyers can perform a first-pass clearance check from the drawing. The goal is not to replace engineering review; it is to catch obvious mismatches before a quotation is approved.
- Horizontal check: deepest rear-facing part dimension should be less than available throat depth after allowing clearance for rotation and handling.
- Vertical check: daylight must exceed punch height + die height + clamps/adapters + formed flange height + safe removal clearance.
- Stroke check: available ram travel must reach the programmed bend depth with the chosen punch, die opening and material thickness.
- Sequence check: the largest flange may not be the first collision; later bends can trap the part even if the first bend fits.
- Operator check: the part must be supportable by one operator, support arms, sheet followers or a robot without unstable lifting.
Recommended Clearance by Common Press Brake Work
| Application | Clearance Priority | Why It Matters | Buyer Advice |
|---|---|---|---|
| Simple brackets and short flanges | Moderate throat, standard daylight and stroke | Parts stay open and are easy to remove | Choose by tonnage, length, accuracy and tooling first |
| U-channels and trays | More daylight and enough throat for side walls | Second flange may collide with punch, die or frame | Use gooseneck tooling and simulate the closing bend |
| Electrical enclosures and cabinet boxes | High daylight, longer stroke and careful throat check | Formed walls can trap the part during removal | Specify part height, box depth and bend sequence in the inquiry |
| Metal door frames | Throat depth, tooling clearance and back gauge access | Long formed profiles need room behind and above the tools | Ask for a door-frame sample program before shipment |
| Robotic bending cell | Extra daylight, swing space and gripper clearance | The robot path can collide even when manual bending fits | Verify robot reach, gripper orientation and machine guarding together |
Tooling Choices That Change the Clearance Requirement
Clearance is not only a machine-frame issue. Tooling can make a difficult part possible or impossible. A gooseneck punch may clear a return flange, but it is often taller than a straight punch. A narrow V-die helps short flanges, but it changes bend depth, tonnage and part support. Segmented tooling helps boxes enter and exit, but it must still fit within available daylight.
When comparing machine quotations, request the exact punch, die, clamp and adapter heights. Two machines with the same nominal daylight can perform differently if one quote includes low-profile quick clamps and another requires tall adapters.
- Gooseneck punch: improves return-flange clearance but may increase tooling height.
- Segmented tooling: allows box and pan parts to be removed from the tool set.
- Hemming tools: need open height and stroke for two-step pre-bend and flattening.
- Deep V-dies: can require more ram travel and change the part removal angle.
- Quick clamps and holders: save setup time but consume part of the open height.
CNC Simulation: The Best Way to Prove Clearance
For complex parts, do not rely only on a static specification table. CNC simulation and offline programming can show whether the bend sequence, tool geometry, back gauge position and part rotation create a collision. This is especially important for enclosure panels, door frames and repeat production jobs with expensive blanks.
Ask the supplier to prove at least one representative part before shipment. The simulation should include real punch and die profiles, clamp height, back gauge fingers, side-frame geometry and the final part removal path. A generic 3D image is not enough if it does not use the purchased machine geometry.
Buyer Checklist for Throat Depth, Daylight and Stroke
Use this checklist before approving a CNC press brake quotation. It turns clearance into a concrete purchasing requirement instead of an after-installation surprise.
- Send finished part drawings, not only material thickness and bending length.
- Mark the deepest panel return, tallest flange, closed box height and any cosmetic face that cannot be scratched.
- Ask for the quoted throat depth, daylight, stroke, distance between side frames and table height.
- Request the exact tooling stack height, including clamps, holders and adapters.
- Ask the supplier to confirm part insertion, bend sequence, collision points and finished part removal.
- For boxes and enclosures, request gooseneck or segmented tooling recommendations with the machine quote.
- For large panels, confirm front support arms, sheet followers or robotic handling before comparing prices.
- Keep clearance notes in the setup sheet so repeat orders do not depend on operator memory.
Common Mistakes When Comparing Press Brake Clearance
- Buying by tonnage and length only, then discovering the part hits the frame.
- Comparing daylight numbers without subtracting tooling, clamps and adapters.
- Assuming a taller machine automatically has enough stroke for every tool set.
- Ignoring finished part removal; the bend may be possible but the part may be trapped.
- Choosing tooling after the machine is purchased instead of checking the tool stack during quotation.
- Forgetting that robotic bending needs clearance for the gripper, not only the sheet metal.
Useful Related Guides
For additional background on open height and stroke measurement, see the Wilson Tool guide on press brake open height and stroke. For general forming terminology, the sheet metal brake overview is a useful reference.
For related Rucheng topics, read our bend sequence guide, press brake tooling guide, back gauge guide, accuracy and tolerance guide and CNC press brake price guide.
Press Brake Throat Depth, Daylight and Stroke FAQ
What is press brake throat depth?
Press brake throat depth is the distance from the tooling centerline to the rear of the side frame opening. It controls how far a sheet, panel or return flange can pass behind the bend line before it hits the frame.
What is the difference between daylight and stroke on a press brake?
Daylight is the maximum open vertical space between the ram/tool holder area and the bed when the machine is open. Stroke is the amount of ram travel from open position toward closed position. Daylight controls available space; stroke controls available movement.
Why can a high-tonnage press brake still fail on deep boxes?
Tonnage only provides bending force. A deep box may still collide with the frame, punch, die, clamps or back gauge, or it may be impossible to remove after bending. Deep boxes often need more throat depth, higher daylight, longer stroke and segmented or gooseneck tooling.
How much throat depth do I need for a press brake?
The required throat depth depends on the deepest return or panel area that must pass behind the tooling centerline. For simple brackets, a standard throat may be enough. For enclosures, trays, door frames and deep panels, send drawings to the supplier and ask for a bend sequence and collision check.
Does tooling affect press brake daylight?
Yes. Punch height, die height, holders, adapters and quick clamps all consume daylight. The usable opening for the part is the machine daylight minus the tooling stack and the clearance needed for safe insertion and removal.
Should I choose extended throat or higher daylight first?
Choose based on the collision direction. If the part hits the rear frame, you need more throat depth or a different sequence. If the part cannot enter, rotate or leave vertically, you need more daylight, different tooling or a longer stroke. Many box and enclosure jobs need both.
Conclusion: Clearance Is a Production Capability, Not a Minor Spec
Press brake throat depth, daylight and stroke are not secondary details. They define the physical working window of the machine. For simple flat flanges, standard clearance may be enough; for deep boxes, high returns, door frames and enclosure panels, clearance can decide whether the job is profitable or impossible.
