When a single press brake cannot handle the length of your workpiece, a tandem press brake is the answer. By linking two or more CNC press brakes into one synchronized system, manufacturers can bend sheets up to 14 meters long — or even longer — with consistent accuracy across the entire length.
This guide covers everything you need to know about tandem press brakes: how they work, how to set them up correctly, their key advantages over single-machine alternatives, and the industries where they deliver the greatest value. Whether you are evaluating a tandem system for the first time or optimizing an existing setup, this article provides the technical depth and practical advice you need.

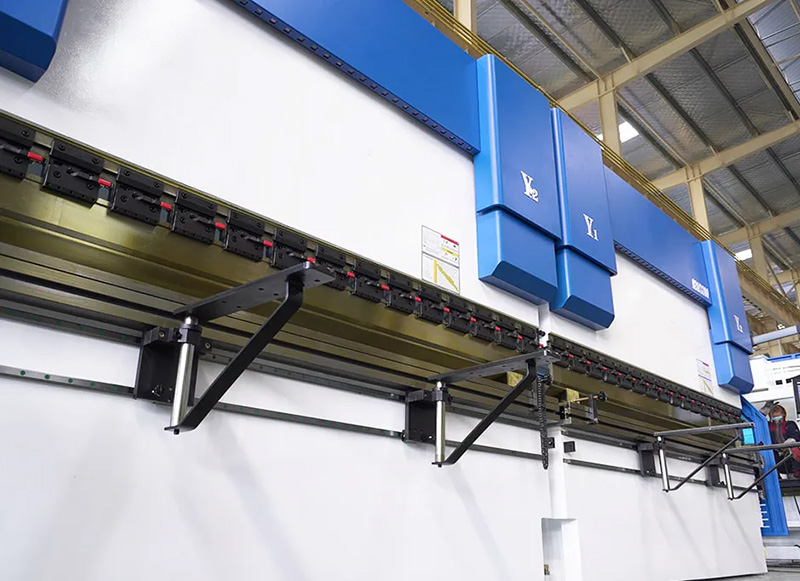

What Is a Tandem Press Brake?
A tandem press brake is a configuration in which two or more standalone CNC press brakes are mechanically aligned and electronically linked to operate as a single bending system. The machines are bolted together in precise alignment, sharing a common CNC controller that sends synchronized commands to every ram simultaneously.
The defining feature of a tandem system is its ability to function in two modes:
- Tandem mode: All machines work together as one extended press brake, bending extra-long workpieces that no single machine could handle.
- Independent mode: Each machine operates separately with its own controller, handling different jobs at the same time — effectively doubling your production capacity for standard-length parts.
Common tandem configurations include two machines (most popular), three machines (for extreme lengths exceeding 12 meters), and even four-machine setups for specialized applications such as wind turbine tower production.
Key Specifications at a Glance
- Bending length: 6 – 14+ meters (tandem of two machines)
- Tonnage per machine: 100 – 1,200 tons (combined tonnage spans the full bed)
- Synchronization accuracy: ±0.01 mm between rams
- CNC systems: Delem DA-66T/DA-69T, ESA S660/S670, Cybelec ModEva
- Mode switching: Software-based, typically under 10 minutes
How Tandem Press Brakes Work

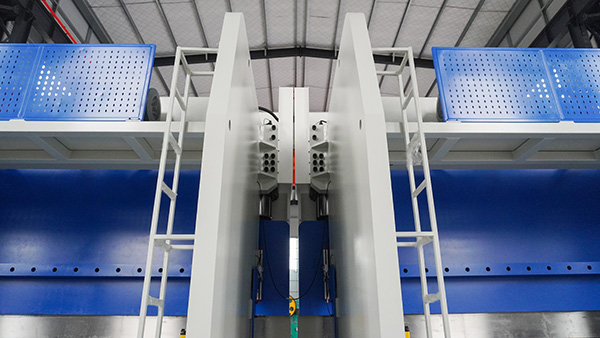

The synchronization technology behind a tandem press brake is what separates it from simply placing two machines side by side. Here is how the system coordinates multiple machines into one precise bending operation:
Master-Slave Architecture
One machine is designated as the master and the other as the slave. The master CNC controller generates all motion commands — ram speed, position targets, dwell time, and pressure limits. The slave machine receives these commands in real time through a high-speed communication bus (typically EtherCAT or fiber optic), ensuring both rams execute identical movements with microsecond-level coordination.
Multi-Encoder Feedback
Each machine in the tandem system uses four linear encoders (instead of the standard two) to monitor ram position. This additional feedback allows the CNC to detect and correct even the smallest deviation between the left and right sides of each ram, as well as between the two machines. The result is parallelism accuracy of ±0.01 mm across the entire bending length.
Hydraulic Synchronization
Each press brake maintains its own independent hydraulic system with proportional servo valves. The CNC controller adjusts valve openings in real time based on encoder feedback, ensuring that hydraulic pressure and flow rate are precisely matched across all machines. This prevents one side from advancing faster than the other — a critical requirement for uniform bend angles on long workpieces.
Real-Time Compensation

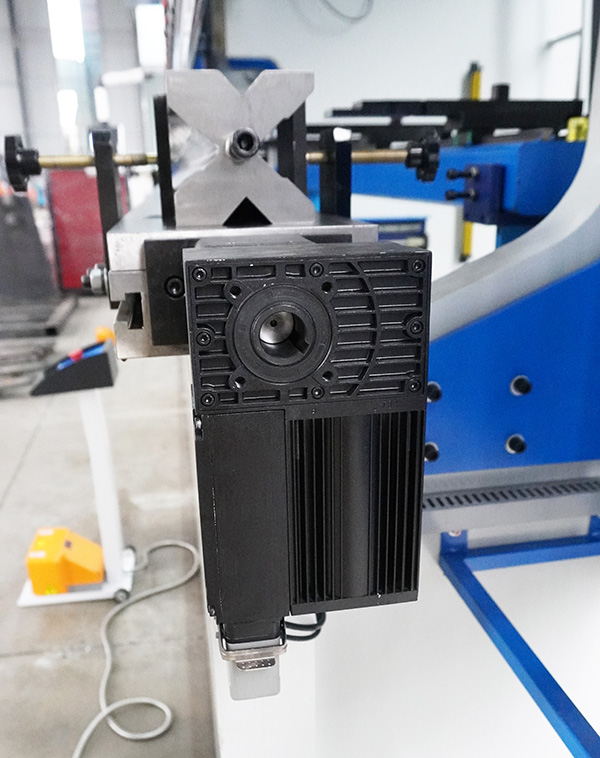

During the bending stroke, crowning systems (hydraulic or CNC-controlled wedge type) in each machine compensate for bed deflection independently. Deflection sensors mounted along the bed length feed data back to the controller, which adjusts the crowning profile in real time. This ensures consistent bend angles even when material thickness or yield strength varies along the workpiece length.
💡 Pro Tip: Encoder Calibration
Schedule encoder calibration every quarter. Even slight encoder drift between the master and slave machines can accumulate over time, leading to angular inconsistency at the junction point between the two beds. Most Delem and ESA controllers include a built-in calibration wizard that takes less than 30 minutes.
Tandem Press Brake vs. Single Large Press Brake
When you need to bend long sheets, you have two options: buy a single large heavy-duty press brake or set up a tandem system. Here is how they compare across the factors that matter most:
| Feature | Tandem Press Brake | Single Large Press Brake |
|---|---|---|
| Bending length | 6 – 14+ m (expandable by adding machines) | Typically up to 8 m (custom up to 12 m) |
| Flexibility | Can split into 2+ independent machines | Single function only |
| Downtime risk | Low — one machine can still operate if the other is down | High — entire production stops |
| Initial investment | Often lower than equivalent single machine | Higher for custom-built long-bed models |
| Transportation | Standard shipping — each unit ships separately | May require special transport for oversized frame |
| Foundation requirements | Standard reinforced slab | May need custom foundation for extreme weight |
| Operational complexity | Higher — requires synchronization setup and calibration | Lower — single unified system |
| Maintenance cost | Two hydraulic systems to maintain | One system, but parts may be more expensive |
| Precision across full length | ±0.01 mm with proper calibration | ±0.01 mm (inherent single-frame rigidity) |
The bottom line: If more than 20% of your annual production involves parts longer than 4 meters, a tandem press brake offers better flexibility, lower risk, and often a lower total cost of ownership. If nearly all your work is long-part production at maximum capacity, a single large press brake may be simpler to operate.
Key Benefits of Tandem Press Brakes
1. Extended Bending Capacity
The most obvious advantage: tandem systems can bend sheets that are simply too long for any single machine. Industries like construction, energy, and shipbuilding regularly require bends on 8–14 meter workpieces. A tandem setup eliminates the need to weld shorter sections together — saving labor, improving structural integrity, and producing cleaner aesthetics.
2. Dual-Mode Flexibility
When long-part orders slow down, decouple the machines and run them independently. This dual-mode capability means your investment is never idle. A job shop that runs tandem mode 30% of the time and independent mode 70% of the time can achieve significantly higher overall equipment utilization than a single large machine sitting partially idle.
3. Built-In Redundancy
If one machine in the tandem setup requires maintenance or repair, the other can continue producing standard-length parts. This built-in redundancy is critical for shops with tight delivery schedules — a single large press brake failure means zero bending capacity until the repair is complete.
4. Lower Logistics Cost
Two standard-sized press brakes are far easier to transport and install than one oversized custom machine. Standard machines fit on regular flatbed trucks, pass through standard doorways, and require no special crane or rigging arrangements. This can save tens of thousands of dollars in shipping and installation costs.
5. Scalability
Start with two machines and add a third later if demand grows. Tandem systems are inherently modular — the same CNC architecture that synchronizes two machines can control three or four. This allows you to scale capacity incrementally rather than making one massive capital expenditure upfront.
6. Reduced Material Waste
Precision synchronization means consistent bend angles across the full length of the workpiece, reducing rework and scrap. Combined with CNC bending compensation and automated crowning, modern tandem systems achieve first-part accuracy rates above 98%.
How to Set Up a Tandem Press Brake System
Proper setup is critical for tandem performance. Follow these steps to ensure accurate synchronization and reliable operation:
Step 1: Site Preparation
- Verify floor flatness: maximum deviation of 0.5 mm per meter across the installation area
- Ensure a reinforced concrete slab of at least 300 mm thickness rated for the combined machine weight
- Reserve sufficient length: total bed length plus 2 meters clearance on each side for material handling
- Plan overhead crane access for tooling changes and maintenance
Step 2: Machine Alignment
- Position both machines on the foundation with precision leveling pads
- Use laser alignment tools to verify bed colinearity — maximum allowable offset is 0.05 mm at the junction point
- Bolt the machines together using the manufacturer-supplied connection kit
- Re-verify alignment after bolting — tightening can introduce micro-shifts
Step 3: Electrical and Communication Setup
- Connect the master-slave communication cable (EtherCAT, fiber optic, or proprietary bus)
- Configure the CNC controller: designate master and slave machines, set communication protocol parameters
- Verify emergency stop chain: both machines must stop simultaneously when any E-stop is triggered
- Test safety light curtains and interlocks across the full tandem length
Step 4: Hydraulic Calibration
- Balance hydraulic pressure across both machines to within ±2 bar
- Calibrate proportional servo valves for identical response times
- Run dry-cycle synchronization tests (no material) and verify ram position tracking on the CNC display
- Adjust ram speed to match within ±0.5 mm/s at all stroke points
Step 5: Tooling Installation
- Install identical tooling across both machines — same punch and die profiles, same clamping type
- Pay special attention to the junction point: ensure tooling segments meet without gaps or overlaps
- For long V-dies, use segmented tooling with precision-ground mating surfaces
- Verify tooling alignment with a straight edge across the full length
Step 6: Test Bending and Fine-Tuning
- Perform test bends on sample material matching your production specifications
- Measure bend angles at multiple points: both ends, center, and junction point
- Adjust crowning profiles if angular deviation exceeds ±0.3°
- Document final calibration values for future reference
⚠️ Critical: Junction Point Quality
The junction point — where the two machine beds meet — is the most common source of quality issues in tandem bending. Ensure tooling is perfectly aligned at this point and inspect the first few parts carefully for any visible mark or angle deviation at the junction. If issues persist, check bed-to-bed alignment and re-calibrate.
How to Choose the Right Tandem Press Brake
Selecting the right tandem press brake system requires careful evaluation of your production requirements. Here are the key factors to consider:
Tonnage Requirements
Calculate the required bending tonnage based on your thickest material, longest bend, and tightest radius. Remember that each machine in the tandem provides its own rated tonnage — the combined system distributes this force across the total bed length. A common configuration is two 250-ton × 4-meter machines for a total of 250 tons over 8 meters.
Bending Length
Choose individual machine lengths that, when combined, comfortably exceed your longest workpiece requirement. Allow at least 200 mm of extra bed length beyond the part edge on each side for proper material positioning.
CNC Controller
Not all CNC systems support tandem operation equally well. Look for controllers with dedicated tandem software modules:
- Delem DA-69T: Purpose-built for tandem/tridem operation with real-time synchronization and multi-machine programming
- ESA S670: Supports up to 4 machines in tandem with graphical bend simulation
- Cybelec ModEva: Offers tandem mode with automatic crowning distribution
Material Handling
Long sheets are heavy and difficult to position manually. Consider investing in sheet followers (front supports), back-gauge finger extensions, and optional robotic loading systems. For sheets longer than 6 meters and heavier than 500 kg, automated handling is strongly recommended for both safety and productivity.
Future Expansion
If there is any chance you will need a third machine in the future, ensure the CNC controller and communication architecture support tridem operation from the start. Retrofitting tandem-capable controllers is expensive and may not deliver the same performance as a native multi-machine setup.
Maintenance Tips for Tandem Press Brakes
A tandem system requires all the standard press brake maintenance procedures — plus additional attention to the synchronization components that make tandem operation possible.
Daily Checks
- Inspect the junction point for debris, tooling wear, or misalignment
- Verify hydraulic oil levels on both machines
- Check emergency stop functionality across the full tandem length
- Review CNC synchronization status — most controllers display a real-time sync quality indicator
Monthly Checks
- Inspect and clean all linear encoders
- Check communication cable connections between master and slave machines
- Verify hydraulic pressure balance across both systems
- Test safety light curtains and interlocks
Quarterly Checks
- Perform full encoder calibration using the CNC calibration wizard
- Verify bed alignment with laser measurement tools
- Inspect and re-torque machine-to-machine bolting connections
- Replace hydraulic filters and check oil quality
Industry Applications
Tandem press brakes are essential equipment in industries where precision bending of extra-long or extra-heavy workpieces is a daily requirement:
- Construction & Structural Steel: Bending long beams, columns, facade panels, and roofing profiles. Tandem systems eliminate welded joints in structural elements, improving load-bearing capacity.
- Energy & Power: Fabricating wind turbine tower sections, transmission poles, lamp posts, and solar panel mounting structures. These components typically require bends on 8–12 meter sheets with tight angular tolerances.
- Shipbuilding: Forming hull plates, bulkheads, and deck sections. Marine-grade steel sheets are both long and thick, demanding high tonnage distributed across extended bending lengths.
- Transportation: Manufacturing railway car body panels, truck trailer sides, and bus frames. Consistency across the full panel length is critical for assembly fit.
- Aerospace: Forming large enclosure panels, wing skin sections, and engine nacelle components. While aerospace volumes are lower, precision requirements are extreme.
- Heavy Equipment: Bending excavator booms, crane arms, and agricultural machinery frames. These components combine extreme length with high material thickness.
Frequently Asked Questions
What is a tandem press brake?
A tandem press brake is a configuration where two or more individual press brakes are mechanically aligned and electronically synchronized to operate as a single unit. This setup enables bending of extra-long metal sheets — often 6 to 14 meters — that a single machine cannot handle alone.
Can tandem press brakes operate independently?
Yes. Most modern tandem systems allow the machines to be decoupled in software, letting each press brake operate independently with its own CNC controller. This maximizes equipment utilization when long-part production is not required.
Does a tandem press brake double the tonnage?
Not exactly. Each press brake in the tandem setup delivers its own rated tonnage. The combined tonnage is available across the full bending length, but if the workpiece does not span the entire bed, tonnage is not additive. For example, two 250-ton machines provide 250 tons per meter of bed, not 500 tons at one point.
When should I choose a tandem press brake over a single large press brake?
Consider a tandem setup when: more than 20% of your production involves parts longer than 4 meters, you need flexibility to run two independent machines for shorter jobs, your facility cannot accommodate a single very large machine, or you want built-in redundancy to minimize downtime.
How precise is the synchronization between tandem press brakes?
Modern tandem press brakes achieve synchronization accuracy of ±0.01 mm between rams. This is accomplished through real-time CNC control, multiple linear encoders per machine, and electronic-hydraulic servo valves that continuously adjust ram position and speed.
What industries use tandem press brakes most?
Tandem press brakes are widely used in construction (structural steel, facade panels), energy (wind turbine towers, lamp poles), shipbuilding (hull sections), transportation (railway cars, truck trailers), and heavy equipment manufacturing where extra-long precision bending is essential.
Conclusion
A tandem press brake system is the most practical solution for manufacturers who need to bend extra-long metal sheets without sacrificing precision or flexibility. By combining two or more synchronized CNC press brakes, you get extended bending capacity, dual-mode versatility, built-in redundancy, and a scalable platform that grows with your production needs.
The key to success is proper setup — precise machine alignment, rigorous encoder calibration, and careful attention to the junction point. With the right configuration and regular maintenance, a tandem press brake delivers consistent, high-quality bends across workpieces that would be impossible on any single machine.
