CNC Press Brake Safety Guidelines and Best Practices

Press brakes are among the most powerful and potentially dangerous machines in any metal fabrication shop. According to the U.S. Occupational Safety and Health Administration (OSHA), metalworking machinery accounts for thousands of workplace injuries annually, with press brakes responsible for a significant portion of crushing and amputation incidents. The good news? With proper safety protocols, modern safety devices, and well-trained operators, these injuries are almost entirely preventable. This comprehensive guide covers everything you need to know about CNC press brake safety — from understanding hazards to implementing best practices that protect your team.

1. Understanding Press Brake Hazards

Before implementing safety measures, it's essential to understand the specific hazards associated with CNC press brake operation. Identifying these risks is the first step toward preventing injuries.

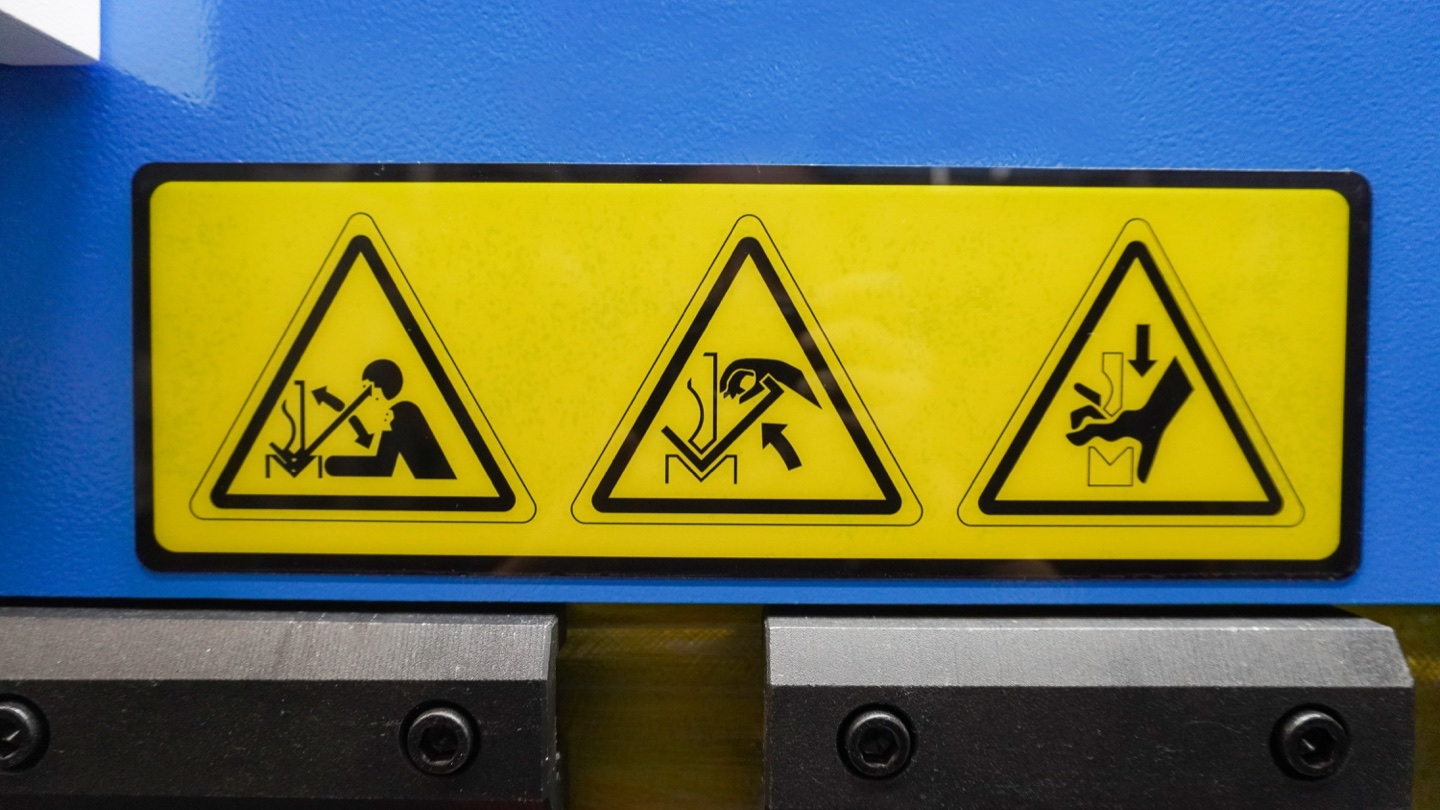

1.1 Point of Operation Hazards

The point of operation — where the punch meets the die — is the most dangerous area of any press brake. The closing force can exceed 200 tons, capable of crushing fingers, hands, or arms in fractions of a second. Even a small mini press brake can generate enough force to cause severe injuries.

• Crushing injuries: Fingers or hands caught between punch and die during ram descent
• Amputation risk: Severe crush injuries can result in partial or complete loss of fingers
• Trapped clothing or jewelry: Loose items pulled into the point of operation

1.2 Secondary Hazards

Beyond the primary crush zone, several other hazards exist around press brakes:

• Pinch points: Areas at the backgauge, side guards, and workpiece supports where fingers can be pinched
• Cut hazards: Sharp edges on sheet metal can cause lacerations during handling
• Struck-by injuries: Workpieces can fall or flip unexpectedly during bending
• Ergonomic hazards: Repetitive bending, lifting heavy sheets, and awkward postures
• Noise exposure: Continuous exposure above 85dB can cause hearing damage

2. Essential Safety Devices and Systems

Modern CNC press brakes come equipped with multiple safety systems that work together to protect operators. Understanding how each device works helps ensure they are used correctly and maintained properly.

2.1 Light Curtains (Electro-Sensitive Protective Equipment)

Light curtains are the most common safety device on press brakes. They create an invisible barrier of infrared beams in front of the machine. When any object breaks this barrier during the dangerous portion of the stroke, the machine stops immediately.

2.2 AKAS (Laser Guarding / Active Knockout Avoidance System)

AKAS represents the latest advancement in press brake safety. Unlike light curtains that protect the front of the machine, AKAS uses laser sensors mounted directly on the punch to detect obstacles in the area immediately below the tooling.

• Punch-mounted protection: Protects even when operators reach into the die opening
• 1-2mm stopping distance: Machine halts within millimeters of detecting an obstacle
• Reduced nuisance stops: More precise detection means fewer false triggers than light curtains
• Small part bending: Ideal for applications where light curtains would be triggered by the workpiece

2.3 Two-Hand Controls

Two-hand control devices require the operator to use both hands simultaneously to activate the press, ensuring hands are away from the danger zone during the stroke. For CNC press brakes, this is often combined with a two-stage foot pedal system.

2.4 Safe Speed Mode (Reduced Speed Operation)

CNC press brakes feature a "safe speed" or "setup speed" mode where the ram moves at a significantly reduced velocity (typically 10mm/second or less). This reduced speed gives the machine time to stop before causing injury if an obstruction is detected. During the high-speed approach, if any safety device is triggered, the machine can stop before the punch reaches the danger zone.

2.5 Emergency Stop (E-Stop) Systems

Multiple emergency stop buttons must be positioned within easy reach of the operator. Modern systems use monitored contacts that verify the E-stop circuit is functioning. E-stops should be tested regularly and never bypassed.

3. CNC-Specific Safety Features

CNC press brakes offer several safety advantages over older NC or manual machines. The advanced control system enables features that enhance operator protection.

4. Personal Protective Equipment (PPE) Requirements

While engineering controls (safety devices) are the primary defense, personal protective equipment provides an additional layer of protection for press brake operators.

4.1 Required PPE

• Safety glasses or goggles: Protect against flying debris, metal chips, and hydraulic fluid splashes
• Steel-toed safety boots: Protect feet from falling workpieces and sheet metal edges
• Hearing protection: Required when noise levels exceed 85dB (earplugs or earmuffs)
• Close-fitting clothing: No loose sleeves, ties, or dangling jewelry that could be caught
• Hair restraints: Long hair must be tied back or covered

4.2 The Glove Debate

4.3 PPE Inspection

PPE should be inspected before each shift. Damaged safety glasses, worn boot soles, or degraded hearing protection must be replaced immediately. Employers are responsible for providing appropriate PPE at no cost to employees.

5. Pre-Operation Safety Checklist

Performing a systematic safety check before each shift helps identify hazards before they cause injuries. This checklist should become a standard routine for every press brake operator.

Document completed checklists and retain records. If any safety device fails the check, do not operate the machine until repairs are completed by qualified personnel.

6. Safe Operating Procedures

Following established safe work procedures is essential for preventing injuries during press brake operation. These guidelines apply to all types of CNC press brakes.

6.1 Proper Body Positioning

• Stand centered: Position yourself directly in front of the work area, not off to the side
• Maintain balance: Keep feet shoulder-width apart with stable footing
• Never reach across: Do not reach over or around the light curtain barrier
• Keep clear of backgauge: Fingers can be pinched between the workpiece and backgauge fingers

6.2 Foot Pedal Operation

Most CNC press brakes use a two-stage foot pedal. Stage 1 (partial press) initiates the high-speed approach; Stage 2 (full press) triggers the bending stroke at safe speed. Never tape down or bypass the foot pedal. Keep your foot positioned to release instantly if needed.

6.3 Material Handling

• Use material supports: Sheet supports prevent workpieces from tipping unexpectedly
• Team lifting: Use mechanical assists or team lifting for sheets exceeding 20kg
• Watch for springback: Material can flip up after bending — stand clear of the swing path
• Burr edges: Always handle cut sheets with awareness of sharp edges

6.4 Setup and Programming Safety

During setup and programming, additional precautions apply:

• Always use reduced speed mode when testing new programs
• Verify the first bend on each program before full-speed production
• Double-check tonnage calculations to prevent tooling overload
• Ensure crowning and deflection compensation are correctly configured

7. Tooling Safety: Handling Punches and Dies

Press brake tooling — punches (upper tools) and dies (lower tools) — are heavy, precision-ground components with sharp edges. Improper handling is a common cause of injuries in fabrication shops. For more details on selecting the right tooling, see our Press Brake Tooling Guide.

7.1 Tool Handling Procedures

• Wear cut-resistant gloves: Only during tool handling, not during machine operation
• Use proper lifting techniques: Heavy tooling should be lifted with legs, not back
• Use tool carts: Transport tooling on dedicated carts, not carried by hand for long distances
• Store properly: Tooling should be stored in racks or cabinets to prevent damage and injuries

7.2 Tool Clamping Verification

Before operating, verify that all tooling is properly seated and clamped. Modern clamping systems (hydraulic or pneumatic quick-change) include sensors that confirm clamping status to the CNC controller. Never bypass these interlocks.

7.3 Tool Inspection

Regularly inspect tooling for:

• Cracks or chips in the working surfaces
• Wear on the punch tip or die shoulders
• Damage to clamping surfaces
• Corrosion or rust that could affect performance

8. Maintenance Safety: Lockout/Tagout and Beyond

Maintenance activities on press brakes introduce additional hazards. Lockout/Tagout (LOTO) procedures are legally required and essential for preventing unexpected machine activation.

8.1 Lockout/Tagout Requirements

Before performing any maintenance or entering the danger zone:

• Isolate all energy sources: Electrical, hydraulic, and pneumatic
• Apply personal locks: Each worker applies their own lock to the energy isolation device
• Release stored energy: Bleed hydraulic pressure and allow capacitors to discharge
• Verify isolation: Attempt to start the machine to confirm lockout is effective
• Attach tags: Warning tags identify who applied the lock and why

8.2 Hydraulic System Safety

Hydraulic systems operate at pressures exceeding 3,000 PSI (200 bar). Even with the pump stopped, accumulators and the weight of the ram can maintain dangerous pressure. Never disconnect hydraulic lines without first confirming zero pressure. Hydraulic oil under pressure can penetrate skin and cause severe injuries.

8.3 Electrical Safety

Only qualified electricians should work on press brake electrical systems. Control cabinets contain high-voltage components. Even after disconnecting power, capacitors may retain charge. Wait the manufacturer-specified discharge time before opening electrical enclosures.

9. Operator Training Requirements

Comprehensive training is the foundation of press brake safety. Untrained or inadequately trained operators are significantly more likely to be injured. Training should be documented and include both theoretical and hands-on components.

9.1 Initial Training Components

9.2 Ongoing Training

• Annual refresher training: Reinforce safety procedures and cover any changes
• New equipment training: Additional training when safety devices are upgraded
• Incident review: Training following any near-miss or injury incident
• Competency assessment: Regular evaluation of operator skills and knowledge

10. Compliance with Safety Standards

Press brake safety is governed by various national and international standards. Understanding these requirements helps ensure your operation meets legal obligations and industry best practices.

10.1 Key Standards

10.2 Safety Distance Calculations

Light curtains must be positioned at a distance that allows the machine to stop before an operator's hand can reach the danger zone. The formula considers machine stopping time, hand approach speed (typically 1,600-2,000 mm/s), and detection resolution. Incorrect positioning renders the light curtain ineffective. Always follow the manufacturer's installation guidelines or consult a safety engineer.

11. Frequently Asked Questions

Conclusion

CNC press brake safety is not optional — it's a fundamental requirement for protecting workers and maintaining a productive fabrication shop. The combination of modern safety devices, proper training, and consistent adherence to safe work procedures can virtually eliminate serious injuries.

Key takeaways from this guide:

• Understand the hazards: Know where crush points, pinch points, and other dangers exist
• Use safety devices correctly: Light curtains, AKAS, and E-stops only work when properly maintained and used
• Follow procedures: Pre-operation checklists, safe work practices, and lockout/tagout save lives
• Invest in training: Well-trained operators are safer and more productive
• Stay compliant: Meet OSHA, CE, and ISO requirements to ensure your operation is legally protected

At Rucheng, we design our CNC press brakes with safety as a top priority. Our machines come equipped with advanced safety systems and are built to meet international safety standards. But even the safest machine requires knowledgeable operators and proper procedures.
