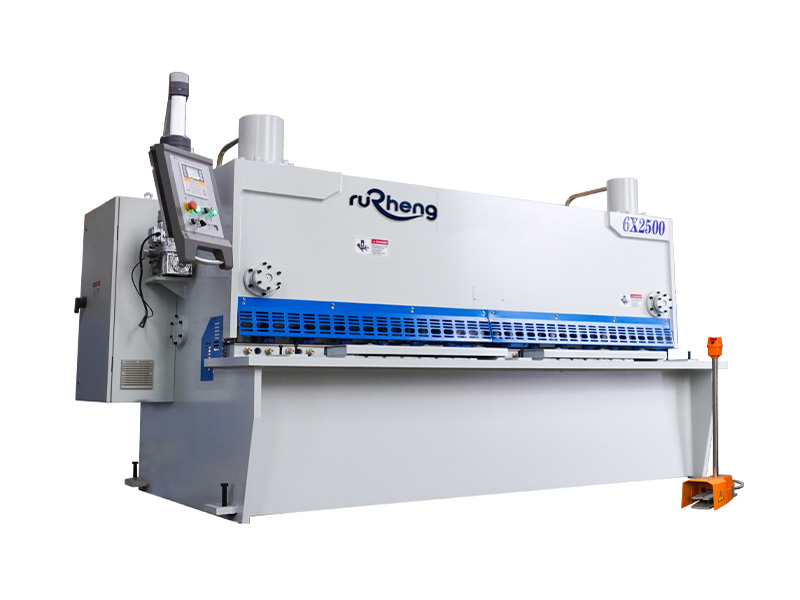

A hydraulic shearing machine is a sheet metal cutting machine that uses hydraulic cylinders to drive an upper blade through plate against a fixed lower blade. To choose the right model, match the machine to your maximum material thickness, cut length, material strength, production volume, blade gap control, back gauge accuracy, and safety requirements instead of buying only by nominal capacity.
Quick Answer: Which Hydraulic Shear Should You Buy?
For general sheet metal work up to 6 mm mild steel, a hydraulic swing beam shear is usually the most economical choice. For thicker plate, frequent stainless steel cutting, or tighter straightness requirements, a hydraulic guillotine shear with adjustable rake angle and motorized blade gap is the safer long-term investment.
A practical specification for many fabrication shops is a 6x3200 mm or 8x3200 mm hydraulic swing beam shear with a motorized back gauge. Heavy plate shops often step up to 12x4000 mm, 16x6000 mm, or larger guillotine machines with CNC blade clearance, hydraulic hold-downs, front squaring arms, and rear sheet support.
The 7 Specifications That Actually Matter
Most quotations list dozens of parameters, but seven of them determine whether the machine will cut cleanly, safely, and profitably. Before comparing suppliers, define these numbers from your real production drawings.
- Cutting thickness: specify the maximum thickness for mild steel, stainless steel, aluminum, and any high-strength material. Stainless steel often requires derating because its tensile strength is higher than ordinary mild steel.
- Cutting length: choose the longest usable blade length, commonly 2500, 3200, 4000, 6000, or 8000 mm. A longer machine costs more and needs more floor space, so match it to standard sheet sizes.
- Blade gap adjustment: accurate clearance reduces burr, rollover, and blade damage. Manual gap is acceptable for one material; motorized or CNC gap is better for mixed materials and shift changes.
- Rake angle: a lower rake improves edge straightness and reduces twist on narrow strips, while a higher rake lowers peak cutting force. Guillotine shears usually offer better rake control.

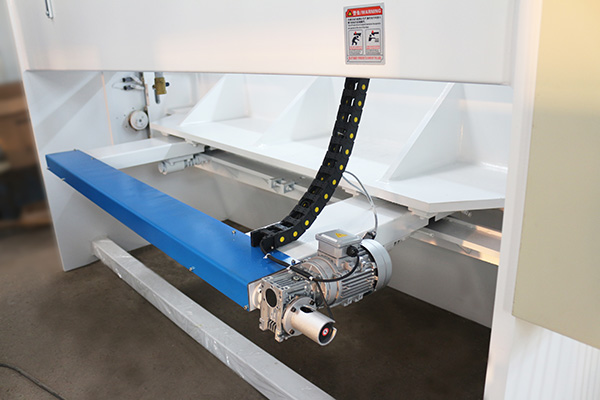

- Back gauge travel and accuracy: check travel length, positioning speed, repeatability, and whether the stop fingers retract before the cut to prevent material jamming.
- Hold-down pressure: enough hydraulic hold-down force prevents sheet movement, especially on narrow strips, stainless steel, and slippery coated materials.
- Safety package: rear guards, side guards, emergency stops, light curtains or rear photoelectric protection, and lockout points should be included in the specification, not treated as afterthoughts.
How to Size Cutting Capacity Correctly
The nameplate capacity of a hydraulic shear is usually based on mild steel at a defined tensile strength. If your shop cuts stainless steel, manganese plate, wear-resistant steel, or high-strength structural steel, the machine needs more force than the same thickness of low-carbon steel.
As a conservative buying method, calculate the required capacity from your hardest regular material and leave a 15-25% margin. For example, a shop that cuts 6 mm stainless every day should not treat a 6 mm mild-steel-rated shear as equivalent. It should request written confirmation from the supplier or choose a heavier frame.
| Application | Typical Material | Suggested Machine Range | Best Fit |
|---|---|---|---|
| HVAC ducts and cabinets | 0.5-3 mm galvanized sheet | 4x2500 to 6x3200 mm | Swing beam shear |
| General fabrication | 3-8 mm mild steel | 6x3200 to 10x4000 mm | Swing beam or guillotine shear |
| Stainless processing | 2-8 mm stainless steel | Derated from mild steel capacity | Guillotine with CNC gap |
| Heavy plate cutting | 10-25 mm mild steel plate | 12x4000 mm and above | Hydraulic guillotine shear |

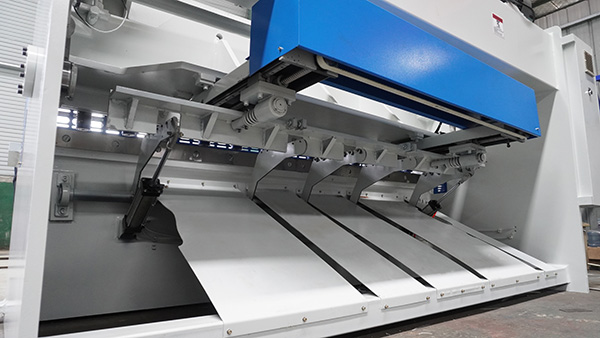

Swing Beam vs Guillotine: Which Design Fits Your Shop?
A swing beam shear moves the upper blade along an arc around a pivot point. It has fewer moving parts, simpler structure, and lower cost, which makes it popular for thin and medium sheet. The tradeoff is that blade clearance and cutting angle are less flexible than on a guillotine machine.
A guillotine shear drives the upper beam more vertically with guide rails, so it can support adjustable rake angle, more accurate blade gap, and better performance on thick plate. For a deeper comparison, see our swing beam vs guillotine shearing machine guide.
| Factor | Swing Beam Hydraulic Shear | Hydraulic Guillotine Shear |
|---|---|---|
| Best thickness range | Thin to medium sheet | Medium to heavy plate |
| Blade gap control | Manual or motorized, less flexible | Manual, motorized, or CNC with better precision |
| Rake angle | Usually fixed | Often adjustable |
| Purchase cost | Lower | Higher, but better for demanding work |
| Recommended buyer | HVAC, cabinets, light fabrication | Steel service centers, plate shops, stainless fabricators |

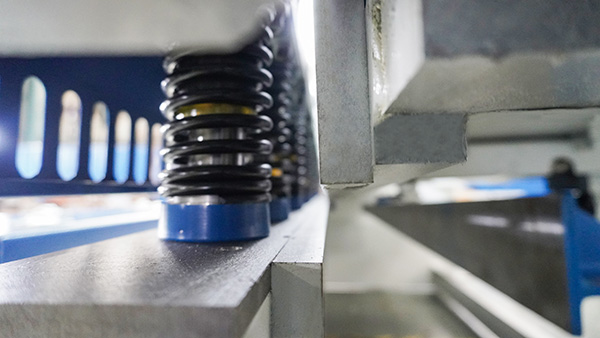

Blade Gap: The Setting That Controls Burr and Blade Life
Blade gap, also called blade clearance, is the distance between the upper and lower blades. If the gap is too small, the cut sounds harsh, the blades chip faster, and the machine load rises. If the gap is too large, the edge shows excessive rollover, burr, and deformation.
Use these starting points: mild steel 6-8% of thickness, stainless steel 4-6%, and aluminum 8-10%. These are practical shop settings, not universal laws. Final clearance should be verified by test cutting the actual material grade and measuring burr height.
When CNC Options Are Worth Paying For
A basic hydraulic shear can work well for simple repetitive cuts. CNC options become valuable when the operator changes thickness often, cuts many sizes per job, or needs repeatable output across multiple shifts. The most useful upgrades are CNC back gauge positioning, CNC blade clearance, programmable cut count, and automatic return stroke adjustment.
For high-mix production, the back gauge is usually the first upgrade to specify. A programmable back gauge reduces manual measuring and helps operators produce the same strips again next week. CNC blade gap is the second upgrade when the shop switches between mild steel, stainless steel, and aluminum.
- Choose manual control for low-volume shops cutting one or two materials with stable sizes.
- Choose motorized back gauge when daily work includes repeated dimension changes but the operator can still set blade clearance manually.
- Choose CNC blade gap and back gauge for mixed materials, frequent job changes, and tighter documentation requirements.
- Add sheet support for thin, wide, or scratch-sensitive sheets that sag behind the blade line.
Safety and Compliance Checks Before Purchase
A hydraulic shear has a high-force blade line, hold-down clamps, moving back gauge, and rear scrap area. Safety must be checked before purchase because retrofitting guards later is slower and more expensive. At minimum, specify front finger guards, side guards, rear protection, emergency stops, hydraulic overload protection, and clear lockout points for maintenance.
For U.S. shops, OSHA machine guarding principles apply to points of operation and other moving parts. For broader technical context, OSHA's machine guarding guidance explains why operators must be protected from the blade area and other hazards. Also document safe maintenance steps, because blade changes and clearance adjustment are common risk points.
Supplier Questions That Prevent Wrong Purchases
Before paying a deposit, ask the supplier to answer technical questions in writing. A reliable supplier should be able to match machine capacity to material strength, explain blade material, show back gauge accuracy, and confirm the safety configuration.
- What tensile strength is the nominal cutting capacity based on?
- What is the recommended maximum thickness for stainless steel and aluminum?
- Is blade gap manual, motorized, or CNC controlled?
- What is the back gauge travel, speed, positioning accuracy, and repeatability?
- What blade material and edge configuration are supplied as standard?
- Can the machine perform single stroke, continuous stroke, and jog mode?
- Which guards, interlocks, emergency stops, and rear protections are included?
- What foundation, power supply, air supply, and installation space are required?
Final Buying Checklist
Use this checklist to turn the buying decision into a clear specification. It also helps suppliers quote the right machine instead of the cheapest machine that matches only one thickness number.
- Maximum regular material: type, grade, thickness, and sheet length.
- Maximum occasional material: confirm whether it is rare enough to outsource or needs in-house capacity.
- Required edge quality: burr limit, straightness, twist, and downstream welding or bending tolerance.
- Control level: manual, motorized, or CNC back gauge and blade gap.
- Handling equipment: front arms, squaring arm, rear support, conveyor, or stacking area.
- Safety package: point-of-operation guards, rear protection, emergency stops, and maintenance lockout plan.
- Service plan: spare blades, hydraulic seals, electrical parts, controller support, and remote troubleshooting.
Hydraulic Shearing Machine FAQ
What thickness can a hydraulic shearing machine cut?
A hydraulic shearing machine commonly cuts 0.5-25 mm mild steel in standard fabrication shops, while heavy guillotine models can reach 30-40 mm with the right frame, blade, and hydraulic system. Always derate the capacity for stainless steel and high-strength plate because higher tensile strength increases cutting force.
Should I choose a swing beam or guillotine hydraulic shear?
Choose a swing beam shear for thin to medium sheet, simple maintenance, and lower purchase cost. Choose a guillotine shear when you need adjustable rake angle, better straightness on thicker plate, tighter blade clearance control, or frequent cutting above about 8-10 mm.
How much blade gap should I use on a hydraulic shear?
A practical starting point is 6-8% of material thickness for mild steel, 4-6% for stainless steel, and 8-10% for aluminum. The final setting should be checked on a test cut because burr height, edge rollover, noise, and blade wear all show whether the gap is too tight or too wide.
Is a CNC back gauge worth the extra cost?
A CNC back gauge is worth it when operators cut many sizes per shift, repeat orders, or need consistent accuracy without manual setup. It reduces measuring time, cuts scrap from wrong stops, and makes production easier to repeat across different operators.
What information should I send a supplier before requesting a quote?
Send the maximum material thickness, material type, tensile strength if known, maximum sheet length, smallest strip width, daily cut volume, required accuracy, power supply, and whether you need CNC blade gap, pneumatic sheet support, or front feeding tables. A precise quote depends more on real parts than on a generic thickness number.
Conclusion: Buy Around Your Real Cutting Mix
The best hydraulic shearing machine is not always the largest or most automated model. It is the machine that cuts your regular material cleanly, supports your operators, protects the blade, and fits the way sheets move through your shop.
If you are comparing swing beam and guillotine shears, send Rucheng your material list, maximum sheet size, required accuracy, and daily cut volume. Our engineering team can recommend a suitable hydraulic shear, blade configuration, CNC options, and workshop layout.
