Choosing between a hydraulic shearing machine and a mechanical shearing machine is one of the most critical decisions for any metal fabrication shop. The shearing machine you select will directly impact your production efficiency, cut quality, operating costs, and the types of materials you can process. In this comprehensive guide, we'll break down everything you need to know: how each machine works, their key differences in speed, precision, capacity, and total cost of ownership, and most importantly, which type is the right choice for your specific needs.
How They Work: Understanding the Fundamental Differences

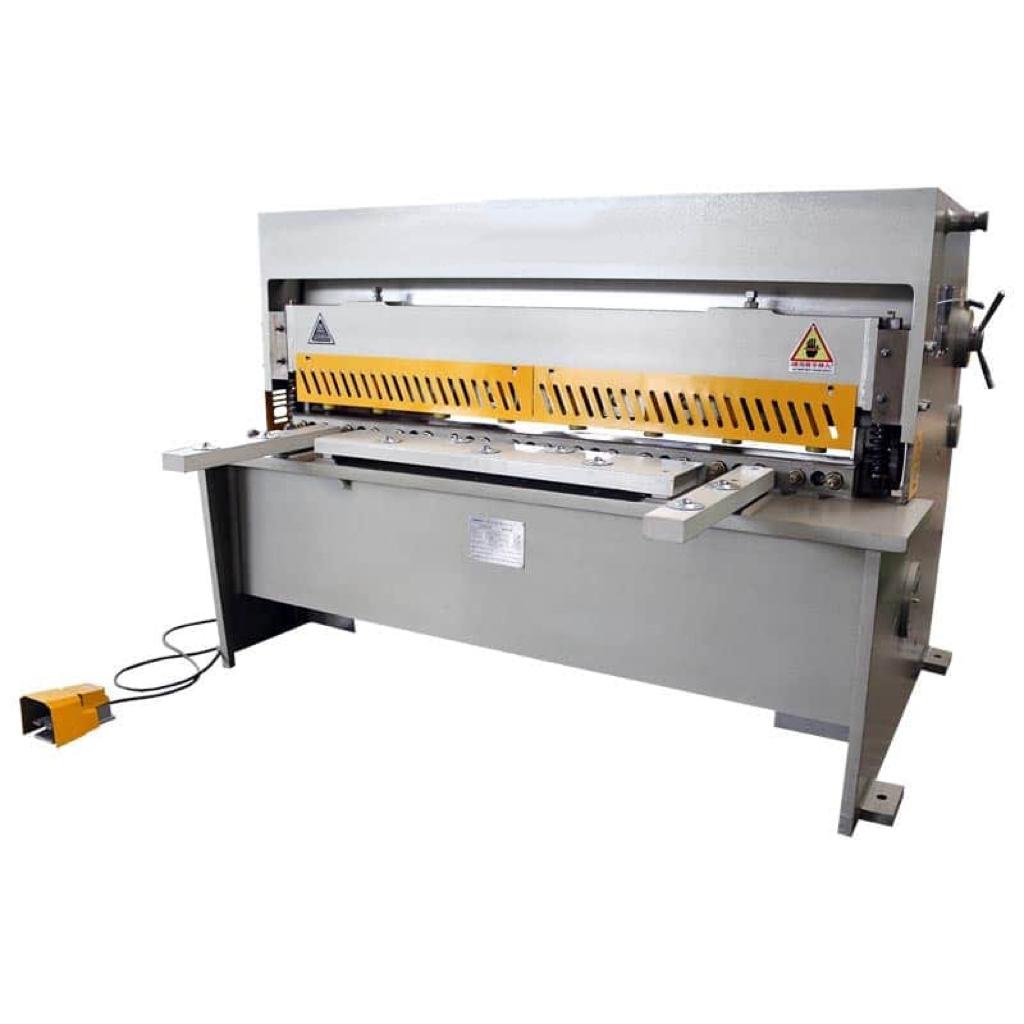

How a Mechanical Shearing Machine Works
A mechanical shearing machine uses a flywheel-driven mechanism to generate cutting force. An electric motor continuously spins a heavy flywheel, building up kinetic energy. When the operator activates the cut cycle, a clutch engages the flywheel to the crankshaft, which converts rotational energy into linear motion, driving the ram downward.
- Energy Storage: Flywheel stores kinetic energy from the motor
- Clutch Engagement: Connects flywheel to crankshaft on command
- Ram Movement: Crankshaft converts rotation to linear cutting motion
- Full Stroke: Once activated, the ram must complete its full cycle
The entire cycle happens in a fraction of a second. Mechanical shears are essentially "one-shot" machines — once the clutch engages, the ram must complete its full stroke. This design makes them incredibly fast but offers limited control during the cutting process.

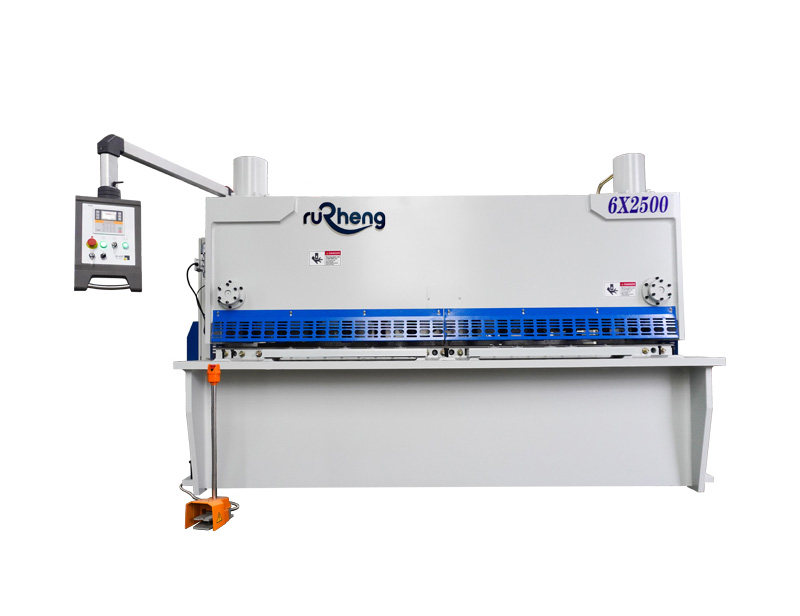

How a Hydraulic Shearing Machine Works
A hydraulic shearing machine uses pressurized hydraulic fluid to generate cutting force. An electric motor drives a hydraulic pump that pressurizes oil, which is then directed into cylinders mounted on the machine frame.
- Hydraulic Pump: Pressurizes oil to generate force
- Cylinder Activation: Valves direct oil to extend the cylinders
- Controlled Descent: Speed and force adjustable throughout stroke
- Instant Stop: Ram can be halted at any point by reversing oil flow
Unlike mechanical shears, hydraulic systems allow the operator to stop, hold, or reverse the ram at any point during the stroke. This provides significantly more control and flexibility.
Key Differences: Hydraulic vs Mechanical Shearing Machines
1. Speed and Stroke Rate
Mechanical: 60-120 strokes per minute (SPM), extremely fast, fixed stroke speed. Hydraulic: 10-25 SPM typical, variable speed, adjustable stroke length. For pure speed on thin materials, mechanical wins. But hydraulic machines can be faster in real-world conditions due to adjustable stroke length.
2. Cutting Force and Capacity
Mechanical: Maximum cutting thickness typically 6mm (1/4") for mild steel. Hydraulic: 6mm to 40mm+ (1/4" to 1.5"+) depending on model. Hydraulic machines offer significantly higher cutting capacities and are the only practical choice for heavy plate work.
3. Precision and Cut Quality
Mechanical: Blade clearance manually adjusted, rake angle typically fixed. Hydraulic: Blade clearance can be CNC-controlled, rake angle often adjustable. Hydraulic machines with CNC controls deliver superior precision and cut quality, especially on varying material thicknesses.
4. Noise Level
Mechanical: Very loud — 95-110 dB during operation, requires hearing protection. Hydraulic: Significantly quieter — 75-85 dB typical, more pleasant working environment. Hydraulic machines are dramatically quieter, improving workplace conditions.
5. Safety Features
Mechanical: Once activated, stroke cannot be stopped — higher injury risk. Hydraulic: Ram can be stopped instantly at any point — inherently safer. Hydraulic machines are fundamentally safer due to the ability to stop mid-stroke.
6. Maintenance Requirements
Mechanical: Clutch and brake wear critical, requires regular inspection. Hydraulic: Hydraulic oil changes and filter replacement needed, but failures are usually gradual. Both require regular maintenance, but hydraulic systems offer more warning before failures.
7. Energy Consumption
Mechanical: Motor runs continuously to spin flywheel. Hydraulic (Servo): Modern servo-hydraulic systems with VFD consume energy only during cutting — 30-50% energy savings. Servo-hydraulic shears are the most energy-efficient option.
Complete Comparison Table
| Feature | Mechanical Shearing Machine | Hydraulic Shearing Machine |
|---|---|---|
| Drive System | Flywheel + clutch/brake | Hydraulic cylinders + pump |
| Stroke Rate | 60-120 SPM | 10-25 SPM |
| Max Thickness (mild steel) | Up to 6mm (1/4") | 6-40mm+ (1/4" to 1.5"+) |
| Stroke Control | Fixed — full stroke only | Variable — adjustable length |
| Mid-Stroke Stop | Not possible | Yes — instant stop capability |
| Blade Clearance | Manual adjustment | Manual or CNC automatic |
| Rake Angle | Usually fixed | Adjustable or CNC variable |
| Noise Level | 95-110 dB (very loud) | 75-85 dB (moderate) |
| Safety | Cannot stop mid-stroke | Can stop instantly |
| Precision | ±0.1-0.2mm | ±0.05-0.1mm (with CNC) |
| Overload Protection | Limited — can cause damage | Built-in relief valve |
| Energy (Idle) | Motor runs continuously | Servo: on-demand only |
| Initial Cost (4m × 6mm) | $15,000 - $30,000 | $20,000 - $60,000+ |
| Best For | High-volume thin sheet production | Versatile, thick plate, precision work |
Application Scenarios: Which Industries Use Which Type?
When to Choose a Mechanical Shearing Machine
- Automotive Stamping plants cutting thousands of identical thin-gauge blanks per day benefit from raw speed
- HVAC & Ductwork Thin galvanized steel and aluminum (0.5-2mm) can be cut extremely quickly
- Appliance Manufacturing High-volume production of thin sheet components where speed is paramount
- Budget-Conscious Shops with limited budgets processing primarily thin materials
When to Choose a Hydraulic Shearing Machine
- Job Shops Versatility for varied materials and thicknesses with frequent changeovers
- Structural Steel Heavy plate cutting (10mm+) requires hydraulic tonnage capacity
- Aerospace & Medical Precision sheet metal requiring tight tolerances with CNC control
- Shipbuilding Large-format thick plate cutting exclusively needs heavy-duty hydraulic shears
- Stainless & Aluminum Materials requiring specific blade clearances for optimal edge quality
Total Cost of Ownership (TCO) Analysis
Looking beyond the purchase price reveals the true cost of each machine type over its operational life.
| Cost Factor (10-Year Estimate) | Mechanical Shear | Hydraulic Shear |
|---|---|---|
| Purchase Price | $22,000 | $45,000 |
| Installation | $2,000 | $3,000 |
| Energy (10 years)* | $24,000 | $18,000 |
| Maintenance | $15,000 | $12,000 |
| Clutch/Brake Replacement | $8,000 | N/A |
| Hydraulic Overhaul | N/A | $5,000 |
| Scrap/Rework | $12,000 | $6,000 |
| Downtime Costs | $10,000 | $6,000 |
| Total 10-Year TCO | $93,000 | $95,000 |
*Assumes servo-hydraulic system with VFD for hydraulic shear
ROI Payback Period
For job shops processing varied materials: Hydraulic shears offer better ROI despite higher upfront cost due to versatility and reduced scrap. Payback period: 2.5-4 years.
For high-volume thin sheet production: Mechanical shears maximize throughput with lower initial investment. Payback period: 1.5-2 years.
Decision Guide: Making the Right Choice
Choose a Mechanical Shearing Machine If:
- Materials Your materials are consistently thin (under 6mm mild steel equivalent)
- Volume Production volume is high (thousands of cuts per day)
- Parts Parts are repetitive with minimal setup changes
- Budget Budget is constrained and upfront cost is the primary concern
- Speed Speed is the #1 priority over precision or flexibility
Choose a Hydraulic Shearing Machine If:
- Thickness Material thickness varies or includes plate over 6mm
- Precision Cut quality and precision are critical requirements
- Variety Production is job-shop style with frequent changeovers
- Safety Safety is paramount — especially in multi-operator environments
- Noise Workplace noise must be minimized
- Future Future flexibility is important as your business evolves
- CNC CNC automation and programmability are desired
Frequently Asked Questions
Q: Can I convert a mechanical shearing machine to hydraulic?
Technically, conversion is possible but rarely practical. It would require replacing the entire drive system — removing the flywheel, clutch, and crankshaft mechanism and installing hydraulic cylinders, a pump, valves, and controls. The cost would approach or exceed that of a new hydraulic shear, and the frame may not be optimized for hydraulic forces. In most cases, purchasing a new hydraulic machine is the better investment.
Q: Which shearing machine is safer to operate?
Hydraulic shearing machines are inherently safer because the ram can be stopped instantly at any point during the stroke. Mechanical shears cannot stop mid-stroke once the clutch engages. Both types can be equipped with modern safety devices (light curtains, two-hand controls, guarding), but the fundamental controllability advantage goes to hydraulic.
Q: How often does a mechanical shear's clutch need replacement?
Clutch and brake linings typically need inspection every 6-12 months under normal use. Replacement intervals vary from 2-5 years depending on production volume and maintenance practices. A worn clutch can slip, causing incomplete cuts and safety hazards — never delay this maintenance.
Q: What is the thickest material a mechanical shear can cut?
Most mechanical shears top out at 6mm (1/4 inch) mild steel. Some heavy-duty models can reach 10mm, but these are rare. For anything thicker, hydraulic shearing machines are the standard choice, with capacities up to 40mm or more available.
Q: Are hydraulic shears more expensive to maintain than mechanical?
Not necessarily. Hydraulic shears require annual oil changes and periodic filter and seal replacement. Mechanical shears require clutch/brake maintenance, which involves more labor and critical-timing parts. Over a machine's lifetime, total maintenance costs are often comparable, with hydraulic systems offering more predictable expenses.
Q: Which type uses less electricity?
Modern servo-hydraulic shears with variable-frequency drives (VFD) are the most energy-efficient, consuming power only during active cutting. Conventional hydraulic and mechanical shears run motors continuously during operation. At high production rates with continuous operation, mechanical shears may be slightly more efficient; at variable rates, servo-hydraulic wins.
Q: Can a hydraulic shear match a mechanical shear's speed?
For pure stroke rate, no — mechanical shears can achieve 100+ strokes per minute versus 20-25 for hydraulic. However, hydraulic shears often compensate with adjustable stroke length (shorter strokes for thin material = faster cycles) and faster setup times. In real-world production, the gap narrows significantly depending on the application.
Conclusion: Making Your Decision
The choice between a hydraulic and mechanical shearing machine ultimately comes down to your specific production requirements:
Choose mechanical when speed on thin materials is your primary driver and your production involves high volumes of similar parts.
Choose hydraulic when you need versatility, precision, thick-plate capacity, quieter operation, or enhanced safety — especially in job-shop environments with varied work.
For most modern fabrication shops handling diverse projects, hydraulic shearing machines have become the preferred choice due to their flexibility, safety advantages, and improving cost-effectiveness. The ability to handle both thin sheet and thick plate on a single machine provides future-proofing that purely mechanical systems cannot match.
