Regular press brake maintenance is the single most effective way to preserve bending accuracy, extend machine life, and avoid costly production downtime. A well-maintained CNC press brake can deliver ±0.01 mm positioning accuracy for 15–20 years; a neglected machine degrades to ±0.1 mm or worse within a few years. This guide provides complete daily, weekly, monthly, and annual checklists you can implement immediately — no matter which press brake brand or model you operate.
Quick Summary: Press brake maintenance follows a tiered schedule: daily visual checks and cleaning, weekly oil/fluid verification and filter inspection, monthly wear-part checks and lubrication, and annual comprehensive hydraulic and structural inspections. Most operators can complete daily and weekly tasks in under 15 minutes per day. Annual inspections should be performed by qualified technicians. Follow this checklist consistently and you can expect 30–50% fewer unplanned stoppages and significantly lower repair costs.
Why a Press Brake Maintenance Schedule Matters
A CNC press brake is one of the most mechanically stressed machines in any fabrication shop. Every bending cycle loads the C-frame in tension on one side and compression on the other. Hydraulic cylinders operate under 150–350 bar of pressure. Piston seals wear, oil degrades, and backgauge axes drift — all gradually, invisibly, until they suddenly cause scrap parts or machine failure.
Preventive maintenance costs an estimated 2–5% of a machine's purchase price per year. Emergency repairs after a neglected failure can cost 3–10× that amount, plus lost production time. The ROI is clear, which is why every major press brake manufacturer — including Rucheng — publishes recommended maintenance intervals in their operator manuals.
Industry Rule of Thumb: If your press brake produces 50+ bends per shift, consider performing daily checks. If it runs two or more shifts per day, double the inspection frequency for hydraulic filters and oil condition. An ounce of prevention is worth a pound of cure — especially when hydraulic oil costs $30–60 per liter to replace in a full system.
Daily Press Brake Maintenance Checklist
Daily checks take approximately 10–15 minutes at the start of each shift. Assign responsibility clearly — ideally the operator who will run the machine that day. Use a printed or digital checklist that workers can sign off on each day. This creates accountability and a maintenance history.
🟡 Before Starting the Machine — Visual & Safety Inspection
Inspect for oil leaks — Check the floor around the machine base, hydraulic cylinders, pump housing, and all hose connections. Even small drips indicate seal wear that will worsen Safety
Check hydraulic oil level — View the sight glass or dipstick. Oil should be between the MIN and MAX marks. Low oil may indicate an invisible leak or oil consumption from a failing cylinder seal Important
Verify emergency stop function — Press the E-stop button and confirm the machine shuts down. Release and verify normal reset sequence. Test at the start of every shift without exception Safety
Check guard interlocks — Confirm all safety light curtains, laser safety switches, and guard sensors are operational. Never bypass these systems even temporarily Safety
Inspect machine bed and die area — Remove all swarf, chips, scrap pieces, and debris from the lower die bed and worktable surface. Foreign objects cause die damage and inaccurate bends Visual
Check upper tool clamping — Ensure the punch holder and all individual punch segments are firmly locked. Loose tooling is a major safety hazard and causes inconsistent bend angles
Verify backgauge position — Run a quick reference program to confirm the X-axis and R-axis backgauge return to their zero positions accurately. Drift of more than 0.05 mm warrants investigation before production starts
🟡 During First Hour of Operation — Functional Check

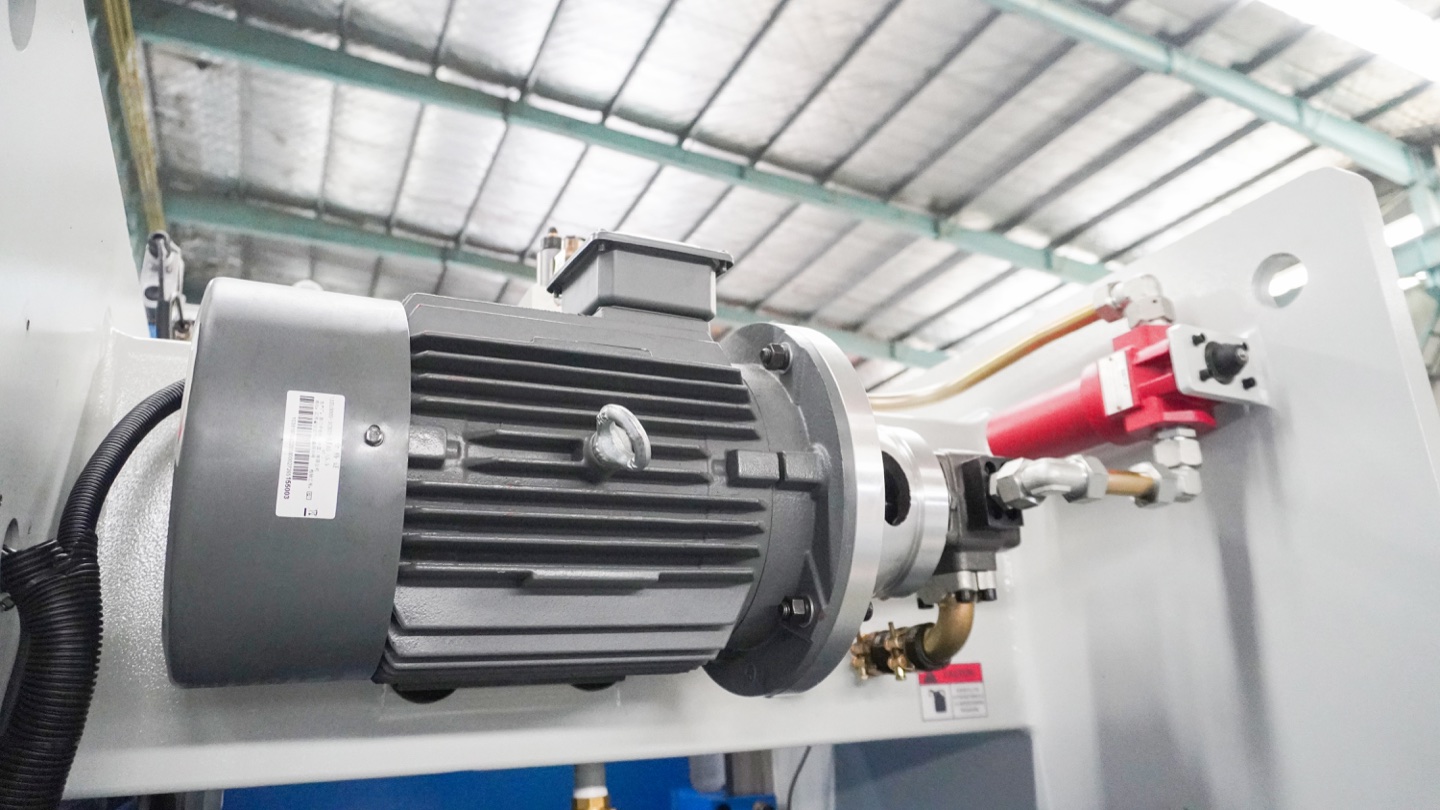

Listen for hydraulic pump noise — A properly running pump has a steady, low-frequency hum. Whining, knocking, or irregular sounds indicate air in the system, worn bearings, or pump cavitation. Investigate immediately Important
Check oil temperature — After 15–20 minutes of operation, verify oil temperature is within the normal range (typically 40–60°C / 104–140°F). Excessive heat accelerates oil degradation and seal wear
Test a trial bend — Produce one test bend on scrap material and verify the angle matches the target within tolerance. This confirms the machine is performing correctly before committing to a full production run
Tip: Keep a maintenance log book (digital or paper) at the machine. Note the date, operator name, any abnormalities observed, and parts replaced. This log is invaluable when diagnosing intermittent problems or planning major repairs.
Weekly Press Brake Maintenance Checklist
Weekly maintenance takes approximately 30–45 minutes and should be performed at the same time each week — typically during a planned shift break or at week's end. This is the most important interval for catching hydraulic system issues before they cause downtime.
🟠 Hydraulic System
Check hydraulic oil condition — Take a small sample from the drain port. Clean oil is amber-colored and transparent. Dark brown or black oil, or oil with a burnt smell, must be changed immediately. Milky oil indicates water contamination from a failing heat exchanger or condensation Oil
Inspect hydraulic oil filter indicator — Most CNC press brakes have an in-line filter with a visual or electronic clogging indicator. Replace the filter element if the indicator shows red or if more than 200 hours have passed since the last change Oil
Check oil cooler and fan operation — Verify the cooling fan or heat exchanger is running and airflow is unobstructed. Clean any dust or coolant buildup from fins. A machine running 10°C above normal temperature doubles seal wear rate
Inspect all hydraulic hoses and fittings — Look for cracks, abrasions, or bulge in hoses. Check all fittings for seepage. Replace any hose showing signs of wear — a ruptured hose at 250 bar is extremely dangerous and will dump the entire oil reservoir in seconds
🟠 Mechanical & Structural Components
Inspect ram gibs and slide guides — On machines with mechanical gibs (not hydrostatic), check clearances with feeler gauges. Excessive clearance causes ram tilt and uneven bend angles. Adjust or replace gibs per manufacturer specifications
Check all tooling for wear and cracks — Examine punch tips and V-dies for chipping, rounding, or cracking. Worn tooling produces springback inconsistencies and poor part quality. Replace or resurface as needed
Lubricate manually greased points — Apply grease to all zerks ( grease fittings) on the machine frame, piston rod connections, and counterbalance cylinders if so equipped. Use the grease type specified by the manufacturer — typically EP-2 lithium complex grease
Check backgauge bolts and connections — Ensure all mounting bolts on the backgauge assembly are tight. Vibration loosens these over time. Verify that backgauge fingers are not bent or deformed
Clean the CNC controller screen and keypad — Use a soft, slightly damp cloth. Do not use solvents. Check that all keys respond correctly. Dust and coolant in the keyboard is a common cause of controller faults
🟠 Electrical & Safety Systems
Check wiring and cable connections — Inspect all visible cable trays and conduits for chafing, damage, or loose connections at junction boxes. Pay special attention near moving parts (ram, backgauge) where cables flex repeatedly
Verify axis reference and homing — After a full E-stop or power loss, re-home all axes and verify actual positions match the controller's displayed positions. Any discrepancy indicates a feedback system issue
Monthly Press Brake Maintenance Checklist
Monthly maintenance should be performed by a qualified maintenance technician or experienced operator. Allocate 1.5–2 hours per machine. Document all measurements taken — these become your baseline for trend analysis over months and years.
🔵 Hydraulic System Deep Inspection
Replace hydraulic oil filter — Even if the indicator hasn't shown red, change the element every 200–250 hours or monthly, whichever is sooner. Old filters can shed media particles that damage servo valves downstream Oil
Measure system pressure and pump output — Use a calibrated pressure gauge at the pump discharge. Compare against manufacturer specifications. Low pressure indicates worn pumps, clogged filters, or internal valve leaks. This is a leading indicator of hydraulic system health
Check servo valve operation — Monitor the oil condition with a particle counter or by examining oil color. Schedule servo valve cleaning or calibration if contamination is suspected or if the machine shows degraded response
Inspect hydraulic cylinder rod surfaces — Examine piston rods for scoring, pitting, or chrome flaking. Minor scoring can be polished out; severe damage requires cylinder overhaul. Check rod seal condition by examining oil residue around the seal gland
Test counterbalance valve operation — On press brakes with counterbalance cylinders, verify the ram descends smoothly under gravity without stuttering. Uneven descent causes inconsistent bend angles on the first hit
🔵 Mechanical Accuracy & Alignment
Check parallelism of ram to table — Use a precision spirit level and dial indicator to verify the ram is parallel to the die bed. Shim or adjust per manufacturer procedure. Ram tilt directly causes asymmetric bend angles across the part width
Verify backgauge repeatability — Run a test program with 10 consecutive gauge approaches to the same position. Measure the spread of actual positions with a micrometer. Total variation should be within ±0.02 mm for a CNC machine. Greater variation indicates worn leadscrews, loose couplings, or encoder issues
Inspect frame bolts and structure — Check all major structural bolting points — C-frame sides, cylinder mounts, worktable to frame connections. Retorque to specified values if loose. Frame stress from loose bolts causes accuracy degradation
Lubricate leadscrews and linear guides — Apply appropriate lubricant to X and R axis leadscrews and guide rails. Remove any debris or old lubricant buildup. Clean and re-lube ensures smooth, accurate axis movement
Calibrate crowning system if equipped — For machines with mechanical or hydraulic crowning, verify the crowning table moves correctly and produces the expected compensation curve. Check the mechanical wedge mechanism for wear
🔵 Electrical & Control Calibration
Check encoder and resolver signals — Verify all axis feedback devices are securely mounted and cables are undamaged. An intermittent encoder signal causes random axis position errors that are very difficult to diagnose without a proper signal check
Verify Y-axis (ram) stroke accuracy — Using a dial indicator mounted to the worktable, compare the controller's Y-position readout against the actual ram position at top, middle, and bottom of stroke. Calibration offsets should be applied if deviation exceeds ±0.02 mm
Backup CNC programs and parameters — Export all bending programs, machine parameters, and system configurations to USB or network storage. Verify the backup is valid and can be restored. This takes 5 minutes and saves days of reprogramming in a worst-case scenario
Annual & 2,000-Hour Comprehensive Inspection
Annual inspections should be performed by qualified hydraulic and CNC technicians — ideally the original machine manufacturer or an authorized service partner. Budget 2–3 days per machine for a thorough annual service. This is also the ideal time to perform major hydraulic repairs since it typically requires draining the system.
🔴 Hydraulic System — Major Service
Full hydraulic oil change — Drain and replace all hydraulic oil. Flush the system if oil analysis reveals heavy contamination. Dispose of old oil per local environmental regulations. Refill with manufacturer-specified oil grade Oil
Replace all hydraulic filters — Change suction strainer, return line filter, and any pressure filters. Install new filter elements of the correct micron rating per manufacturer spec
PTFE seal inspection and replacement — Inspect PTFE (Polytetrafluoroethylene) guide rings and seals in all hydraulic cylinders. Peeling, cracking, or hardening indicates replacement is needed. Worn PTFE causes oil by-pass (loss of pressure), seal damage, and oil contamination — a common root cause of inconsistent bending force Important
Inspect and test relief valves — Remove, inspect, and test all pressure relief valves. Verify they crack at the correct pressure setting. Faulty relief valves can cause overpressure events damaging cylinders or pump
Replace hydraulic hoses — Even if no visible wear, replace all flexible hydraulic hoses every 4–6 years. Rubber degrades internally over time regardless of external appearance. A burst hose is both a safety and production risk
Check pump wear and efficiency — Measure volumetric efficiency by timing the ram speed under known load. A pump with below 85% efficiency should be overhauled or replaced. Worn pumps show increased noise, elevated temperature, and slow cycle times
🔴 Structural & Mechanical Overhaul
Full machine leveling and foundation check — Re-level the machine on its foundation. Check anchor bolts. An unlevel machine introduces systematic bending errors that are impossible to compensate for in software
Complete axis calibration — Perform a full geometric calibration of all axes: Y (ram depth), X (backgauge), R (throat depth), Z1/Z2 (wide-gauge). Use a Renishaw Ballbar or equivalent for quantitative accuracy verification
Replace lead screw and nut assemblies — If axis backlash exceeds manufacturer tolerances, replace the leadscrew and nut assembly. This is a wear item on any machine — particularly in high-duty-cycle environments
Check C-frame deflection under load — Use strain gauges or a deflection test fixture to measure frame flex under full tonnage. Compare to as-delivered baseline. Excessive frame deflection causes inconsistent bend angles across the bed width, particularly near maximum tonnage
Budget Tip: If your annual inspection reveals multiple issues, consider scheduling a single major overhaul where all repairs are done together during one planned shutdown. This is far more cost-effective than spreading repairs across multiple emergency service calls. Rucheng offers annual maintenance contracts that bundle all these services — contact us for a quote.
Press Brake Maintenance Frequency Comparison
The table below summarizes all maintenance tasks by frequency. Use this as a quick reference to plan your maintenance calendar. High-usage machines (2+ shifts) should shorten intervals by approximately 25–50%.
| Maintenance Task |
Daily |
Weekly |
Monthly |
Annually |
| Visual inspection for oil leaks |
✅ |
✅ |
✅ |
✅ |
| Hydraulic oil level check |
✅ |
✅ |
✅ |
✅ |
| Bed and die area cleaning |
✅ |
✅ |
✅ |
✅ |
| E-stop and safety interlock test |
✅ |
✅ |
✅ |
✅ |
| Hydraulic oil condition check |
— |
✅ |
✅ |
✅ |
| Hydraulic oil filter replacement |
— |
Check |
✅ |
✅ |
| Oil sample analysis |
— |
— |
✅ |
✅ |
| Piston rod and seal inspection |
— |
— |
✅ |
✅ |
| Ram parallelism check |
— |
— |
✅ |
✅ |
| Backgauge repeatability test |
— |
— |
✅ |
✅ |
| System pressure measurement |
— |
— |
✅ |
✅ |
| CNC program & parameter backup |
— |
— |
✅ |
✅ |
| Full hydraulic oil change |
— |
— |
— |
✅ |
| PTFE seal replacement |
— |
— |
— |
✅ |
| Relief valve testing |
— |
— |
— |
✅ |
| Full axis geometric calibration |
— |
— |
— |
✅ |
| Hydraulic hose replacement |
— |
— |
— |
✅ |
| Frame deflection test |
— |
— |
— |
✅ |
Common Press Brake Issues & Solutions
Even with a rigorous maintenance schedule, problems can occur. The table below covers the most common press brake issues, their likely causes, and what to do about them. Knowing these helps you diagnose problems faster and communicate more effectively with service technicians.
Issue: Inconsistent Bend Angles Across Part Width
Symptom: Parts show different angles on the left vs right side, or angles change progressively from one end to the other.
Most Likely Causes: (1) Ram is not parallel to die bed — check and re-level. (2) Worn gibs or slide guides causing ram tilt under load. (3) Crowning system not working or incorrectly set. (4) Die bed is deflecting under full tonnage — need crowning compensation. Schedule a monthly parallelism check to catch this early.
Issue: Slow Ram Response / Delayed Reaction
Symptom: The ram takes longer than usual to reach programmed depth. Cycle times creep upward.
Most Likely Causes: (1) Clogged hydraulic filter restricting flow — replace filter. (2) Worn hydraulic pump with reduced volumetric efficiency. (3) Air in the hydraulic system — bleed the system. (4) Low hydraulic oil level — top up and check for leaks. (5) Servo valve contamination — schedule valve service. Do not ignore slow response — it often precedes pump failure.
Issue: Oil Leaking from Cylinder Rod Area
Symptom: Visible oil pooling around the cylinder rod entry points. Oil residue on the rod surface.
Most Likely Causes: (1) Worn or damaged piston rod seal — most common cause. (2) scored or pitted piston rod surface — causes seal to wear rapidly even after replacement. (3) Worn PTFE backup ring allowing seal extrusion. Inspect the rod surface before replacing seals — if the rod is scored, replace the rod and seals together. Continuing to run with a leaking seal contaminates the hydraulic oil and damages the pump.
Issue: Backgauge Drift or Position Error
Symptom: Parts show dimensional errors in the bend angle depth or backgauge dimension. The same program produces parts with slightly different sizes.
Most Likely Causes: (1) Loose coupling between motor and leadscrew — tighten or replace coupling. (2) Leadscrew or nut wear — check backlash with a dial indicator. (3) Encoder signal interference or cable damage. (4) Backgauge mounting bolts loose — check weekly. (5) Part shifting during multi-bend operations — use adequate clamping. Monthly backlash checks catch this before it affects production parts.
Issue: Abnormal Pump Noise (Whining or Knocking)
Symptom: Hydraulic pump makes unusual sounds — whining, knocking, or irregular rhythm.
Most Likely Causes: (1) Air entering the suction side — check suction hose integrity and oil level. (2) Pump cavitation from clogged suction strainer. (3) Worn pump bearings — imminent pump failure. (4) Incorrect oil viscosity (too thick) in cold conditions — allow oil to warm before operation. Unusual pump noise is never normal. Investigate immediately; pump replacement is far more expensive than early intervention.
Issue: Overheating Hydraulic Oil
Symptom: Oil temperature warning on controller, or oil feels hot to touch on the return line.
Most Likely Causes: (1) Oil cooler fan not running or fins clogged with dust — clean the cooler. (2) Thermostat valve stuck closed — preventing flow to cooler. (3) Oil level low — causing excessive friction in the pump. (4) Relief valve continuously venting (bypassing) — indicates a system overpressure condition. (5) Oil degraded beyond its operating temperature range — change the oil. Excessive heat dramatically accelerates seal and hose aging — a 10°C rise above normal doubles the rate of rubber seal degradation.
Frequently Asked Questions
Q: How often should a press brake be maintained?
Press brake maintenance should follow a tiered schedule: daily visual checks and cleaning, weekly oil levels and filter inspection, monthly wear part checks and lubrication, and annual comprehensive inspections including hydraulic oil replacement and PTFE seal checks. High-usage shops running 2+ shifts should shorten all intervals by 25–50% proportionally.
Q: What is the most important daily maintenance for a press brake?
The most critical daily checks are: cleaning the machine bed and tooling of swarf and debris, verifying hydraulic oil level is within range, checking for oil leaks around cylinders and hoses, and confirming the emergency stop and safety interlocks function correctly before each shift. Never skip the safety checks — they protect operators and prevent catastrophic machine damage.
Q: How often should hydraulic oil be changed in a press brake?
Hydraulic oil in a press brake should be changed every 2,000–4,000 operating hours or at minimum annually, whichever comes first. In dusty, high-humidity, or high-temperature environments, change oil every 1,500–2,000 hours. Always replace the oil filter at the same time as the oil change. Use oil analysis (particle count and spectrochemical analysis) to extend or shorten the interval based on actual oil condition.
Q: What are the signs that a press brake needs maintenance?
Warning signs include: increased noise from the hydraulic pump, slower ram response and longer cycle times, visible oil leaks or puddles under the machine, inconsistent bend angles across the workpiece, unusual vibrations during operation, and error codes appearing on the CNC controller. Addressing these early prevents minor issues from becoming major failures requiring multi-week repairs.
Q: What is PTFE coating on press brake columns and why does it matter?
PTFE (Polytetrafluoroethylene) coating is applied to the internal surfaces of hydraulic cylinders and piston rods to reduce friction and prevent metal-to-metal contact. During annual maintenance, inspect for peeling, cracking, or hardening of the PTFE layer. Worn PTFE causes piston rod scoring, seal damage, and oil contamination — leading to expensive hydraulic system failures. PTFE is also used as a solid lubricant in some machine guide ways.
Q: Can I perform press brake maintenance myself or do I need a technician?
Daily and weekly maintenance tasks — cleaning, oil checks, filter inspection, and lubrication — can be performed by trained machine operators. Monthly and annual tasks involving hydraulic system disassembly, valve adjustment, torque calibration, and electrical checks should be performed by qualified hydraulic and CNC service technicians. Attempting major hydraulic work without proper training and tooling risks personal injury, machine damage, and warranty voidance.
