For fiber laser cutting, choose nitrogen when the part needs a clean oxide-free edge, oxygen when cutting carbon steel economically, and compressed air when thin sheet cost control matters more than perfect edge color. The best assist gas is not universal; it depends on material grade, thickness, laser power, pressure stability, downstream welding or coating, and total cost per accepted part.
Many buyers compare fiber laser machines by power only, but assist gas often decides the real operating cost. A 6kW or 12kW machine can lose its speed advantage if nitrogen supply is undersized, air is wet, pipe pressure drops during piercing, or the selected gas creates secondary grinding before bending, welding or painting.
Assist gas selection affects edge color, dross, speed, consumable life and the cost per finished sheet metal part.
What Is Assist Gas in Fiber Laser Cutting?
Assist gas is the gas stream blown through the laser cutting nozzle into the kerf. It removes molten metal, protects the focusing lens area, controls oxidation, supports combustion when oxygen is used, and helps stabilize cut quality. The gas type, purity, pressure, nozzle diameter and flow stability all affect the final edge.
In practical sheet metal production, assist gas is a process decision and a purchasing decision. Nitrogen may create a better edge but needs more flow and cost control. Oxygen can reduce gas cost and cut thick carbon steel well, but it leaves oxide. Air can reduce running cost, but only if the compressor, dryer, filters and storage tank deliver clean dry pressure consistently.
Nitrogen vs Oxygen vs Air: Quick Selection Table
| Decision factor | Nitrogen | Oxygen | Compressed air |
|---|---|---|---|
| Best material fit | Stainless steel, aluminum, bright carbon steel edges | Carbon steel and thicker mild steel plate | Thin carbon steel, galvanized sheet, selected aluminum jobs |
| Typical edge result | Bright, oxide-free, clean for welding or coating | Dark oxide edge, often acceptable for structural parts | Slight oxidation; quality depends heavily on air dryness |
| Cost profile | Higher gas consumption; generator or liquid tank often needed | Lower gas flow and strong economy on carbon steel | Lowest gas purchase cost; compressor power and filtration still matter |
| Typical pressure range | About 1.0-2.5 MPa for many sheet jobs | About 0.4-1.5 MPa depending on thickness and nozzle | About 0.8-1.6 MPa with clean dry compressed air |
| Main risk | Undersized supply causes dross, heat marks and unstable cutting | Oxide layer can hurt painting, welding or appearance | Water, oil or pressure drop can damage quality and consumables |
When to Use Nitrogen Assist Gas
Nitrogen is the first choice when the cut edge must stay bright and oxide-free. Stainless steel, aluminum, food machinery, visible appliance panels, electrical cabinet doors and parts that go directly to welding or powder coating often justify nitrogen because it reduces secondary cleaning and preserves corrosion resistance.
The tradeoff is gas demand. High-power nitrogen cutting may need a liquid nitrogen tank or a properly sized nitrogen generator, plus piping and regulators that do not restrict flow during piercing. If the supply is too small, operators may slow down the machine or accept dross, which defeats the purpose of buying higher laser power.
When to Use Oxygen Assist Gas
Oxygen is widely used for carbon steel because it reacts with hot iron and adds extra heat to the cutting process. That reaction helps cut thicker mild steel at practical speeds with lower gas flow than nitrogen. For brackets, frames, agricultural equipment, machinery bases and parts that will be ground or painted after cutting, oxygen can be the most economical choice.
The weakness is edge oxidation. The dark oxide layer can reduce coating adhesion, contaminate welds or create extra preparation work on visible parts. Buyers should not choose oxygen only because it cuts the sample. They should check the complete process: cutting, deburring, bending, welding, painting and final inspection.
When to Use Compressed Air Cutting

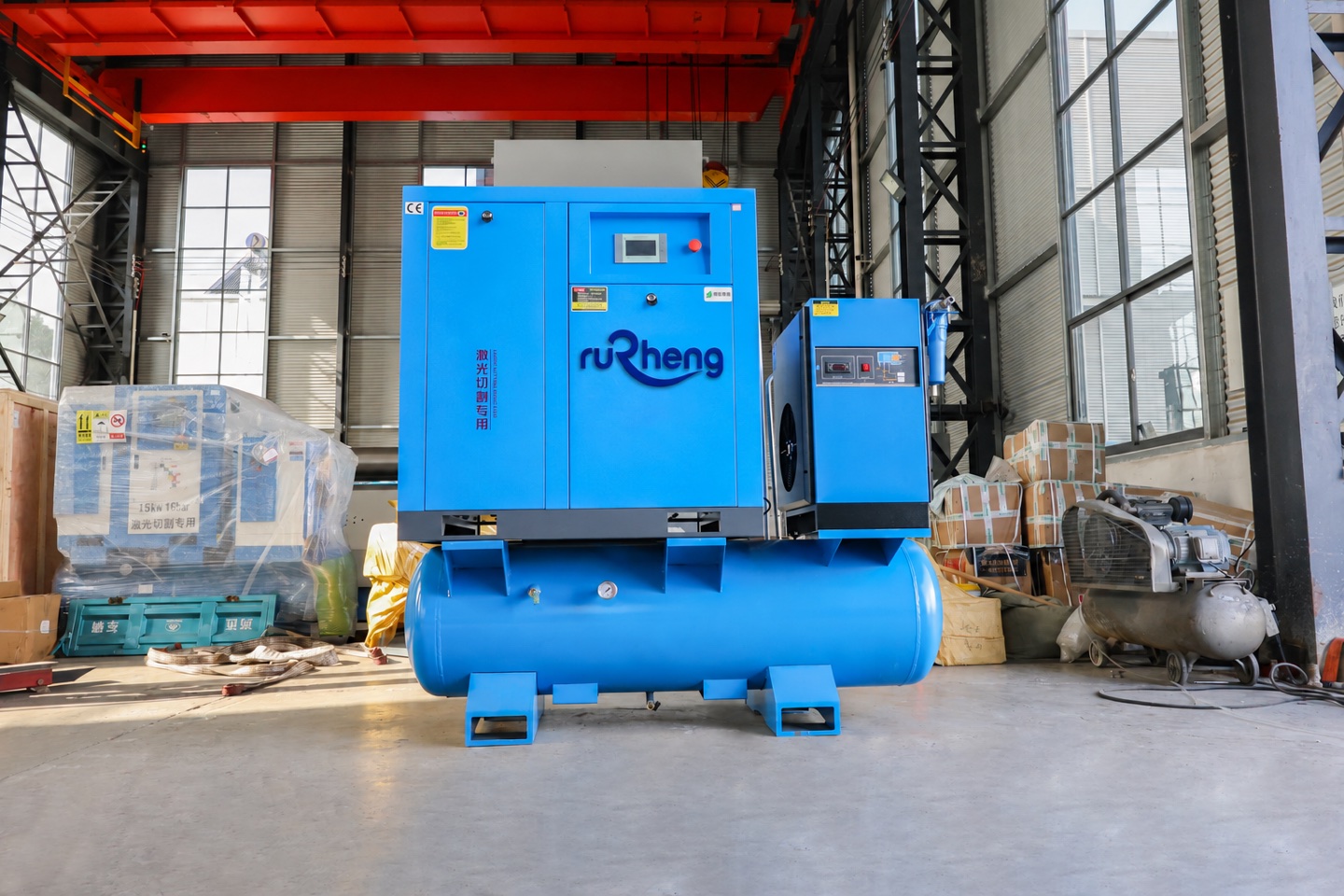

Compressed air cutting is attractive because the shop can produce gas on site. It is often used for thin carbon steel, galvanized sheet, light enclosures, cabinet panels and cost-sensitive parts where the edge does not need to be perfectly bright. With a stable compressor and good drying, air can reduce gas spending significantly on suitable work.

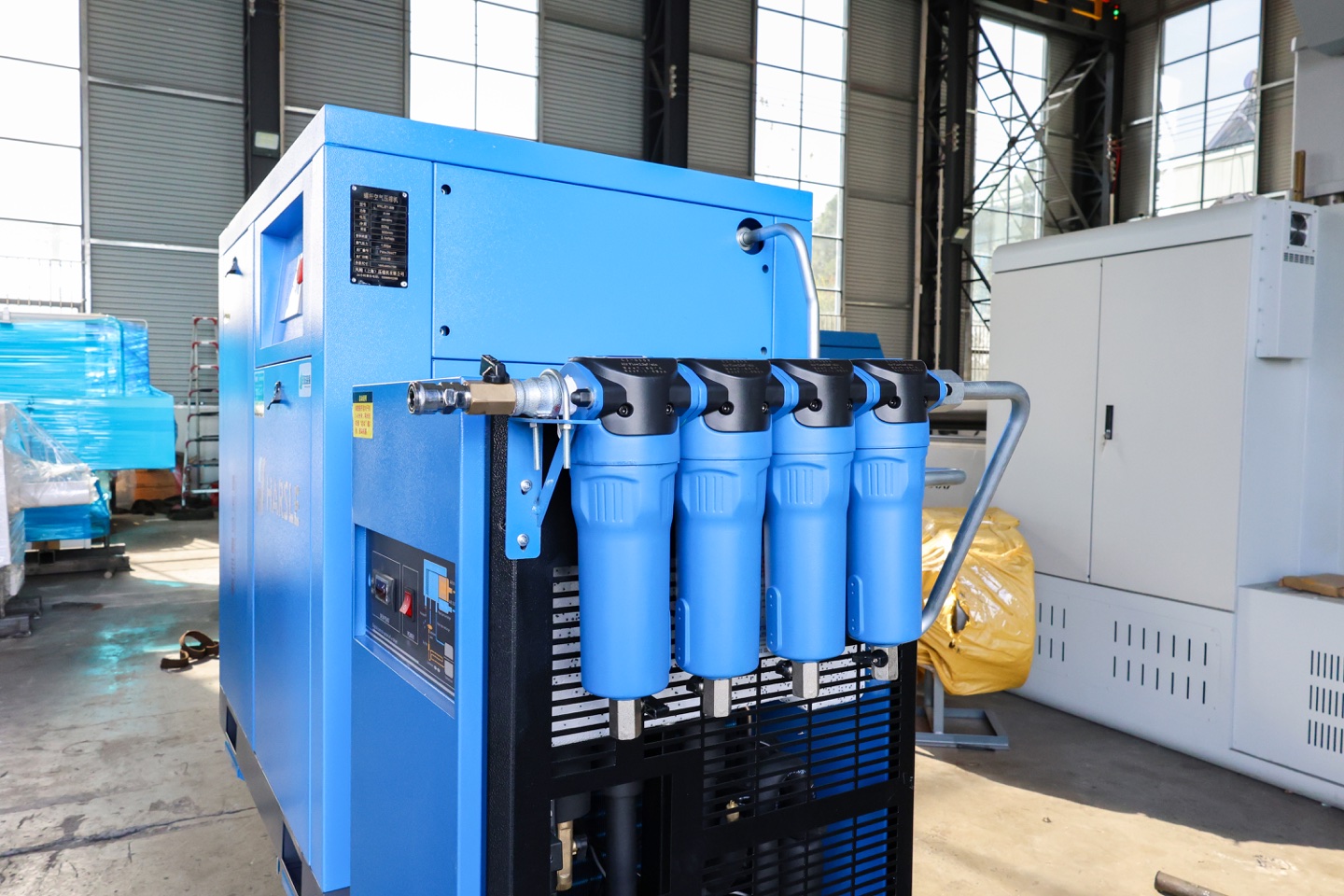

Air cutting is not free. The factory still pays for compressor electricity, maintenance, filters, dryer service, tank capacity and piping. Poor air quality can introduce water or oil into the nozzle stream, causing dross, yellowing, inconsistent piercing and shorter protective lens life. If air is the plan, specify the compressor system together with the laser machine, not after installation.
Assist Gas by Material and Thickness
| Material and thickness | Preferred gas | Why it fits |
|---|---|---|
| 0.5-3 mm stainless steel | Nitrogen | Keeps a bright edge and avoids oxide that can reduce corrosion resistance. |
| 1-6 mm carbon steel | Oxygen or air | Oxygen is stable and economical; air can lower cost when edge color is acceptable. |
| 8-25 mm carbon steel | Oxygen | Oxidation heat improves thick-plate cutting efficiency and lowers gas flow demand. |
| Aluminum sheet | Nitrogen or clean air | Nitrogen gives the cleanest edge; air may work for cost-sensitive thin parts after testing. |
| Galvanized sheet | Air or nitrogen | Air can be economical, but zinc fumes, coating condition and downstream requirements must be tested. |
How Assist Gas Changes Cutting Cost
Gas cost should be calculated per accepted part, not only per hour. Nitrogen may cost more per hour but save labor by eliminating oxide removal. Oxygen may be cheap for carbon steel but create grinding before powder coating. Air may look cheapest but can become expensive if wet air increases scrap or damages protective lenses.
For a realistic comparison, include gas purchase or generation cost, compressor electricity, dryer and filter maintenance, nozzle and lens life, cut speed, rejected parts, deburring time and coating preparation. The right gas is the one that delivers the lowest total cost after quality inspection, not the lowest cylinder invoice.
Gas Supply Checklist Before Buying a Fiber Laser
- Confirm your top five materials, thicknesses, edge standards and monthly cutting hours.
- Ask for sample cuts using the exact gas plan you intend to use in production.
- Size nitrogen generator, liquid tank, compressor, dryer, filters, receiver tank and pipe diameter for peak flow, not average flow.
- Check pressure drop during piercing, small holes, long nests and continuous thick-plate cutting.
- Compare the cut edge after bending, welding, painting or powder coating, not only immediately after cutting.
- Train operators to link gas type, pressure, nozzle diameter, focus position and cut speed in one process sheet.
Machine Configuration for Different Gas Strategies
A gas strategy should match the fiber laser machine configuration. A single-table 3kW machine may run well with bottles or a compact compressor for thin work. A 6kW exchange-table machine often needs stronger nitrogen or air capacity because utilization is higher. A 12kW enclosed machine should be planned with high-flow gas supply, stronger extraction, stable chiller capacity and reliable service support.
Single Table Fiber Laser Cutting Machine
Practical for thin sheet, startup budgets and lower-volume gas demand.
Double Table Fiber Laser Cutting Machine
Useful when cutting hours are high enough to justify stronger gas infrastructure.
Fully Enclosed Fiber Laser Cutting Machine
Recommended for higher power, safer production and better fume control.
Common Assist Gas Selection Mistakes
The first mistake is testing a machine with one gas and producing with another. A nitrogen sample does not prove compressed air quality. The second mistake is buying a high-power laser without enough gas flow. The machine may be capable, but the gas system becomes the bottleneck.
The third mistake is ignoring downstream operations. If an oxygen-cut edge requires extra grinding before powder coating, the apparent cutting saving may disappear. Connect gas choice with laser power selection, laser cutting operating cost and the complete sheet metal fabrication workflow.
FAQ: Fiber Laser Cutting Assist Gas
Which assist gas is best for fiber laser cutting?
Nitrogen is best for stainless steel, aluminum and oxide-free edges. Oxygen is best for economical carbon steel cutting, especially thicker plate. Compressed air can be the lowest-cost option for thin sheet when slight oxidation is acceptable.
When should I use nitrogen for laser cutting?
Use nitrogen when the part needs a bright edge, corrosion resistance, clean welding or powder coating without oxide removal. Stainless steel, aluminum and exposed decorative parts are common nitrogen applications.
Is oxygen or nitrogen better for carbon steel?
Oxygen is usually better for thick carbon steel when speed and gas cost matter. Nitrogen is better when the carbon steel edge must stay bright and oxide-free for painting, welding or high-end visible parts.
Can compressed air replace nitrogen in fiber laser cutting?
Compressed air can replace nitrogen on many thin carbon steel, galvanized and some aluminum jobs, but it needs clean dry air, enough pressure and sample validation. It is not a universal replacement for stainless or premium oxide-free edges.
What pressure do laser cutting assist gases need?
Typical production ranges are about 0.4-1.5 MPa for oxygen, 1.0-2.5 MPa for nitrogen and 0.8-1.6 MPa for compressed air, depending on power, nozzle, thickness and material. Always confirm final parameters with sample cuts.
Conclusion: Choose Gas by Finished-Part Quality
Choose nitrogen when clean edges and downstream quality matter most, oxygen when carbon steel productivity and economy are the priority, and compressed air when thin-sheet cost control is proven by sample cuts. A good fiber laser cutting machine quotation should include the gas supply plan, because gas stability directly affects speed, edge quality and profit.
