A fiber laser cutting machine is one of the most important investments a metal fabrication shop can make. These machines use a high-powered fiber laser beam to cut through sheet metal with extreme precision and speed, making them the industry standard for processing steel, stainless steel, aluminum, brass, and copper.
Whether you are upgrading from an older CO2 laser or purchasing your first CNC laser cutter, this guide covers everything you need to know β from laser power and machine types to manufacturer evaluation and common buying mistakes.
What You'll Learn in This Guide
- Section 1 Fiber laser vs CO2 laser β why fiber wins for metal cutting
- Section 2 Key specifications β power, speed, bed size, and accuracy
- Section 3 Machine types β single table, double table, enclosed, tube, and integrated
- Section 4 How to evaluate a manufacturer β build quality, support, and track record
- Section 5 Common mistakes to avoid when buying
1. Fiber Laser vs CO2 Laser β Key Differences
Before diving into buying considerations, it is essential to understand why fiber laser technology has largely replaced CO2 lasers in the metal cutting industry.
While CO2 lasers dominated the market for decades, fiber lasers offer significant advantages in efficiency, maintenance, and cutting performance for metal materials. The table below highlights the key differences.
| Feature | Fiber Laser | CO2 Laser |
|---|---|---|
| Wavelength | 1.06 ΞΌm | 10.6 ΞΌm |
| Electrical Efficiency | 30β35% | 10β15% |
| Metal Cutting Speed | 2β3Γ faster for thin sheets | Slower on reflective metals |
| Reflective Metals (Brass, Copper, Aluminum) | Excellent β handles with ease | Difficult β risk of back-reflection damage |
| Maintenance Cost | Very low β no mirrors, no gas refills | Higher β mirrors, lenses, CO2 gas |
| Laser Source Lifespan | 100,000+ hours | 20,000β30,000 hours |
| Operating Cost | Low (less power, fewer consumables) | Higher (more power, gas, optics) |
| Non-Metal Cutting (Wood, Acrylic) | Not suitable | Excellent |
| Thick Metal Cutting (20mm+) | Good with high-power sources (6kW+) | Good edge quality at moderate speed |
2. Key Specifications to Consider
When evaluating fiber laser cutting machines, four core specifications will determine whether a machine fits your production needs. Understanding these parameters helps you avoid overspending on unnecessary power or underbuying a machine that cannot handle your workload.
Laser Power (Wattage)
Laser power is the single most important specification. It directly determines the maximum thickness you can cut and the speed at which you can cut it.
Common power levels range from 1,000W to 30,000W. For general sheet metal shops cutting 1β6mm mild steel, a 3kWβ6kW laser is sufficient.
If you regularly cut 10mm+ material or need maximum speed on thin sheets, consider 6kWβ12kW. Ultra-high power (15kWβ30kW) is for heavy-duty industrial applications cutting 20mm+ steel at production speed.
Cutting Speed
Cutting speed is measured in meters per minute (m/min) and varies by material type, thickness, and laser power.
A 6kW fiber laser can cut 1mm mild steel at approximately 40 m/min, while the same machine cuts 10mm steel at around 1.8 m/min. Always ask the manufacturer for a detailed cutting speed chart for your specific materials.
Beware of inflated speed claims β ask for actual production speeds, not theoretical maximums.
Bed Size (Working Area)
Standard bed sizes include 1500Γ3000mm (5Γ10 ft), 2000Γ4000mm (6.5Γ13 ft), and 2000Γ6000mm (6.5Γ20 ft). Choose a bed size based on your most common sheet sizes.
A larger bed accommodates bigger parts and reduces the need for repositioning, but also increases machine footprint and cost. Most shops find that 1500Γ3000mm handles 80% of standard sheet metal work.
Positioning Accuracy and Repeatability
High-quality fiber laser machines offer positioning accuracy of Β±0.03mm and repeatability of Β±0.02mm. These specifications ensure that parts are cut to tight tolerances, which is critical for industries like automotive, aerospace, and precision fabrication.
Key contributors to accuracy include the quality of the linear guides, servo motors, gear rack systems, and the rigidity of the machine frame.
Power Selection Guide
- 1β3 kW Thin sheet metal (0.5β6mm), sign making, light fabrication, HVAC ductwork
- 4β6 kW General sheet metal fabrication (1β12mm), automotive parts, structural components
- 8β12 kW Medium to thick plate (6β20mm), heavy fabrication, high-speed thin sheet production
- 15β30 kW Heavy plate cutting (20β50mm), shipbuilding, mining equipment, large-scale industrial production
3. Types of Fiber Laser Cutting Machines
Fiber laser cutting machines come in several configurations, each designed for different production requirements. Understanding these types helps you choose the right machine architecture for your workflow.
Single Table Fiber Laser Cutting Machine
The most straightforward and cost-effective option. A single fixed worktable holds the sheet while the laser head moves above it.
Ideal for small to medium shops with moderate production volumes where loading and unloading time between cuts is acceptable. This is an excellent entry-level choice for businesses entering laser cutting for the first time.
Double Table (Exchange Table) Fiber Laser Cutting Machine
Features two worktables that alternate positions β while one table is being cut, the other can be loaded with the next sheet. This dramatically reduces idle time and increases production throughput by up to 30β40%.
The exchange table design is the most popular choice for medium to high-volume production shops that need to maximize machine uptime.

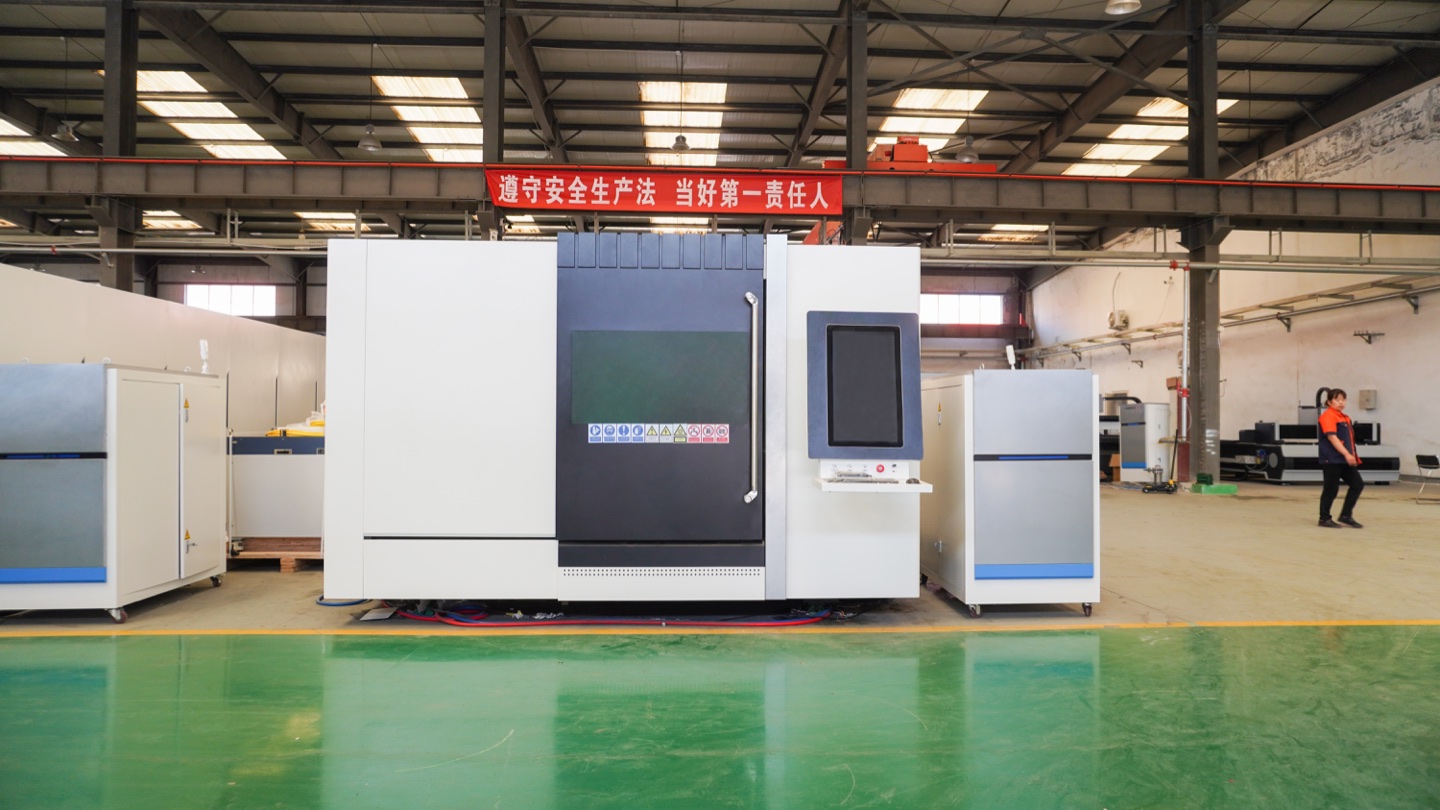

Fully Enclosed Fiber Laser Cutting Machine
A protective enclosure surrounds the entire cutting area, providing enhanced safety by containing laser radiation, fumes, and noise.
Enclosed machines meet the strictest workplace safety standards and are often required in environments where operators work in close proximity to the machine. They also provide better fume extraction and a cleaner working environment.
Tube Laser Cutting Machine
Specifically designed for cutting round tubes, square tubes, rectangular tubes, channels, angles, and other profiles. Features a rotary chuck system that holds and rotates the tube while the laser cuts complex shapes, holes, slots, and miters.
Essential for industries like furniture manufacturing, fitness equipment, architectural metalwork, and automotive exhaust systems.
Plate and Tube Integrated Laser Cutting Machine
A versatile dual-purpose machine that can cut both flat sheet metal and tubes/profiles on a single platform. By combining two functions into one machine, you save floor space and capital investment compared to purchasing separate machines.
Ideal for shops that need both sheet and tube cutting but do not have the volume or budget to justify two dedicated machines.
4. What to Look for in a Manufacturer
The machine itself is only half the equation β the manufacturer behind it determines your long-term experience. Here are the critical factors to evaluate when choosing a fiber laser cutting machine supplier.

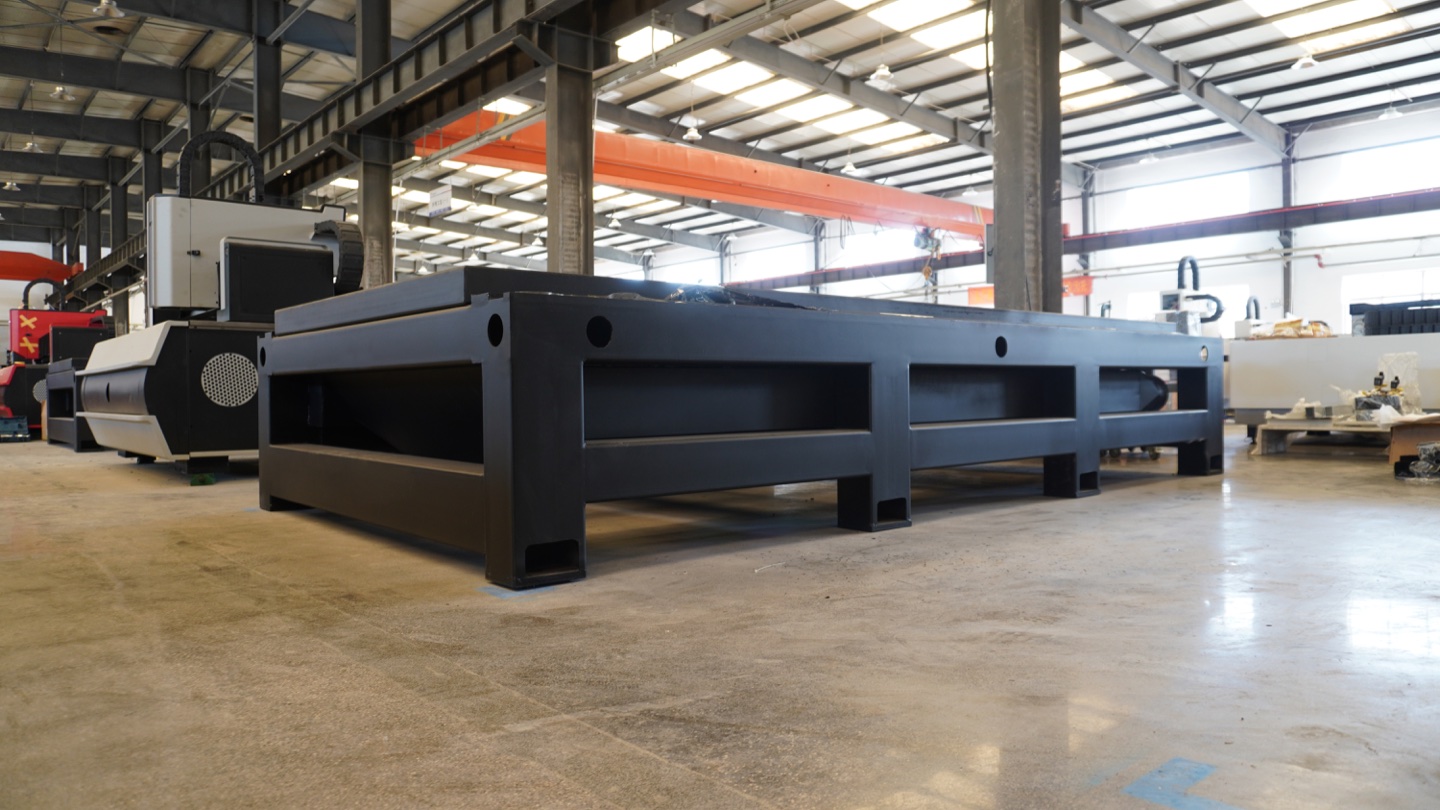

Build Quality and Component Sourcing
Examine the machine frame construction β a high-quality fiber laser uses a welded and stress-relieved steel frame for rigidity.
Ask about the brand and origin of critical components: the laser source (IPG, Raycus, MAX, nLIGHT), cutting head (Precitec, Raytools), CNC controller (Cypcut, Beckhoff), servo motors (Yaskawa, Delta), and linear guides (HIWIN, THK). A reputable manufacturer is transparent about their component sourcing.
After-Sales Service and Technical Support
Laser cutting machines require ongoing support β from initial installation and operator training to troubleshooting and spare parts supply.
Evaluate the manufacturer's response time, availability of service engineers (local or international), remote diagnostic capabilities, and spare parts inventory. A machine with excellent specs but poor support will cost you more in downtime than a well-supported machine with slightly lower specs.
Customization Capabilities
Every shop has unique requirements. A good manufacturer can customize bed sizes, laser power options, automation features (automatic loading/unloading), enclosure configurations, and software integrations to match your specific workflow.
Avoid one-size-fits-all suppliers who cannot adapt their machines to your needs.
Track Record and References
Ask for customer references, visit existing installations if possible, and check for certifications (CE, ISO 9001).
A manufacturer with years of experience and hundreds of installed machines demonstrates proven reliability. Look for manufacturers who have been in business for at least 5β10 years with a stable production history.
5. Common Mistakes to Avoid When Buying
Purchasing a fiber laser cutting machine is a significant investment. Avoid these common pitfalls that many first-time buyers fall into:
Buying based on price alone.
The cheapest machine is rarely the best value. Low-cost machines often use inferior components that lead to higher maintenance costs, more downtime, and shorter machine life.
Calculate the total cost of ownership over 5β10 years, including power consumption, consumables, maintenance, and potential resale value.
Over-specifying laser power.
A 12kW laser is not necessarily better than a 6kW laser for your application. If you primarily cut 1β6mm sheet metal, the extra power may go unused while consuming significantly more electricity.
Match the power to your actual material requirements with a reasonable margin for growth.
Ignoring operating costs.
Beyond the purchase price, consider electricity consumption, assist gas costs (nitrogen for stainless steel, oxygen for carbon steel), consumable parts (nozzles, protective lenses, ceramic rings), and maintenance labor.
These costs vary significantly between machines and manufacturers.
Neglecting the cutting head quality.
The cutting head is the most critical consumable-adjacent component. A high-quality auto-focus cutting head with protective glass monitoring significantly reduces consumable costs and improves cut quality.
Do not accept a no-name cutting head to save a few hundred dollars.
Skipping the factory visit.
Whenever possible, visit the manufacturer's factory before placing an order. Observe their production facilities, quality control processes, and test-cut your own materials on the exact machine model you plan to purchase.
This reveals more about a manufacturer than any brochure or video call.
Forgetting about training and support.
A fiber laser is a complex CNC machine. Ensure the manufacturer provides comprehensive operator training, machine maintenance training, and ongoing technical support.
Without proper training, even the best machine will underperform.
Summary
Choosing the right fiber laser cutting machine requires careful evaluation of several interconnected factors:
- Understand why fiber laser technology outperforms CO2 for metal cutting in speed, efficiency, and maintenance
- Match the laser power, bed size, and speed specifications to your actual production requirements
- Select the right machine type β single table, double table, enclosed, tube, or integrated β based on your workflow
- Evaluate the manufacturer's build quality, component sourcing, support infrastructure, and track record
- Avoid common purchasing mistakes by focusing on total cost of ownership rather than upfront price alone
At Rucheng Technology, we manufacture a complete range of fiber laser cutting machines with power options from 1kW to 30kW, customizable bed sizes, and configurations to match any production requirement.
Our experienced engineering team provides full pre-sales consultation, installation, training, and after-sales support to ensure your investment delivers maximum return.
