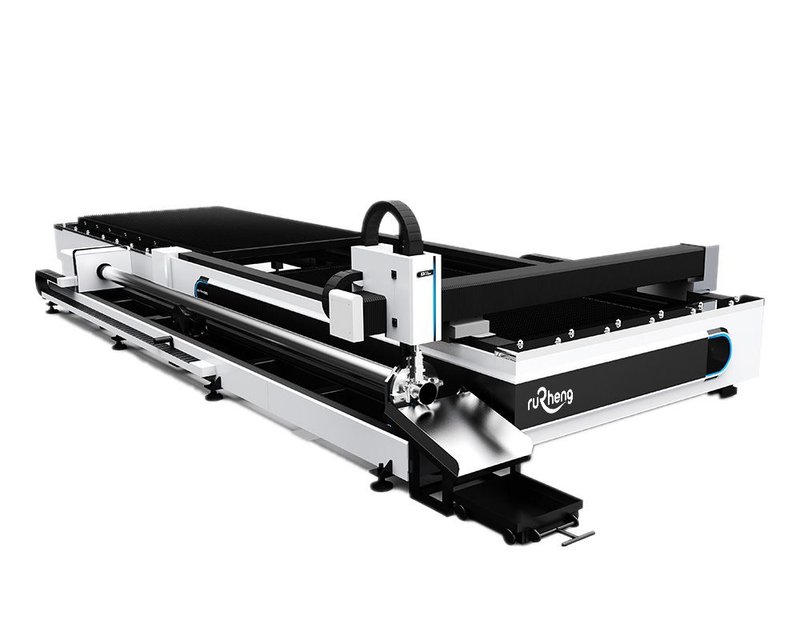

This integrated plate-tube cutting system combines sheet metal cutting and tube profile cutting in one fiber laser machine. It is designed for factories that need plate blanks, brackets, frames and tubular components from one compact 2-in-1 layout. Rucheng can match laser power, plate size, tube diameter, chuck configuration and extraction layout to your mixed production list.
Choose a plate and tube integrated fiber laser cutting machine when your factory cuts both flat sheet parts and round, square or rectangular tubes but does not need two separate laser systems. It saves floor space, shares one laser source and control platform, and gives job shops more flexibility for mixed orders such as brackets, frames, machinery guards and structural tube parts.
Metal fabrication shops, furniture frames, fitness equipment, agricultural machinery, construction components and workshops cutting both sheet panels and tube structures.
Send plate size, plate thickness, tube shape, tube diameter, tube length, daily cutting mix, assist gas preference and whether automatic tube feeding is required.
If tube cutting is your main high-volume process or you need automatic loading for long tubes all day, compare a dedicated tube laser before choosing an integrated machine.
Dual-purpose integrated laser cutting system with quick-change platform for plates and tubes
Discover the revolutionary advantages of combining plate and tube cutting in one versatile machine for ultimate productivity and cost savings
One machine handles both plate and tube cutting, eliminating the need for separate equipment and maximizing workshop versatility
10-second exchange platform allows seamless transition between plate and tube cutting modes for uninterrupted production
Reduces factory footprint by 50% compared to separate machines, freeing up valuable production space for other operations
Invest in one machine instead of two, reducing capital costs, maintenance expenses, and operating overhead significantly
Positioning accuracy of High precision for both plates and tubes ensures consistent quality across all cutting operations
Process diverse projects without machine changeover, reducing downtime and increasing overall production throughput
Understanding the integrated system that enables dual-mode cutting performance and quick platform exchange
Fiber laser generator with 3kW to 12kW typical configurations from leading manufacturers like Raycus or IPG. Single laser source serves both plate and tube cutting modes with automatic parameter adjustment. Offers exceptional beam quality, high electro-optical efficiency up to 30%, and maintenance-free operation with 100,000+ hour lifespan for both applications.

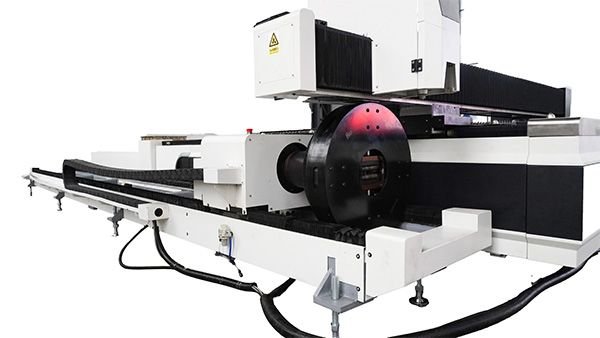

Revolutionary quick-change platform system enables seamless switching between plate and tube cutting modes in just 10 seconds. Automated positioning ensures precise alignment after every exchange. Robust mechanical design withstands frequent mode changes while maintaining accuracy. Integrated sensors verify proper platform installation before cutting begins.

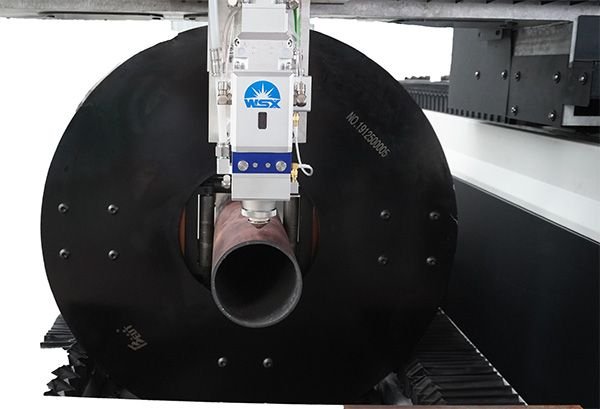

Professional auto-focus cutting head optimized for both flat plate and tubular cutting. Capacitive height sensor automatically adjusts focal position for different material thicknesses and tube diameters. Built-in collision protection safeguards the head during mode switching. Quick lens replacement design minimizes maintenance downtime for both applications.

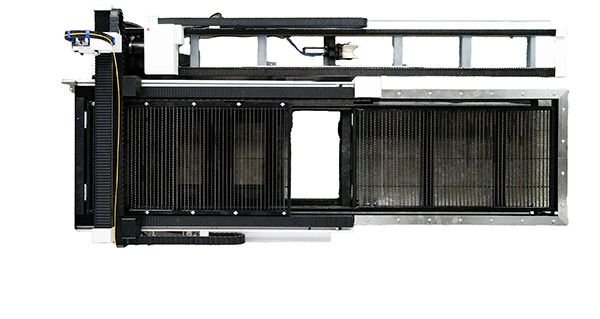

Heavy-duty welded steel frame accommodates both plate cutting table and tube chuck assembly. Quick-release mechanism enables rapid platform exchange. Four-chuck pneumatic clamping system for tube mode provides stable positioning. Blade-type plate support prevents small part drop-through. Single frame design ensures consistent positioning accuracy across both modes.
The integrated plate and tube laser cutting machine serves industries requiring both sheet metal and tubular component fabrication
Cutting chassis plates, structural tubes, exhaust pipes, and brackets in one integrated production line
Manufacturing both sheet metal panels and tubular frames for office furniture, shelving systems, and decorative items
Processing both structural steel plates and tubular supports for heavy machinery and construction equipment
Cutting tubular frames and sheet metal covers for gym equipment, exercise machines, and weight training apparatus
Job shops requiring flexibility to process diverse customer orders involving both plates and tubes
Manufacturing both sheet metal body panels and tubular structural frames for tractors and farm equipment
Cutting ductwork panels and ventilation tubes for heating, ventilation, and air conditioning systems
Processing both structural steel plates and tubular columns for prefabricated building construction
Customize your integrated machine with standard features and optional upgrades for both plate and tube cutting
Need help choosing the right configuration?
Contact Our ExpertsUse these resources to compare laser machine type, power, assist gas and downstream bending workflow.
Decide whether one plate-tube machine or separate sheet and tube lasers fits your workload split and floor space.
Balance sheet thickness, tube wall thickness, piercing demand and daily changeover on one laser source.
Choose gas for mixed sheet blanks, tube profiles, weld-ready edges and cost-sensitive carbon steel parts.
Compare flat-sheet starting values with tube wall piercing, slot cutting and profile hole requirements.
Send sheet-to-tube ratio, tube shape, diameter, wall thickness, cutting length and sample drawings.
Connect sheet blanks, tube frames and bent brackets into one fabrication workflow.
