Featuring automatic exchange table loading, zoned dust extraction and a high-power fiber laser source, our double table fiber laser cutting machine is built for continuous sheet metal production. One table cuts while the other loads/unloads, reducing idle time and helping buyers size the right power, table format and extraction configuration before quotation.
Choose a double table fiber laser cutting machine when sheet loading and unloading time limits production output. The exchange table lets one pallet cut while the other is prepared, and segmented dust extraction helps control fumes below the cutting zone. Rucheng can match laser power, table size, assist gas, chiller and extraction layout to your material thickness, shift schedule and workshop ventilation.
High-volume sheet metal blanks, electrical cabinets, elevator panels, brackets, machinery covers and factories that run repeated nesting jobs across multiple shifts.
Send material type, maximum thickness, sheet size, daily cutting hours, edge quality target, preferred assist gas and whether your workshop needs stronger dust extraction.
Compare the laser hub, power selection guide, assist gas guide and quote form before finalizing the exchange-table machine specification.
High-productivity fiber laser cutting system with dual exchange table for continuous operation
Discover the key advantages that make our dual table laser cutting machine the ideal choice for high-volume production and maximum efficiency
50% higher output than single table machines through continuous operation - one table cuts while the other loads
Automated rapid table exchange minimizes idle time and maximizes cutting efficiency for high-volume production
Operator loads/unloads one table while machine cuts on the other, optimizing labor efficiency and reducing per-part costs
Higher initial investment pays back quickly through increased throughput and reduced per-piece manufacturing costs
Eliminates cutting interruptions for material loading, enabling 24/7 operation for deadline-critical projects
Operators work safely outside the cutting zone during table exchange, improving workplace safety and ergonomics
Understanding the core components that deliver precision laser cutting performance and reliability

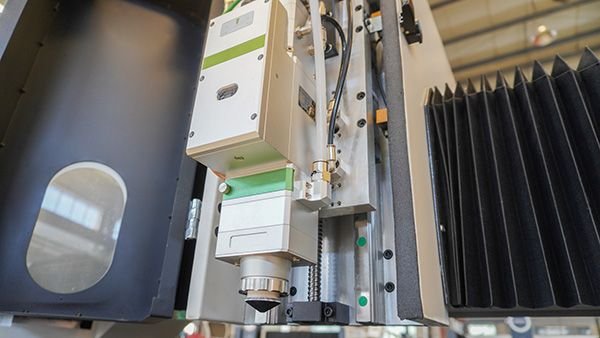

High-power fiber laser generator with 3kW to 12kW typical configurations from leading manufacturers like Raycus or IPG. Offers exceptional beam quality, high electro-optical efficiency up to 30%, and maintenance-free operation with 100,000+ hour lifespan. Stable output ensures consistent cutting quality.

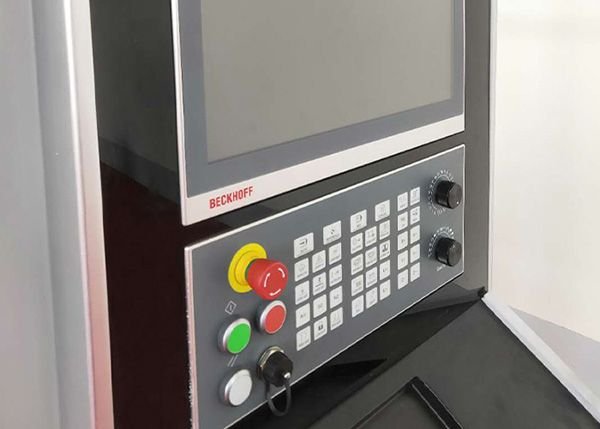

Advanced CNC system (CypCut or Raytools) with intuitive interface for easy programming and operation. Supports complex path planning, automatic nesting, and real-time monitoring. Compatible with standard file formats (DXF, DWG) for seamless CAD/CAM integration.

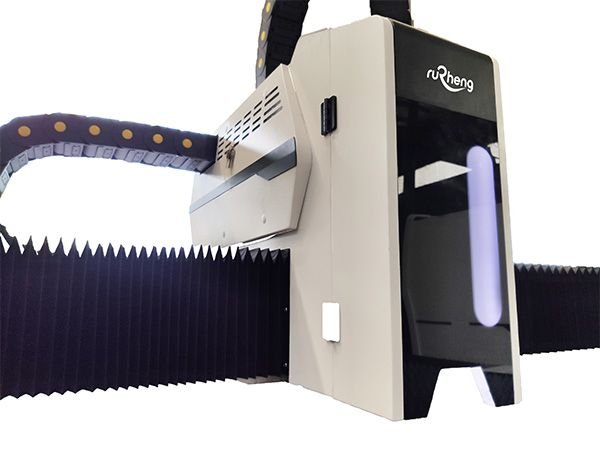

Professional auto-focus cutting head with capacitive height sensor for automatic focal length adjustment. Ensures optimal focus position across different material thicknesses. Built-in collision protection and quick lens replacement design minimize downtime.

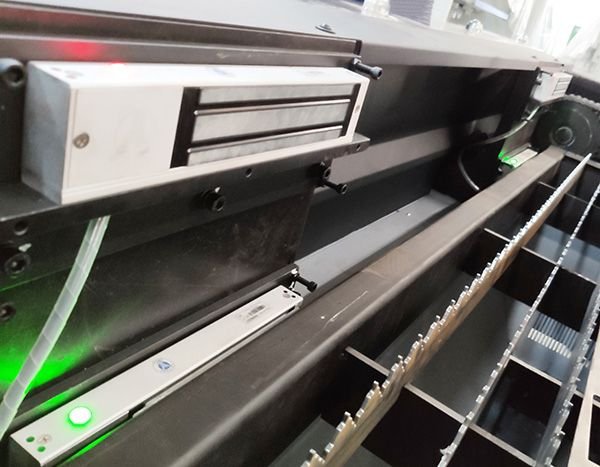

High-precision linear motor or servo motor drive system with precision ball screws and linear guides. Provides fast acceleration, high positioning accuracy (High precision), and smooth motion control. Dual-drive design ensures synchronized movement and long-term stability.

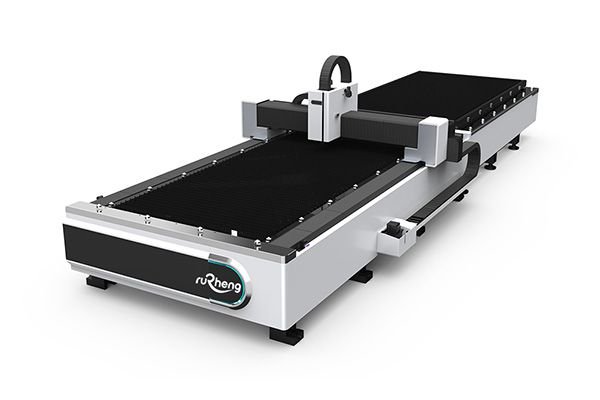

Automatic shuttle table exchange system with two independent Customizable working tables. Rapid exchange time powered by precision servo motors. Pneumatic clamping system secures materials during cutting. One table processes parts while the other loads/unloads, maximizing productivity and eliminating idle time for continuous 24/7 operation capability.

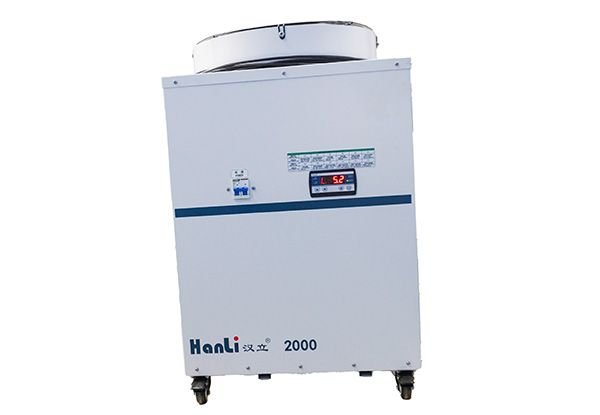

Precision gas delivery system with automatic pressure control for oxygen, nitrogen, or air assist. Industrial water chiller maintains optimal laser source temperature. Dust extraction system ensures clean cutting environment and protects optical components from contamination.
Our fiber laser cutting machines are widely used across various industries for precision metal cutting and complex pattern processing
Precision laser cutting of complex patterns, intricate designs, and tight tolerances for custom fabrication
Manufacturing chassis components, exhaust systems, brackets, and precision automotive parts with tight tolerances
Cutting decorative panels, structural components, and safety parts for elevator and escalator manufacturing
Laser cutting of server racks, control panels, electrical cabinets with precise ventilation holes
Manufacturing parts for tractors, harvesters, and farm equipment with complex geometries
Cutting structural frames, decorative covers, and mechanical parts for exercise machines
Cutting intricate letters, logos, and decorative metal signs with smooth edges
Manufacturing stainless steel sinks, countertops, appliance panels, and commercial kitchen components
Customize your machine with standard features and optional upgrades to meet your specific requirements
Need help choosing the right configuration?
Contact Our ExpertsUse these resources to compare laser machine type, power, assist gas and downstream bending workflow.
Review single table, exchange table, enclosed, plate-tube and tube laser systems.
Choose power by material, thickness, edge quality and duty cycle.
Compare nitrogen, oxygen and compressed air for cost and edge quality.
Connect laser-cut blanks with bending capacity and tooling.
Common questions about our fiber laser cutting machines
Still have questions?
Contact our support team βGet detailed technical specifications, dimensions, and performance data for our fiber laser cutting machines. Download our comprehensive product brochure in PDF format.
