The hydraulic press machine is one of the most versatile and widely used pieces of equipment in modern manufacturing. From stamping automotive body panels to forging aerospace components, hydraulic presses convert fluid pressure into enormous controlled force — making them indispensable across dozens of industries.
This guide covers everything you need to know about hydraulic press machines: how they work, the major types available, their core applications, and the key factors to evaluate before purchasing. Whether you are setting up a new production line or upgrading existing equipment, this article gives you the technical foundation to make an informed decision.
What Is a Hydraulic Press Machine?
A hydraulic press machine is a device that uses a hydraulic cylinder to generate a compressive force. The machine works by applying Pascal's law — pressure applied to a confined fluid is transmitted equally in all directions. A small pump piston creates pressure in the hydraulic fluid, which is then transmitted to a much larger piston (the ram), multiplying the force by the ratio of piston areas.
Unlike mechanical presses that use a flywheel and crankshaft to generate force at a specific point in the stroke, hydraulic presses deliver full tonnage at any point during the stroke. This makes them uniquely suited for operations that require sustained pressure over time, such as deep drawing, compression molding, and forging.
Key Advantages of Hydraulic Presses
- Full force throughout the stroke: Unlike mechanical presses, tonnage is available at any ram position
- Adjustable speed and pressure: Easily fine-tuned for different materials and operations
- Built-in overload protection: Relief valves prevent the press from exceeding set tonnage, protecting tooling and the machine
- Versatile stroke control: Variable stroke length, dwell time, and approach speed
- Lower tooling costs: Slower, more controlled forming reduces die wear compared to high-impact mechanical presses
- Quieter operation: No flywheel impact means significantly less noise and vibration

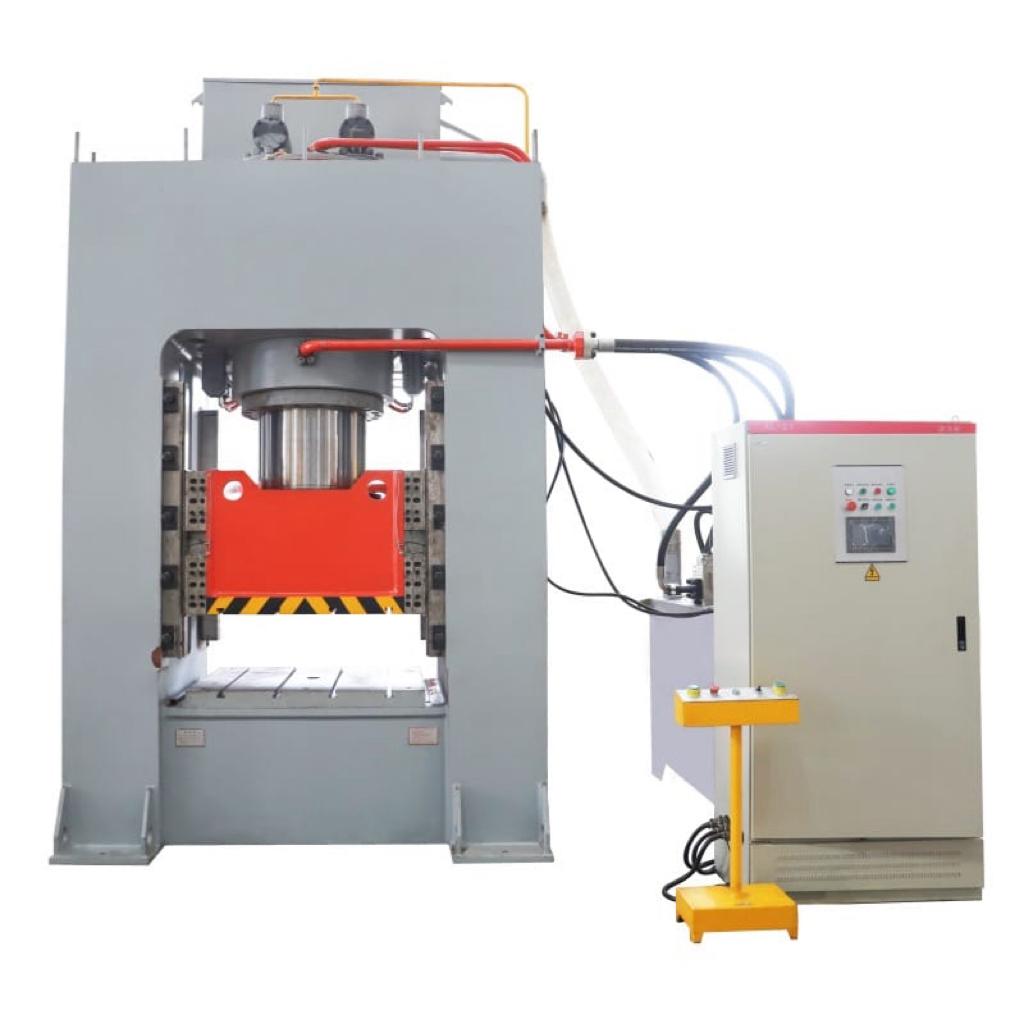

How Does a Hydraulic Press Work?
Understanding the working principle of a hydraulic press helps you choose the right machine and optimize its performance. The operation follows a straightforward cycle:
The Hydraulic Circuit
Every hydraulic press consists of these core components working together:
- Electric motor: Powers the hydraulic pump
- Hydraulic pump: Converts mechanical energy into fluid pressure (common types: gear pump, vane pump, axial piston pump)
- Hydraulic fluid reservoir: Stores the oil and allows heat dissipation
- Directional control valves: Route fluid to extend or retract the cylinder
- Pressure relief valve: Limits maximum system pressure for safety
- Hydraulic cylinder: Converts fluid pressure into linear force (the ram)
- Pressure gauge: Monitors real-time system pressure
The Pressing Cycle
A typical hydraulic press cycle involves four phases:
- Fast approach: The ram descends rapidly at low pressure to close the gap between the tool and the workpiece. Some presses use a prefill valve to allow gravity-assisted fast approach, saving energy.
- Working stroke: The pump switches to high-pressure mode. The ram advances at controlled speed, applying full tonnage to form, stamp, or press the material.
- Dwell / hold: The ram holds at maximum pressure for a set duration. This phase is critical for deep drawing, molding, and powder compaction where material needs time to flow.
- Return stroke: Directional valves reverse fluid flow, retracting the ram. Speed is typically faster than the working stroke to minimize cycle time.
💡 Servo-Hydraulic Systems: The Modern Upgrade
Traditional hydraulic presses run the pump at full speed constantly, wasting energy when the ram is idle or during low-demand phases. Servo-hydraulic presses use a variable-speed servo motor to drive the pump only at the flow rate and pressure needed at each stage. This cuts energy consumption by 30–70% and reduces heat generation, hydraulic oil degradation, and noise — while improving position accuracy to ±0.01 mm.
Types of Hydraulic Press Machines
Hydraulic presses come in several frame configurations, each designed for specific applications and workspace requirements. Choosing the right type is one of the most important decisions in your buying process.

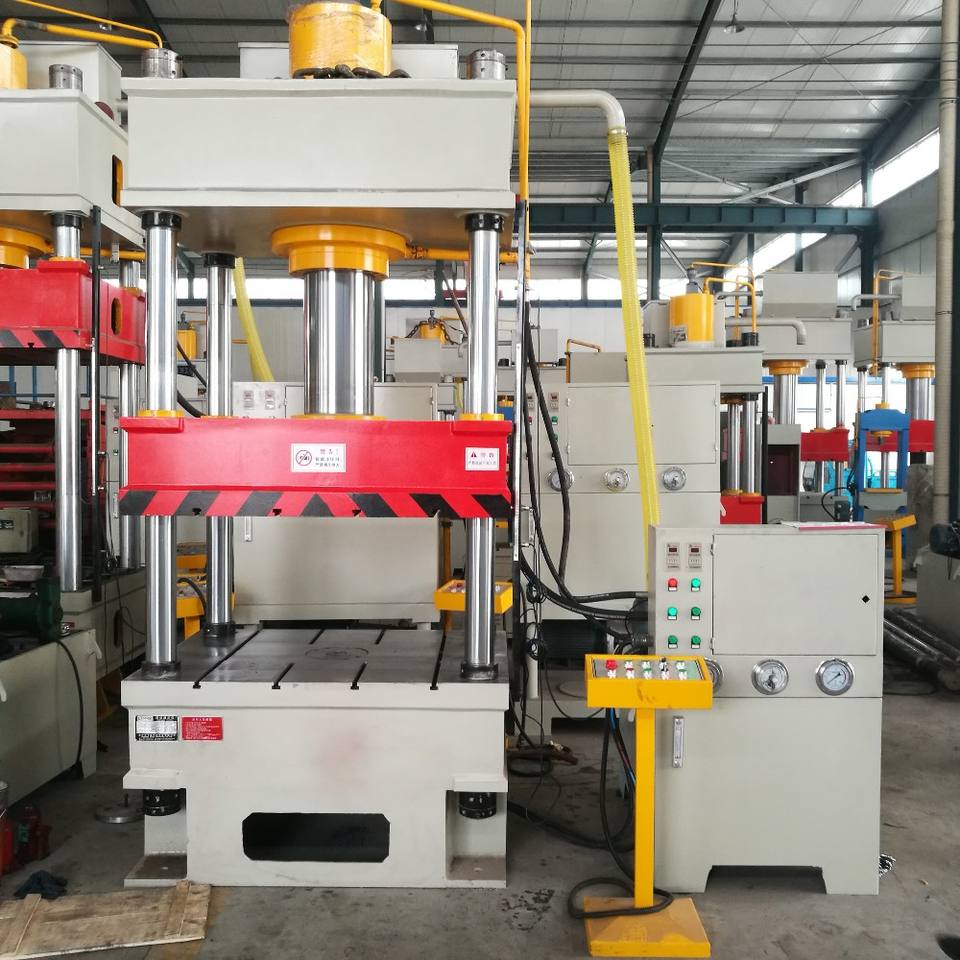

1. Four-Column Hydraulic Press
The four-column hydraulic press is the most versatile and widely used configuration. Four precision-ground columns guide the moving platen, ensuring even force distribution and high parallelism across the entire work surface.
- Best for: Stamping, deep drawing, blanking, powder compaction, compression molding
- Tonnage range: 100 – 5,000+ tons
- Key advantage: Even force distribution prevents die tilting and uneven part quality
- Consideration: Larger footprint than C-frame presses; loading from front and rear only
2. C-Frame (Gap-Frame) Hydraulic Press
The C-frame press has an open, C-shaped structure that provides three-sided access to the work area. This design is popular in workshops and production lines where operators need to load and unload parts quickly from the front, left, or right side.
- Best for: Punching, straightening, assembly press-fitting, broaching, small-part forming
- Tonnage range: 5 – 200 tons
- Key advantage: Compact footprint, excellent accessibility, easy automation integration
- Consideration: Frame deflection under load limits precision at higher tonnages
3. H-Frame (Gantry) Hydraulic Press
The H-frame press features a robust, welded steel frame shaped like the letter H. The closed-frame design provides superior rigidity and can handle heavy-duty operations that would cause excessive deflection in a C-frame.
- Best for: Heavy-duty stamping, forging, bearing press-fitting, straightening large parts
- Tonnage range: 20 – 500 tons
- Key advantage: High rigidity at moderate cost, long working stroke available
- Consideration: Access limited to front and rear; not ideal for automated side-loading
4. Single-Column Hydraulic Press
A compact press with a single supporting column, typically used for light-duty work in maintenance shops and small production runs. Often bench-mounted for portability.
- Best for: Small assembly work, bearing removal, lab testing, light pressing
- Tonnage range: 1 – 30 tons
- Key advantage: Minimal floor space, low cost, easy to relocate

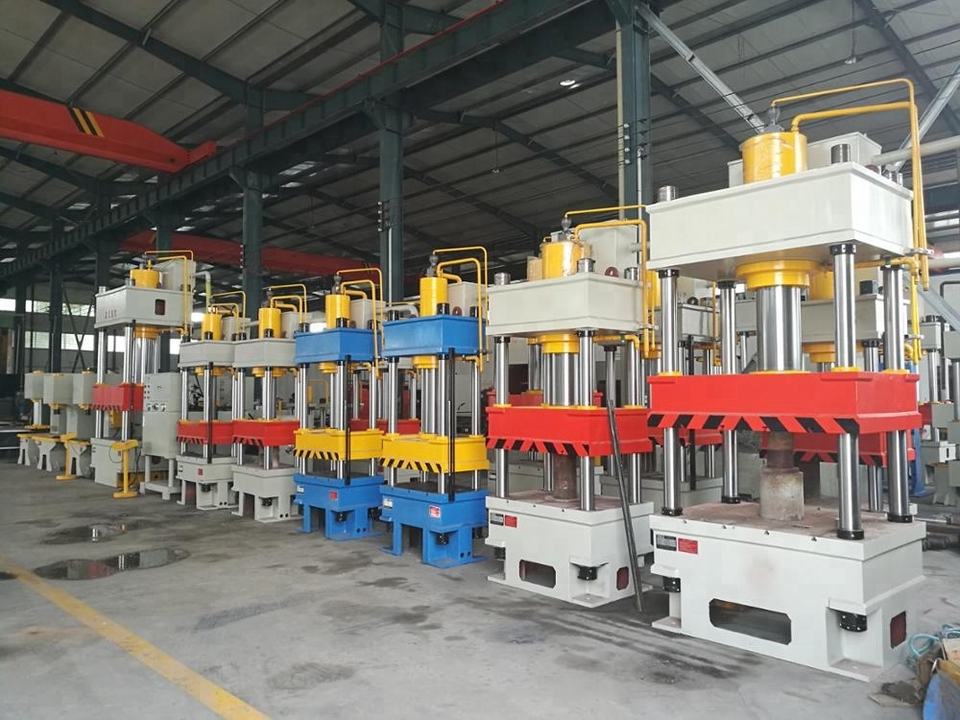

| Feature | Four-Column | C-Frame | H-Frame |
|---|---|---|---|
| Tonnage range | 100 – 5,000+ tons | 5 – 200 tons | 20 – 500 tons |
| Force distribution | Excellent — 4-point guided | Good for low tonnage | Very good — rigid frame |
| Work area access | Front & rear | Three sides | Front & rear |
| Precision | Highest | Moderate | High |
| Footprint | Large | Compact | Medium |
| Typical applications | Deep drawing, stamping, molding | Punching, assembly, straightening | Forging, heavy pressing, repair |
| Price range | $$$ – $$$$ | $ – $$ | $$ – $$$ |
Key Applications of Hydraulic Press Machines
Hydraulic presses serve a remarkably broad range of manufacturing processes. Here are the most common applications grouped by industry:
Metal Forming and Fabrication
This is the primary domain of hydraulic presses. Key operations include:
- Deep drawing: Forming flat sheet metal into hollow shapes (cups, cylinders, enclosures) using a punch and die set. The hydraulic press's ability to control speed and dwell time is essential for preventing tearing and wrinkling.
- Stamping and blanking: Cutting and shaping sheet metal parts at high speed. Four-column presses with servo control excel here due to their precision and repeatability.
- Forging: Compressing heated metal billets into specific shapes. Hydraulic presses provide the sustained, high-tonnage force that hot and cold forging demand.
- Straightening and flattening: Removing warps, bends, or distortions from metal parts — a common maintenance and quality-control task.
- Sheet metal bending: While CNC press brakes are preferred for precision bending, hydraulic presses handle forming operations that require more force over a larger area.
Automotive Industry
Hydraulic presses are critical in automotive manufacturing for producing body panels, doors, hoods, cross-members, and structural components. They are also used for assembly operations like press-fitting bearings, bushings, and pins. Modern automotive plants often use servo-hydraulic presses with robotic loading/unloading for maximum throughput.
Appliance and Electronics
Kitchen appliance housings, washing machine drums, refrigerator panels, and electrical enclosures are commonly formed on hydraulic presses. The ability to control forming speed prevents surface damage on pre-painted or stainless steel sheets.
Rubber and Plastic Molding
Compression molding of rubber seals, gaskets, and plastic components requires the precise temperature and pressure control that hydraulic presses provide. The programmable dwell time ensures complete material curing.
Powder Metallurgy and Ceramics
Compacting metal or ceramic powders into precise shapes (gears, bearings, structural components) demands uniform pressure distribution. Four-column hydraulic presses are the standard choice for powder metallurgy due to their parallelism and force uniformity.
Construction and Infrastructure
Hydraulic presses shape structural steel, form concrete blocks, bend reinforcing bars, and produce pre-stressed cable anchors. They are also used in recycling operations to bale scrap metal, compress waste, and dismantle equipment.
How to Choose the Right Hydraulic Press: Buying Guide
Selecting the right hydraulic press requires balancing your current production needs with future growth. Here are the critical factors to evaluate:
1. Determine Your Required Tonnage
Tonnage is the most fundamental specification. Calculate the force required based on your material, thickness, and operation type:
- Stamping/blanking: Force (tons) = Perimeter (mm) × Thickness (mm) × Shear Strength (N/mm²) ÷ 1000
- Deep drawing: Typically 1.0–1.5× the blanking force, plus blank holder force
- Forging: Depends heavily on material, temperature, and part geometry — consult forging force charts
Always add a 20–30% safety margin above your calculated maximum. This accounts for material variation, future product changes, and prevents running the press at full capacity continuously — which shortens component life.
2. Choose the Right Frame Type
Refer to the comparison table above. For most production stamping and forming applications, a four-column hydraulic press provides the best combination of precision, capacity, and versatility. For smaller workshops or assembly tasks, a C-frame press offers better space efficiency and accessibility.
3. Evaluate Stroke and Daylight
Stroke length is the total distance the ram can travel. Daylight is the maximum opening between the bed and ram at top position. Both must accommodate your tallest die set plus room for part removal. Consider future tooling requirements, not just your current dies.
4. Control System Options
Modern hydraulic presses offer increasingly sophisticated control:
- Basic relay/PLC control: Simple, reliable, low cost. Suitable for single-operation tasks with fixed parameters.
- Touchscreen HMI + PLC: Programmable recipes, real-time monitoring, data logging. The standard for production environments.
- Servo-hydraulic with CNC: Precise position/pressure/speed control throughout the stroke. Ideal for complex forming, multi-step operations, and quality-critical applications.
5. Consider Energy Efficiency
A hydraulic press running two shifts can consume significant electricity. Servo-hydraulic drives cut energy consumption by 30–70% by matching motor speed to actual demand. The upfront cost premium typically pays back within 12–24 months through energy savings alone, plus reduced cooling requirements and longer oil life.
6. Safety Features
Non-negotiable safety requirements include:
- Two-hand anti-tie-down controls
- Emergency stop buttons (multiple, easily accessible)
- Light curtains or safety interlocks on access points
- Overload relief valves (hydraulic overload protection)
- Ram-holding valves (prevent uncontrolled descent on hydraulic failure)
- CE / OSHA / ISO 16092 compliance
7. Total Cost of Ownership
Look beyond the purchase price. Factor in:
- Energy cost: Annual electricity consumption at your utilization rate
- Maintenance: Oil changes, seal replacement, filter costs
- Downtime cost: Reliability and availability of spare parts
- Floor space: Opportunity cost of the footprint
- Installation: Foundation requirements, rigging, electrical connection
⚠️ New vs. Used Hydraulic Press
A used hydraulic press can save 40–60% upfront, but inspect carefully: check for cylinder scoring, seal condition, frame cracks (especially around the throat on C-frames), hydraulic system pressure test results, and electrical system age. A machine with a worn cylinder or damaged frame may cost more to rebuild than buying new. Always request maintenance records and run the press under load before purchasing.
Hydraulic Press Maintenance: Best Practices
Proper maintenance is the single biggest factor determining a hydraulic press's service life and reliability. A well-maintained press can operate for 20–30 years. Here is a practical maintenance schedule:
| Frequency | Task | Why It Matters |
|---|---|---|
| Every shift | Check oil level, inspect for visible leaks, verify pressure gauges | Prevents low-oil damage and catches leaks early |
| Weekly | Lubricate guide columns, check safety devices, clean filters | Reduces wear, ensures operator safety |
| Monthly | Inspect cylinder seals, check hose condition, test relief valves | Prevents seal failure and hose blowouts |
| Quarterly | Oil sample analysis, verify pressure gauge accuracy, check electrical connections | Detects contamination before it causes damage |
| 2,000–4,000 hours | Full oil change + filter replacement | Degraded oil causes accelerated wear throughout the system |
| Annually | Full system inspection, calibrate controls, check frame alignment | Catches developing issues before they become failures |
💡 Pro Tip: Hydraulic Oil Is the Lifeblood
Over 70% of hydraulic system failures are caused by contaminated or degraded oil. Invest in regular oil analysis — it costs less than $30 per sample and can predict pump, valve, and cylinder problems months before they cause a breakdown. Keep the reservoir clean, use quality filters (10-micron minimum), and never mix different oil brands or types.
Hydraulic Press Industry Trends for 2026
The hydraulic press market is evolving rapidly. Here are the key trends shaping the industry:
- Servo-hydraulic drives: Becoming the standard for new installations. Energy savings of 30–70% make the business case compelling even for smaller workshops.
- IoT and Industry 4.0: Sensors monitoring pressure, temperature, vibration, and cycle times — feeding data to cloud platforms for predictive maintenance and production analytics.
- Hybrid electric-hydraulic systems: Combining electric direct drives for fast approach with hydraulic power for the working stroke, optimizing both speed and force.
- Automation integration: Robotic loading/unloading, vision systems for part inspection, and conveyor integration are becoming standard rather than premium options.
- Compact servo presses: For applications under 200 tons, fully electric servo presses are gaining ground where speed and precision matter more than raw tonnage.
- Sustainable manufacturing: Biodegradable hydraulic fluids, energy recovery systems, and reduced-footprint designs align with manufacturers' ESG commitments.
Frequently Asked Questions
What is a hydraulic press machine used for?
A hydraulic press machine is used for a wide range of metal forming and manufacturing tasks, including stamping, deep drawing, blanking, punching, forging, straightening, and assembly press-fitting. It is common in automotive, aerospace, appliance, construction, and general metal fabrication industries.
How does a hydraulic press work?
A hydraulic press works based on Pascal's law. A motor-driven pump pressurizes hydraulic fluid and sends it to a large cylinder. Because the piston in the large cylinder has a much greater surface area than the pump piston, a small input force is multiplied into a very large output force — often hundreds or thousands of tons — that pushes the ram downward to perform the pressing operation.
What is the difference between a C-frame and a four-column hydraulic press?
A C-frame (gap-frame) hydraulic press has an open, C-shaped structure that allows three-sided access to the work area, making it ideal for smaller parts and quick loading. A four-column hydraulic press uses four vertical columns to guide the ram, distributing force evenly across the entire platen. Four-column presses are preferred for larger workpieces and applications requiring higher precision and tonnage.
How much does a hydraulic press machine cost?
Hydraulic press pricing varies significantly based on tonnage, type, and features. Small C-frame workshop presses (10–50 tons) may cost $3,000–$15,000. Medium four-column presses (100–300 tons) typically range from $20,000–$80,000. Large industrial presses (500+ tons) with servo systems and automation can exceed $150,000. Chinese manufacturers generally offer 30–50% lower pricing compared to European or American brands at similar specifications.
What tonnage hydraulic press do I need?
The required tonnage depends on your material type, thickness, part size, and the forming operation. As a general guideline, mild steel stamping requires approximately 25 tons per square inch of cut area. Deep drawing, forging, and compression molding need higher tonnage. It is recommended to choose a press with 20–30% more capacity than your calculated maximum to handle material variation and future needs.
What maintenance does a hydraulic press require?
Key maintenance tasks include: checking hydraulic oil level and quality every shift, replacing hydraulic oil and filters every 2,000–4,000 operating hours, inspecting seals and cylinders for leaks monthly, lubricating guide columns and moving parts weekly, verifying pressure gauge accuracy quarterly, and calibrating the control system annually. Proper maintenance can extend machine life to 20+ years.
